RF Venue 2X1SPLIT Passive 2X1 RF Signal Splitter/Combiner with BNC Female Connectors for Wireless Audio Systems

2X1SPLIT - Overview

• Features:

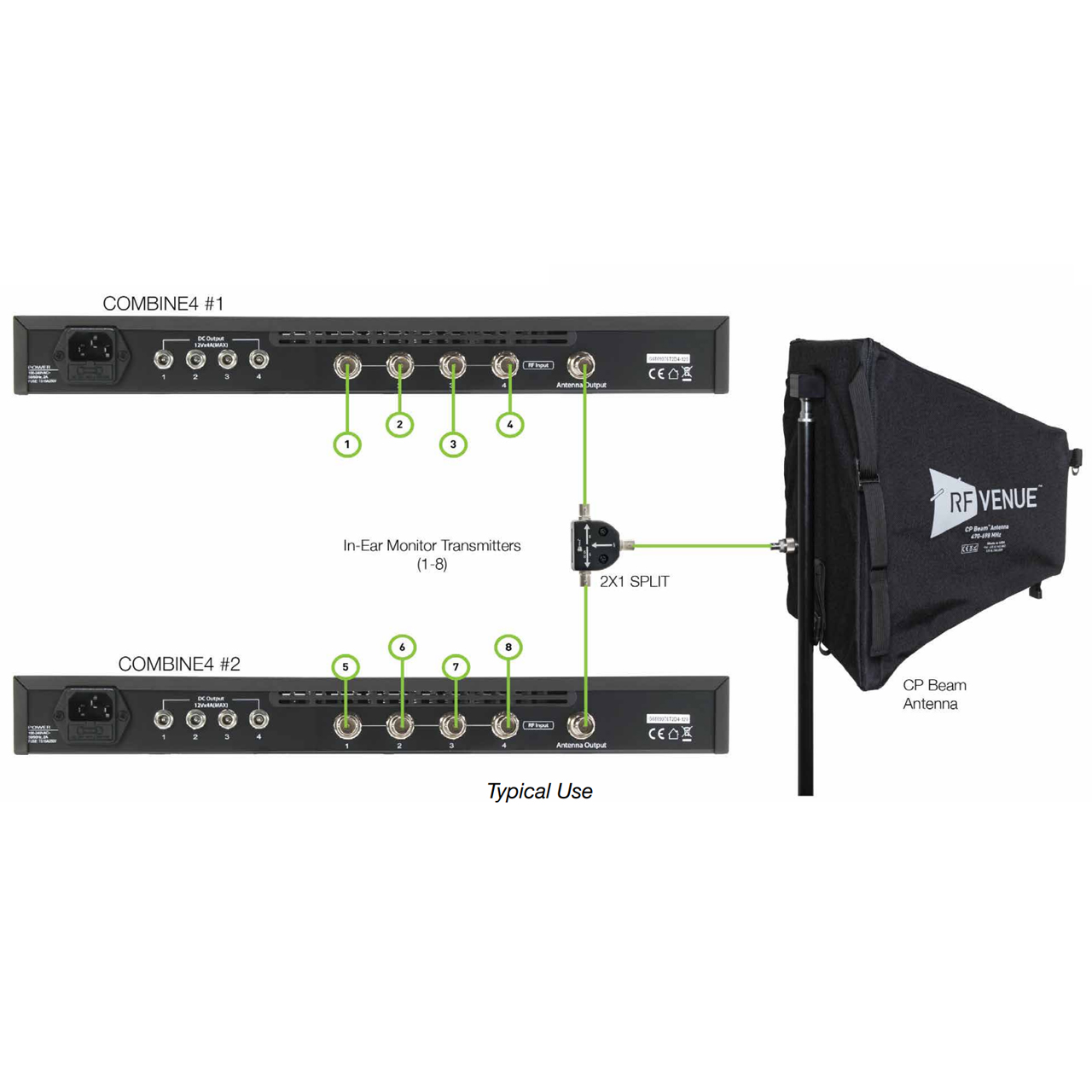

  • One BNC antenna in and two BNC out, or two BNC antennas in and one BNC out.
  • R1 channel passes 12VDC if DC over coax is provided.


• Specifications:

  • RF Carrier Frequency Range: 10-1,000 MHz
  • VSWR: 1:2
  • Impedance: 50Ω
  • Isolation: 20 dB
  • Insertion Loss: 2 dB
  • Max Power into ANT Input: 30 dBm
  • Max Power to Each of R1 & R2: 26 dBm
  • Power Requirements: 12V DC, 100ma
  • Dimensions: 3.00" x 2.00" x 1.00"
  • Weight: 0.14lbs


• Item Includes:

  • 1x RF Venue 2X1SPLIT Passive 2X1 RF Signal Splitter/Combiner with BNC Female Connectors


• GTIN:

  0718122340712
