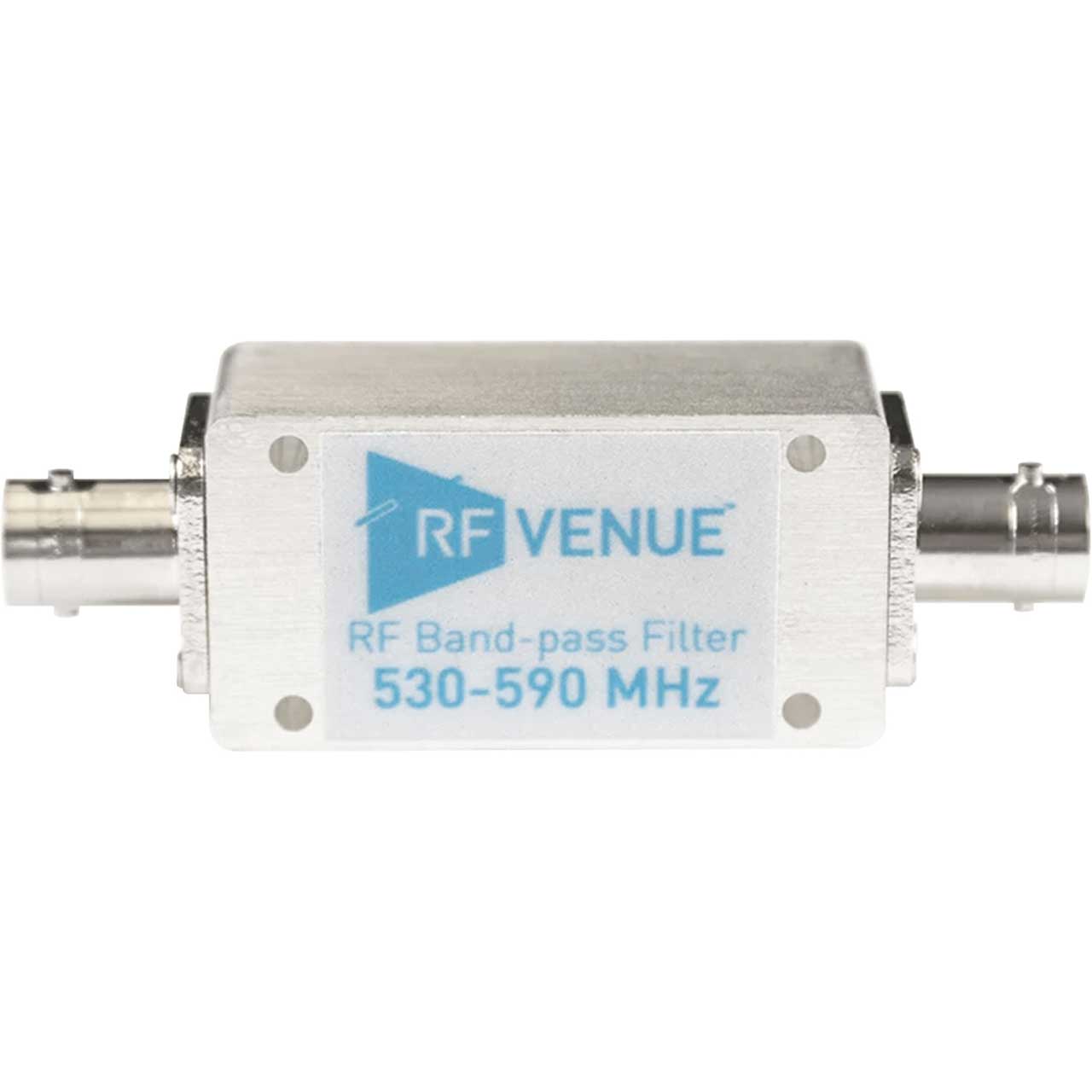

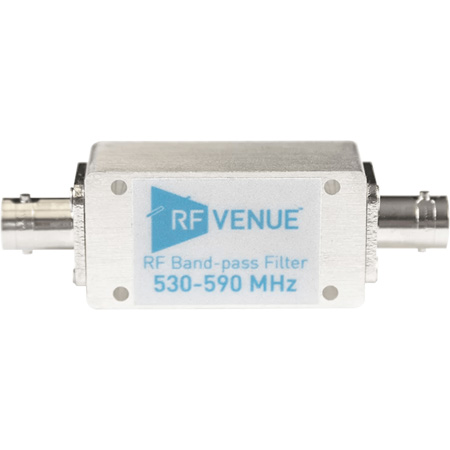

RF Venue BPF530T590 Band-pass RF Filter 530-590 Mhz

ITEM #: RFV-BPF530T590 MFG #: BPF530T590

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$440.00

Our Price:

$419.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BPF530T590 - Overview

    The RF Venue BPF530T590 band-pass filter helps eliminate "out of band" signals that can saturate the front end of wireless microphone receivers and can greatly improve dynamic range by reducing noise and third party interference outside the range of operation.

    Featuring industry standard BNC connectors and a small 3" x 1.75" footprint, these hand-tuned band-pass filters require no power or user configuration and can be easily connected in-line with wireless microphone antennas to reduce noise and improve wireless system performance.

    Simply connect the band-pass filter in-line with your wireless microphone remote antenna connections for 40 dB of side rejection. Note: (2) required for diversity wireless microphone systems.

    470-530 MHz Band-pass Filter Compatibility:
    -Shure G50, G1
    -Audio-Technica DE2

    • Features:

      • 530-590 MHz Band-pass Filter Compatibility

    • Specifications:

      • Pass Band: 530-590MHz
      • Insertion Loss Max: 3.5 dB
      • Ripple In-band Max: 1.5 dB
      • VSWR Max: 1.5

        Rejection
      • 40dB @ DC-500 MHz
      • 20dB @ 500-508 MHz
      • 20dB @ 613-619 MHz
      • 40dB @ 619-1000 MHz

      • Power: 2 W
      • Temp: -30 to 70°C

    • Item Includes:

      • 1x RF Venue BPF530T590 Band-pass Filter 530-590 Mhz

    • GTIN:

      0602573615201
