RF Venue COMB4CP-ARC Circularly Polarized Wall/Ceiling Mounted Architectural Antenna & 4-Ch IEM Combiner with 25ft RG8X

ITEM #: RFV-COMB4CP-ARC MFG #: COMB4CP-ARC

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,574.00

Our Price:

$1,499.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    COMB4CP-ARC - Overview

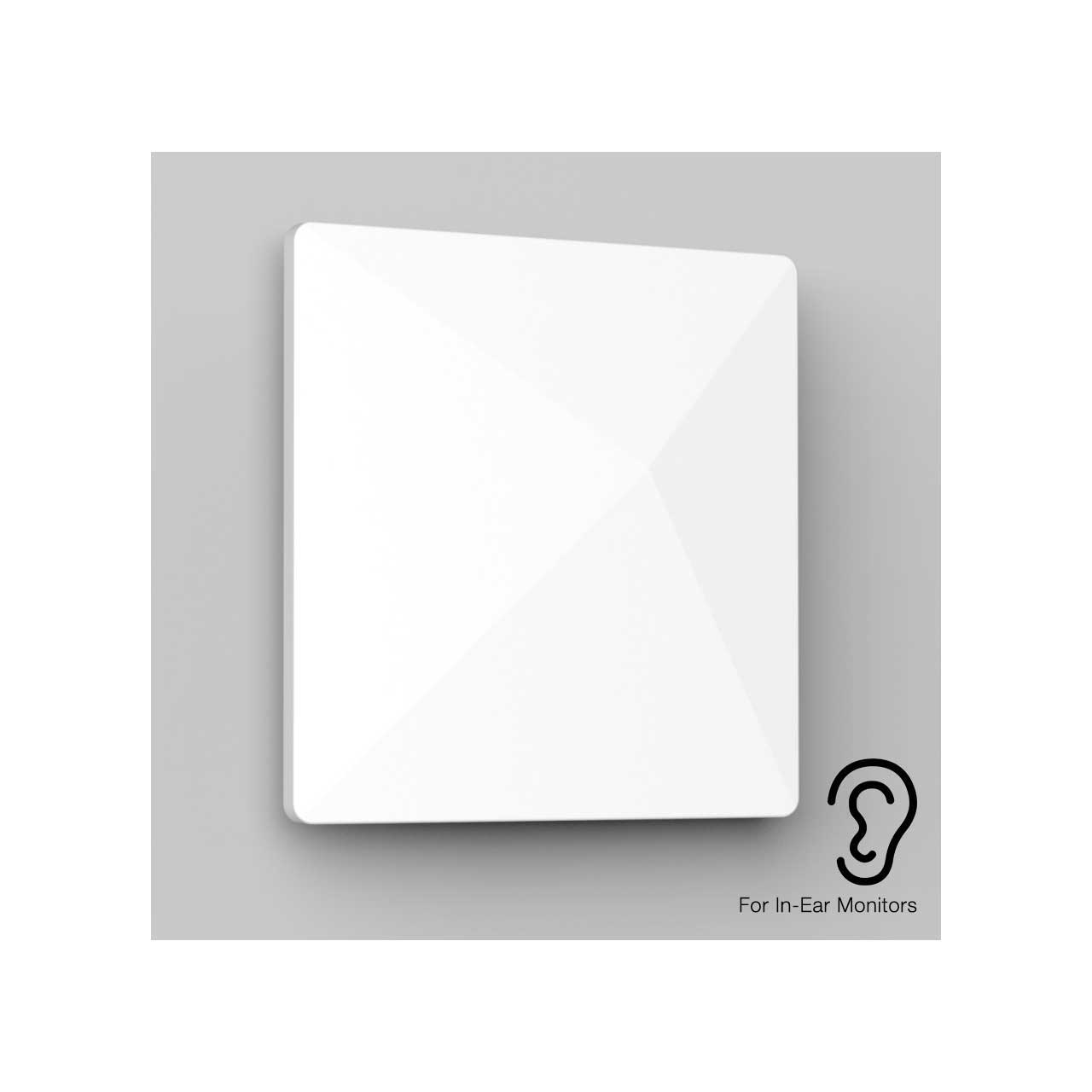

    The CP Architectural Antenna by RF Venue is a high performance antenna for installed in-ear monitor systems (IEMs). Featuring a slim profile enclosure, the CP Architectural Antenna can be installed on a wall or ceiling and can be painted to match any interior. Unlike LPDA or "paddle" antennas with a fixed polarization, the CP Architectural Antenna uses a unique circularly polarized design to provide excellent transmit signal coverage for IEMs with a highly polished and professional look that room designers and architects appreciate.

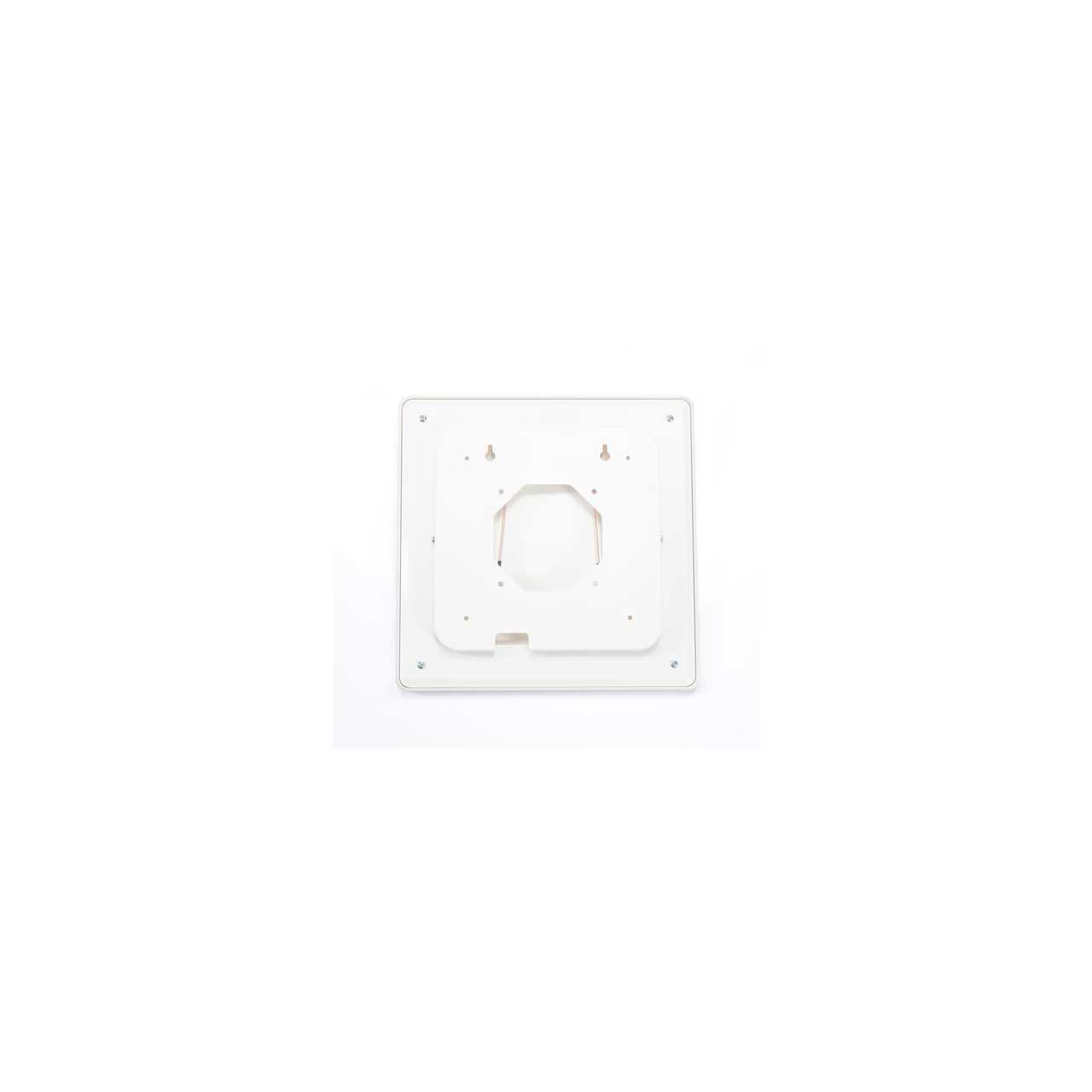

    The CP Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the rear-mounted BNC terminated coaxial cable to your in-wall or in-ceiling coaxial cable run and the CP Architectural is ready for use.

    The CP Architectural antenna builds on the highly acclaimed foldable CP helical antenna, eliminating the most common signal dropouts while reducing noise and interference. Ideally suited for houses of worship and other installed IEM venues, the CP Architectural Antenna fits any interior design and delivers professional RF performance in the same sleek industrially designed enclosure as the popular Diversity Architectural Antenna for wireless microphones.

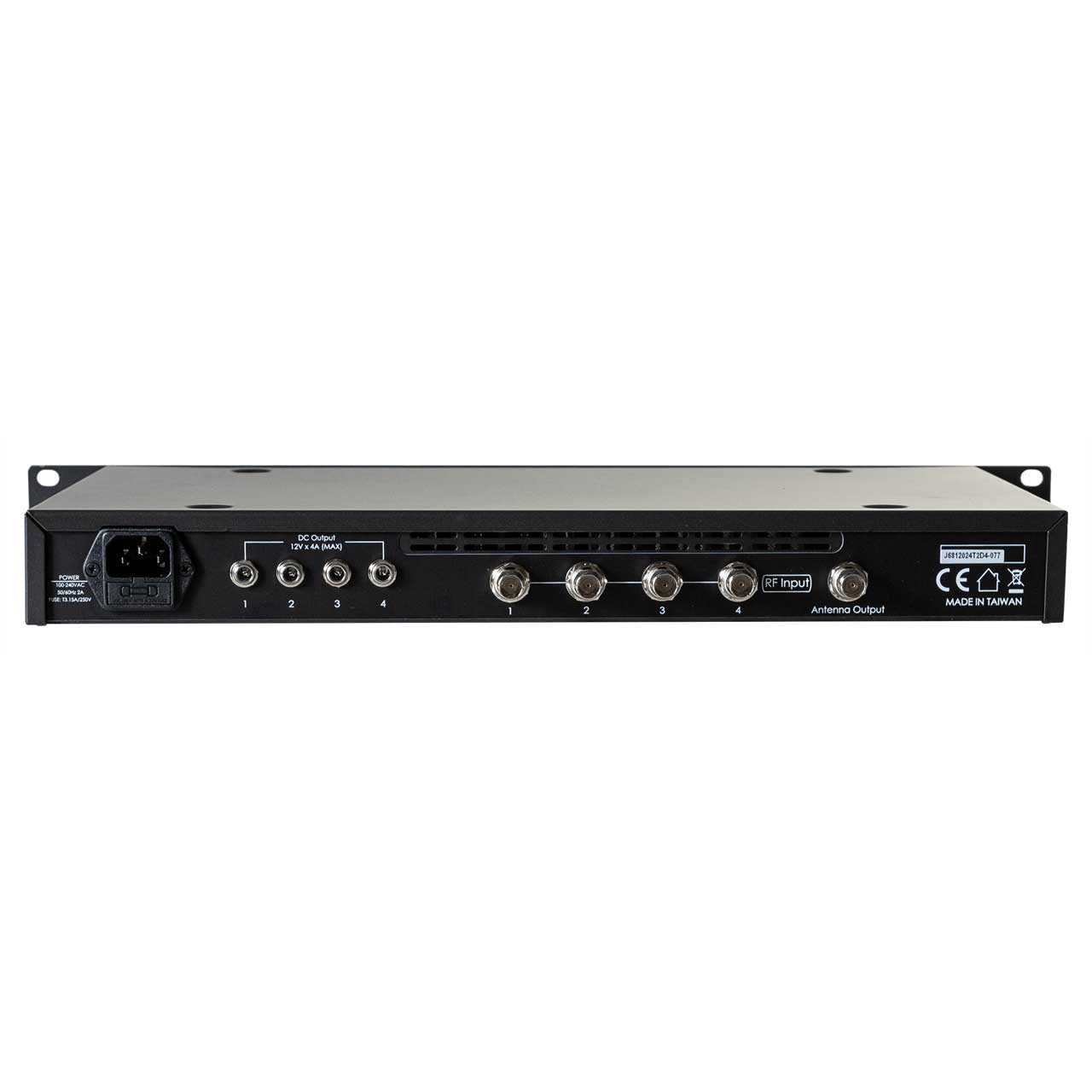

    The COMBINE4 IEM transmitter combiner brings together up to four in-ear monitor transmitter signals into a single front panel mounted antenna connector. Any brand IEM may be used, as well as any type of directional antenna. It also provides DC power to up to four IEM transmitters to reduce cable clutter and wallwarts. IEM transmitter combination is important for multi-channel systems to minimize intermodulation products arising from multiple adjacent antennas interfering with one another. COMBINE4 has a maximum input power of 100mW. Bundle includes a 25 foot white RG8X coaxial cable.

    • Features:

      • Blends into any background
      • Doesn't Drop Out
      • Designed specifically for IEMs
      • Circularly polarized performance in a sleek package

    • Specifications:

      • COMBINE4
      • Frequency Range: 470 - 960MHz
      • Input Connectors: 4x BNC
      • Full System Gain: 0dB (±2dB)
      • Maximum RF Input Power: +20dBm (100mW)
      • LED Indicator (Input Signal Threshold): > 5dBM (Threshold power)
      • Power Consumption: 60W
      • I/O: 4x RF inputs; 1 antenna out; 4 DC outputs
      • Input AC Voltage: 100 - 240 VAC, 50/60Hz, Max 2A
      • Output DC Voltage: 12V. 1A max (4 outputs total 48W)
      • Dimensions HxWxD): 1.77" x 18.9" x 10.24"
      • Weight: 5.07lbs

        CP Architectural Antenna
      • Operating frequency: 400-800 MHz
      • Bandwidth: 400 MHz
      • Average return loss: 10 dB
      • Impedance: 50Ω
      • Pattern type: Flood
      • Polarization: RHCP
      • Beam width: 120°
      • Gain @ 500MHz: 2.5dBi
      • Dimensions: 11" x 11" x 2"
      • Weight: 2 lbs
      • Mount location: wall or ceiling
      • Operating temperature: 14-104°F
      • Color: White
      • Connector(s): BNC female

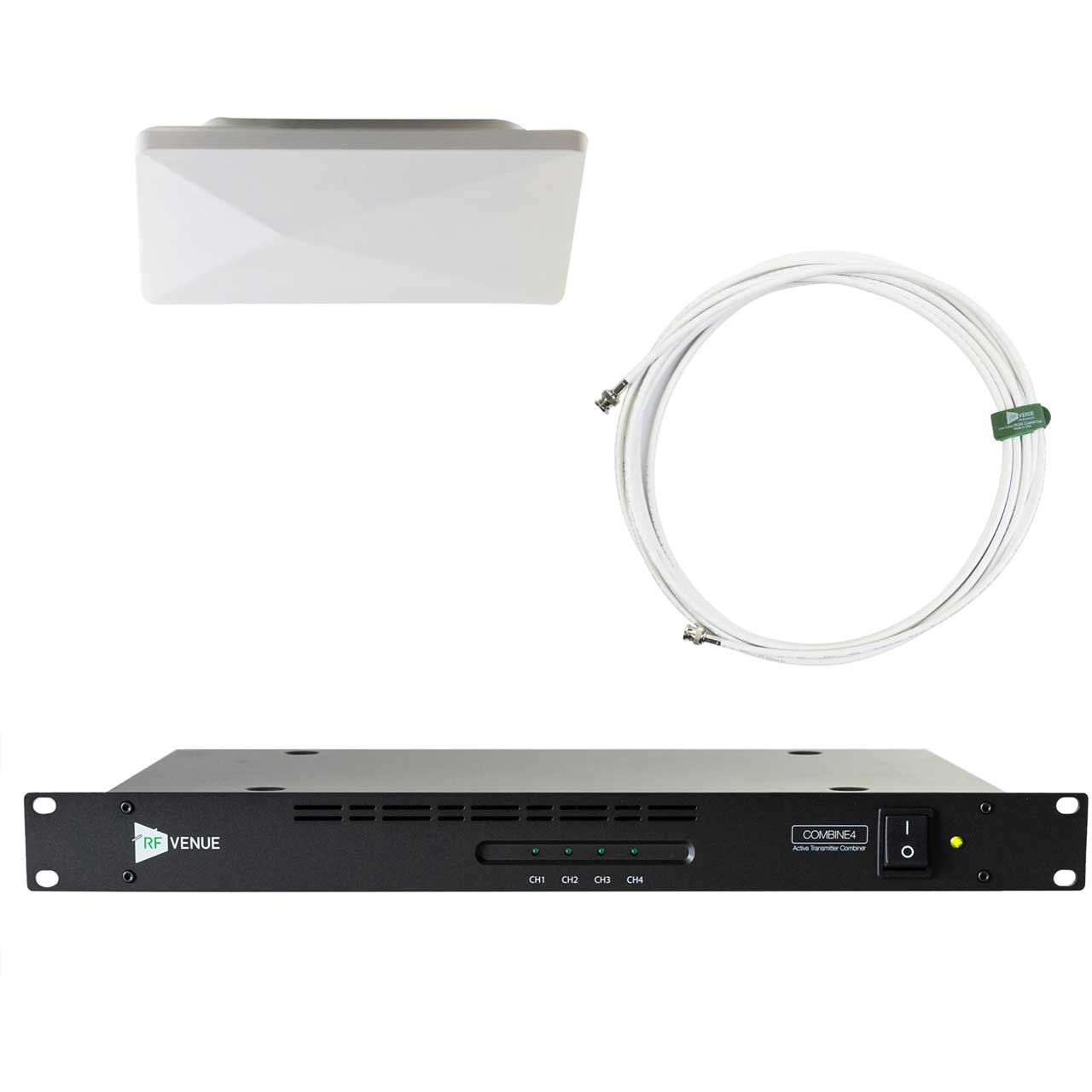

    • Item Includes:

      • 1x Architectural Antenna with wall/ceiling mount
      • 1x COMBINE4 Antenna Combiner with 4x BNC jumpers, 4x DC jumpers, and 1x AC power cable
      • 1x 25' RG8X BNC cable
