RF Venue COMB4CPB 4 Channel IEM Transmitter Combiner with CP Beam Antenna Bundle

ITEM #: RFV-COMB4CPB MFG #: COMB4CPB

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,784.00

Our Price:

$1,699.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    COMB4CPB - Overview

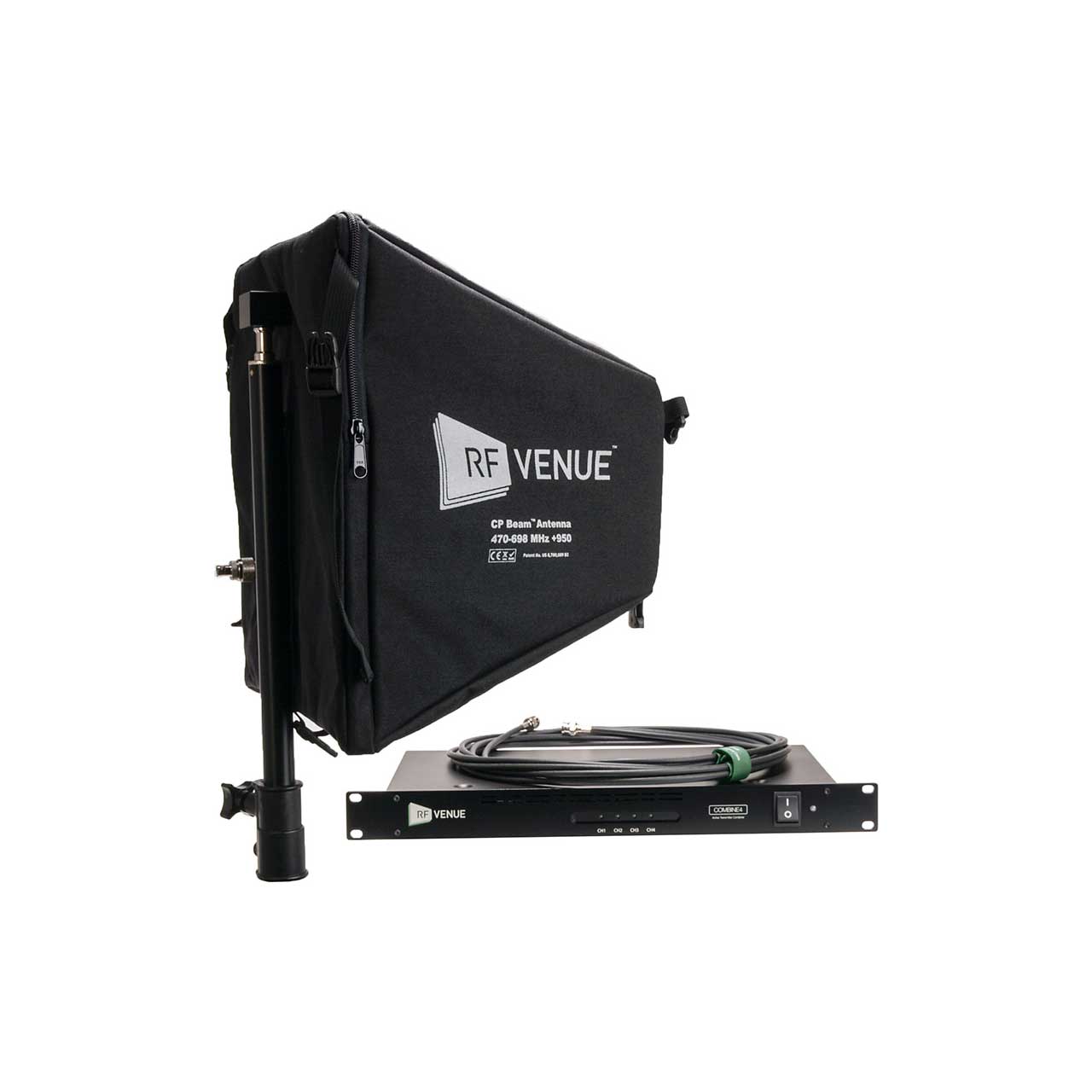

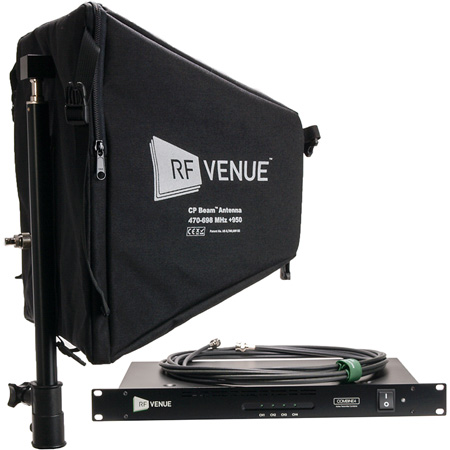

    The COMB4CPBfrom RF Venue is a bundled package containing the COMBINE4 Signal Combiner and the CP Beam Antenna.

    The COMBINE4 transmitter combiner brings together up to four in-ear monitor transmitter signals into a single front panel mounted antenna connector. Any brand IEM may be used, as well as any type of directional antenna. It also provides DC power to up to four IEM transmitters to reduce cable clutter and wallwarts. IEM transmitter combination is important for multi-channel systems to minimize intermodulation products arising from multiple adjacent antennas interfering with one another. COMBINE4 has a maximum input power of 100mW.

    The CP Beam antenna is a high performance, directional UHF antenna in a lightweight, portable package. Unlike other bulky helicals that require flight cases, the CP Beam is quickly deployed and stowed - fitting in a 2RU rack drawer and weighing just 2.5 lbs. 9 dBd of gain makes it an ideal choice for long range applications. Widely used on major concert tours for monitoring and comms, the CP Beam connects to any brand IEM, wireless mic, or UHF intercom.

    • Specifications:

      • COMBINE4
      • Frequency range: 470-960 MHz
      • Input connectors: 4X BNC
      • Full system gain: 0 dB (±2 dB)
      • Maximum RF input power: +20 dBm (100 mW)
      • LED indicator (input signal threshold): > +5 dBM (Threshold power)
      • Power consumption: 60 W
      • I / O: 4X RF inputs. 1 antenna out. 4 DC outputs.
      • Input AC voltage: 100~240 VAC, 50/60 Hz, Max 2A
      • Output DC voltage: +12 V. 1 A max (4 outputs total 48 W)
      • Dimensions: 480(W) X 45(H) X 260(D) mm
      • Weight: 2.3 Kgs
        CP Beam Antenna
      • Operating frequency: 470–698 MHz + 950 MHz
      • Bandwidth: 228 MHz
      • Average return loss: -13.15 dBm
      • Impedance: 50Ω
      • Length: 355mm
      • Height: 355mm
      • Weight: 1100g
      • Mount threads: 1/4-20, 3/8-16, 5/8-27
      • Operating temperature:-23°C – 54°C
      • Color: Black fabric
      • Connector(s): N female
      • Pattern type: Beam
      • Polarization: RHCP
      • Azimuth X Beam width: 63°
      • F/B ratio: -10 dBm
      • F/S ratio: -12 dBm
      • Gain: < 5 dB

    • Item Includes:

      • 4 Channel IEM Transmitter Combiner
      • CP Beam Antenna
      • (1) 25’ RG8X Coaxial Cable
      • (4) BNC Jumpers
      • (4) DC Cables
      • (1) AC Cable
