    COMB8CPB - Overview

    Introducing the COMB8CPB IEM Performer's Pack from RF Venue. A complete system, engineered to work together to combine up to 8 IEM transmitters of any brand into a single helical antenna. The CP Beam helical antenna also steps up an IEM system's transmitting power by nearly 8X, focusing the signal directly on your performers and not scattering the signal where it isn't needed. This allows you to use the lowest possible setting of your transmitter's output power which greatly reduces intermodulation interference to both your wireless mics and your IEMs. An extra benefit that improves RF signal and audio quality!

    About the CP Beam Antenna
    The CP Beam™ Antenna is a lightweight, circularly polarized beam antenna that doesn't drop out and is designed to ensure a consistent signal with in-ear monitors (IEMs), wireless microphone systems, and other UHF communication devices.

    The CP Beam is easy to set up and transport - fitting in a 3RU rack drawer and weighing just 2.5 lbs - and compresses for easy storage (see the before and after compression). Unlike other bulky helical antennas that require flight cases, the CP Beam is quickly deployed and stowed.

    About the COMBINE8

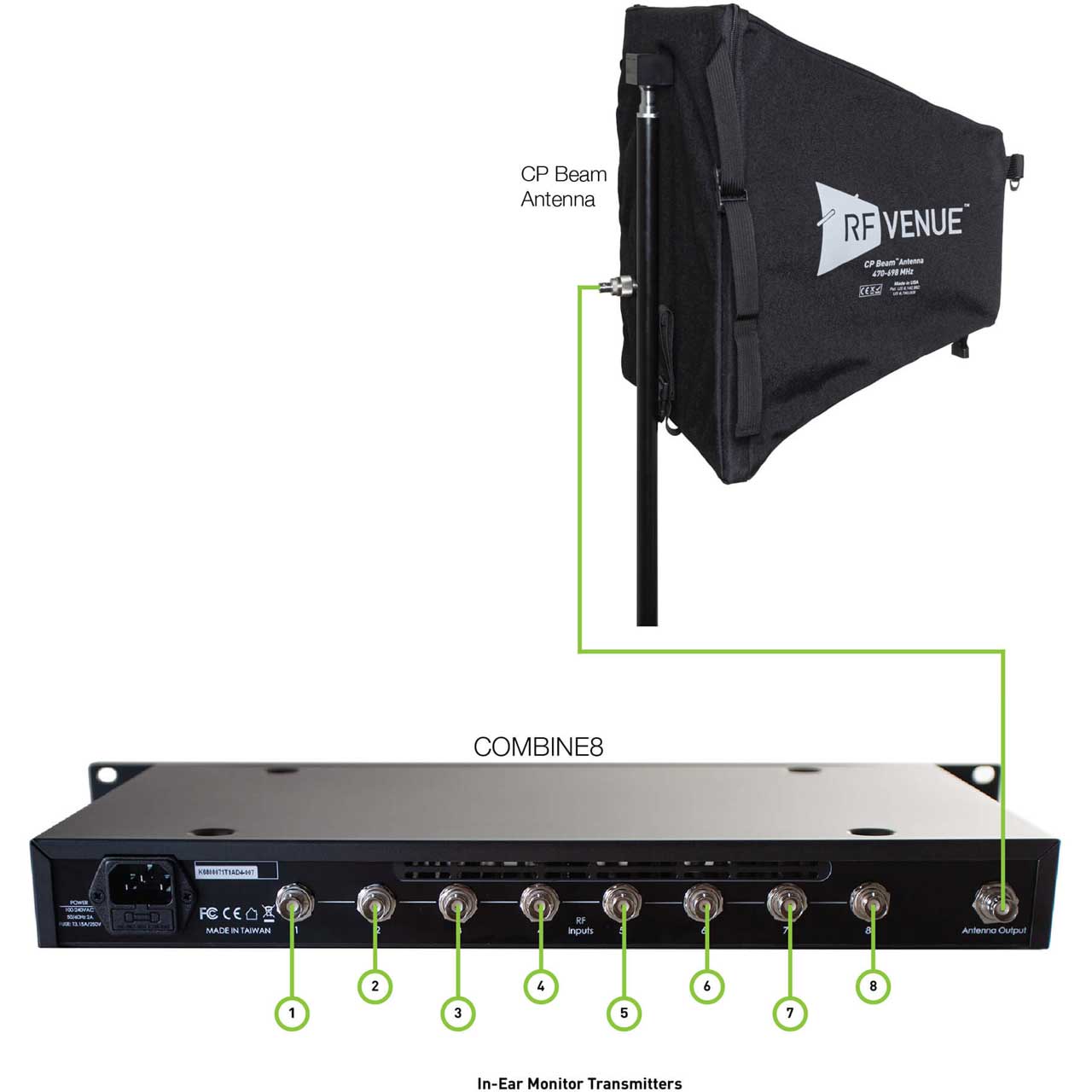

    The COMBINE8 IEM combiner brings together up to eight in-ear monitor transmitter signals into a single rear panel mounted antenna connector.

    Any brand IEM set to transmit 50 mW or less may be used, as well as any type of directional antenna. It also provides DC power to up to 8 IEM transmitters with an external power supply, removing the need for wall warts.

    IEM transmitter combination is important for multi-channel systems to minimize intermodulation artifacts arising from multiple adjacent transmitters interfering with one another.

    About RF Venue Coaxial Cables
    Coaxial cabling can make the difference between flawless RF performance and total system failure. Even the slightest crimp or ding in coaxial cable can cause signals to drop sharply or short out.

    RF Venue provides premium made in USA low loss, 50O RG8X coaxial cable with BNC male connectors for wireless audio applications. Our cables are custom made to our specifications: double shielded braid over foil with a perfect balance between loss and flexibility. All cables are terminated in-house and QC on calibrated Agilent network analyzers for guaranteed performance. RF Venue stocks a variety of lengths from 5' to 150'.

    • Features:

      • Freedom to place one directional antenna outside the rack for better line-of-sight and improved wireless performance
      • 1RU Full rack width to install near transmitters. Includes cabling accessories to connect and power up to eight wireless transmitters
      • Compatible with all manufacturers
      • CP BEAM High Gain Folding Helical Antenna
      • Avoid Dropouts with IEMs

    • Specifications:

      • COMBINE8
      • Frequency Range: 470-608MHz
      • Input Connectors: 8x BNC
      • Full System Gain: 0dB (±2 dB)
      • Maximum RF Input Power: +18 dBm (60 mW)
      • LED Indicator (input signal threshold): > +5 dBM (threshold power)
      • Power Consumption: 36 Watts
      • I/O's: 8x RF Inputs, 1x antenna out
      • Input AC Voltage: 100-240 VAC, 50/60Hz - Max 1.5A
      • Dimensions: 480 x 45 x 260 mm
      • Weight: 8.15lb

        CP BEAM
      • Operating Frequency: 470-698 MHz
      • Bandwidth: 228 MHz
      • Average Return Loss: -13.15 dB
      • Impedance: 50Ω
      • Pattern Type: Beam
      • Polarizatio: RHCP
        Azimuth X:
      • Beam Width: 63°
      • F/B Ratio: -10 dB
      • F/S Ratio: -12 dB
        Azimuth Y:
      • Beam width: 70°
      • F/B ratio: -9 dB
      • F/S ratio: -12 dB
      • Squint: < 2 dB
      • Gain: 9 dBd

        Physical
      • Length: 355mm
      • Height: 355mm
      • Weight: 1100g
      • Mount threads: 1/4-20, 3/8-16, 5/8-27
      • Operating temperature: -23°C-54°C
      • Color: Black fabric
      • Connector(s): N female (BNC supplied)

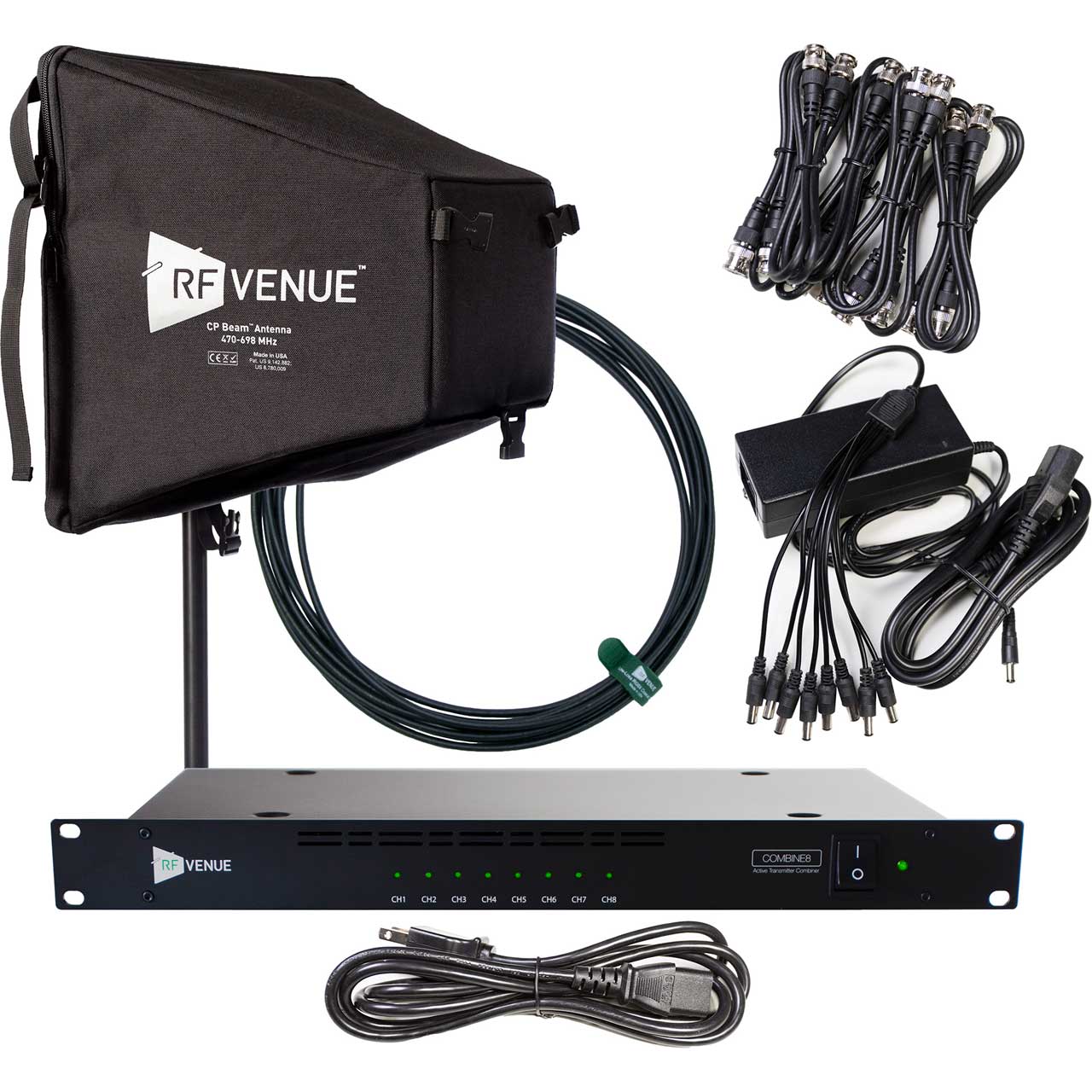

    • Item Includes:

      • 1x CP Beam Antenna (CPB) for In-Ear Monitors
      • 1x COMBINE8 transmitter combiner
      • 1x RG8X25 Coaxial Cables BNC
      • 1x Auxiliary power cable

    • GTIN:

      0672975227128
