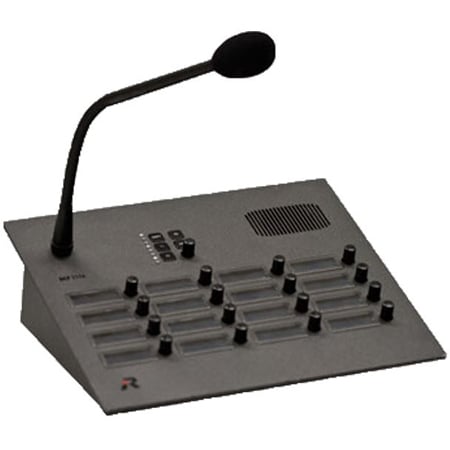

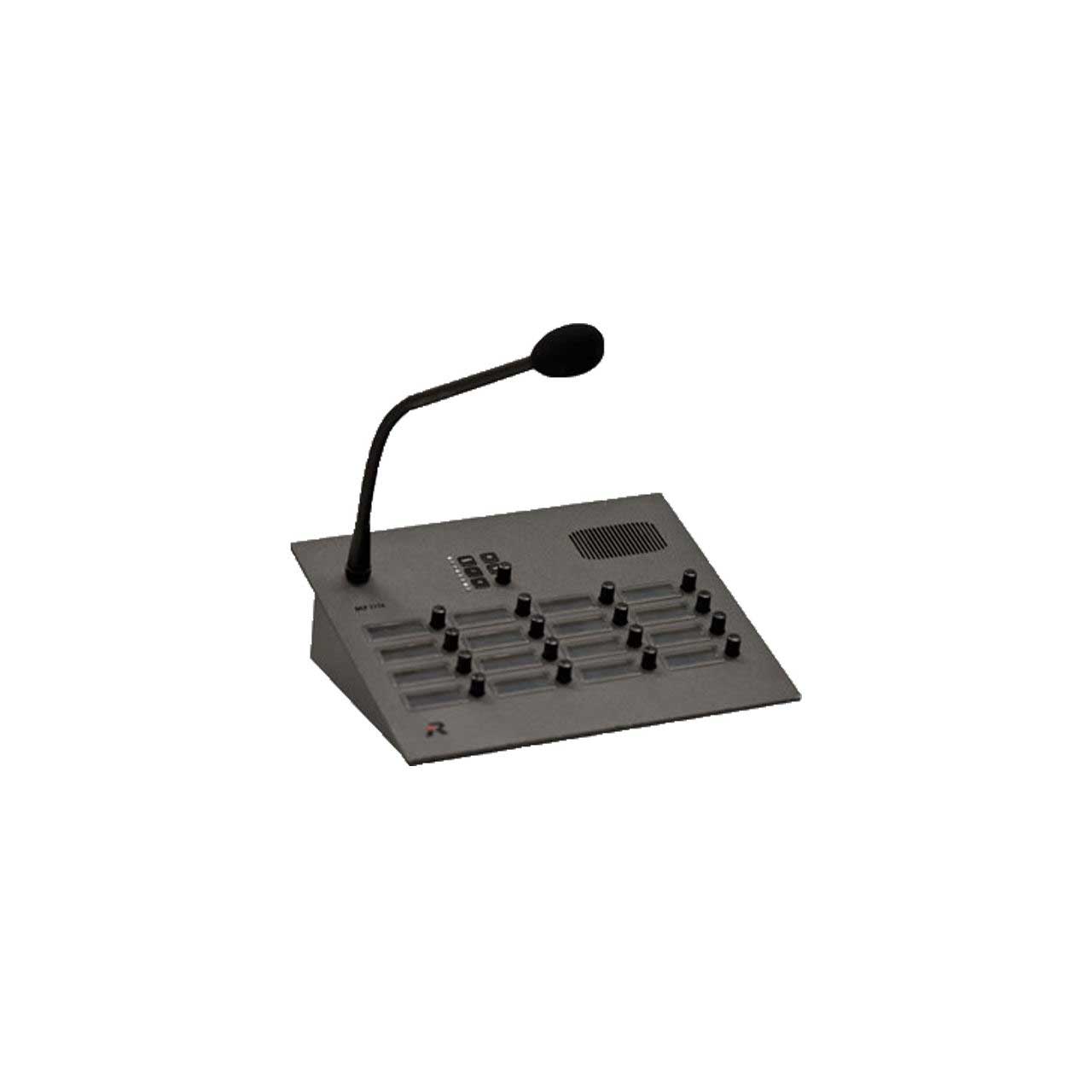

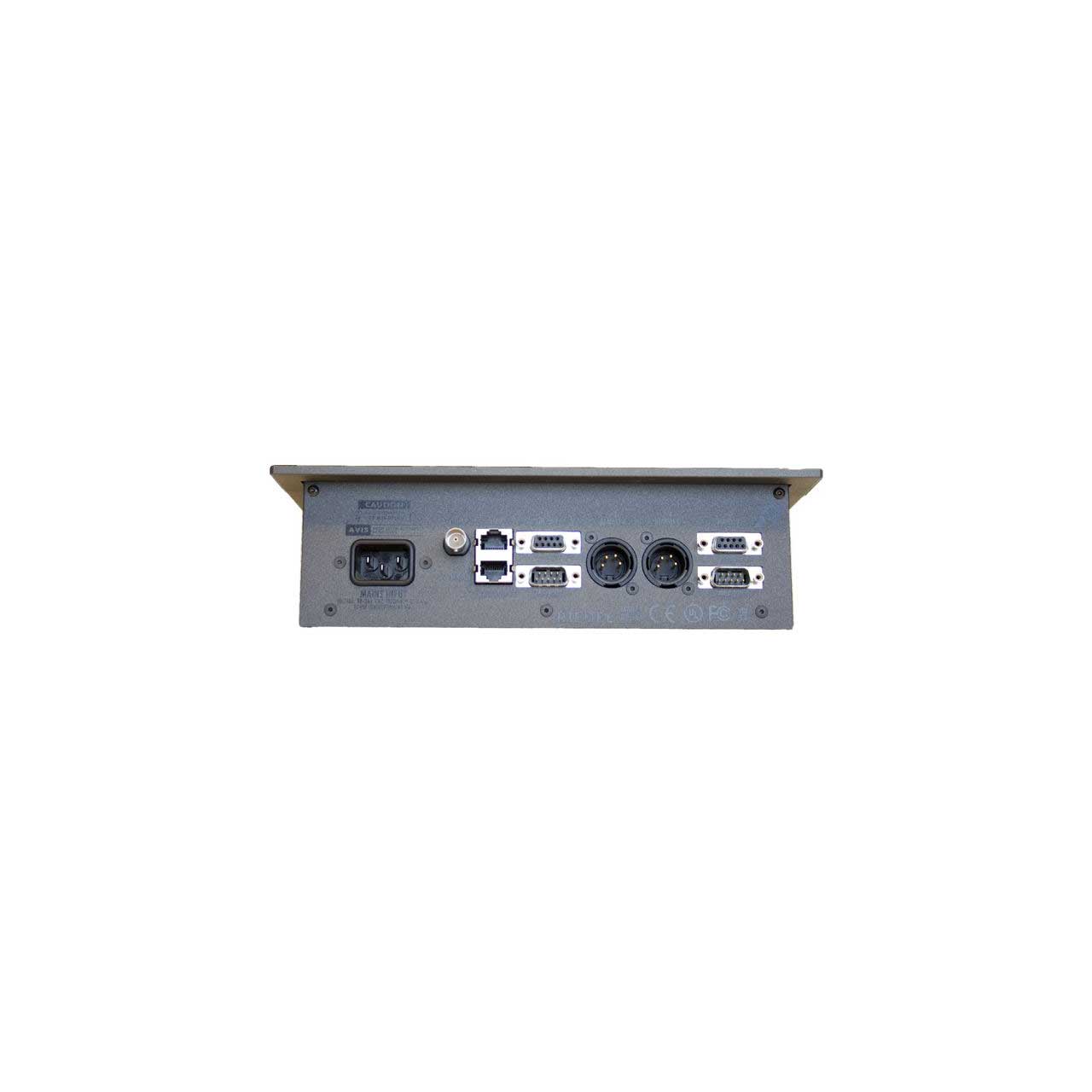

The Riedel DCP-1116 is a desktop control panel with 16 OLED colour display keys; 8 characters per key; individual volume control per key; 5 function keys; 1 shift page; master level control; 2x 4-pin XLR headset connector; built-in loudspeaker; 3 GPI I/Os; auxiliary connector for external microphone and external loudspeaker; 2 external headset connectors and 2 analog balanced audio inputs and outputs; matrix link: BNC (75 ohms coax cable) or RJ-45 (CAT-5 cable); integrated power supply; gooseneck microphone (e.g. MIC-30 6390004) not included.
Following Riedel's intuitive concept of integrated displays in the panel keys, the 1100 series features high-res color OLEDs. With 65,000 colors and a resolution of 140 dpi these new displays provide excellent readability and are able to show highly detailed characters and icons of up to 24x24 pixels. The panel provides individual rotary encoders for adjusting the listen level of each talk key. An option slot for additional modules prepares the control panel for future technology developments
