Riedel RSP-2318 19-Inch / 1RU SmartPanel Platform with 18x Keys / 3x Multi-Colored High-Res Touch Display & Power Supply

ITEM #: RI-RSP-2318 MFG #: 1220100

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$2,330.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


1220100 - Overview

App expandable platform engineered for broadcast, live events, and networked intercom!

The Riedel RSP-2318 SmartPanel is the world's first SmartPanel designed as a powerful multifunctional user interface. Its connectivity via AES67 or AVB and the bright multi-touch displays makes this SmartPanel the best in its class. Together with the Riedel Intercom App (RSP-2318-APP-PRO sold separately), the RSP-2318 hardware turns into a powerful Intercom Key Panel. This compact 1RU, 18-key intercom panel featues 3 high-resolution, sunlight-readable multi-touch color displays. It's natively compliant with SMPTE 2110-30 (AES67), AVB and AES3 and can route and control MediorNet media networks supporting up to 4 expansion panels for up to 114 keys in 5RU. The panel is backwards compatible with Artist, Tango and Performer intercom systems.

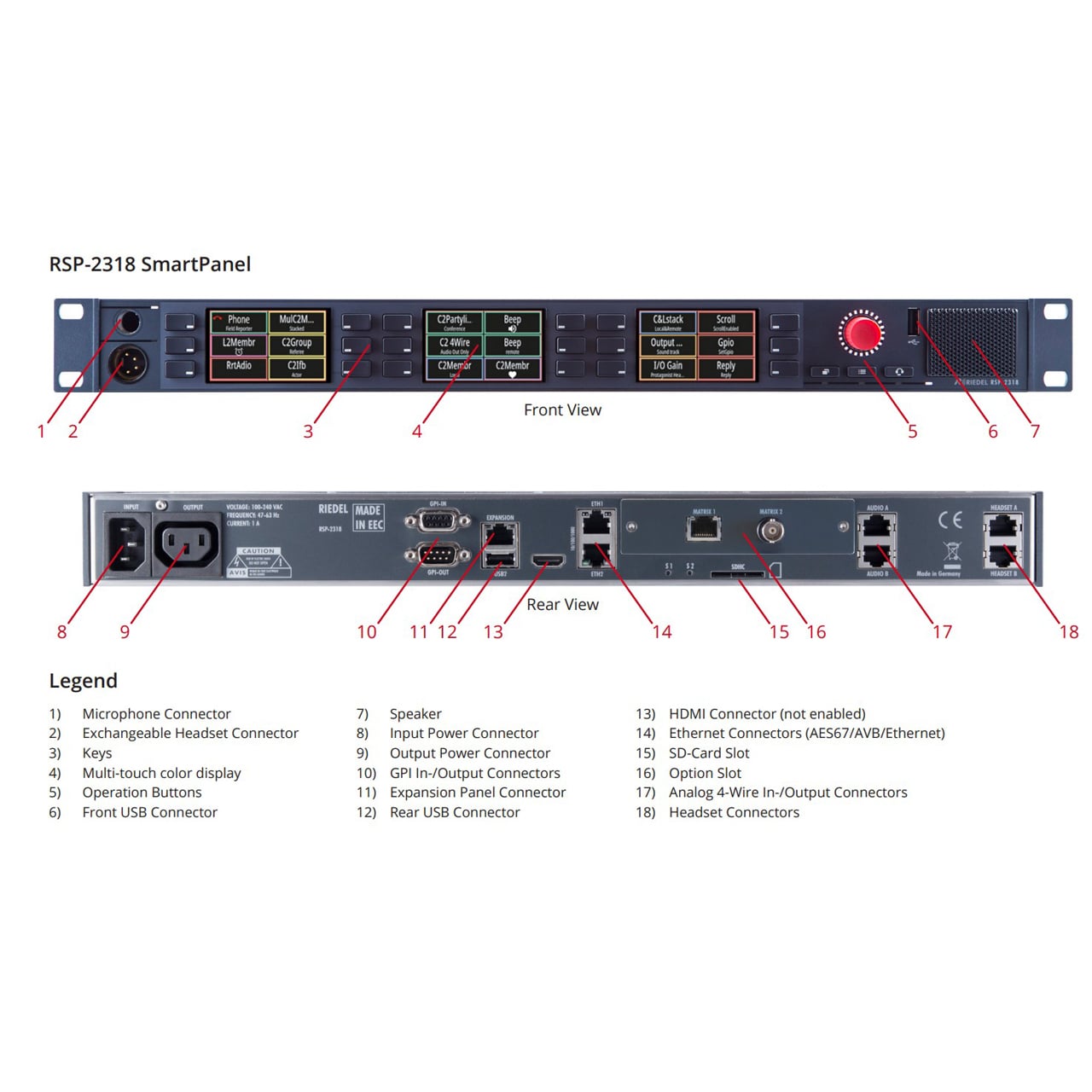

  • Features:

    • 19" rack size with 1 RU dimension
    • Integrated Rack Ears for quick install
    • 3x Multi-touch Color Displays
    • 18x Keys
    • 2x Ethernet ports (AES67/AVB/Ethernet)
    • 2x USB ports
    • 1x Option slot

  • Specifications:

    • Keys: 18x software-assignable keys with individual volume control
    • Displays: 3x high-resolution, sunlight-readable multi-touch color
    • Expansion: Up to 4x expansion panels (up to 114x keys in 5RU)
    • Headset Connector: 2x RJ45 (Headset A/B)
    • Matrix Connectivity: SMPTE 2110-30 (AES67) native; also AVB and AES3 compatible
    • Applications: Intercom App and MediorNet Control App on the same device
    • Compatibility: Backwards compatible with Artist, Tango and Performer intercom systems
    • Form Factor: 19", 1RU
    • Dimensions (WxHxD): 17.56" x 1.73" x 3.11" (446mm x 44mm x 79mm)
    • Weight: 3.75lbs (1.7kg)
    • Power Supply Voltage: 100V - 240VAC, 50/60Hz (redundant)
    • Power Consumption: <=30W
    • Operating Temperature: 32°F - 113°F (0°C - 45°C)

  • Item Includes:

    • 1x RSP-2318 SmartPanel Hardware Unit with integrated Rack Ears for quick mounting - 1 RU
    • 1x AC Power Cable
    • 1x Quick Start Guide with Safety Instructions
