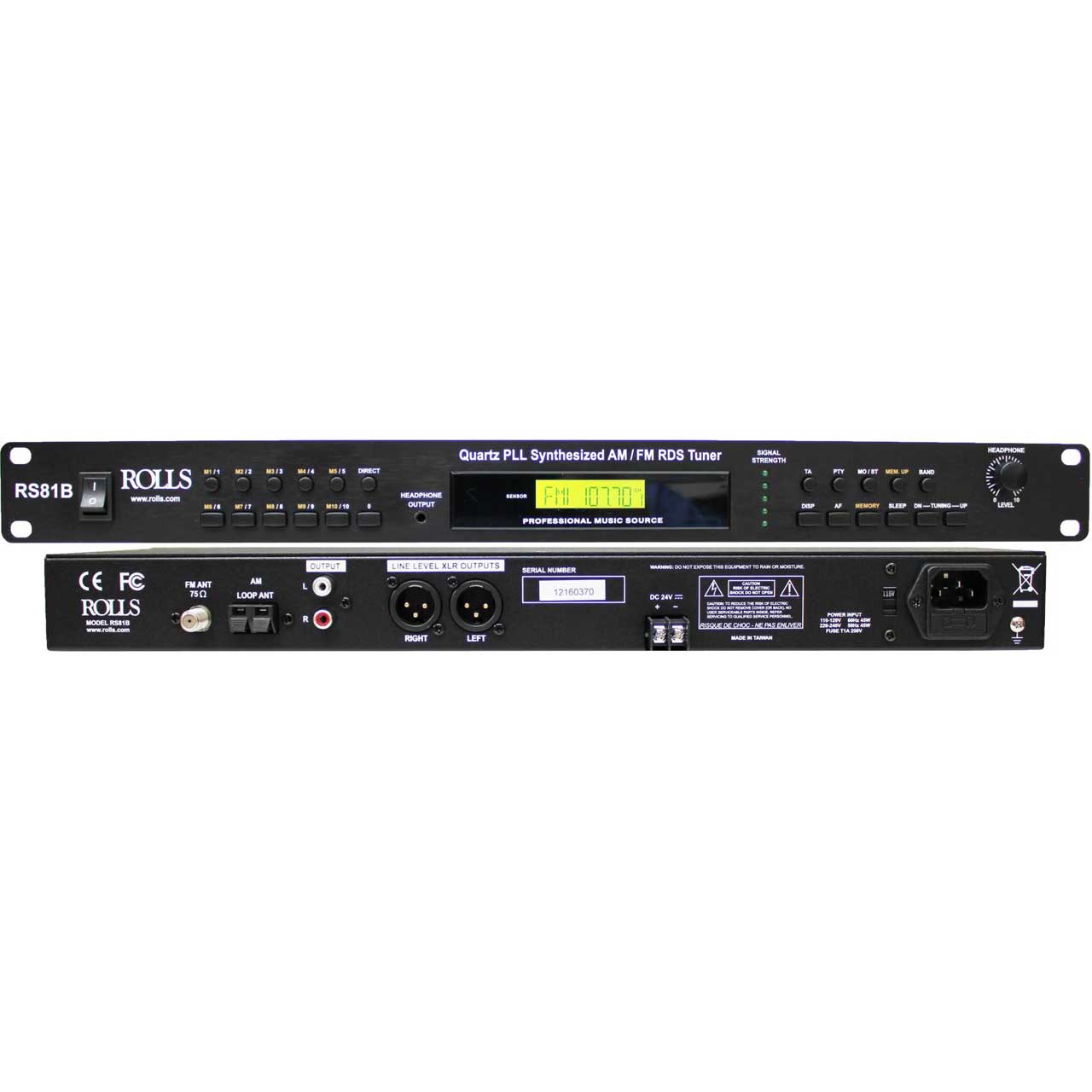

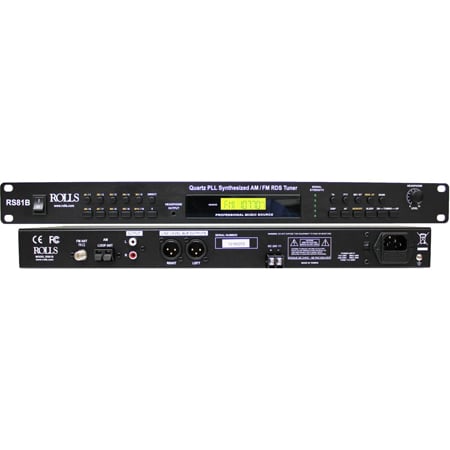

Rolls RS81B Quartz PLL Synthesized AM/FM Tuner - included Remote with Li-Ion Battery

ITEM #: RLS-RS81B MFG #: RS81B

free ship

List Price:

$379.00

Our Price:

$319.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    RS81B - Overview

    The Rolls RS81B is a single rack space Phase Lock Loop digital AM/FM Tuner designed and built for professional applications such as remote radio station trucks and repeaters, church and school installations, as well as night clubs and restaurants.

    Remote has a 225mAh CR2032 lithium battery.

    • Features:

      • Up to 30 FM and AM stations may be stored
      • RDS ( Radio Data System) Display
      • Retains presets when power is off
      • Large LCD digital display
      • Auto Search function
      • Standard 1 space EIA rack chassis
      • 3.5mm Headphone output, XLR outputs
      • Signal strenth LED meter indicator
      • Remote included

    • Specifications:

      • Tuning Range: 87.5-108MHz
      • 3 dB Limiting: 12dB
      • Image Rejection: 53dB
      • Usable sensitivity mono IHF: 9dB
      • Selectivity: (-70KHz : +90KHz)
      • S/N Ratio at 1 mV Mono: 52dB
      • Stereo: 50dB
      • THD at 1 mV 40 kHz deviation: 0.18%
      • Stereo Separation: 28dB
      • Auto Scan Sensitivity: 23dB
      • AM Suppression Mod: 52dB
      • Antenna Input Impedance: 75 Ohms

        AM Section
      • Tuning Range: 530 - 1710 kHz (10 kHz increm.), 522 - 1611 kHz (9 kHz increm.)
      • IF Frequency: 450KHz
      • Usable Sensitivity: 28dB
      • Auto Scan Sensitivity: 41dB
      • S/N Ratio at 5 mV/M: 46dB
      • 6 dB Bandwidth: 7KHz
      • Image Rejection: 42dB
      • A.C.A. +/- 9 kHz: 46dB
      • AGC Action: 43dB
      • THD at 5mV/M: 0.40%
      • Antenna Input Impedance: 300 Ohms
      • Size: 19" x 1.75" x 7"
      • Weight: 7.1 lbs. (3.2 kg)

    • Item Includes:

      • Remote included with 225mAh CR2032 lithium battery

    • GTIN:

      0675889008111
