Rolls MA2152 Stereo/70v Mixer Amplifier 100w/Ch or 200w Mono

ITEM #: MA2152 MFG #: MA2152

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$609.00

Our Price:

$499.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    MA2152 - Overview

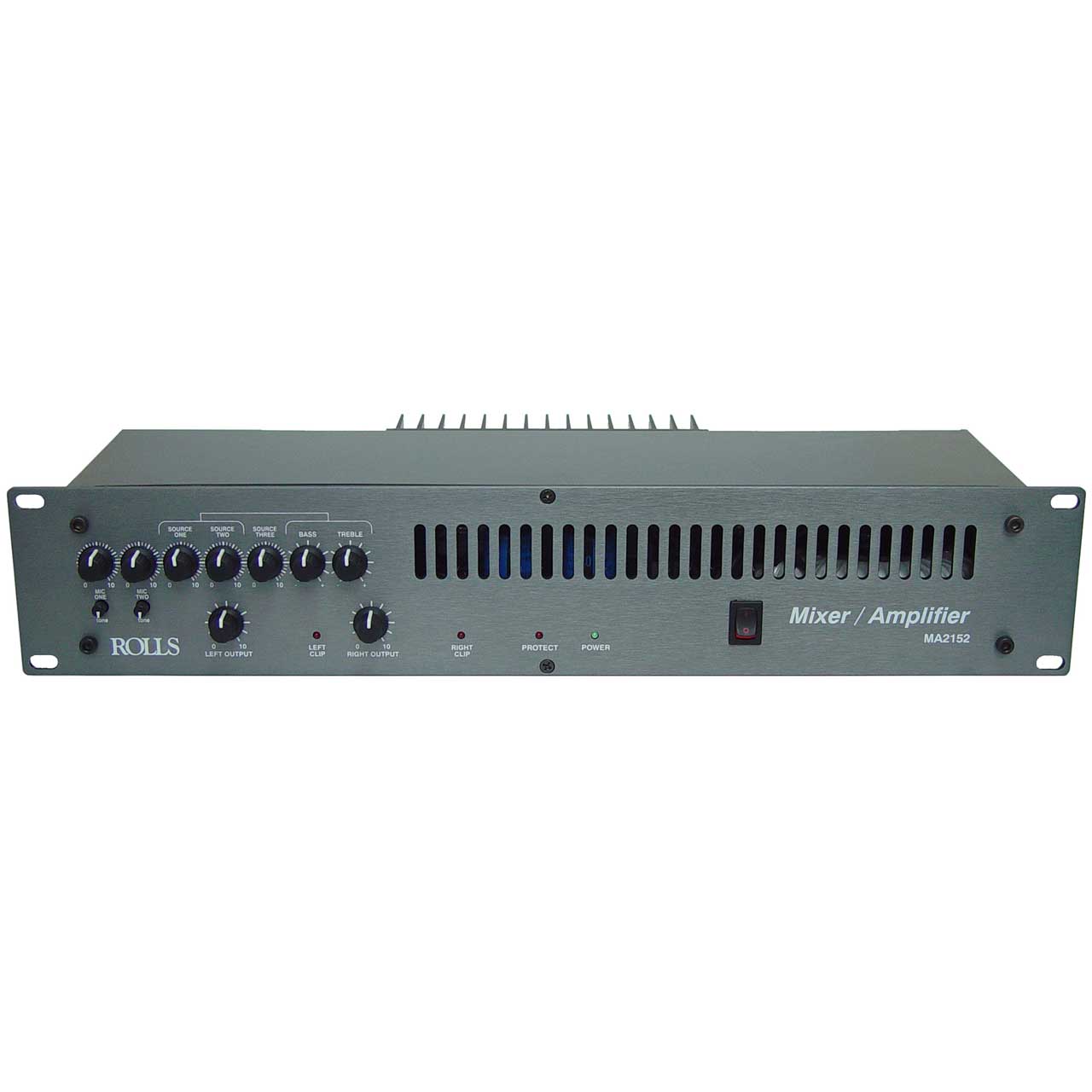

    The Rolls MA2152 is a two rack space mixer amplifier designed for restaurants, schools, churches, clubs etc. The unit provides a compact and efficient way to mix up to three sources such as AM/FM tuners, CD players, and video players with up to two microphones. Priority talk over is provided on Microphone One for paging, and on Source Three for a jukebox, telephone, etc.

    The power output section may be connected to 4, 8, or 16 ohm speakers, or directly connected to a 70 volt system without the need for additional transformers. Several configuration options are possible including full stereo, mono 70V, dual mono 25V, etc..

    • Features:

      • Two Microphone inputs with phantom power.
      • Tone controls for each Mic input.
      • Three stereo Source inputs.
      • Bass and Treble controls on Sources One and Two.
      • Priority ducking on Mic One and Source Three.
      • Stereo pre-master level Record Output.
      • Fault protected power amp.
      • Amp will drive 25 or 70 volt lines directly.
      • FR4 Double-sided epoxy circuit board.
      • Socketed ICs.
      • Made in the U.S.A.

    • Specifications:

      • Mixer:
      • Input Impedance:
      • Mic: 600 Ohms XLR balanced
      • Source: 22K Ohms RCA
      • Insert: 22K Ohms 1/4" TS unbalanced
      • Max Input Level:
      • Mic: -14 dBV Mic level Max
      • Source: 24 dBV
      • Insert: + 20 dB
      • Connectors: 2: XLR, 6: Stereo RCA, 3: 1/4" TRS, 1: 1/4" TS
      • Phantom Power: +12 VDC
      • Max Gain:
      • Mic: 60dB
      • Source: 26 dB
      • Tone Controls: +/-12 dB 100 Hz Bass, +/-12 dB 11kHz Treble
      • Nose Floor: - 80 dB
      • S/N Ratio: 96 dB
      • Priority Attenuation: 60 dB

        Power Amp:
      • Power Output, Stereo: 100 Watts RMS/ch. 4 Ohms 70 Watts RMS/ch. 8 Ohms Bridged - 200 Watts RMS 8 Ohms/70V
      • Output Matching: 4, 8, 16 Ohms, 25V Stereo, 70V Mono
      • THD: <.08% (1kHz @ 1 Watt)
      • Outputs: RCA Record Out, 5-Way binding post Power Amp outs
      • Power Bandwidth: 60 Hz - 30 kHz +/- 1dB
      • Damping Factor: > 150
      • Slew Rate: 100 Volts/microSecond
      • Phase Shift: <10 Deg., 20Hz - 20kHz
      • Power: 120 VAC 60Hz 2.5A 230 VAC 50Hz
      • Size: 19" x 3.5" x 7.5"(48 x 9 x 19 cm)
      • Weight: 12 lbs (5.5 kg)

    • GTIN:

      0675889215205
