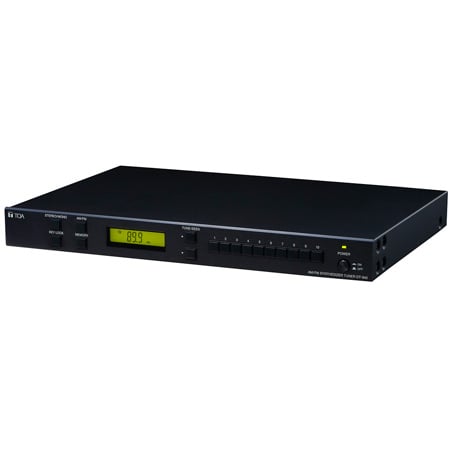

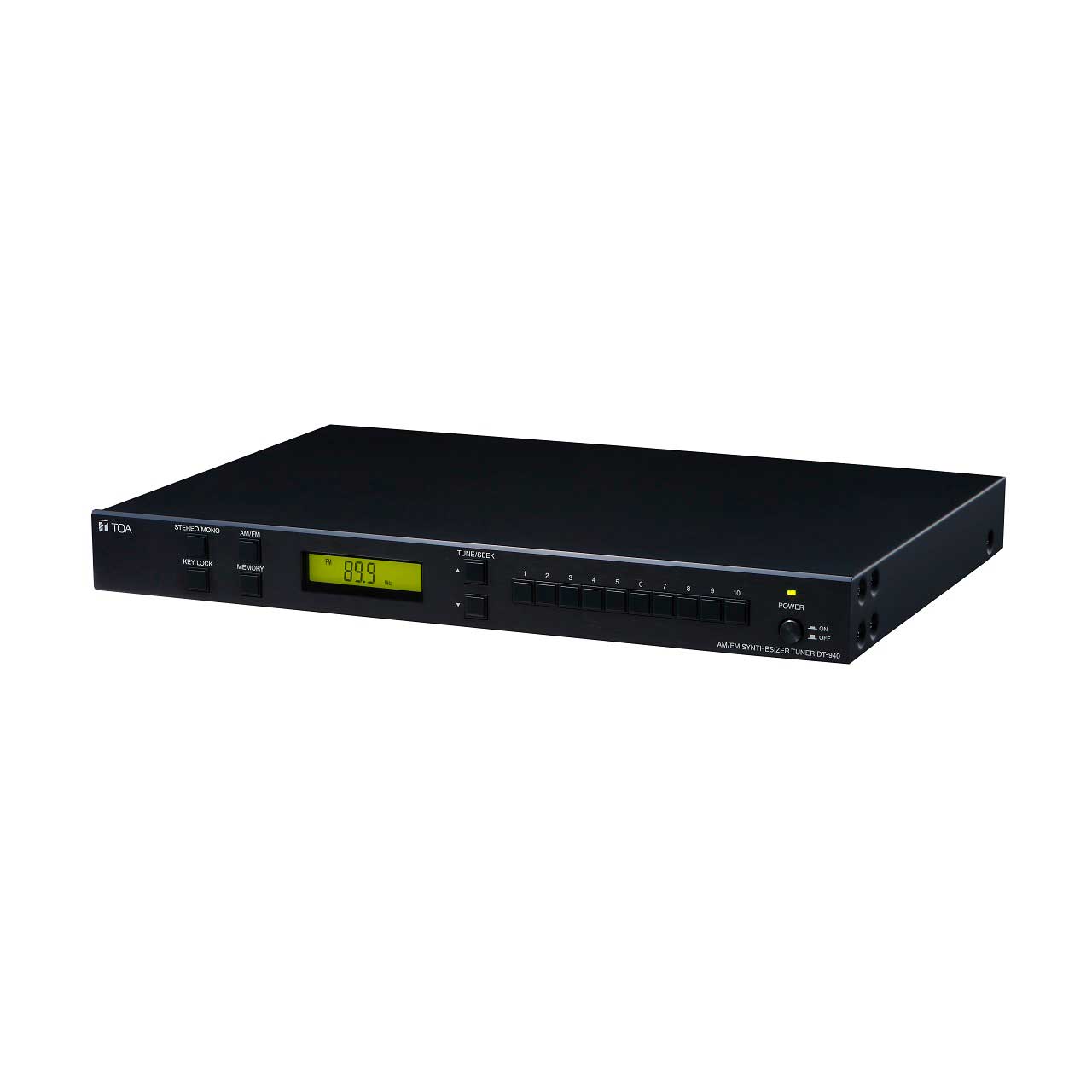

TOA DT-940 1U AM/FM Tuner with 40 Presets / Digital Display - Black

DT-940 - Overview

• Features:

  • Presets for any combination of 20 AM (monaural) and 20 FM (capable of receiving stereo broadcast) stations.
  • Automatic station scanning and manual tuning.
  • Automatic station storage to memory using auto-scan mode.
  • Frequency synthesized digital tuning with multi-function digital display.
  • Stereo output is available.
  • FM wire antenna and AM loop antenna included.
  • Front panel lockout feature prevents unauthorized operation.


• Specifications:

  • Power Source: 120 V AC, 60 Hz (supplied from the AC adapter (accessory))
  • Power Consumption: 60 mA (when AC adapter (accessory) is used)
  • Receiving Frequency: FM: 87.9 - 107.9 MHz (100 kHz step), AM: 520 - 1710 kHz (10 kHz step)

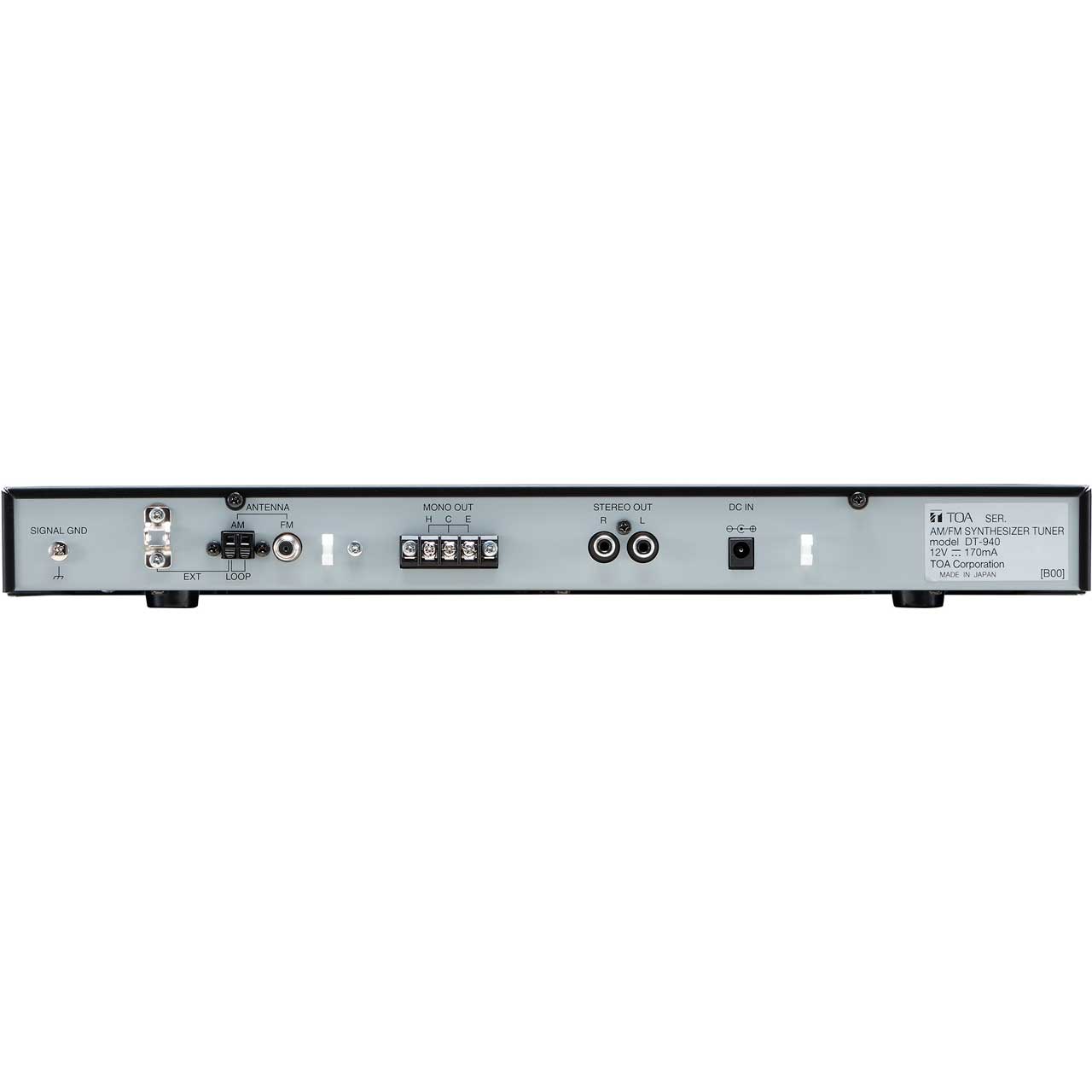

    Antenna Input
  • FM: 75 Ω (unbalanced), F type connector
  • AM: Loop antenna (balanced)/external antenna (unbalanced), push type terminal

    Audio Output
  • Stereo: -15 dB (*1), 10 kΩ, unbalanced, RCA jack
  • Monaural: -10 dB (*1), 10 kΩ, balanced, M3 screw terminal, distance between barriers: 6.4 mm (0.25")


  • Channels of Memory: 20 channels for AM, 20 channels for FM
  • Operating Temperature: 0 °C to +40 °C (32 °F to 104 °F)
  • Operating Humidity: 90 %RH or less (no condensation)
  • Finish: Panel: Aluminum (hair-line finish), black
  • Case: Pre-coated steel plate, black
  • Dimensions: 420 (W) x 50.8 (H) x 294.2 (D) mm (16.54" x 2" x 11.58")
  • Weight: 2.9 kg (6.39 lb)


• Item Includes:

  • 1x TOA DT-940 1U AM/FM Tuner with 40 Presets / Digital Display - Black
  • 1x AC adapter (1.5 m (4.92 ft)
  • 1x RCA stereo cord (1 m (3.28 ft))
  • 1x AM loop antenna (For indoor use only, 135 x 125 mm (5.31" x 4.92"), leadwire: 1.2 m (3.94 ft))
  • 1x FM wire antenna (For indoor use only, element length: 2.2 m (7.22 ft))
