Blonder Tongue RMDA 860-30 Rackmount Distribution Amp 30dB 47-860MHz

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

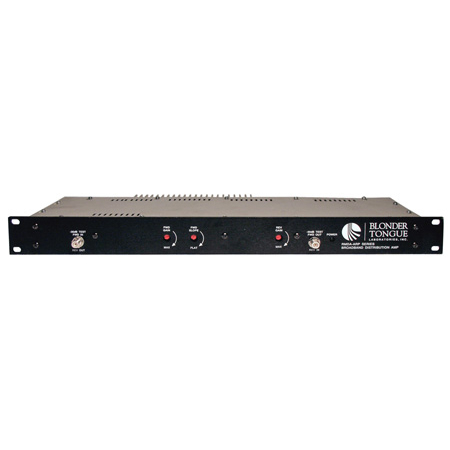

    Blonder Tongue RMDA 860-30 Rackmount Distribution Amp 30dB 47-860MHz

    Item #: RMDA-860-30   •   MFG #: RMDA-860-30



    List Price:$624.00
    Our Price:$589.09

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!





    The RMDA-ARP (active return path) are rack mounted 2-way broadband distribution amplifiers. Utilizing push-pull hybrid amplifier technology, they are ideal for MATV, SMATV or CATV applications. The amplifiers have a forward bandwidth of 54 - 860 MHz with a gain of 30 dB. The reverse path of 5-40 MHz is field configurable for active or passive operation. The RMDA-ARP amplifier has built-in variable gain controls on both the forward and reverse paths. A forward path variable slope control is provided inter-stage as is the variable gain control. Additionally, a fixed forward equalizer and forward and reverse attenuator plug-ins can be installed for further signal conditioning at the input to the amplifier. 30 dB back-matched test ports at the input and output are provided for monitoring both forward and reverse signal levels without interrupting service. The amplfier is housed in a 1RU aluminum chassis that provides exceptional heat dissipation.


    • Features

      • 860 MHz Push Pull Hybrid Technology
      • 5-40 MHz Return Path, Field Selectable Active/Passive Operation
      • Built-in Variable Gain and Slope Controls
      • Optional Plug-in Forward Equalizer and Attenuator
      • Optional Plug-in Reverse Attenuator

    • Specifications

      • Forward Path RF
      • Frequency Range (MHz): 54-860
      • Channel Loading: 129
      • Flatness (dB): ±1
      • Gain (dB): 32
      • Noise Figure (dB) (a): 8.5
      • Output Level (dBmV): +34/+42
      • Test Port Level (dB): -30, ± 2
      • Gain Control Range (dB): 10
      • Slope Control Range (dB): 8
      • Composite Triple Beat - CTB (dB) (b): -58
      • Composite Second Order - CSO (dB) (b): -59
      • Cross Modulation - XMOD (dB) (b): -58
      • Hum Modulation (dB): -70
      • Impedance - All Ports (O): 75
      • Return Loss (dB): Input14; Output14
      • Operating Temperature (°C): -20 to +60
      • Power Supply: 117 VAC, 60 Hz26 W; 26 VAC, 60 Hz1.0 A
      • Dimensions (W x H x D): 19 x 1.75 x 5.13 in. 483 x 44 x 130 mm
      • Weight: 6 lbs. 2.7 kg
      • Number Of Hybrids: 2 Fwd, 1 Rev
      • Hybrid Technology: Push-Pull
      • Return Path RF
      • Frequency Range (MHz): 5-40
      • Channel Loading: 5
      • Flatness (dB): ±0.5
      • Gain (dB): 22 (Active), 1.5 dB (Passive)
      • Noise Figure (dB) (a): 6
      • Output Level (dBmV): +48
      • Test Port Level (dB): -30, ± 2
      • Gain Control Range (dB): 18
      • Slope Control Range (dB) Composite Triple Beat - CTB (dB): -66
      • Composite Second Order - CSO: -70
      • Cross Modulation - XMOD (dB) (b): -60
      • Hum Modulation (dB): -65
      • Impedance - All Ports (O): 75
      • Return Loss (dB): Input15; Output15
      • Operating Temperature (°C): -20 to +60
      • Notes: (a) Measured at full gain with 0 dB slope (b) At specified channel loading and rated output capability
