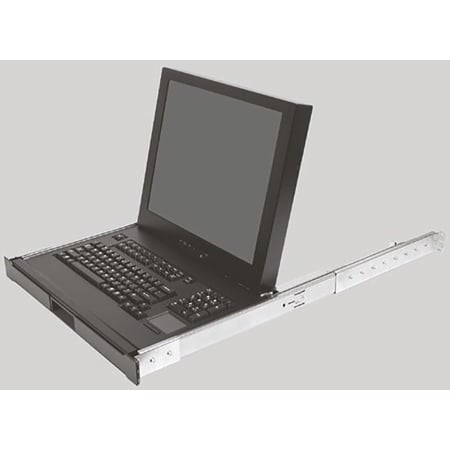

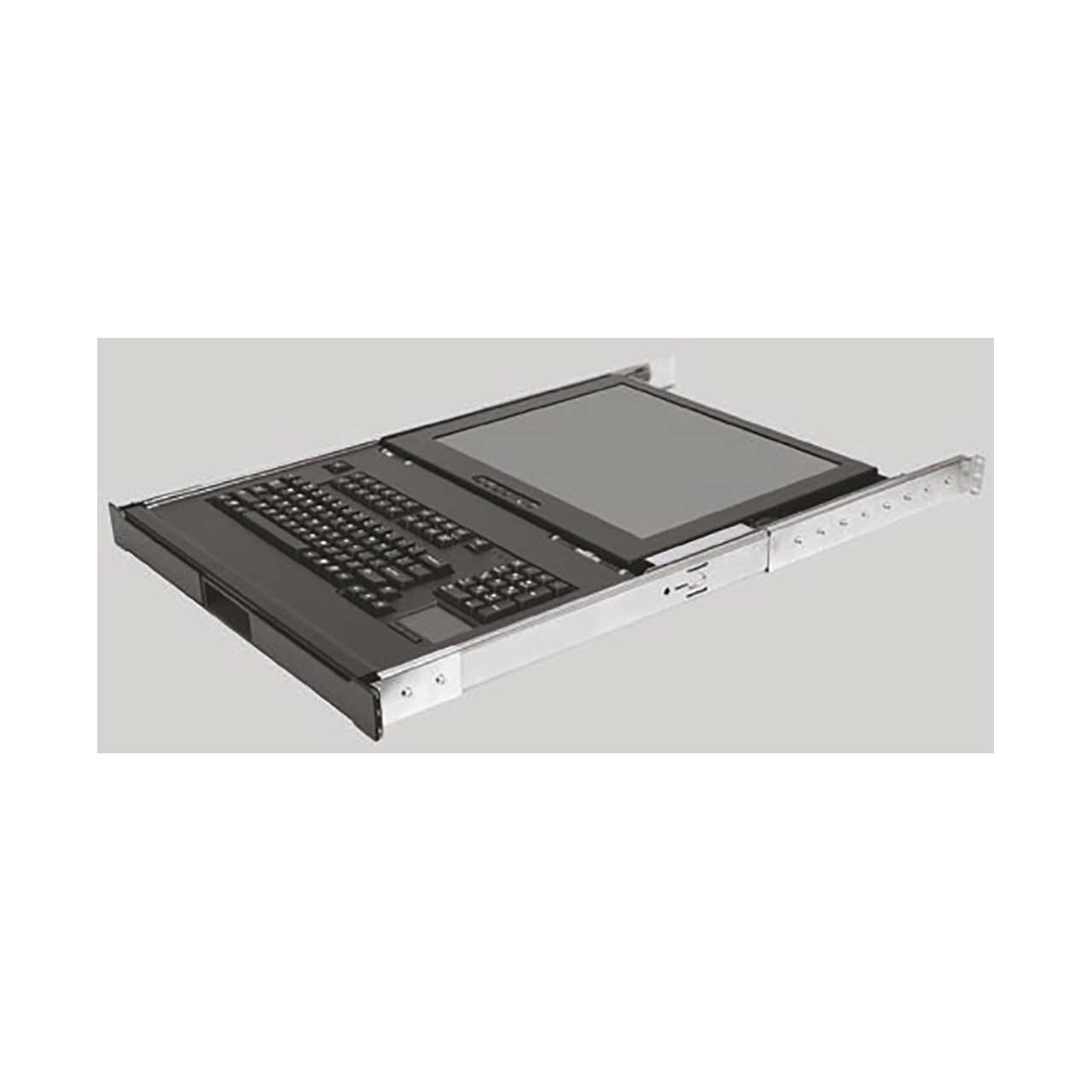

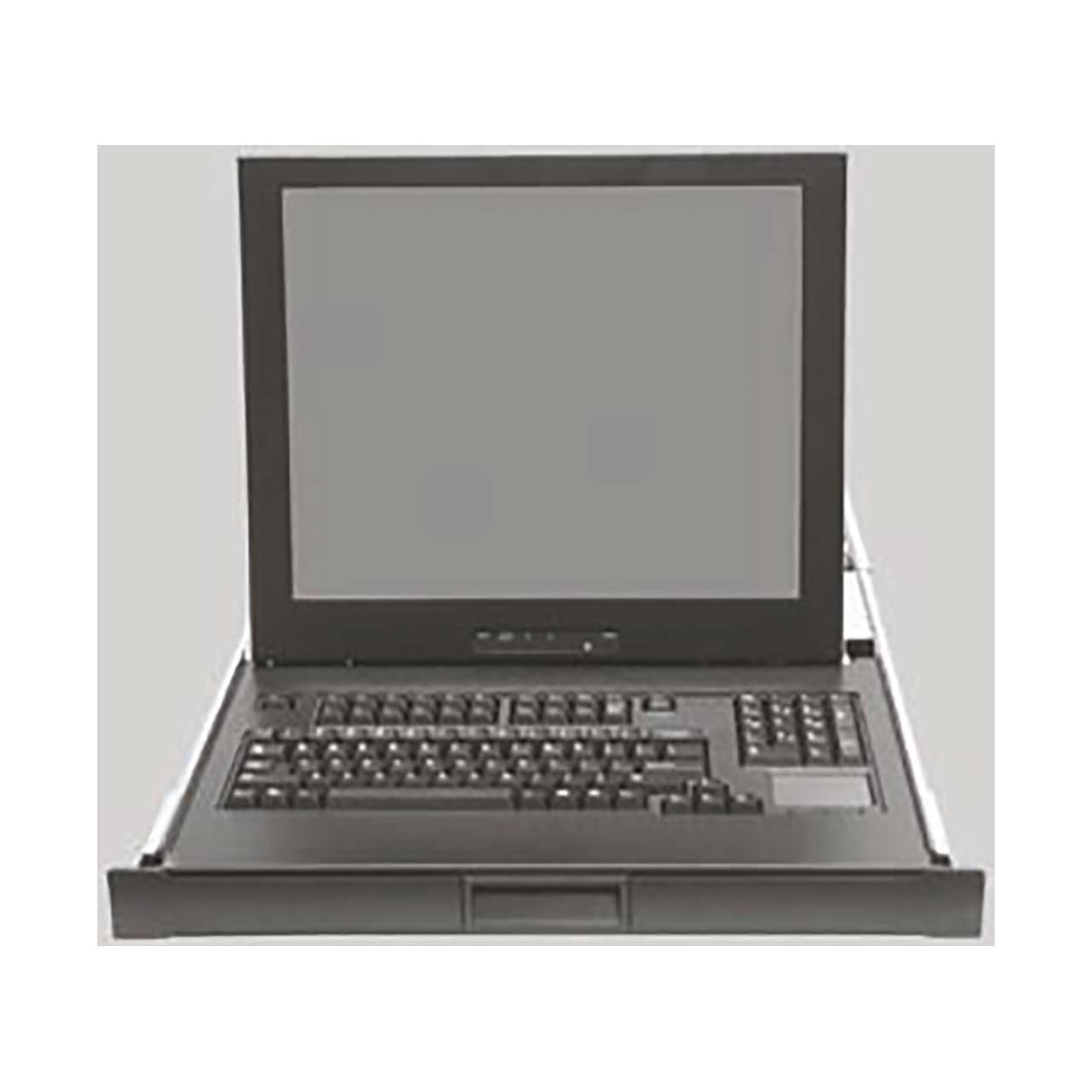

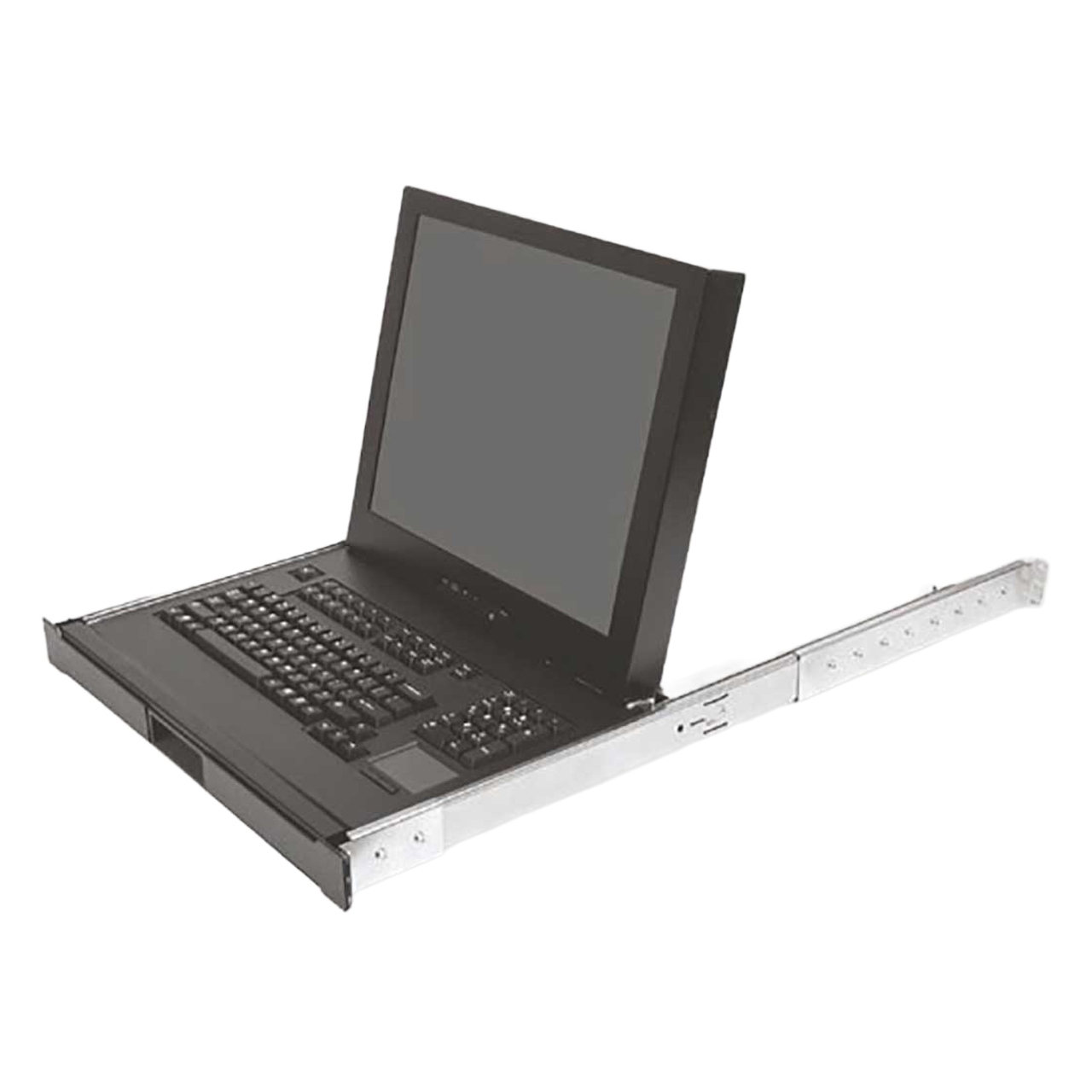

Recortec RMM-627B 1RU Rackmount KVM Console with 17 Inch LCD/Full Size Keyboard/Touchpad

RMM-627B - Overview

• Features:

  • Monitor and Cherry keyboard with two button touchpad in 1U of rack space.
  • Mounted with included ball bearing slides which lock in the extended position.
  • Monitor powers off preserving back light life when tilted down for sliding into the rack.
  • Retainer and lock options to keep unit contained in the rack when not in use.
  • Housed in rugged steel construction with a durable powder coat finish.
  • Monitor surface protected by a clear unbreakable Lexan covering
  • 17-Inch 1280 x 1024 LCD Panel


• Specifications:

  • Brightness: 250 cd/m2
  • Contrast: 1000:1
  • H/V Viewing angle: 170 Degrees /160 Degrees
  • Colors Displayed: 16.7 million
  • 19"(W) x 1.75"(H) x 25.75"(D)
  • Full size Cherry keyboard with touchpad
  • Dimensions: 19.0" (W) x 1.75" (H) x 25.75" (D)
  • Weight: 27 lbs
  • Power (TFT Display): 90 - 260 VAC, 50/60 Hz, 60 Watts maximum
  • On-Screen Controls: Brightness, Contrast, Horizontal & Vertical Position, Auto Adjust, OSD H & V Position, Load and Save Values
  • Plug & Play: DDC1 and DDC2B
  • Temperature: Operating: 0C to 500C; Storage: -200C to 600C
  • Humidity: Operating: 10 to 85% RH (max)
  • Input Signal (VGA): R.G.B. analog video, TTL H & V sync
  • Input Connector: Display: 15-pin mini D-Shell
  • Color: Black


  • Keyboard & Touchpad Specs:
  • Rollover: Alpha N-key rollover
  • Auto repeat: Yes
  • Self Diagnostics: At power on and system reset
  • Data Buffer: All codes buffered before sending
  • Operating voltage: +5 VDC +/- 5%
  • Operating current: 200 mA
  • Touchpad Size: 2.2" X 1.6"
  • Buttons: Left and Right
  • Interface: USB, or optional PS/2 (P)
  • Compatibility: Windows operating systems
