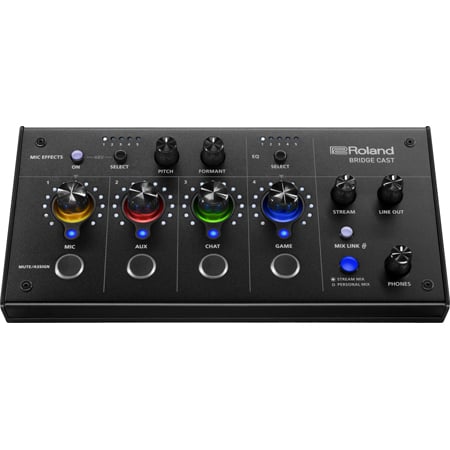

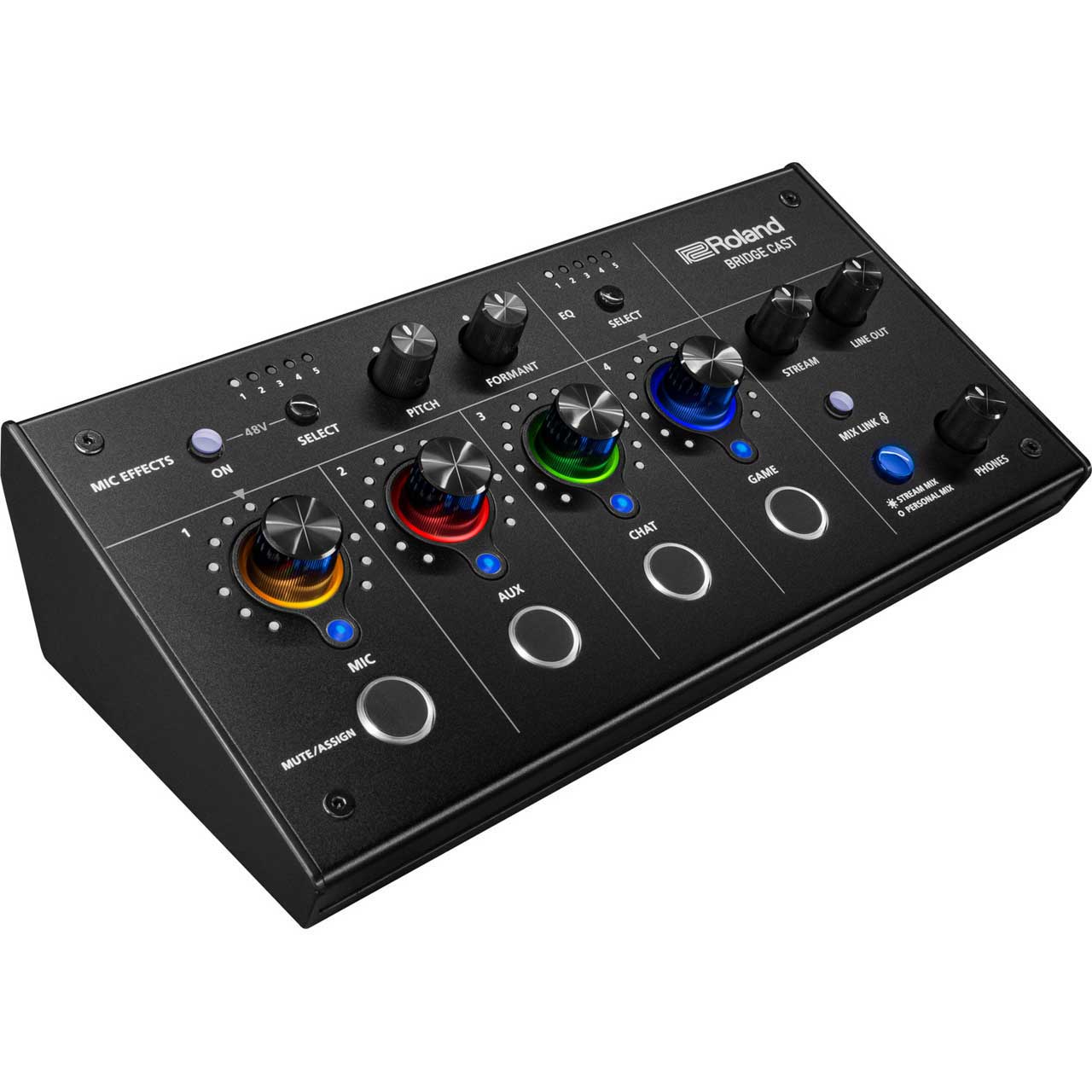

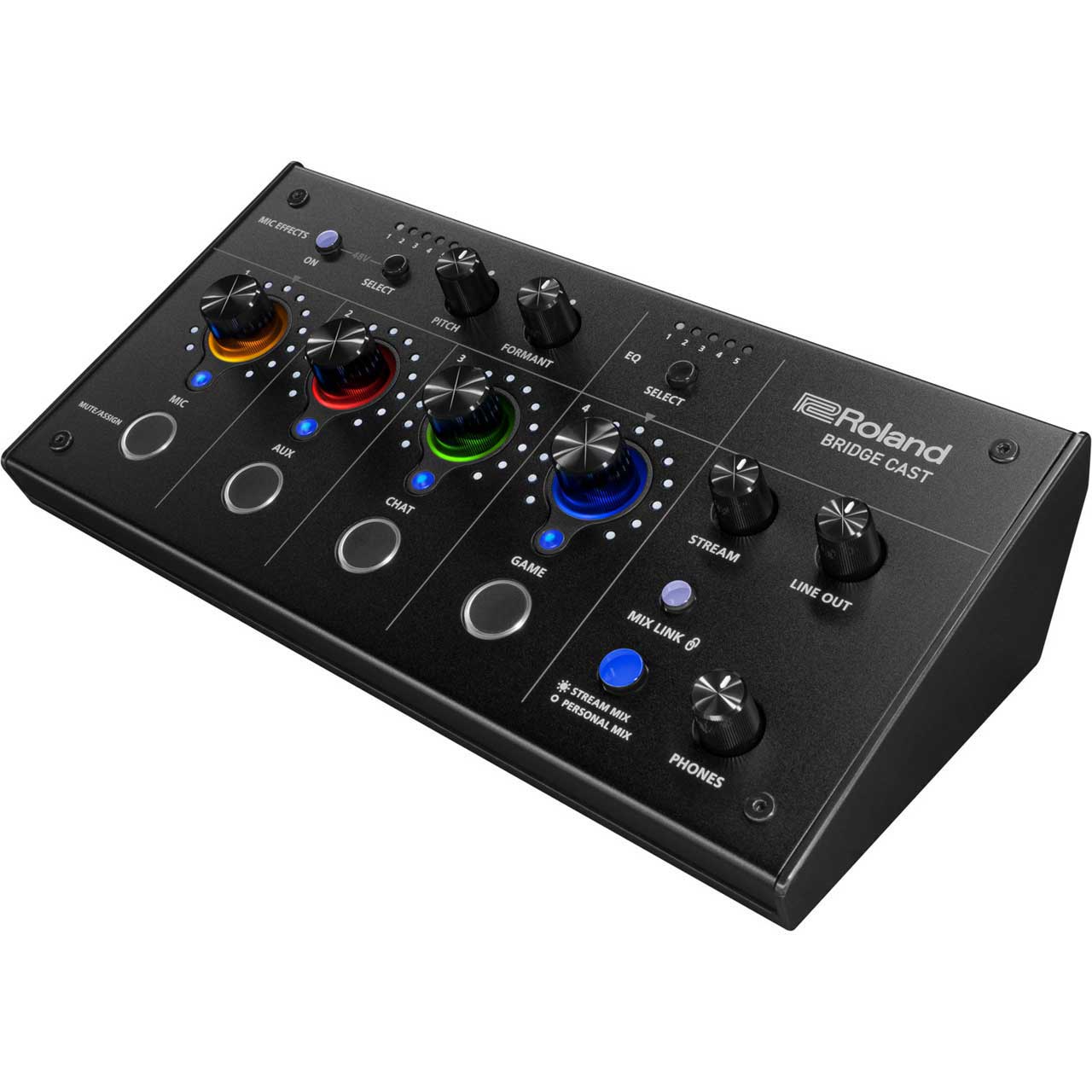

Roland BRIDGE CAST Dual Bus USB-C/XLR Pro Gaming Audio Mixer

ITEM #: ROL-BRIDGE-CAST MFG #: BRIDGE CAST

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$299.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    BRIDGE CAST - Overview

    Pro Sound for Pro Gamers
    Take online gaming sound to the next level with Roland's BRIDGE CAST, your all-in-one solution for premium livestream audio. This customizable desktop hub is packed with secret weapons to take out the competition, including dual sound mixes, vocal transformer effects, music playback, sound effects, and support for a broadcast-grade mic and headphones. In the heat of the battle, BRIDGE CAST ensures that your audio is always as epic as your gameplay.

    BRIDGE CAST Overview
    Level up your gaming setup with BRIDGE CAST, the simple all-in-one solution serving crystal-clear audio and killer effects. In this video, you'll learn about the secret weapons packed inside BRIDGE CAST that will help you hear game sound and broadcast audio clearly while in the heat of battle.

    Elevate Your Gaming Presence with Legendary Roland Technology
    BRIDGE CAST gives you what you need to deliver outstanding sound in every session, coupled with killer sonic tools to help you stand out from the crowd. Roland has been a leading innovator in electronic music and audio/video gear for over 50 years. With BRIDGE CAST on your desktop, you'll be driving your sound with the brand trusted by generations of top creators worldwide.

    Amp Up Your Sound
    BRIDGE CAST lets you chat and interact using a broadcast-grade dynamic or condenser microphone, the foundation of any professional audio setup. The high-performance XLR mic preamp delivers clear, dynamic sound in the box, with no need for messy external add-ons. You get superior audio monitoring too, with a powerful headphone amplifier and high-sensitivity output for pro-quality phones. The versatile headphones connector also supports a headset mic for a quick, single-cable connection.

    • Features:

      • Professional audio streaming interface and mixer designed for online gamers
      • Powerful 32-bit hardware DSP allows you to dedicate all your computer resources to gaming and streaming
      • Create independent mixes for you and the online audience with dual audio busses
      • USB-C connectivity with Windows and Mac* computers and mobile devices
      • Also works with the Sony PlayStation®5 console**
      • High-quality XLR microphone preamp with phantom power for broadcast-grade mics
      • Headphones jack with a professional high-sensitivity output and support for a headset or inline mic
      • Hands-on knobs and buttons for quick sound control
      • Solid, streamlined design with customizable faceplate and adjustable knob LED colors
      • Voice Changer effects derived from the Roland VT series
      • High-quality vocal processing: EQ, compressor, noise suppressor, de-esser, and reverb
      • Enhance your gaming performance with five customizable Game EQ presets
      • Delay function to synchronize audio with video when needed
      • Aux input for playing audio from a smartphone or external device
      • Customize settings and save hardware configurations with the BRIDGE CAST app
      • Add royalty-free music to streams via the BRIDGECAST app and Roland Cloud***
        * BRIDGE CAST driver support for macOS coming in Q2 2023.
        ** Some audio formats are not supported with PlayStation®5.
        *** Roland Cloud support coming in Q2 2023.

    • Specifications:

      • Input Channel
      • Mic
      • Aux
      • Chat (*1)
      • Game (*1)
      • Music (*1)
      • System (*1)
      • USB (*2)
        (*1) When the USB port connection setting is "PC"
        (*2) When the USB port connection setting is "CONSOLE/MOBILE"

        Output Channel
      • Line Out
      • Phones
      • Mic (*3)
      • Stream (*3)
      • Personal (*3)
      • USB(*4)
        (*3) When the USB port connection setting is "PC"
        (*4) When the USB port connection setting is "CONSOLE/MOBILE"

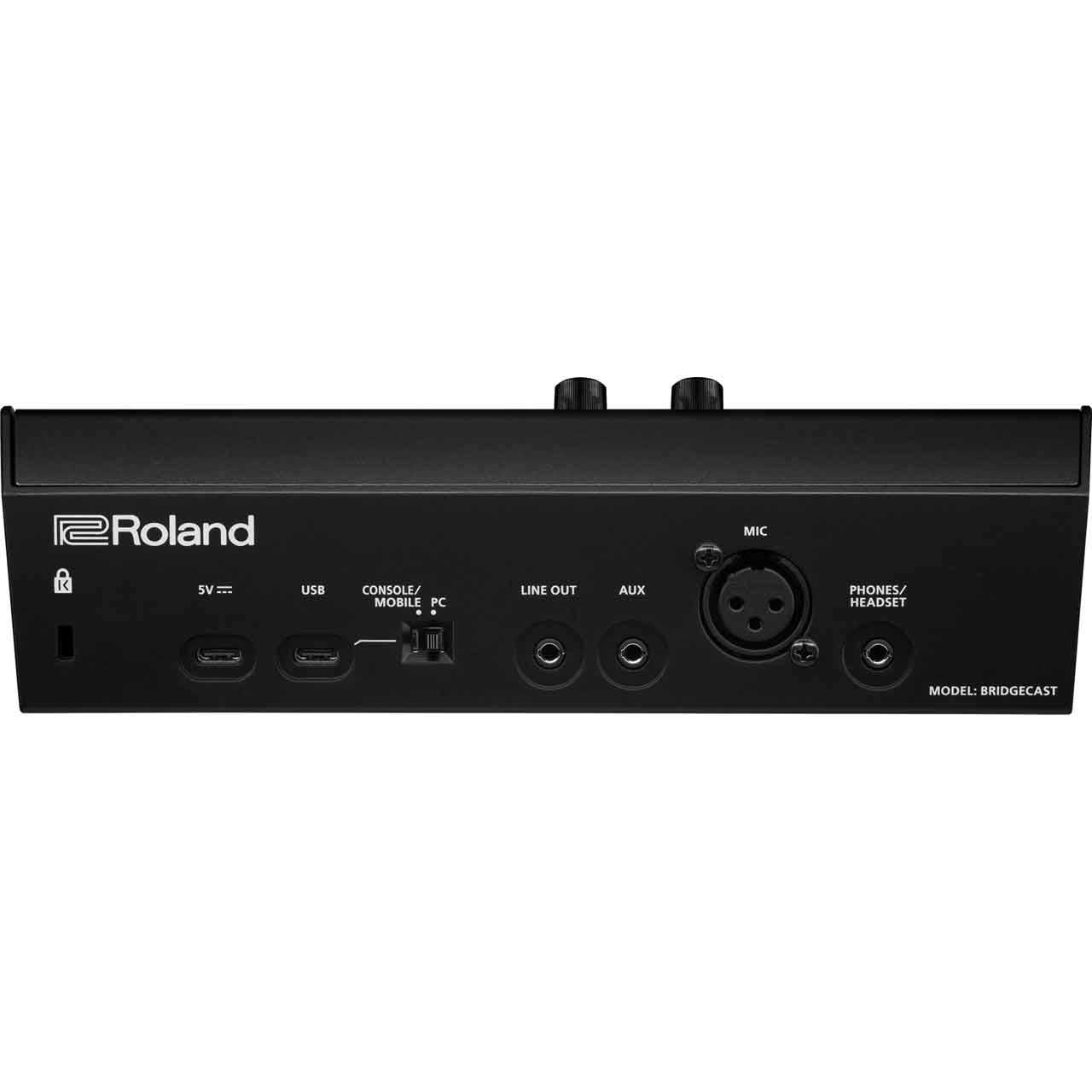

        Connectors
      • Mic jack: XLR type (Phantom power DC 48 V, 6 mA Max)
      • Phones/Headset jack: Stereo miniature phone type (CTIA, PLUG-IN power)
      • AUX jack: Stereo miniature phone type (TRRS)
      • Line Out jack: Stereo miniature phone type (TRS)
      • USB port: USB Type-C (R)
      • USB DC 5V port: USB Type-C

        Audio Mixing Bus
      • 2 (Stream Mix, Personal Mix)

        Sampling Frequency
      • 44.1 kHz, 48 kHz, 96 kHz

        Signal Processing
      • AD/DA: 24 bits
      • Internal Processing: 32-bit Floating point

        Effects
      • Mic: Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut
      • Chat: De-esser, Compressor
      • Game: Equalizer
      • Stream: Delay

        Audio File Player
      • Number of tracks: 2
      • Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo/mono)
      • Maximum Time: 5 seconds/track

        Input Level
      • Mic: -85.5--10.5 dBu (Maximum: +1.5 dBu)
      • Headset Mic: -58.5--20.5 dBu (Maximum: -8.5 dBu)
      • AUX: -10 dBu (Maximum: +2 dBu)

        Input Impedance
      • Mic: 3.4 k ohms
      • Headset Mic: 1.3 k ohms
      • AUX: 10 k ohms

        Output Level
      • Line Out: -4 dBu (Maximum: +8 dBu)
      • Phones/Headset: -1 dBu (Maximum: +11 dBu)
      • Phones/Headset: 78 mW + 78 mW (32 ohms)
      • Phones/Headset: 35 mW + 35 mW (250 ohms)

        Output Impedance
      • Line Out: 1 k ohm
      • Phones/Headset: 10 ohms

        Power
      • USB bus power
      • USB AC adaptor (commercially available). * Use an USB AC adaptor that can supply 5 V, 1.0 A or more.

        Current Draw
      • 5 V DC, 900 mA

        Operating System
      • Microsoft Windows 10, Windows 11
      • Apple macOS 11 or later
      • Apple iOS 15 or later

        Size and Weight
      • Width: 8.7 inches
      • Depth: 4.3 inches
      • Height: 2.8 inches
      • Weight: 1 lb

    • Item Includes:

      • 1x USB 2.0 Type-C to Type-C Cable (2 m, 6.5 feet)
      • 1x USB 2.0 Type-C to Type-A Cable (2 m, 6.5 feet)

    • GTIN:

      0761294519516
