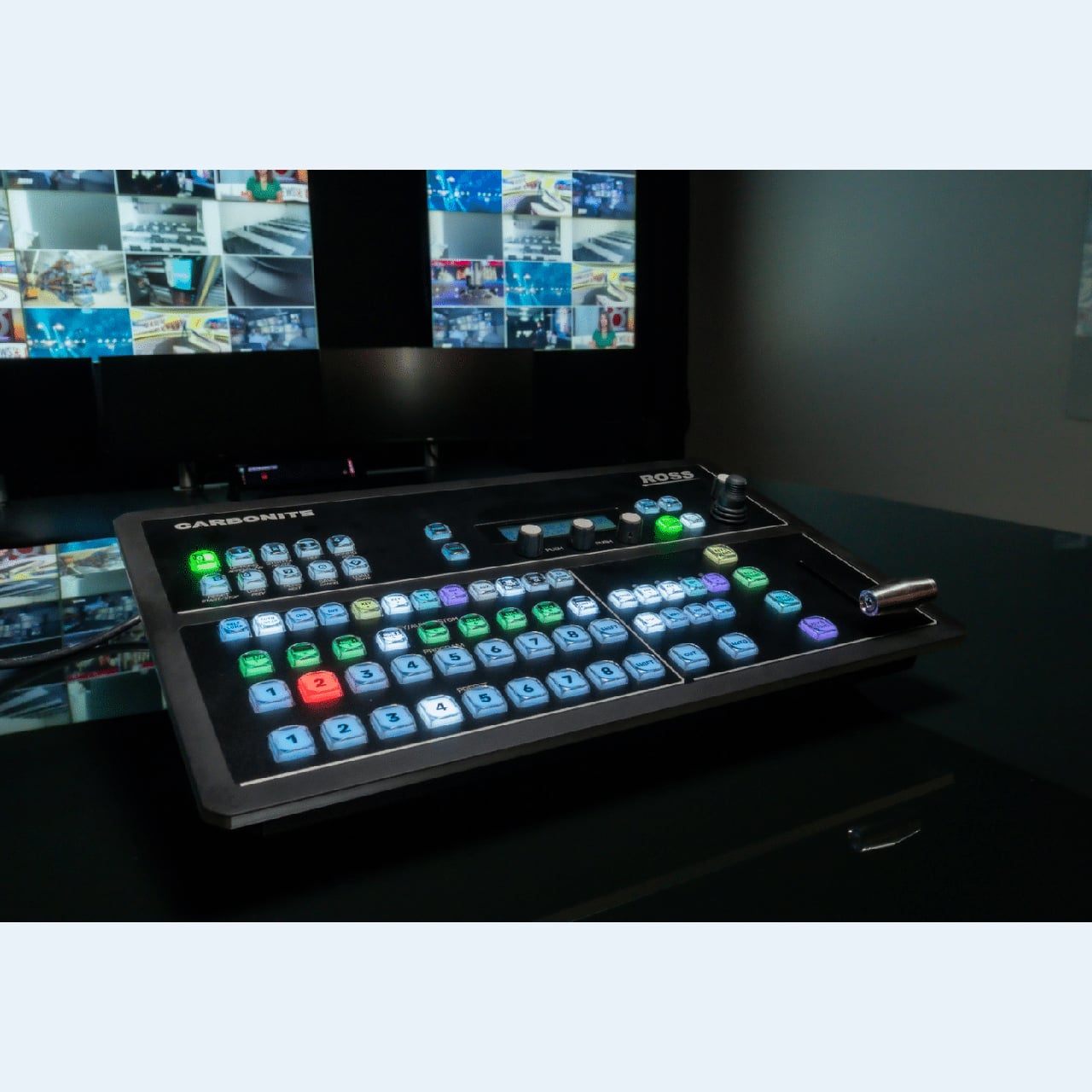

Ross Carbonite Ultra Solo 12x5 All-in-One UHD Video Production Switcher with 1 ME Input

ITEM #: ROSS-CU-SOLO MFG #: CU-SOLO

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$9,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CU-SOLO - Overview

A compact UHD production switcher designed to deliver professional switching in a cost-effective package!

Designed for Live!
Carbonite Ultra Solo builds on the Ross Video reputation for designing switchers for live studios, trucks, and post-production. At the center of the action, it is important that the switcher be powerful and versatile, yet maintain its ease of operation.

This frees the operator to concentrate on the programming instead of the equipment, delivering a cleaner, more professional production.

Professional Switching, Simplified
No matter its size or scope, live video production is demanding. The compact and powerful Carbonite Ultra Solo shares the same professional toolset as its larger counterparts, allowing operators to create compelling, eye-catching content easily.

Designed for Automation!
The Ultra series of switchers support the highly advanced OverDrive® Caprica automated production control system. Caprica takes advantage ofthe years of device integration that Ross® has developed in the large switcher product lines and puts it into an independent server. The Caprica server takes the place ofthe production switcher for controlling over 200 additional production elements (such as robotics, graphics, audio mixers, servers, etc.), timing the show and creating production macros.

Designed for Linear!
The Ultra series of switchers continues to build on Ross® Video's reputation for setting the standard for multi-definition linear editing suites. The traditional layout and familiar controls of other Ross® switchers provide the power and ease of use you have come to expect. Ultra Solo cleanly connects to virtually any editor using the industry standard GVG100/110 protocols.

Small Size, Solid Performance
Carbonite Ultra Solo offers exceptional production capability in a compact, affordable footprint, making it an ideal choice for flypacks, space-constrained production facilities or mobile units.

Best of Breed
Carbonite has been the leading mid-size production switcher line for over a decade. Carbonite Ultra Solo brings this much-loved switcher's legendary performance and ease of use to the small switcher market, enabling even modest-size facilities to benefit from a tradition of excellence.

Built to Perform, Built to Last
Like all Ross products, Carbonite Ultra Solo is manufactured in Ross Video's facility and is rigorously tested to provide robust, trouble-free performance. Carbonite Ultra Solo's all-metal construction and high-quality components ensure that it is show-ready the first time, and every time.

Audio Mixer Evolved
Carbonite Ultra Solo's internal RAVE audio mixer provides a professional toolset for audio processing, mixing, and routing.

  • Features:

    • MultiDefinition Operation Format Support:
      - 720p50/59.94, 1080i50/59.94
      - 1080pSF 23.98/24/25/29.97/30
      - 1080p23.98/24/25/29.97/30/50/59.94/60
      - 2160p23.98/24/25/29.97/30/50/59.94/60
    • 12x Inputs and 5 Configurable Outputs (Including MV Output)
    • 1x USB-C UVC Configurable Webcam Output (HD Only - Not in Release v1)
    • 1x Reference Input and 1 Reference Output, BB/TLS and H/V Adjustments
    • 1x MultiViewer with access to all Inputs, Outputs and Internal Buses. Up to 16 Windows with 49 Layouts to chose from. Up to 10 Timers in the system Viewable on Timeclock overlay.
    • 1x ME with 6 Keyers plus a Transition Keyer
    • 2x MiniME with 2 Full Keyers and Preview
    • 4x MediaStores with Video and Alpha. Audio on Channel 1&2, 6 GB Total RAM Cache loading from USB user supplied storage
    • GPU based h.264 Clip Player. Decode Files up to 1080p60 (Assign FSFC when in UHD), Streams files directly from USB user supplied storage
    • 4x Channels of DVE in HD or 2 Channels in UHD
    • 6x Input Frame Sync / Format Converters, Assignable to any of the 12 Inputs in HD or UHD
    • 5x Output Format Converters in HD (1 per Output) or 2 Assignable in UHD
    • 6x Input Proc Amp, Colour Corrector and SDR/HDR conversion. Assignable to Inputs - HD ONLY
    • 5x Output Proc Amp, Colour Corrector and SDR/HDR conversion. HD ONLY
    • 48x Fader (Stereo or Mono) RAVE Audio Mixer. Any Input Embedded pair/mono ch selectable on each Fader
    • 14x Stereo Mixers Including Main, Monitor and 12 Aux Mix
    • Each Fader has 4 Band Parametric EQ, Compressor Limiter and Noise Gate
    • Audio Follow Video with Multi Source Assignment linking
    • DashBoard Menu System and Virtual Panel

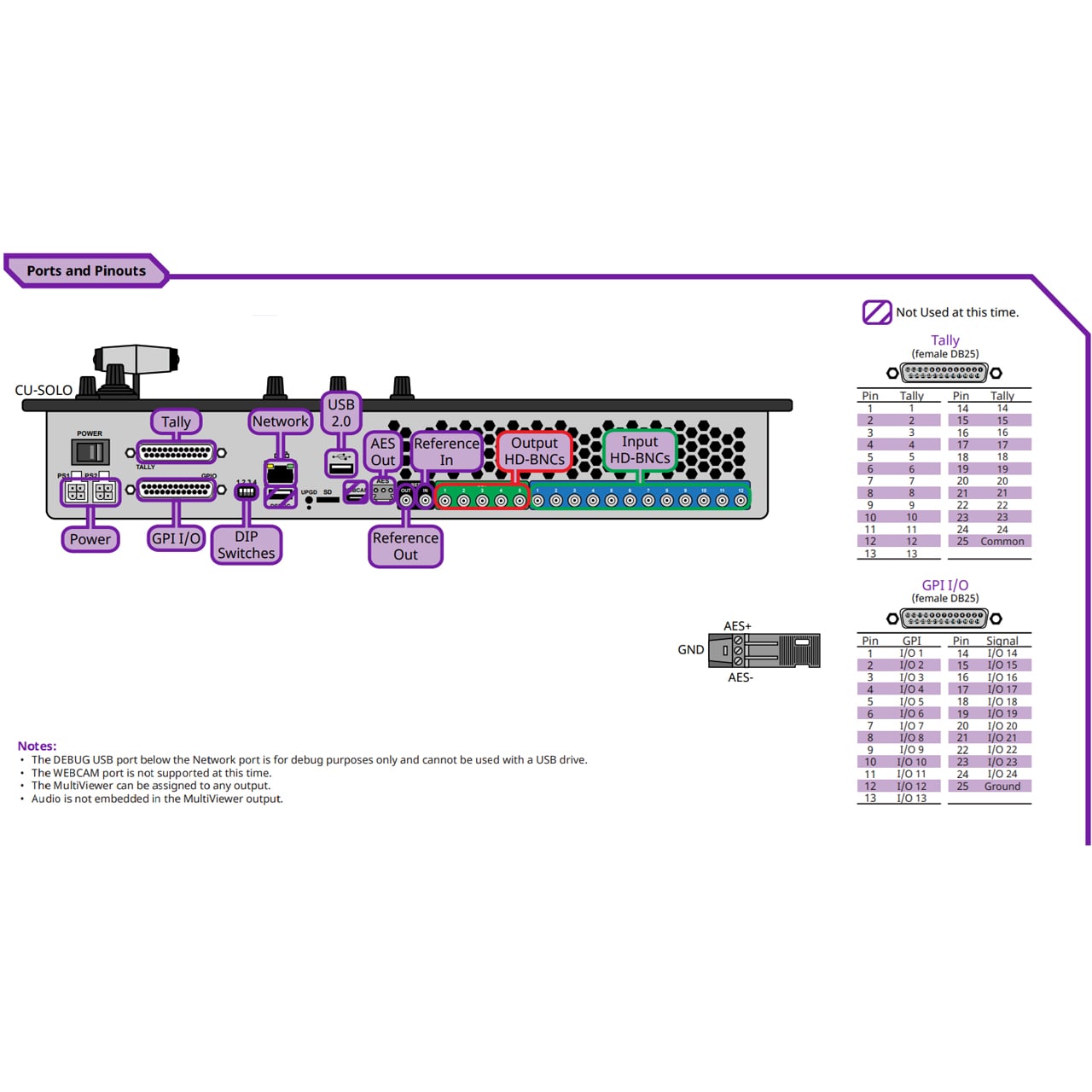

    • 24x GPIO
    • 24x Tally
    • AES Output, Assignable to MediaStore, Clip Player or any RAVE Audio Mix
    • 10-Bit Video Processing in All Video Formats
    • 24/7 Phone Support
    • Includes XPression Live CG

  • Specifications:

      SDI Input Formats
    • 720p 50/59.94Hz
    • 1080i 50/59.94Hz
    • 1080pSF 23.98/24/25/29.97Hz
    • 1080p 23.98/24/25/30/29.97/30/50 (A)/59.94 (A)/60Hz
    • UHDTV1 23.98/24/25/29.97/30/50/59.94/60 (12Gb/s)

      Default Values
    • Frame IP: 192.168.0.123
    • FTP Username: user
    • FTP Password: password

      Tally Rating
    • Input Voltage: 24VAC (rms)/40VDC
    • Maximum Current: 120mA
    • Impedance: <15Ω

      Video Input Specifications
    • Equalization (using Belden 1694 cable):
      - >40m @ 12Gb/s
      - >100m @ 1.5Gb/s
      - >300m @ 270Mb/s (41°F - 104°F)
    • Impedance: 75Ω, terminating
    • Video Inputs: SMPTE 259M/292M serial digital (non-looping)
    • Reference Inputs (non-terminating, looping):
      - Standard Definition: analog black
      - High Definition: tri-level sync

      AES Output Specifications
    • Audio Depth: 24-bit in HD
    • Channels: 1 Stereo Pair
    • File Format:
      - Multi-Channel
      - Waveform Audio File
    • Impedance: 110Ω, differential
    • Min/Max Output Voltage Swing: 1.5/6V peak-to-peak
    • Rise and Fall Times: 20ns (typical)
    • Sample Rate: 48kHz
    • Synchronization: Locked to Video

      Analog Audio Input Specifications
    • Input Impedance:
      - XLR: 2KΩ
      - ¼" Jack: 10KΩ
    • Maximum Level: +24dBu
    • Frequency Response: ±0.3dB (22Hz - 20kHz @ Fs = 48kHz)
    • Signal to Noise Ratio: +24dBu
      - "A" weighting: -95dB
      - CCITT weighting: -107dB
    • THD: >93dB or <0.002%
    • Amplitude Linearity: <0.8dB @ -100dBFS
    • Crosstalk: -94dB

      Analog Audio Output Specifications
    • Maximum Level: +24dBu
    • Frequency Response: ±0.4dB (22Hz - 20kHz @ Fs = 48kHz)
    • Signal to Noise Ratio: -103dB
    • THD: >93dB
    • Amplitude Linearity: <0.3dB @ -100dBFS
    • Crosstalk: -106dB (20Hz - 20kHz)

      Other
    • Max Power Consumption: 100W, 6.67A, 15V
    • Operating Temperature: 32°F - 104°F
    • Storage Temperature: -4°F - 185°F
    • Dimensions: 17.94" x 12.91" x 4.50"

  • Item Includes:

    • 1x Ross Carbonite Ultra Solo 1RU 12x5 All-in-One UHD Production Switcher with 1 ME Input
