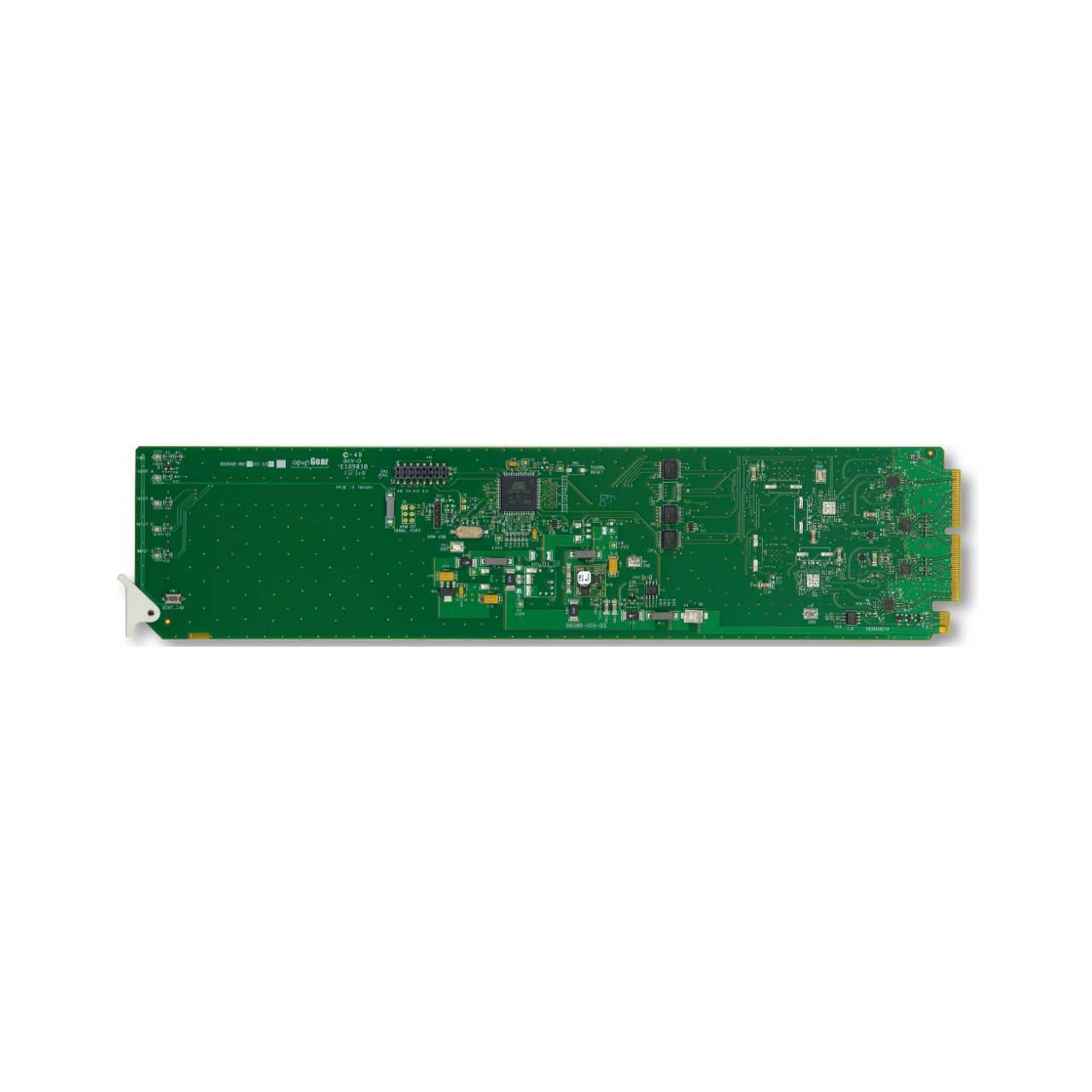

The Ross QEA-8809 is a quad channel, HD / SD distribution amplifier, redesigned using the latest technology and optimized to achieve the industry's best EQ performance offering cable lengths up to 200m at HD. Equalization is performed on all common serial digital signals, including HD / SD SDI.

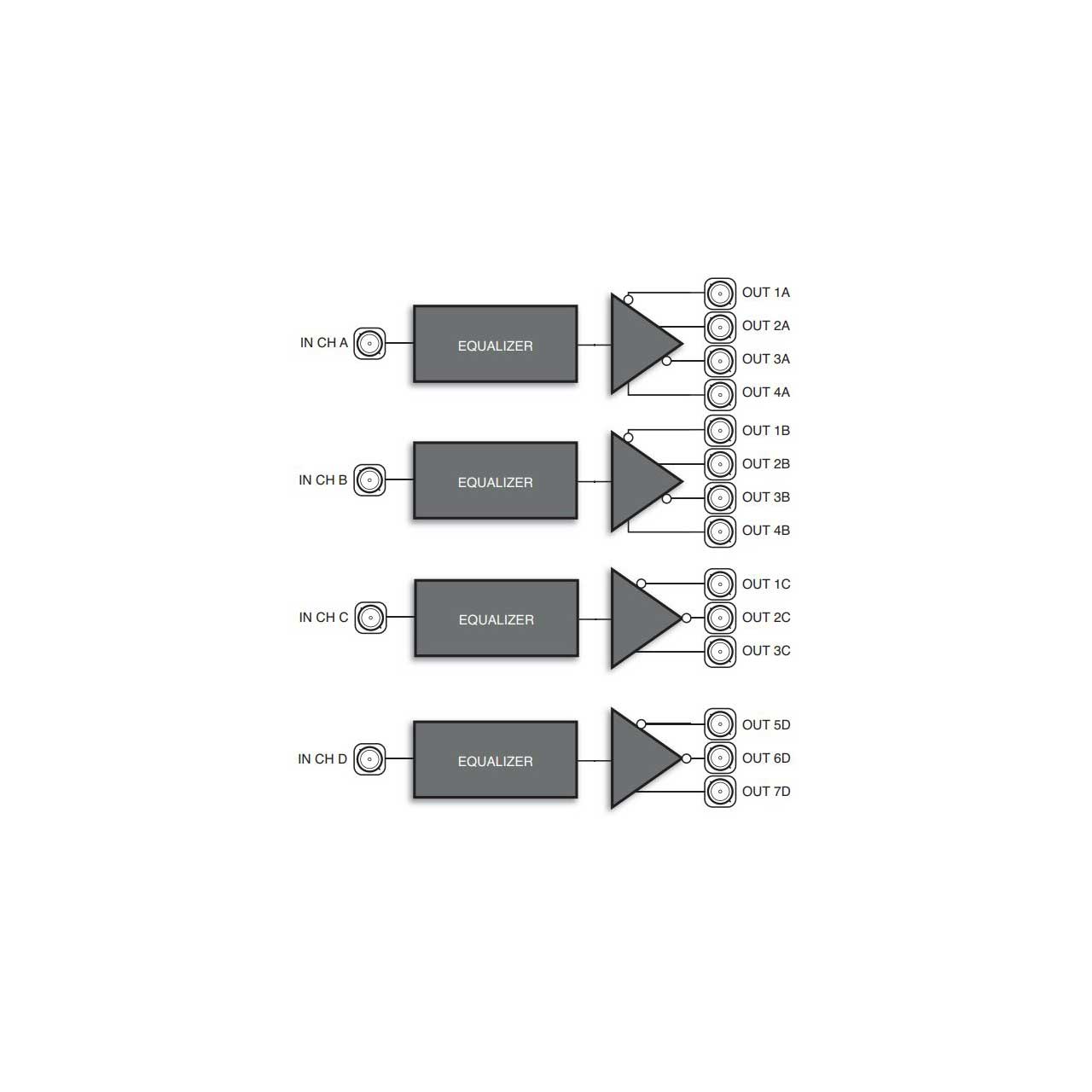

The QRA-8808 utilizes the-R2H rear module comprised of 18 HD-BNCs which offers 2 channels of 1x4 distribution, and 2 channels of 1x3 distribution, making it ideal in space critical environments. This highest density DA from Ross Video allows for up to 40 channels of distribution in a single openGear® frame, using 10 cards.
LED indicators at the front of the module identify the presence of incoming video, and the data rate for each independent channel.
