SoundTools WC121-B WallCAT - Wall Mounted Audio Transport - Female Black

ITEM #: RSS-WC121-B MFG #: WC121-B

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$60.00

Availability: In Stock
iAvailability Description Popup


    WC121-B - Overview

    The SoundTools WallCAT transports audio easily and conveniently from one room to the next by utilizing shielded CAT5, CAT5e, CAT6 or CAT7 cable. The highlight of this XLR extender is its compatibility with balanced analog, digital, AES/EBU, DMX and Clear-Com signals.

    Every connection you need, including 4 Neutrik XLR connectors in front and 2 Amphenol RJ45 connections in back, come pre-installed and clearly labeled. The high-quality brushed aluminum and stainless steel mounting screws (included) are resistant to rust and most wear-and-tear.

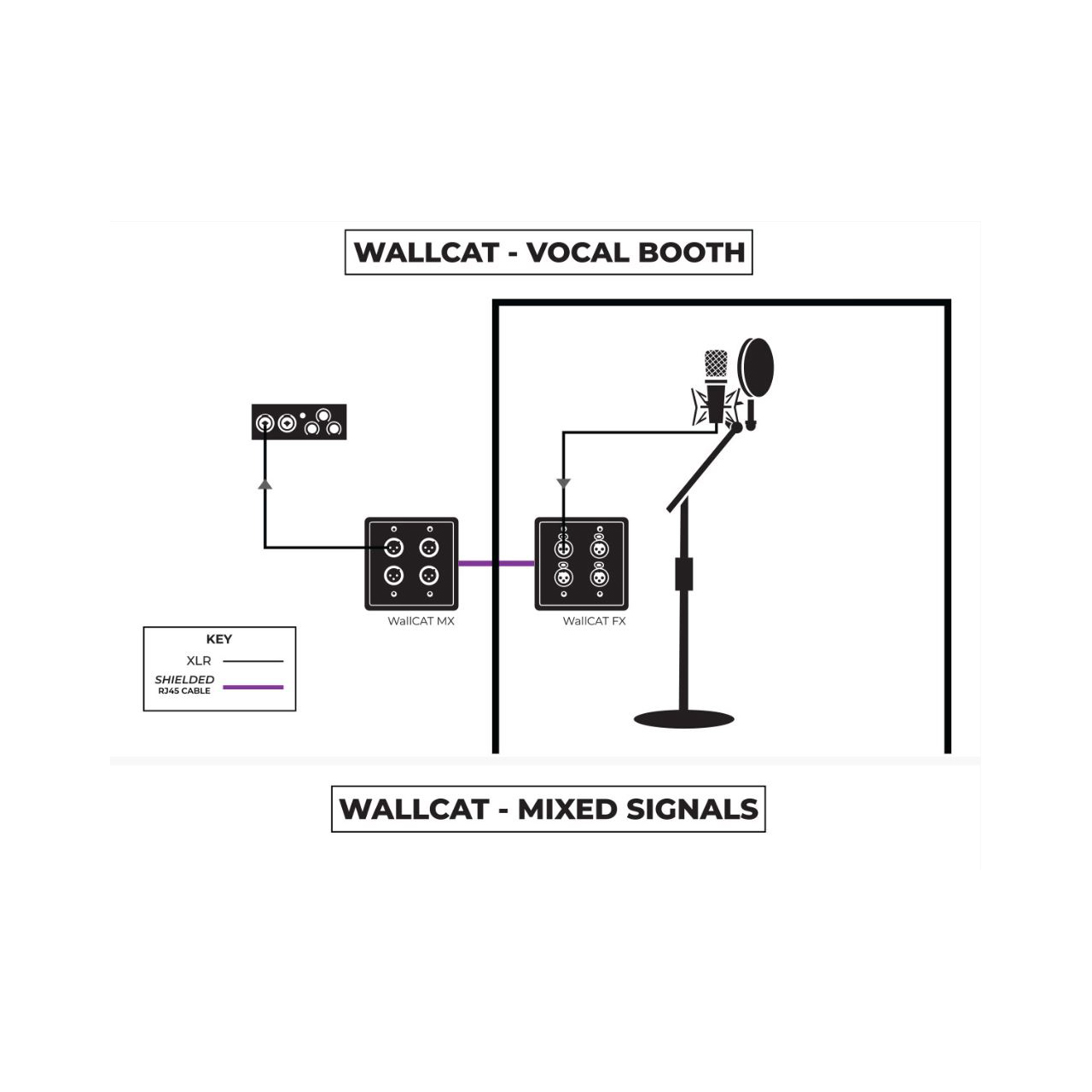

    SoundTools Wall CATs require shielded (STP/FTP) Cat cable to function properly. They are compatible with 48-volt phantom power. Using several SoundTools WallCATs the SuperCAT cable in your building installation will allow you to run four channels of clear audio
    and COM signals from one room to another or to multiple rooms at once. Combine with the CAT Box, CAT Rack, and/or CAT Tails for the ultimate audio-over-Cat5 experience.

    Please Note: SoundTools CAT branded products REQUIRE shielded CAT5 CAT5e CAT6 or CAT7 cable. Also note that ALL Rat Sound Category 5/6/7 extender products ( i.e. CAT Rack, CAT BOX. WallCAT, etc.) will travel 100 meters (330 feet) and all are compatible with balanced analog, digital, AES/EBU (110 ohm), DMX and Clear-Com signals.

    • Features:

      • Send up to four balanced audio lines from one location to another using shielded CAT 5 CAT 6 or CAT 7 cable
      • Compatible with balanced analog, digital, AES/EBU, DMX and Clear-Com signals

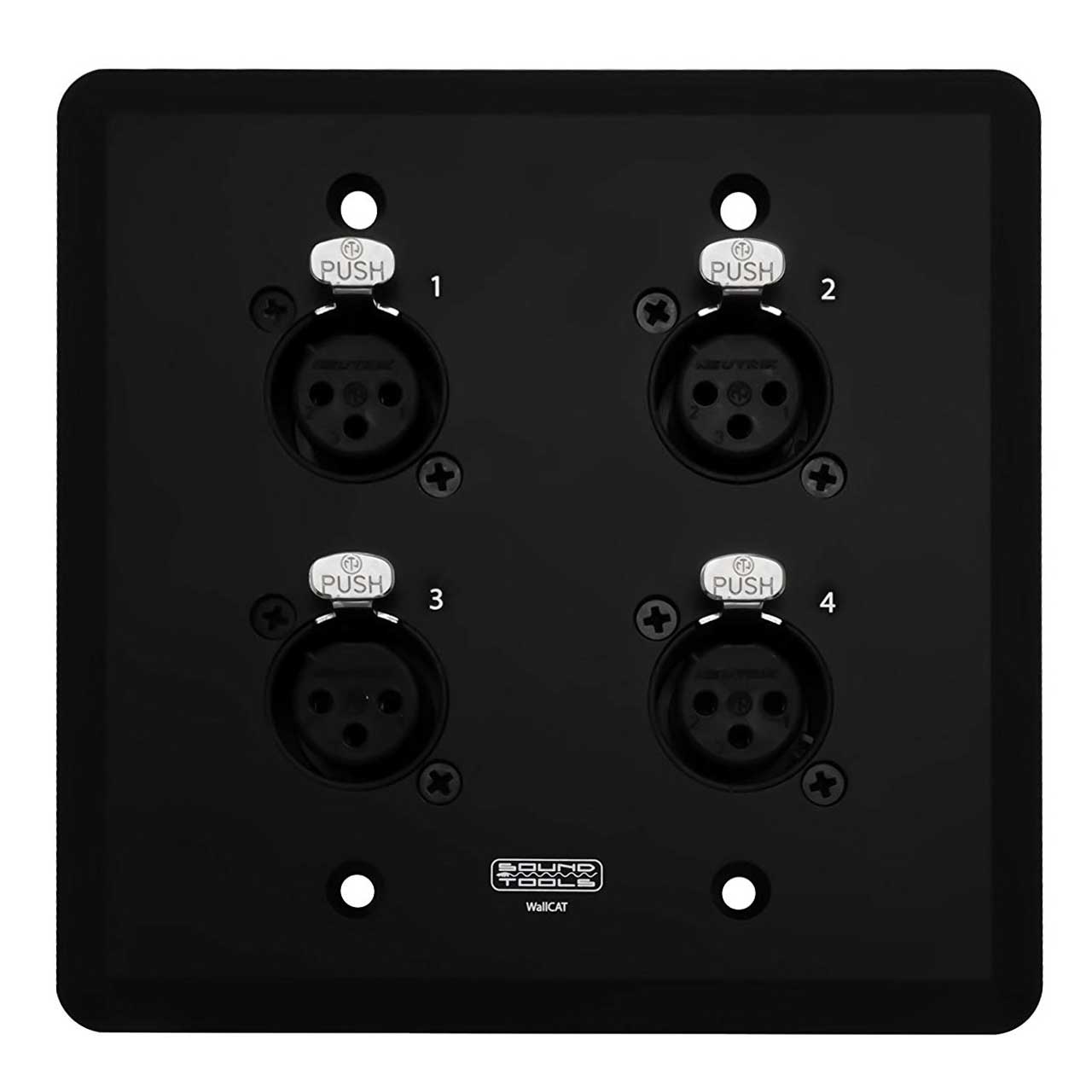

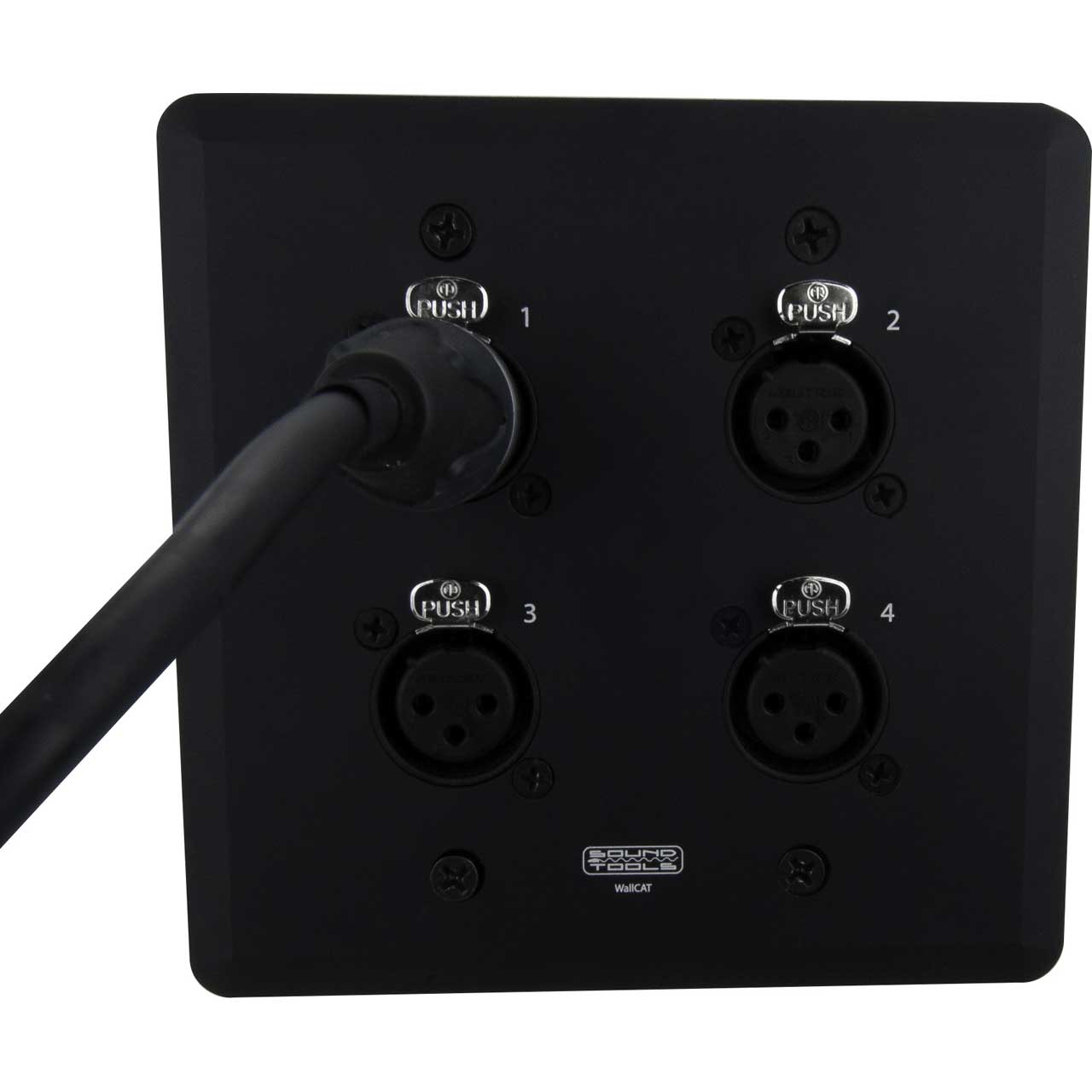

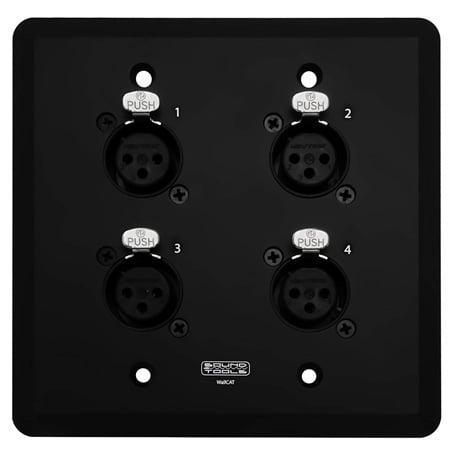

      • The double gang plate contains four XLR connectors (4 male or 4 female) and two rear mounted RJ45 connectors

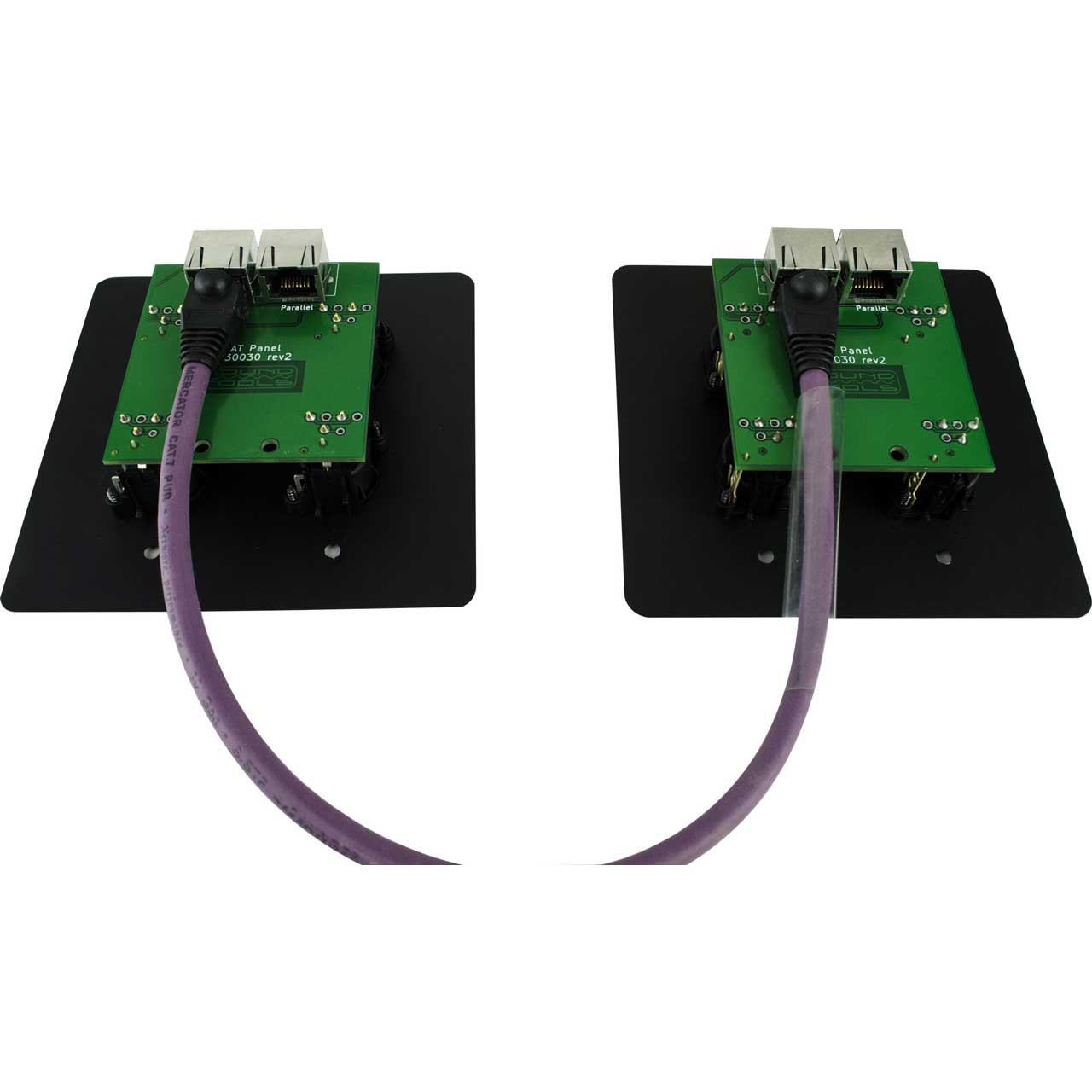

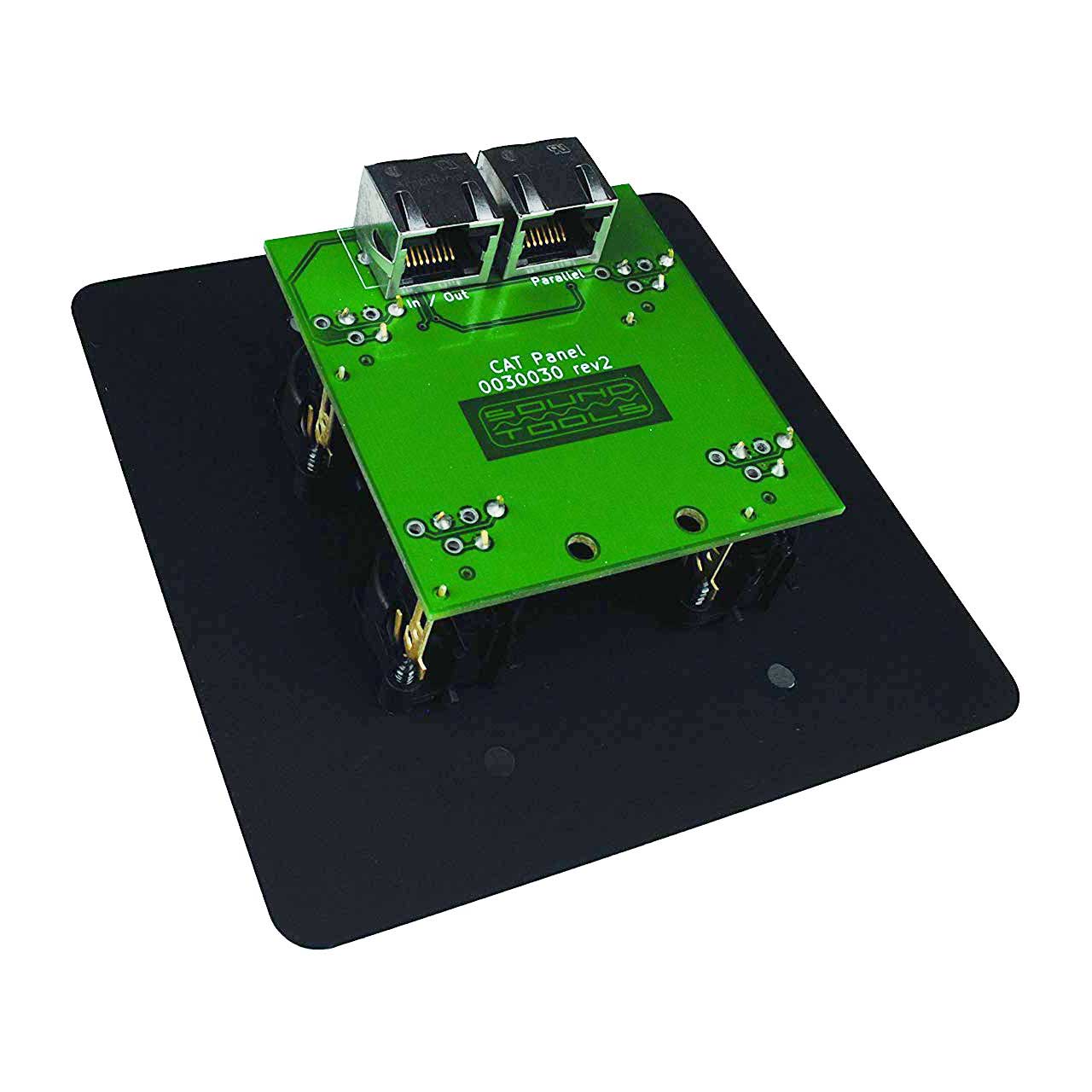

      • Two rear RJ45 connectors: one for input and one for thru.
      • The plate has a .1" thickness with the rest of the unit measuring a 1.2" depth. Mounts with standard electrical junction boxes
      • Compatible with 48 volt phantom power
      • The use of CAT5 offers many advantages including availability, low cost, and the option utilize existing CAT5 infrastructure.

    • GTIN:

      0713289062163
