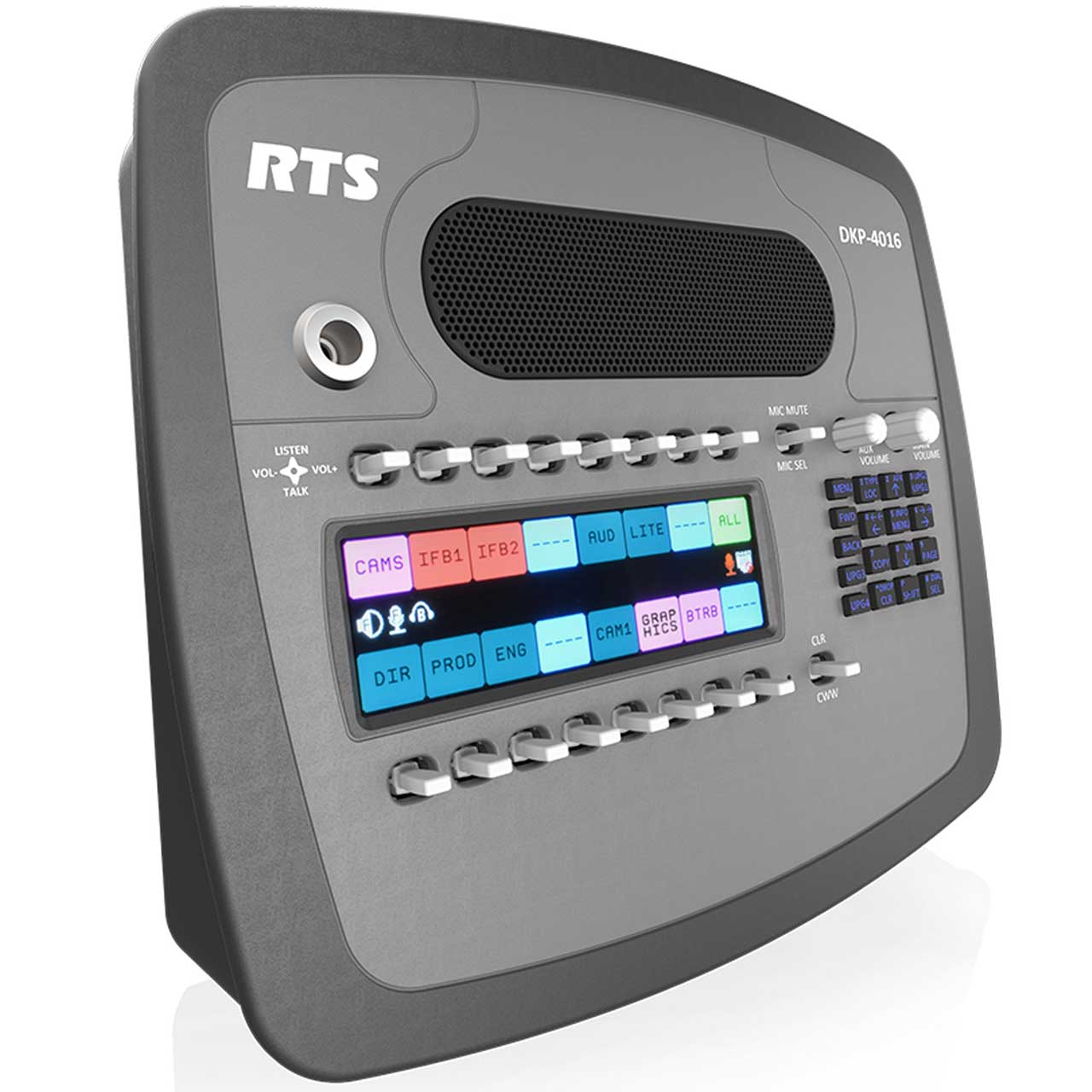

RTS DKP-4016W OMNEO 16-Key IP Intercom Keypanel with HD Color Display - Wall Mount

F.01U.301.544 - Overview

• Features:

  • Real-time routing of program audio to IFB outputs
  • Audio monitoring of program inputs or IFB outputs
  • Real-time gain adjustment of program input and IFB output levels
  • Legacy support for RS485 data connections or enhanced Ethernet connectivity
  • Support for analog, OMNEO or RVON audio connections


• Specifications:

  • LCD Display
  • Active Area: 120.10mm (wide) x 35.86mm (high)
  • Dot Resolution: 576 x 172 pixels
  • Color Resolution: 16-bit (64K)RGB color
  • View Angle: 80 degrees (typical; all directions)

    Power Supply
  • Type: Internal
  • AC Input: 100-240VAC 50/60Hz

    General Purpose Inputs and Outputs
  • Outputs
  • Type (relays): SPDT
  • Contact Rating: 1AMP @ 30VDC

    Inputs
  • Type: Optically Coupled
  • Input Voltage: 5-18 VDC on A+, * A+ is internally pulled to 5VDC. Connect K- to to activate.
  • Type: Balanced
  • Typical Input Level: +8dBu
  • Typical Input Impedance: >10kO
  • Maximum Input Level: +20dBu
  • Supported Bandwidth: 100Hz to 20KHz

    Aux
  • Type: Balanced
  • Typical Input Level: +8dBu
  • Typical Input Impedance: >20 k O
  • Maximum Input Level: >+20 dBu
  • Supported Bandwidth: >100 Hz to 20 kHz

    Front Panel Mic
  • Type: Electret
  • Typical Input Level: -42dBu
  • Typical Input Impedance: 1kO
  • Maximum Input Level: -25dBu

    Rear Panel Mic
  • Type: Electret
  • Typical Input Level: -42dBu
  • Typical Input Impedance: 1kO
  • Maximum Input Level: -25dBu

    Front and Rear Headset Mic - Electret
  • Typical Input Level: -42dBu
  • Typical Input Impedance: 1kO
  • Maximum Input Level: -25dBu

    Front and Rear Headset Mic - Dynamic
  • Typical Input Level: -50dBu
  • Typical Input Impedance: 600O
  • Maximum Input Level: -25dBu

    Outputs
  • Matrix
  • Type: Balanced
  • Typical Output Level: +8dBu
  • THD+N%: <0.20%
  • Typical Output Impedance: 600O
  • Maximum Output Level: +20dBu
  • Frequency Response: 100Hz to 20KHz

    MIC/LINE Out
  • Type: Balanced
  • Typical Output Level: +8dBu
  • THD+N%: <0.20%
  • Typical Output Impedance: 600O
  • Maximum Output Level: +20dBu
  • Frequency Response: 100Hz to 20KHz

    Headset - Front, Rear, Left, Right
  • Maximum Output Power: 125mW for 32O load
  • Earphone Impedance: 16O and above
  • THD+N%: <0.20%
  • Frequency Response: 100Hz to 20KHz

    Speaker - Rear
  • Maximum Output Power: 5W for 8O load
  • Speaker Impedance: 4O and 8O
  • THD+N%: <0.20%
  • Frequency Response: 100Hz to 20KHz

    Digital
  • OMNEO Channels
  • Typical OMNEO Latency: 1ms
  • Frequency Response: 20Hz - 20KHz

    Environmental
  • Dimensions: 3.60 in. H x 10.63 in. W x 9.35 in. D
  • Weight: 3.70 Lb
  • Power Supply: 0.53lb (.24kg)

    Power Consumption
  • Nominal: 22 Watts
  • Maximum: 39 Watts
  • Maximum Volt Amp: 63 VA
