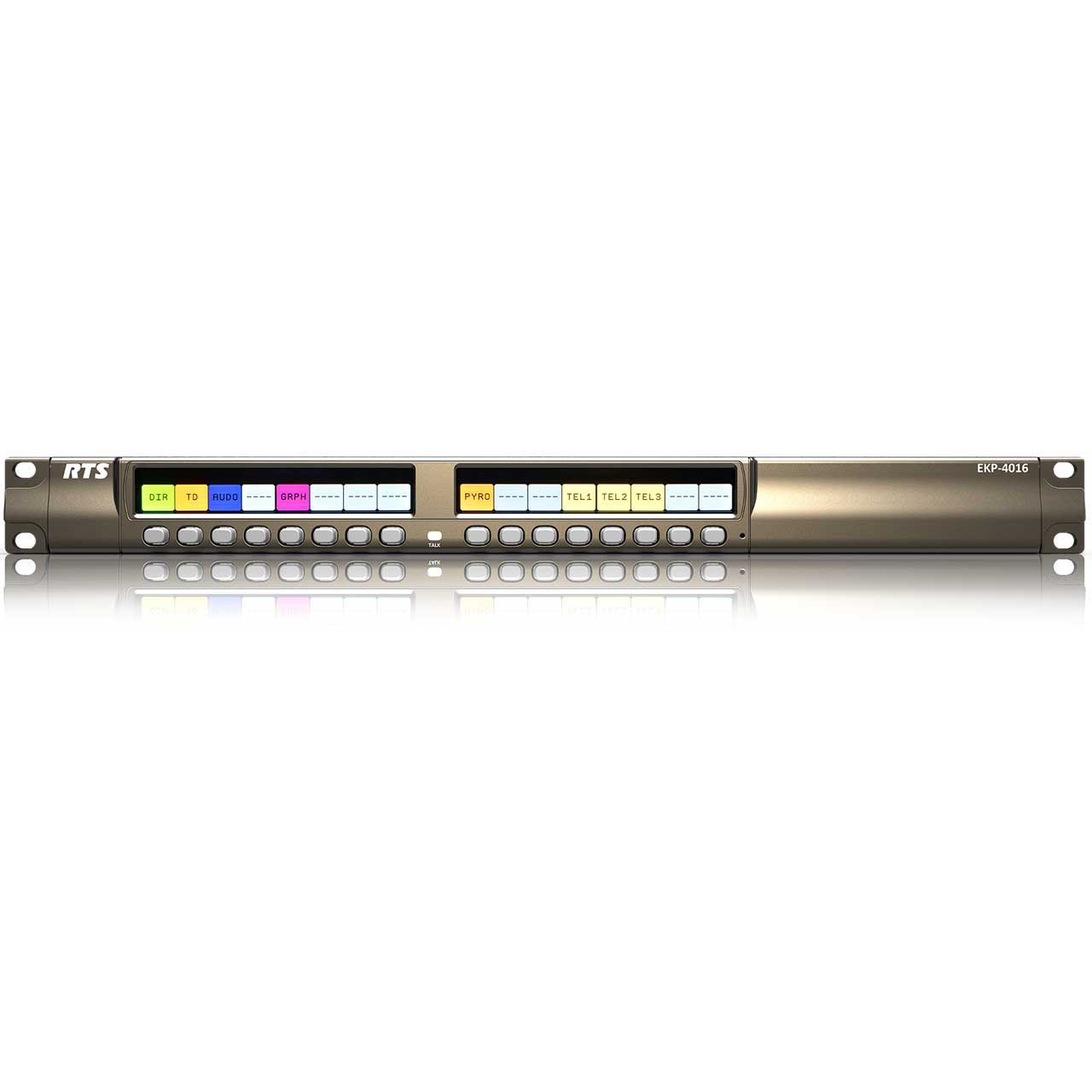

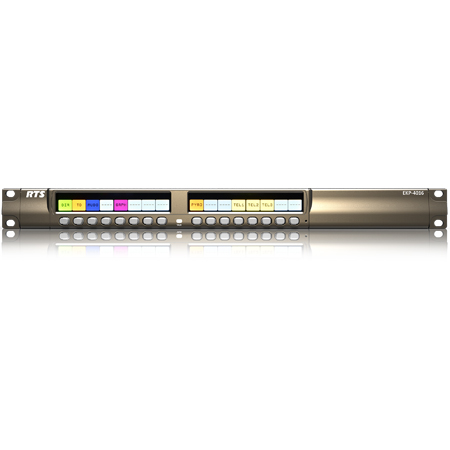

RTS EKP4016PB Expansion Panel for the KP-5032PB / KP-4016PB / PAP5032PB

ITEM #: RTS-EKP4016PB MFG #: F.01U.328.264

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
RTS Intercoms
Free Shipping with $49 Minimum Order

Our Price:

$1,976.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    F.01U.328.264 - Overview

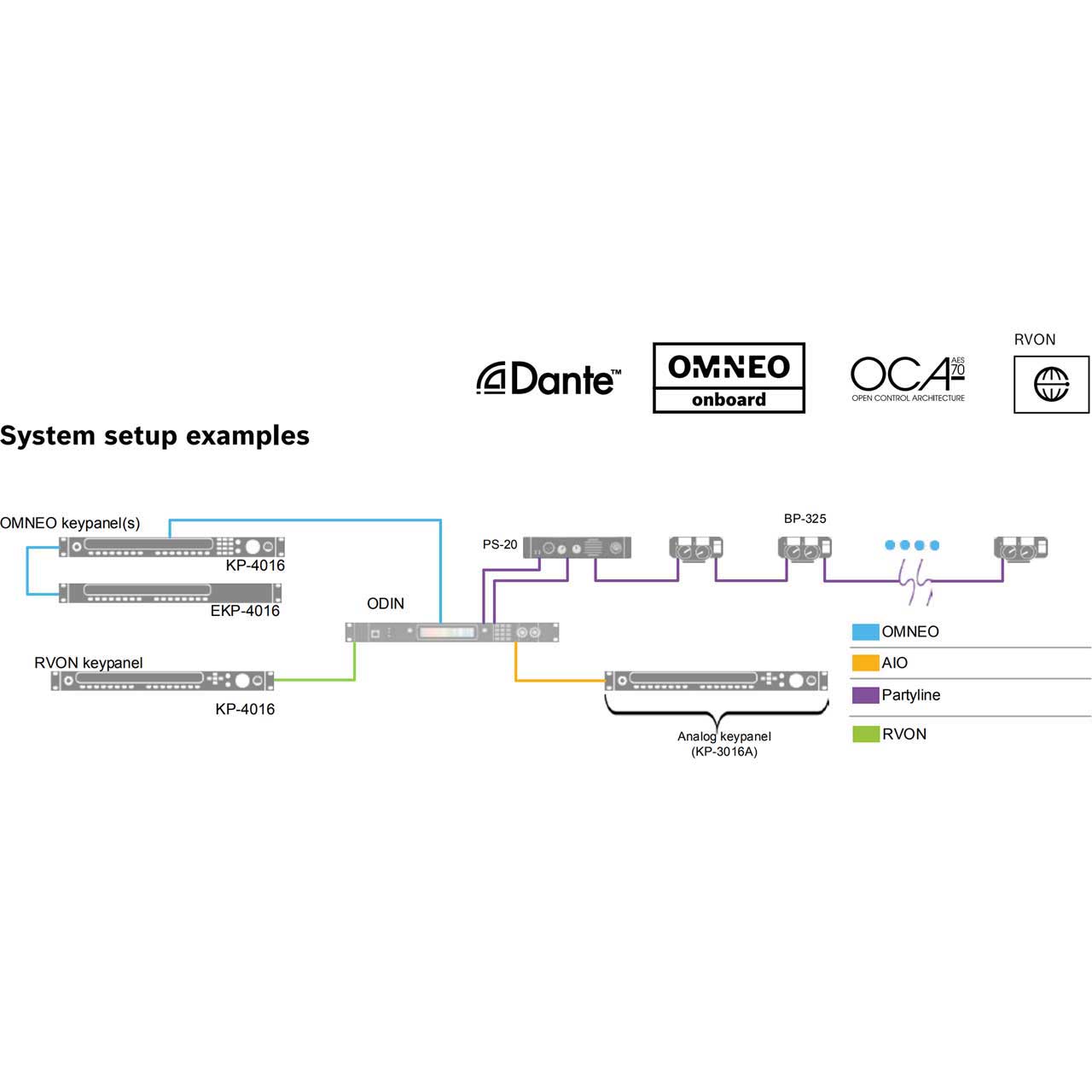

    The RTS EKP-4016PB works together with the KP-4016 and KP-5032 series panels to provide and additional 16 keys per expansion panel. KP-Series keypanels utilize the latest generation of wide angle TFT displays, providing superior clarity and resolution. In addition, the RTS OMNEO suite supports Open Control Architecture (OCA) protocol and is compliant with the AES70 standard. RTS offers different firmware versions, making it possible to load either OMNEO or RVON (RTS Voice over Network) IP protocols.

    • Features:

      • OMNEO Open Media Networking Standard: The new KP-Series is future-proof and so is your communication. The unparalleled flexibility features OMNEO, so you get full backward compatibility and easy scalability.
      • Full IP Connectivity and TCP-IP Layer 2 & 3 Compatibility: Out with the old and in with the more intuitive. The new design and an enhanced user interface enable easier understanding and improved operation. The software provides simple and intuitive navigation of menus, with the most commonly used features easily accessible.
      • Advanced Signal Processing and AD/DA: Get high-quality audio transmission every time. The new keypanel family features two echo cancellation modes, plus quick AD/DA conversion - ensuring ultra-low latency and reducing noise, echo, delay and other artefacts occasionally present in older technologies.
      • User-Friendly, High-Res Color Display: Get high quality, inside and out. The new KP-Series keypanels feature a unified design, including color, contrast, resolution and viewing angle for complete communication harmony. Plus, the popular KP-Series of keypanels now features an expansion panel with ergonomically designed pushbuttons. The pushbutton expansion panel can be used with the KP-4000/5000 series of lever keypanels.
      • Backward compatibility: All KP-Series keypanels are compatible with older technologies such as analog audio in USOC and 568-B connector formats.
      • Enhanced navigation menus: Optimized for ease of use.


    • Specifications:

      • LCD Display Active Area: 120.10mm x 18.77mm
      • LCD Display Dot Resolution: 576x90
      • LCD Display Color Resolution: 16-bit (64K) RGB color
      • LCD Display View Angle: 80° (typical; all directions)
      • Power Requirements: 100~240VAC, 50-60Hz
      • Operating Temperature: 0°C to 55°C
      • Storage Temperature: -40°C to 70°C

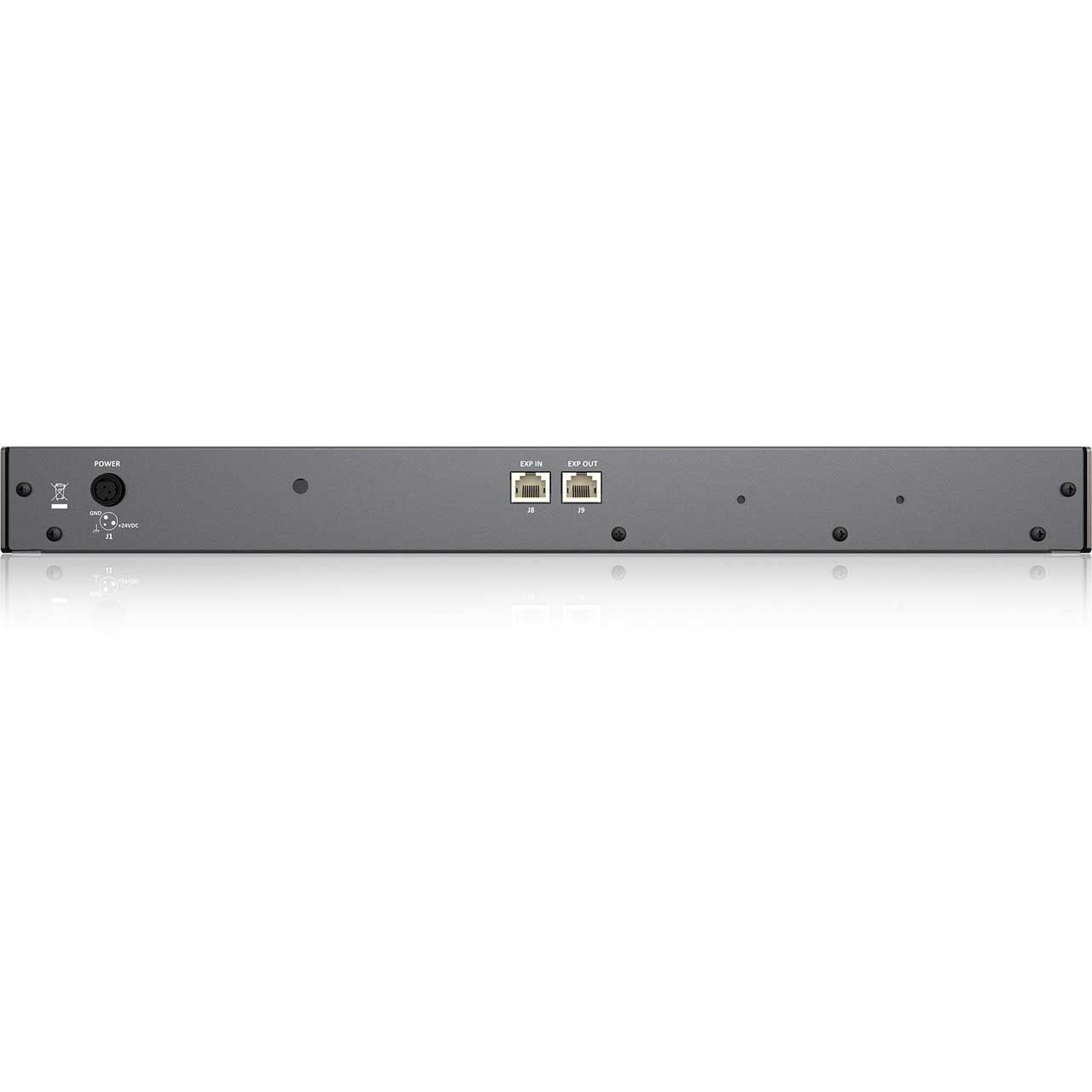

      • Connector Options: EXP IN, EXP OUT
      • Dimensions (WxHxD): 17.39" x 1.72" x 3.87" (441.82mm x 43.8mm x 98.5mm)
      • Weight: 2.91lb (1.32kg)
      • Power Consumption: Nominal: 12 Watts - Maximum: 15 Watts - Maximum Volt Amp: 48 VA


    • Item Includes:

      • 1x RTS EKP-4016PB


    • Warranty:

      • 1-Year Limited Warranty
