RTS KP4016 5F OPT-AC Lever Key Panel for KP-4016 - A5F Connector with Audio and Control Software

ITEM #: RTS-KP40165FOPTA MFG #: KP4016 5F OPT-AC

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$4,608.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

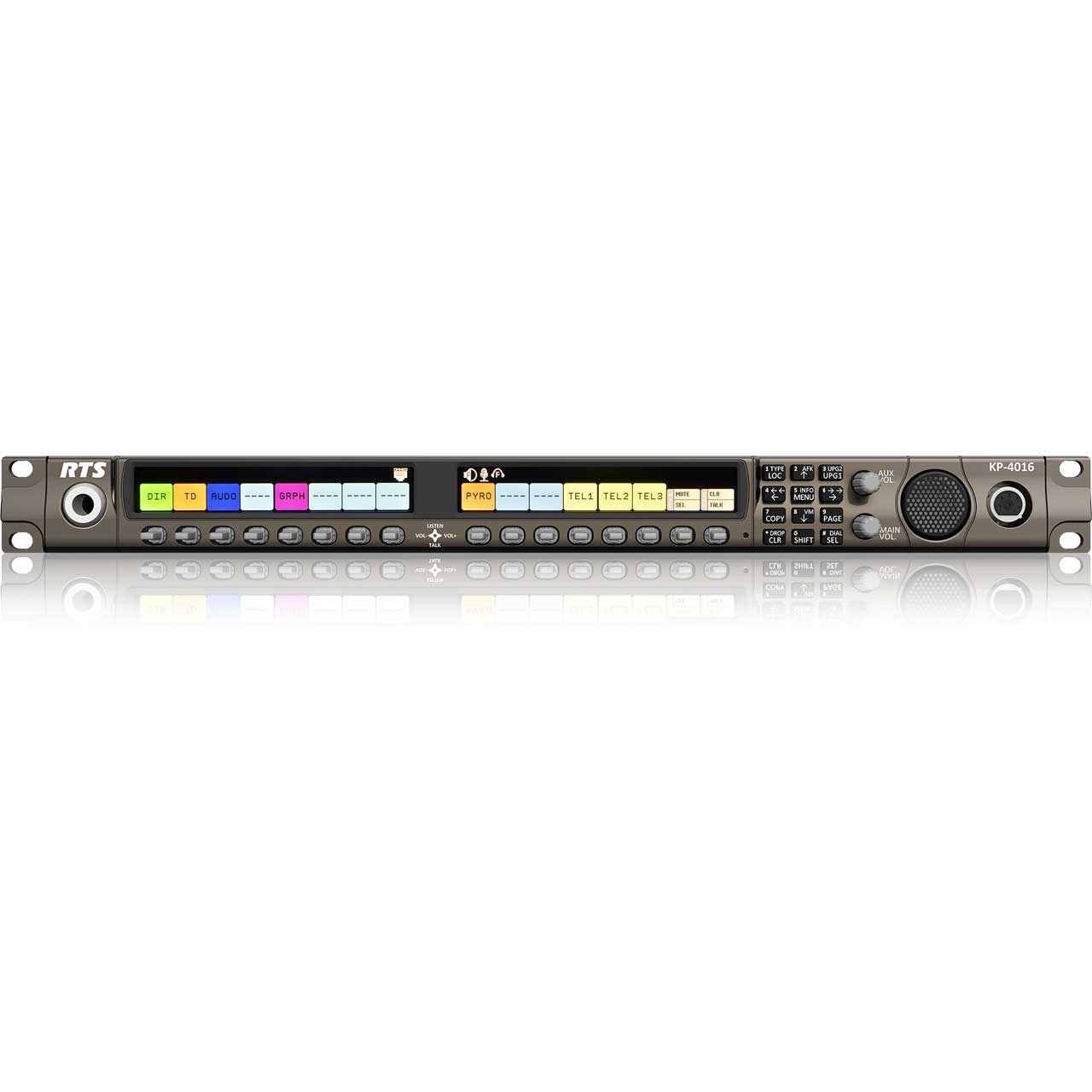

    KP4016 5F OPT-AC - Overview

    Both the KP-4016 and KP-4016PB keypanels deliver superior high-quality digital audio using the Bosch-branded OMNEO technology with Dante™ by Audinate audio over IP via either copper or fiber. The KP-4016 delivers top-notch audio, free of noise, delay, and other artifacts present in older technology. This family of keypanels includes a rich set of connectors as standard, including GPIO and RC. As with other RTS products, emphasis has been placed on backward compatibility with previous generations of matrices including analog technology.

    The keypanel models utilize the latest generation of wide angle TFT displays providing superior clarity, resolution, and longer display life, delivering high-quality readability under a variety of lighting conditions.

    • Features:

      • OMNEO Open Media Networking Standard
      • Full IP Connectivity and TCP-IP Layer 2 & 3 Compatibility
      • Advanced Signal Processing and AD/DA
      • User-Friendly, High-Res Color Display
      • Backward compatibility
      • Enhanced navigation menus
      • Front panel headset connector

    • Specifications:

      • LCD Display
      • Active Area: 120.10mm (wide) x 18.77mm (high)
      • Dot Resolution: 576 x 90 pixels
      • Color Resolution: 16-bit (64K)RGB color
      • View Angle: 80 degrees (typical; all directions)

        Power Supply
      • Type: External DC
      • AC Input: 100-240VAC 50/60Hz

        General Purpose Inputs and Outputs
      • Outputs
      • Type (relays): SPDT
      • Contact Rating: 1AMP @ 30VDC
      • Inputs
      • Type: Optically Coupled
      • Input Voltage: 5-18 VDC on A+
      • * A+ is internally pulled to 5VDC. Connect K- to to activate.

        Inputs
      • Matrix
      • Type: Balanced
      • Typical Input Level: +8dBu
      • Typical Input Impedance: >10kΩ
      • Maximum Input Level: +20dBu
      • Supported Bandwidth: 100Hz to 20KHz
      • Aux 1 and Aux 2
      • Type: Balanced
      • Typical Input Level: +8dBu
      • Typical Input Impedance: >10 kΩ
      • Front Panel Mic
      • Type: Electret
      • Typical Input Level: -42dBu
      • Typical Input Impedance: 1kΩ
      • Maximum Input Level: -25dBu
      • Rear Panel Mic
      • Type: Electret
      • Typical Input Level: -42dBu
      • Typical Input Impedance: 1kΩ
      • Maximum Input Level: -25dBu
      • Front and Rear Headset Mic - Electret
      • Typical Input Level: -42dBu
      • Typical Input Impedance: 1kΩ
      • Maximum Input Level: -25dBu
      • Front and Rear Headset Mic - Dynamic
      • Typical Input Level: -50dBu
      • Typical Input Impedance: 600Ω
      • Maximum Input Level: -25dBu

        Outputs
      • Matrix
      • Type: Balanced
      • Typical Output Level: +8dBu
      • THD+N%: <0.20%
      • Typical Output Impedance: 600Ω
      • Maximum Output Level: +20dBu
      • Frequency Response: 100Hz to 20KHz
      • MIC/LINE Out
      • Type: Balanced
      • Typical Output Level: +8dBu
      • THD+N%: <0.20%
      • Typical Output Impedance: 600Ω
      • Maximum Output Level: +20dBu
      • Frequency Response: 100Hz to 20KHz
      • Headset - Front, Rear, Left, Right Maximum
      • Output Power: 125mW for 32Ω load
      • Earphone Impedance: 16Ω and above
      • THD+N%: <0.20%
      • Frequency Response: 100Hz to 20KHz
      • Speaker - Rear
      • Maximum Output Power: 5W for 8Ω load
      • Speaker Impedance: 4Ω and 8Ω
      • THD+N%: <0.20%
      • Frequency Response: 100Hz to 20KHz
      • Speaker - Front
      • Front: 84dBSPL for 1kHz sine wave @ 1 meter

        Digital
      • OMNEO Channels
      • Typical OMNEO Latency: 1ms
      • Frequency Response: 20Hz - 20KHz

        Environmental
      • Dimensions (WxHxD) (without rack ears): 17.39 x 1.72 x 3.88"
      • Weight:
      • KP-4016: 3.5lb (1.58kg)
      • Power Supply: 0.53lb (.24kg)
      • Mounting Bracket: 0.30lbs (.14kg)
      • Operating Temperature: 0°C to 55°C (32°F to 131°F)
      • Storage Temperature: -20°C to 70°C (-4°F to 158°F)

        Power Consumption
      • Nominal: 12 Watts
      • Maximum: 15 Watts
      • Maximum Volt Amp: 48 VA

        Certification
      • CE Compliance
      • UL Certified
