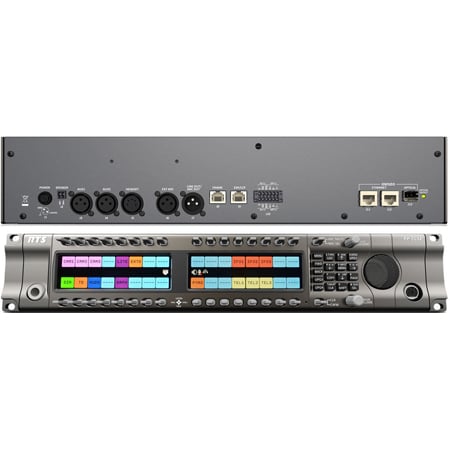

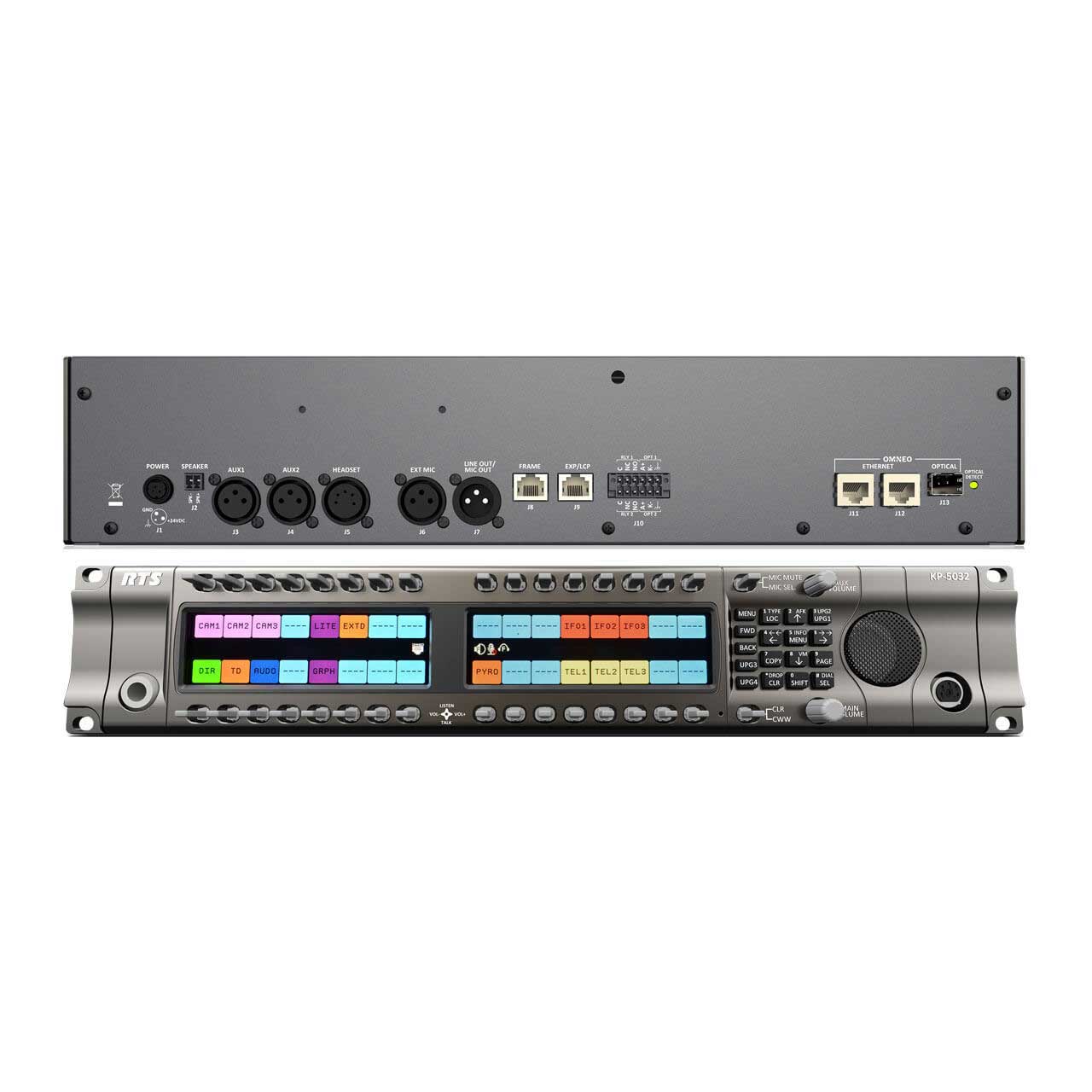

RTS KP5032PBA5F Push Button Key Panel with A5F Connector

ITEM #: RTS-KP5032PBA5F MFG #: F.01U.328.222

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$5,146.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    F.01U.328.222 - Overview

    The KP5032PBA5F keypanel deliver superior high-quality digital audio using the Bosch-branded OMNEO technology with Dante by Audinate audio over IP via either copper or fiber. The KP-5032 models deliver top-notch audio, free of noise, delay, and other artifacts present in older technology. This family of keypanels includes a rich set of connectors as standard, including GPIO and RC. As with other RTS products, emphasis has been placed on backward compatibility with previous generations of matrices including analog technology. The KP-5032 keypanel utilize the latest generation of wide angle TFT displays providing superior clarity, resolution, and longer display life, delivering high-quality readability under a variety of lighting conditions.

    • Features:

      • Backward compatible with older technologies such as analog audio in USOC and 568-B connector formats
      • All previous options hardware connectors (RC, GPI, and ancillary items) are now standard
      • New wide-angle high-definition display
      • Enhanced navigation menus optimized for ease of use
      • Front panel headset connector is field-swappable, making it simple to change the default 5-pin XLR (6-pin compatible) headset connector with a 4-pin XLR headset connector, as needed

    • Specifications:

      • LCD Display:
      • Active Area: 120.10mm (wide) x 35.86mm (high)
      • Dot Resolution: 576 x 172 pixels
      • Color Resolution: 16-bit (64K)RGB color
      • View Angle :80 degrees (typical; all directions)

        Power Supply:
      • Type: External DC
      • AC Input 100-240VAC 50/60Hz

        General Purpose Inputs and Outputs:
      • Outputs: Type (relays): SPDT
      • Contact Rating: 1AMP @ 30VDC
      • Inputs: Type Optically Coupled
      • Input Voltage 5-18 VDC on A+

        Inputs:
        Matrix:
      • Type: Balanced
      • Typical Input Level: +8dBu
      • Typical Input Impedance: >10kΩ
      • Maximum Input Level: +20dBu
      • Supported Bandwidth: 100Hz to 20KHz
        Aux 1 and Aux 2
      • Type: Balanced
      • Typical Input Level: +8dBu
      • Typical Input Impedance: >10 kω
        Front Panel Mic
      • Type: Electret
      • Typical Input Level: -42dBu
      • Typical Input Impedance: 1kω
      • Maximum Input Level: -25dBu
        Rear Panel Mic
      • Type: Electret
      • Typical Input Level: -42dBu
      • Typical Input Impedance: 1kω
      • Maximum Input Level: -25dBu
        Front and Rear Headset Mic - Electret
      • Typical Input Level: -42dBu
      • Typical Input Impedance: 1kω
      • Maximum Input Level: -25dBu
        Front and Rear Headset Mic - Dynamic
      • Typical Input Level: -50dBu
      • Typical Input Impedance: 600ω
      • Maximum Input Level: -25dBu

        Outputs:
        Matrix
      • Type: Balanced
      • Typical Output Level: +8dBu
      • THD+N%: <0.20%
      • Typical Output: Impedance 600ω
      • Maximum Output: Level +20dBu
      • Frequency Response 100Hz to 20KHz
        Headset - Front, Rear, Left, Right
      • Maximum Output Power: 125mW for 32ω load
      • Earphone Impedance: 16ω and above
      • THD+N%: <0.20%
      • Frequency Response: 100Hz to 20KHz

        Environmental:
      • Dimensions:
      • 17.39" W(without rack ears) x 3.46" H x 3.88" D [111.11mm including volume knobs and lever keys]
        b>Weight:
      • KP-5032 4.89lb
      • Power Supply: 0.53lb
        Power Supply:
      • Mounting Bracket: 0.30lbs
        Temperature:
      • Operating: 32°F to 131°F
      • Storage: -4°F to 158°F

        Power Consumption:
      • Nominal: 13 Watts
      • Maximum: 18 Watts
      • Maximum Volt Amp: 48 VA

    • Item Includes:

      • ASSY KP-5032PB KEYPANEL
      • POWER SUPPLY 60W 24V @0~2.5A
      • KP-OEI2 POWER SUPPLY MOUNTING BRACKET
      • Safety Instructions
      • LIT Quick Start Guide F / RP5032
      • RTS ADDITIONAL WEBSITE INFORMATION
      • 2-POSITION, 2-CONTACT TERMINAL PLUG
      • 6-POSITION, 12-CONTACT TERMINAL PLUG
