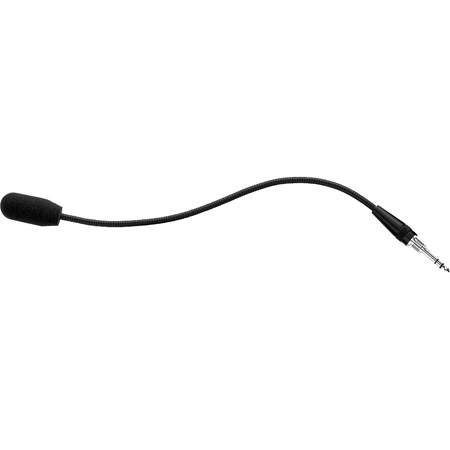

RTS MCP-90-12 Phantom-powered 12-Inch Back-electret Miniature Condenser Gooseneck Microphone for RTS Intercoms

F.01U.391.576 - Overview

• Features:

  • Miniature, ultra-lightweight back-electret condenser gooseneck panel microphone with TRS connector for RTS keypanels and select Audiocom intercoms
  • Single-D cardioid back-electret design for improved sensitivity, directivity and intelligibility in keypanel operator and intercom base station communications applications
  • Versatile custom windscreen provides pop filtering, response-shaping and prevents overload of microphone
  • Full-range frequency reproduction and sound pickup optimized for close-up use and directional pickup pattern
  • Accepts wide range of phantom power options from 1.5VDC to 9VDC, easily supplied by most communications panels designed with ¼" inputs


• Specifications:

  Microphone
  • Form Factor: Gooseneck
  • Capsule: Electret Condenser
  • Polar Pattern: Cardioid
  • Pad: None
  • High-Pass Filter: None

    Performance
  • Frequency Range: 100Hz - 15kHz
  • Dynamic Range: 102dB

    Connectivity
  • Output Connectors: 1x ¼" TRS

    Power
  • Operating Voltage: 1.5V to 9V (Phantom Power)

    Physical
  • Color: Black
  • Dimensions: 0.55" x 12" (14mm x 68.6mm)


• Item Includes:

  • 1x RTS MCP-90-12 V 12" Gooseneck Microphone with Electret Mic Element for RTS Keypanels & Intercoms


• GTIN:

  0800549444774
