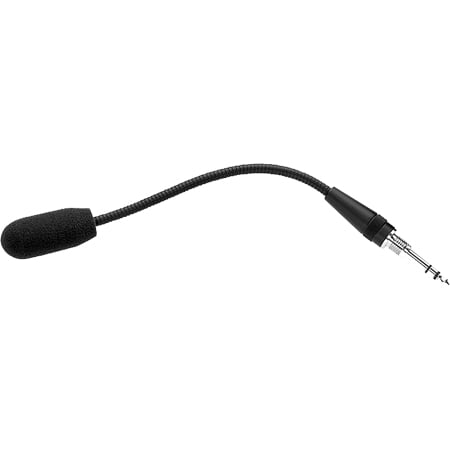

RTS MCP90-8 Phantom-powered 8-Inch Back-electret Miniature Condenser Gooseneck Microphone for RTS Intercoms

ITEM #: RTS-MCP90-8 MFG #: F.01U.391.578

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$295.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F.01U.391.578 - Overview

The RTS MCP-90-8 microphone is a phantom-powered "back-electret" miniature condenser gooseneck microphone. The back-electret feature provides greater sensitivity, wider frequency response, and superior immunity from handling noise than a diaphragm-electret microphone. The removable windscreen provides pop filtering; response shaping and overload protection to further enhance the acoustic performance of the microphone. The MCP-90 series microphones are mechanically designed for quick, easy mounting to RTS keypanels and selected Audiocom intercoms. The frequency response is tailored for full-range sound reproduction with natural sound pick-up optimized for close-up use. The microphones are fitted with a threaded TRS male connector that is compatible with RTS standard threaded TRS female connectors. The MCP-90 series is designed to be phantom powered with a wide voltage range of 1.5 to 9 VDC

  • Specifications:

    • Generation Element: Condenser, Back-Electret
    • Frequency Response: 100Hz to 15,000Hz
    • Polar Pattern: Cardioid
    • Open Circuit Voltage: 4.5mV (-47dB)/Pascal @ 1kHz
    • Dynamic Range: 102dB
    • Power Requirements: 1.5 to 9VDC
    • Color: Non-reflecting black
    • Environmental Conditions: Relative Humidity 0-50%: -20°F to 165°F (-29°C to 74°C), Relative Humidity 0 to 95%: -20°F to 135°F (-29°C to 57°C)
    • Mounting: Male threaded TRS

  • Item Includes:

    • 1x RTS MCP90-8 Gooseneck Microphone

  • Warranty:

    • 1-Year Warranty
