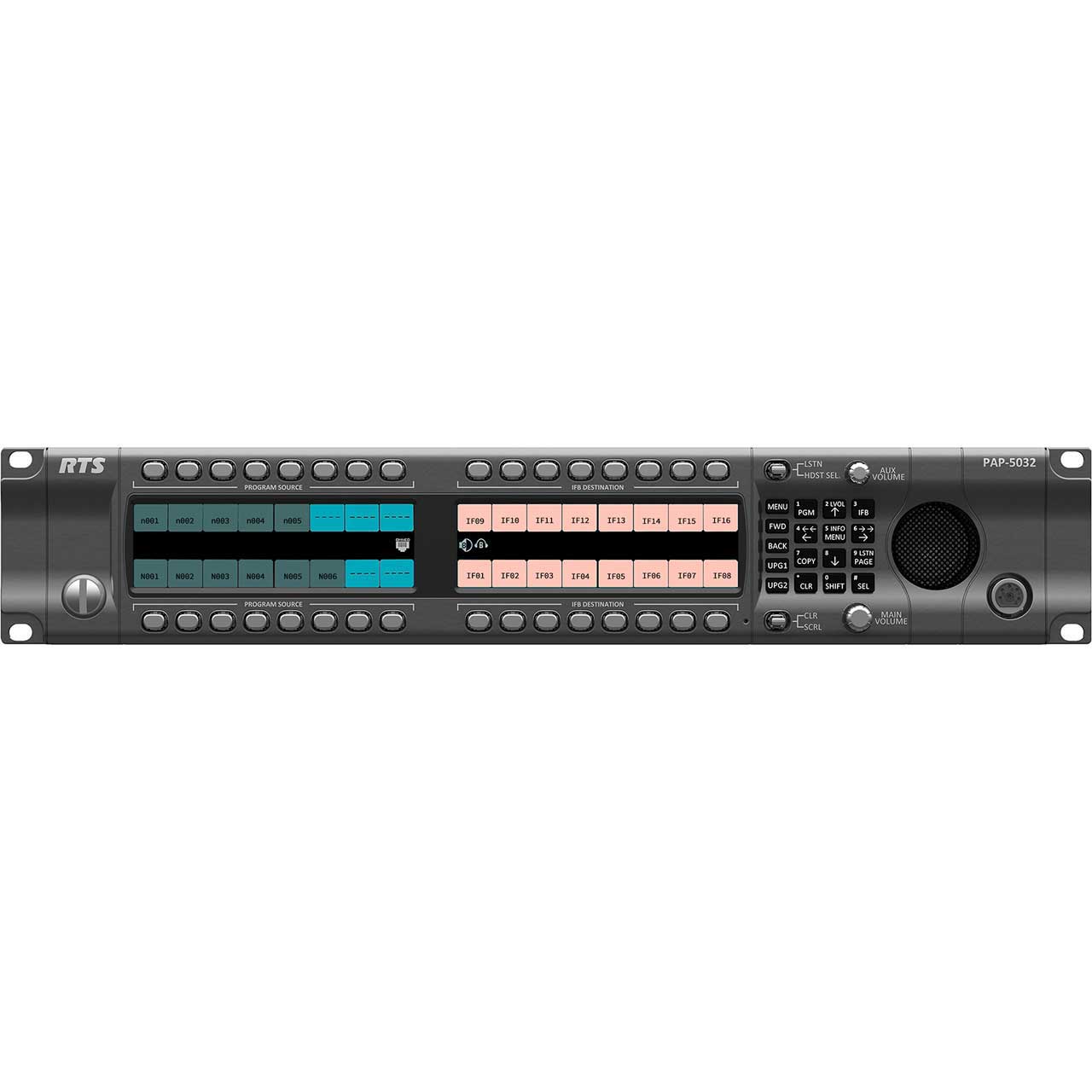

RTS PAP5032PB A5F OMNEO BLK Program Assignment Panel (16PGM 16 IFB) Pushbutton 2RU

ITEM #: RTS-PAP5032PBA5F MFG #: F.01U.362.699

Primary Image
RTS Intercoms
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    F.01U.362.699 - Overview

    The RTS PAP-5032 provides the user with the ability to assign multiple program sources to over 16 different IFB destinations. The PAP-5032 can be extended to up to 64 program sources and 64 IFB destinations via standard EKP expansion panels. The PAP-5032 works with ADAM, ADAM-M, and ODIN matrix systems.

    • Features:

      • Real-time routing of program audio to IFB outputs
      • Audio monitoring of program inputs or IFB outputs
      • Real-time gain adjustment of program input and IFB output levels
      • Legacy support for RS485 data connections or enhanced Ethernet connectivity
      • Support for analog, OMNEO or RVON audio connections


    • Specifications:

      • LCD Display Active Area: 120.10mm (wide) x 35.86mm (high)
      • LCD Display Dot Resolution: 576 x 172 pixels
      • LCD Display Color Resolution: 16-bit (64K)RGB color
      • LCD Display View Angle: 80 degrees (typical; all directions)
      • AC Input: 100-240 50/60Hz
      • Type: External DC
      • Function: Program Assign Panel
