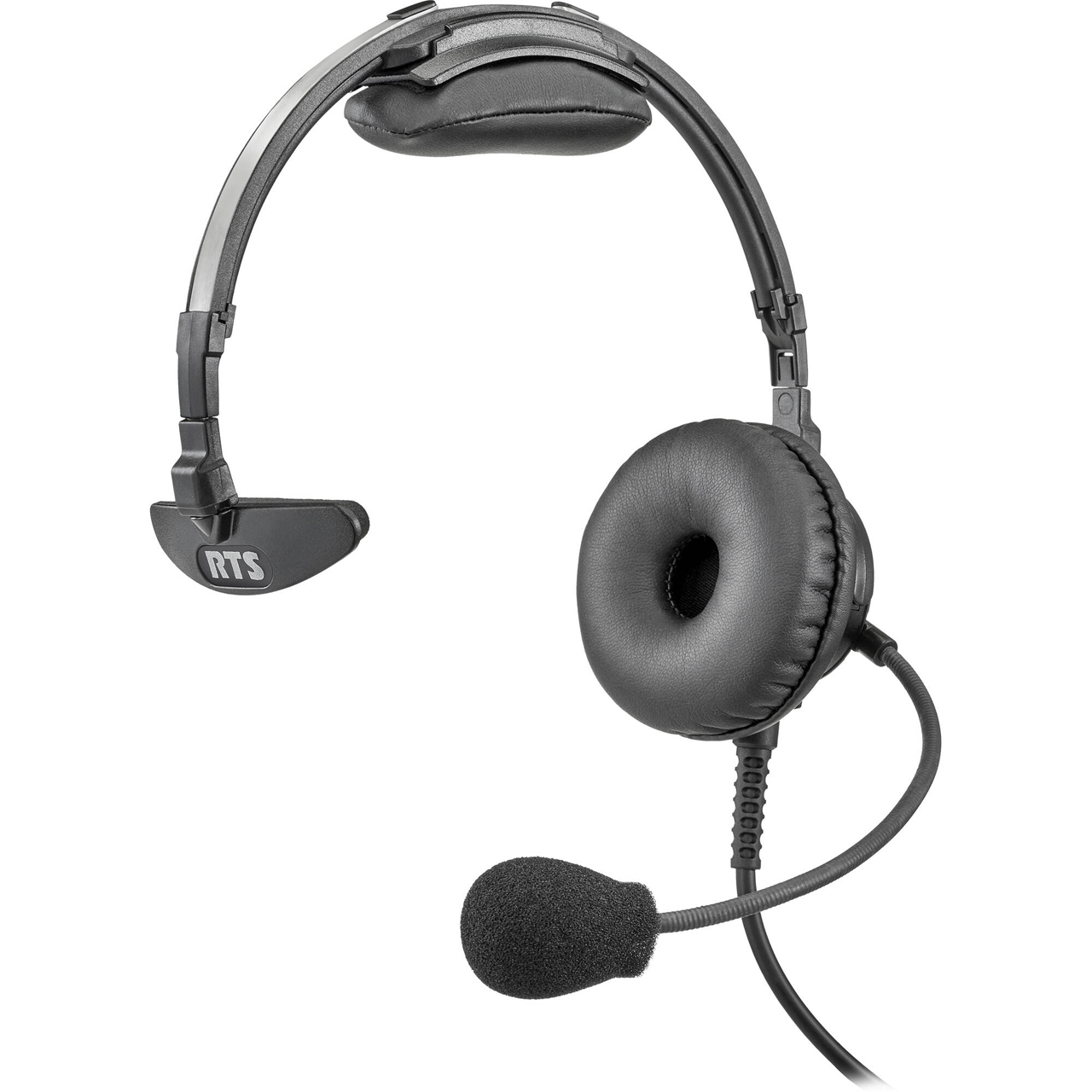

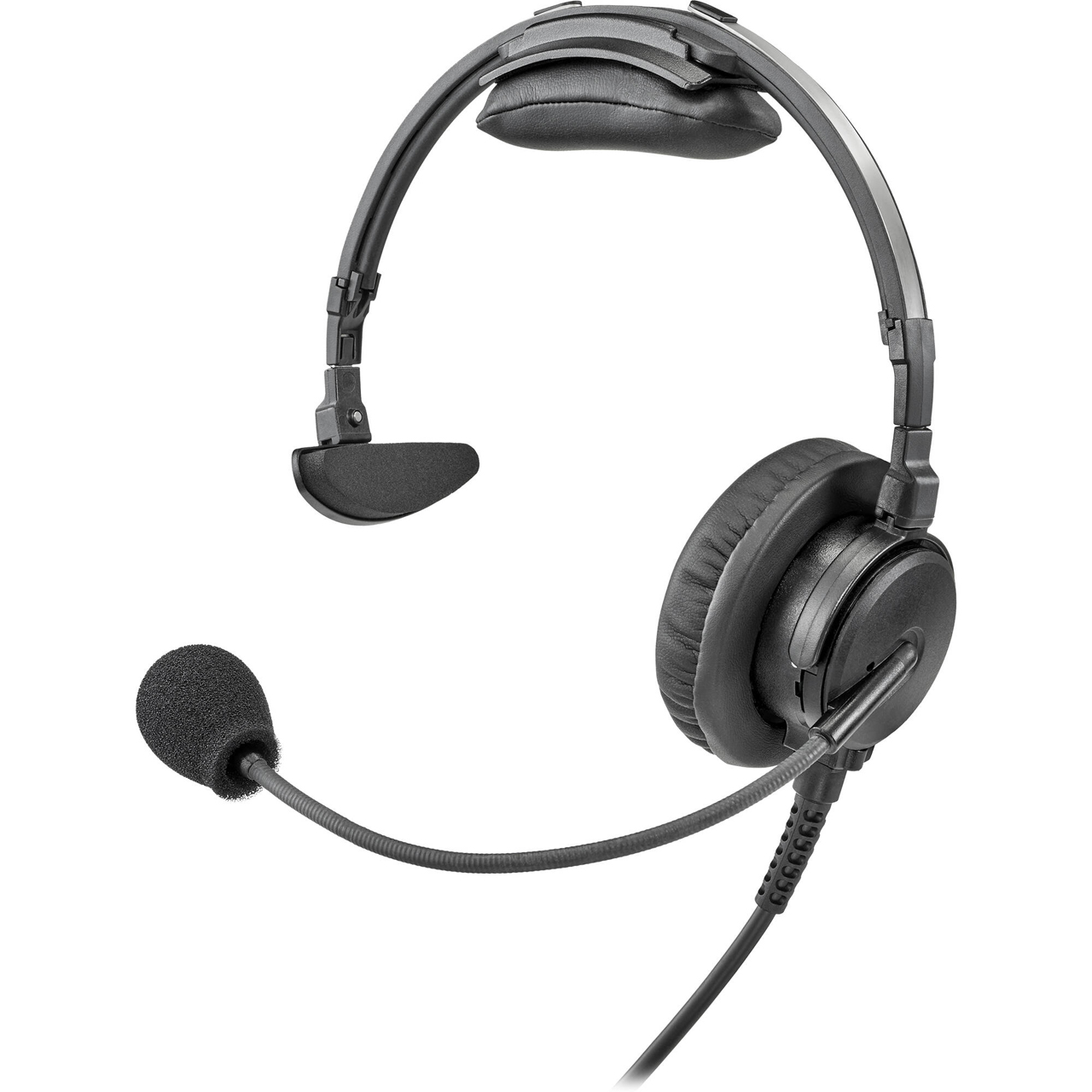

RTS PHS-A5M-300 PHS Series A5M Single-Sided 300 ohm Broadcast Intercom Headset with Dynamic Microphone

Name: RTS PHS-A5M-300 PHS Series A5M Single-Sided 300 ohm Broadcast Intercom Headset with Dynamic Microphone
Brand: RTS Intercoms
SKU: RTS-PHS-A5M-300
Price: 362.00 USD
Availability: Backorder

ITEM #: RTS-PHS-A5M-300 MFG #: F.01U.398.223

RTS Intercoms

List Price:

$365.00

Our Price:

$362.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

F.01U.398.223 - Overview

The RTS PHS Series is a single-sided super lightweight headset for the ultimate in daylong comfort. Offering a noise-canceling microphone with a semi-rigid, fully adjustable boom for precise positioning. The high quality, wide band, dynamic earphones are covered in a leatherette material for superior fit, isolation, and frequency response.

Specifications:
- Headphone
- Type: Dynamic
- Impedance: 300Ω ±20% @ 1kHz
- Sensitivity: 98 ±4dBSPL @ 1kHz & 1mW (150Ω), 100 ±4dBSPL @ 1kHz & 1mW (300Ω)
- Frequency Response: 200Hz - 10kHz

  Microphone
- Element Type: Noise-Canceling Dynamic
- Impedance: Dynamic: 200Ω
- Electret: approx. 2.2kΩ
- Frequency Response: Dynamic: 200Hz - 6500Hz
- Electret: 200Hz - 10kHz
- Sensitivity: Dynamic: -63 ±3.5dB re: 1V/Pa @ 1kHz
- Connector Type: 5-pin male XLR
- Cord Length: 6 ft ±4" (1.8m ±10cm) measured from tip to the earshell
- Electret: -41 ±3.5dB re: 1V/Pa @ 1kHz
- Operating Voltage: Electret Microphone: 2V through 2.2K resistor
