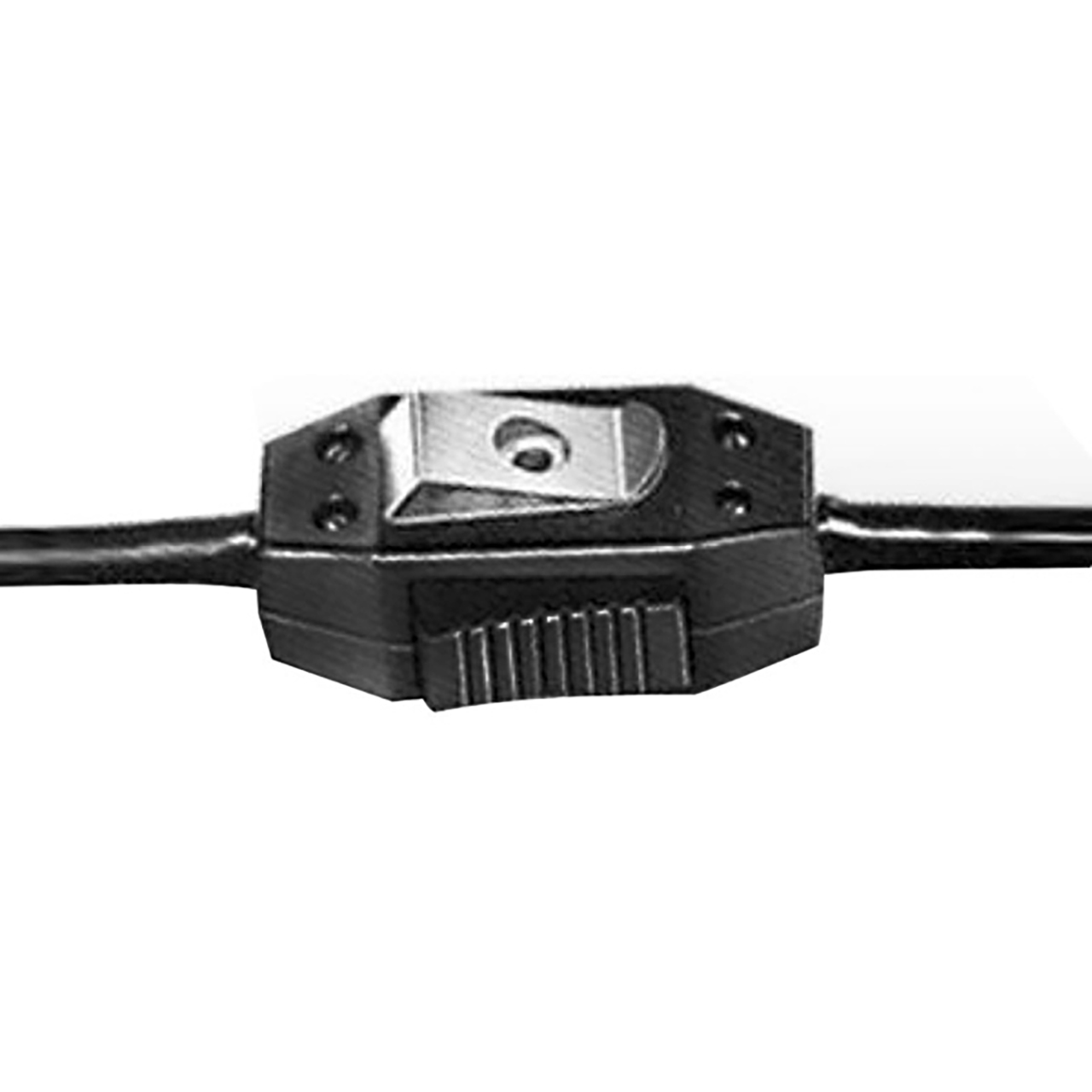

RTS PT-400NL In-Line Push to Talk Switch Kit with Non-Locking Feature

ITEM #: RTS-PT-400NL MFG #: F.01U.118.045

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$105.00

Our Price:

$100.94

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F.01U.118.045 - Overview

RTS PT-400NL switch kit connects in-line in the cordage of a headphone or microphone. It may be wired to provide a variety of functions such as push-to-talk, push-to-cough or relay keying when used with Ham, CB, and other communications equipment. The kit contains either one or two SPDT Type, Form C, micro switches rated at 10A, 125/250 VDC. The switches are positively mounted over two spring pins inside the high impact plastic housings. Two vinyl strain/bend reliefs along with two metal retainers hold cordages up to 0.18" (4.6mm) in diameter firmly in place. The high impact plastic pushbutton can activate the switches to either a momentary or a locked "on" position. A clothing/belt clip is firmly attached to one of the housing halves. The clip can be rotated 360° to locate the switch assembly in any convenient position.

  • Specifications:

    • Switch Type: SPDT, Form C, Solder Terminals
    • Voltage: 125/250VDC maximum
    • Current: 10A
    • Color: Black
    • Cordage: Can be used with up to .180" (4.6mm) diameter
    • Weight: 0.16lbs (0.072kg)

  • Item Includes:

    • 1x RTS PT-400NL in-line push to talk switch
