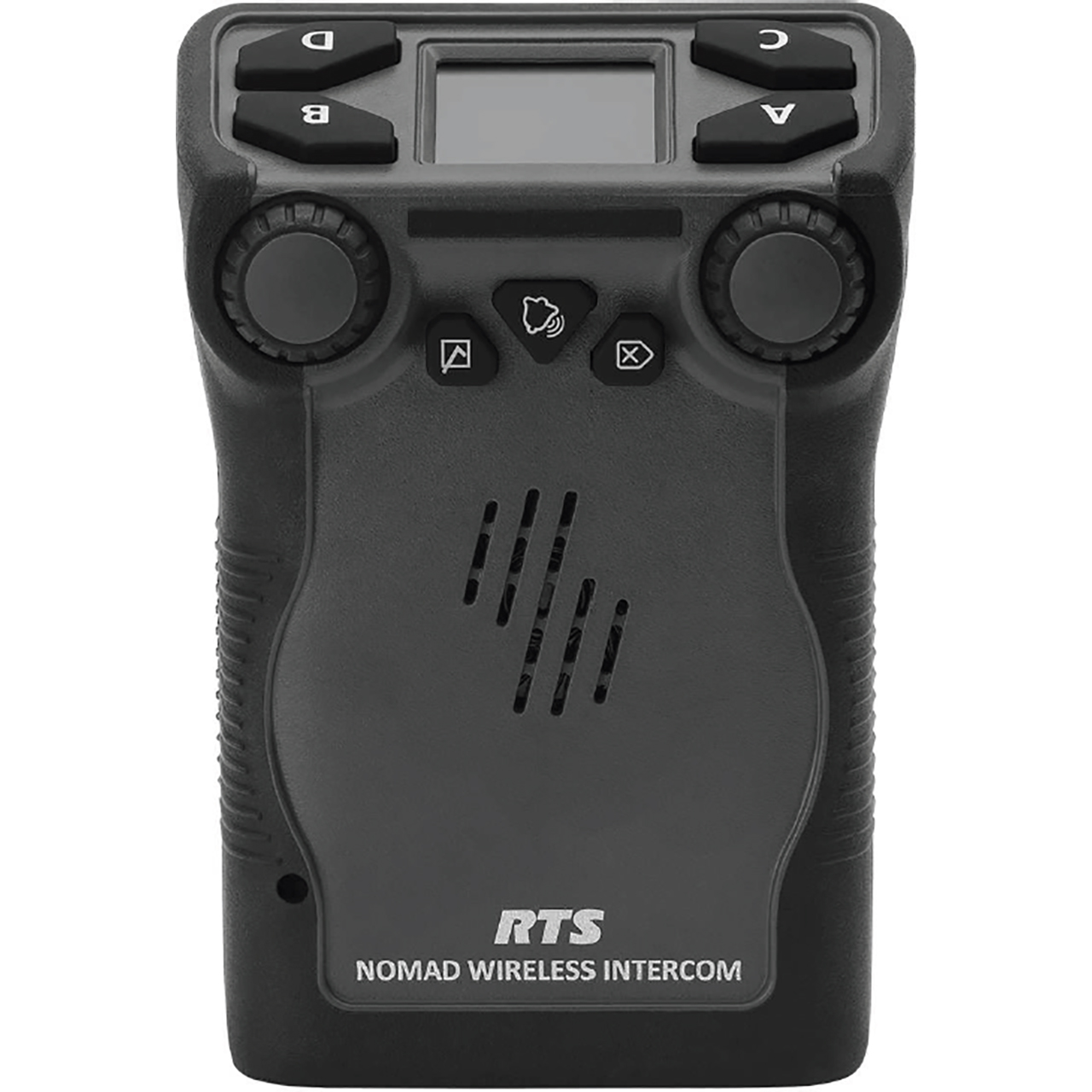

RTS TR-1000 US 5F Nomad Wireless Intercom Beltpack- IP-65 Rated

ITEM #: RTS-TR-1000-US5F MFG #: TR-1000 US 5F

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$2,915.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TR-1000 US 5F - Overview

The RTS TR-1000 US 5F is an integrated digital wireless communications system consisting of beltpacks and access points communicating over encrypted DECT (Digital Enhanced Cordless Telecommunications) wireless technology. Communication between the access points and the Matrix uses OMNEO technology, the Dante-based platform for high-quality audio over IP. DECT is a license-free, globally accepted standard for wireless communication. Each TR-1000 provides access to 16 active keypanel assignments providing glitch-free audio and control. Beltpacks are able to "roam" between access point locations with seamless communication.

The solid design of the RTS Nomad Wireless Intercom System is matched by the strength and flexibility of the communication system it supports. Integrating effortlessly with digital wired and legacy analog systems, Nomad redefines team coordination by wirelessly providing 16 channels of encrypted glitch-free audio and control to intercom users wherever they may roam.

  • Features:

    • IP-65 Rating for Outdoor Use
    • Glitch-free and Redundant Audio & Control
    • Full-duplex embedded microphone and front speaker with AEC for hands-free communication
    • Bring your own headset - Multiple XLR pin-outs and 3.5mm headset jack

  • Specifications:

      General
    • Audio: BV32 wideband audio
    • Bandwidth (over DECT): 20Hz - 7.5kHz
    • Backlit display: Color, 240 x 240 pixel, TFT
    • Typical battery life: 18 hours
    • Wireless encryption: AES256

      Environmental
    • Operating temperature: 14°F - 104°F (-10°C - 40°C)
    • Storage temperature: -4°F - 140°F (-20°C - 60°C)
    • Operating relative humidity, non-condensing: 10% - 90%
    • Dimensions (HxWxD): 5.63" x 3.90" x 2.17" (143mm x 99mm x 55mm)
    • Weight: 1.23lb (0.56kg)

      Battery
    • Battery Model: BP-1000 (Battery Pack)
    • Voltage (nominal): 3.7V
    • Type: Li-Ion Polymer
    • Capacity:
      - 6600 mAh (minimum)
      - 6700 mAh (typical)
    • Charge temperature: 32°F - 113°F (0°C - 45°C)
    • Discharge temperature: -4°F -140°F (-20°C - 60°C)
    • Storage temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative humidity: 10% - 90%

      Controls
    • Level controls: Two rotary encoders
    • Talk/Listen control: 4 top panel talk buttons (listen function programmable)
    • Full-Duplex audio paths: Up to 16
    • Number of assignment pages: 4
    • Call waiting control: Reply and Clear functionality
    • Main menu sub-menus: Beltpack, Audio, Favorites, Setup, Pre-sets, Status

      Connections
    • Headset connectivity:
      - XLR-5F, XLR-4F, XLR-4M (User replaceable)
      - 3.5 mm
    • XLR:
      - Microphone Dynamic or Electret (auto-detect)
      - Headset impedance 150Ω nominal (32Ω - 600Ω)
    • 3.5mm:
      - Microphone: Electret only
      - Headset impedance: 32Ω - 600Ω
      - Aux in 1 Vrms (nominal), 20Hz - 20kHz (+0/-1 dB)
      - Aux out 1 Vrms (nominal), DECT: 20 Hz - 7.5kHz
    • USB-C:
      - In-beltpack charging jack: Yes (15W, 3A @ 5Vdc)
      - Firmware update jack: Yes
      - Lanyard Integrated lanyard clip connection points

      Internal Microphone
    • Type: Omni-directional
    • Typical input: 80 dBSPL
    • Max. input: 100 dBSPL
    • Bandwidth:
      - 20Hz - 20kHz (+0/-3dB)
      - 20Hz - 5kHz (+0/-1dB)

      Internal Speaker
    • Nominal output: 84dBSPL (1kHz @ 1/2 meter)
    • Max. output: 94dBSPL (1kHz @ 1/2 meter)
    • Frequency range: 350Hz - 6kHz (+0/-3dB)

      DECT Communications
    • RF frequency range (MHz):
      - 1,920MHz - 1,930MHz (US, Canada)
      - 1,880 MHz - 1,900 MHz (EU = Europe, Asia, Australia)
      - 1,894 MHz - 1,906 MHz (Japan)
      - 1,910 MHz - 1,930 MHz (Mexico, South America)
    • Communication protocol: DECT
    • Frequency selection: Automatic via DCS (Dynamic Channel Selection)
    • Modulation: DBPSK
    • Antennas DECT: Dual, internal inverted F antennas
    • Delay-spread and multi-path RF protection: Next generation DECT channel compensation
    • Maximum peak RF output power (mW):
      - 100mW (20dBm) (US, Canada, Malaysia)
      - 250mW (24dBm) (Europe, Mexico, South America, Japan)
    • Average power (US, Canada, Malaysia): 4mW
    • Average power (Europe, Mexico, South America, Japan): 10mW

      Bluetooth Low Energy Communications
    • BLE 5.3 frequency range: 2400 - 2483.5MHz
    • Communication protocol: BLE 5.3
    • Modulation: GFSK
    • Antenna Internal: 1/4-wave
    • Maximum output power: 1mW

  • Item Includes:

    • 1x TR-1000 US 5F
