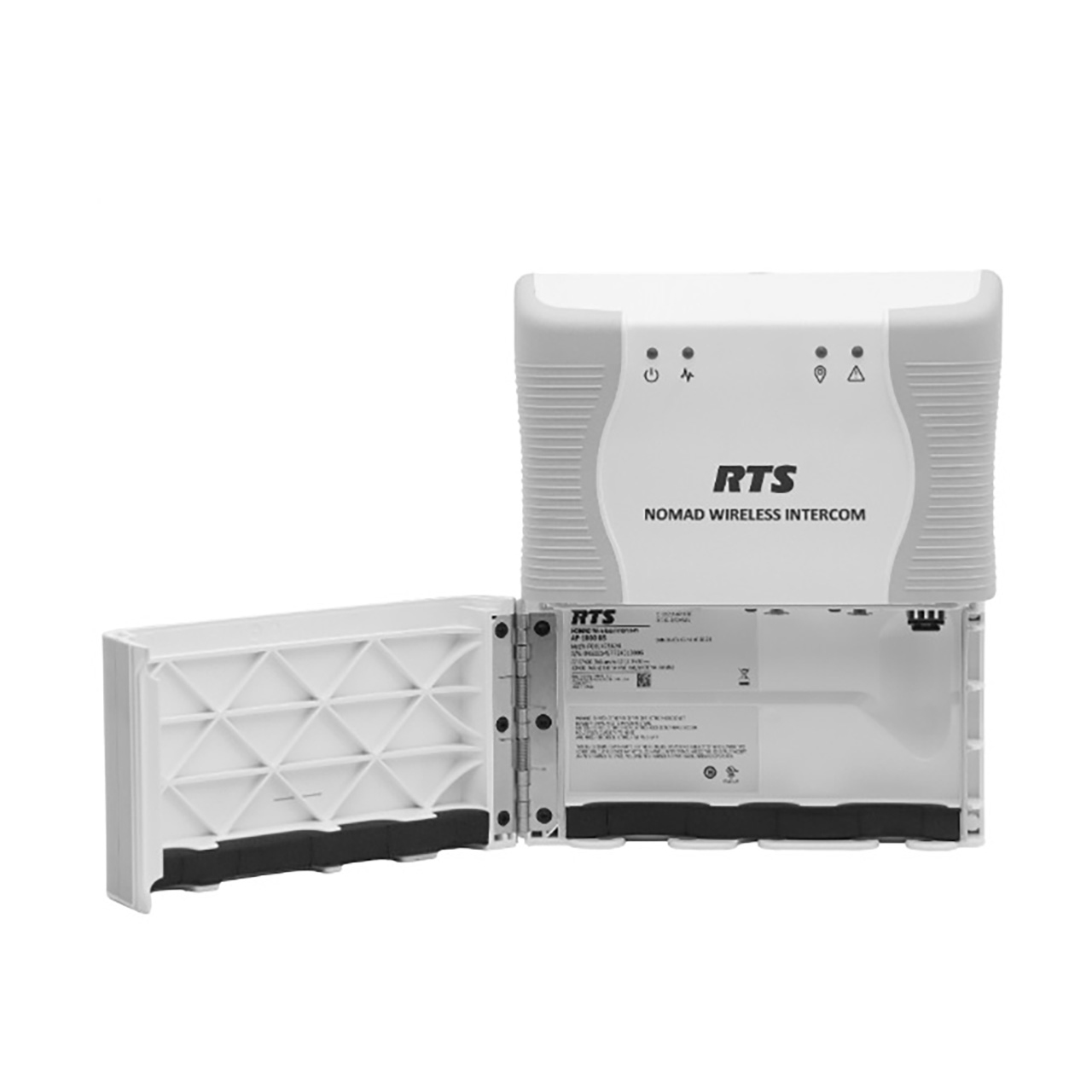

RTS AP-1000 NOMAD Wireless Intercom Access Point - Grey - US/CA

Name: RTS AP-1000 NOMAD Wireless Intercom Access Point - Grey - US/CA
Brand: RTS Intercoms
SKU: RTS-F01U436413
Price: 3465.00 USD
Availability: Backorder

ITEM #: RTS-F01U436413 MFG #: F.01U.436.413

RTS Intercoms

Our Price:

$3,465.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

F.01U.436.413 - Overview

Go Wireless, Stay Connected, and Communicate Smarter

When every second counts, your intercom system should work as hard as you do. The RTS NOMAD Wireless Intercom is built for rugged reliability, advanced connectivity, and superior user experience-outperforming the competition in real-world environments. With IP-65 ingress protection, glitch-free support, redundant connectivity, and innovative features like an integrated flashlight and Find My Device, NOMAD is the ultimate solution for production professionals who demand more from their wireless communications.

Features:
- Durability You Can Trust - IP-65 rated belt packs & access points for superior protection.
- More Ability to Connect - Up to 16 glitch-free audio and control channels.
- Robust Reliability - Redundant copper & fiber connections keep communication seamless.
- Unmatched User Experience - Icon-driven interface, haptic feedback, and built-in speakerphone with AEC.
- Industry-Leading Flexibility - Supports multiple headset types, 3.5mm AUX input, and BLE 5.3 Bluetooth.
- Charge & Operate Simultaneously - No downtime-stay connected while charging.
Specifications:
- AP-1000 Access Point
- Audio: BV32 wideband audio
- Max. Beltpacks per AP-1000: 10
- Max. Access Points in a System: 120
- Ethernet Type: 100BASE-T or GigE
- Protocols/Standards:
  - OMNEO
  - ST-2110/ST2022-7
  - DECT
- Ethernet Cabling Required: CAT-5e or better
- DC Power Supply: +12VDC, 4-pin XLR input (optional)
- DC Battery: 14.2VDC, external battery, via 4-pin XLR input (optional)
- PoE: Class 3 device (compatible with PoE, PoE+, and PoE++)
- Power Consumption: 8.5W, typical
- LED Indicators: 4 (power, fault, connectivity, location)

  Environmental
- Operating Temperature: -4°F - 113°F (-20°C - 45°C)
- Operating Relative Humidity: 10% - 90%, non-condensing
- Storage Temperature: -4°F - 158°F (-20°C - 70°C)
- Dimensions (HxWxD):
  - With Bracket: 9.02" x 7.60" x 3.00" (229mm x 194mm x 76mm)
  - Without Bracket: 9.02" x 7.60" x 2.64" (229mm x 194mm x 67mm)
- Shipping Dimensions (HxWxD): 9.02" x 10" x 10" (101.6mm x 254mm x 254mm)
- Weight:
  - With Bracket: 4.72lbs (2.14kg)
  - Without Bracket: 4.14lbs (1.88kg)
- Shipping Weight: 7lbs (3.2kg)
- Ingress Protection (IP): IP-65

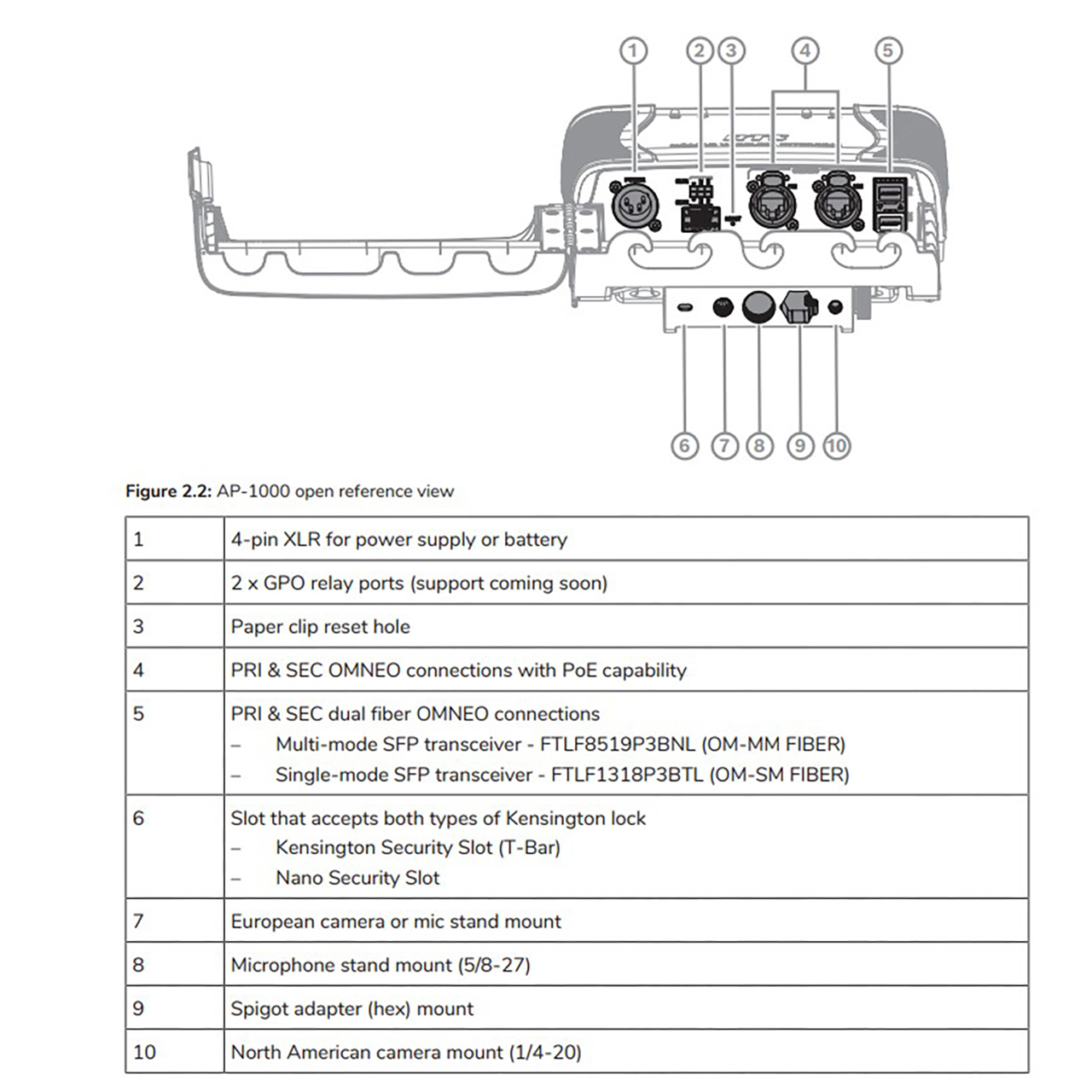

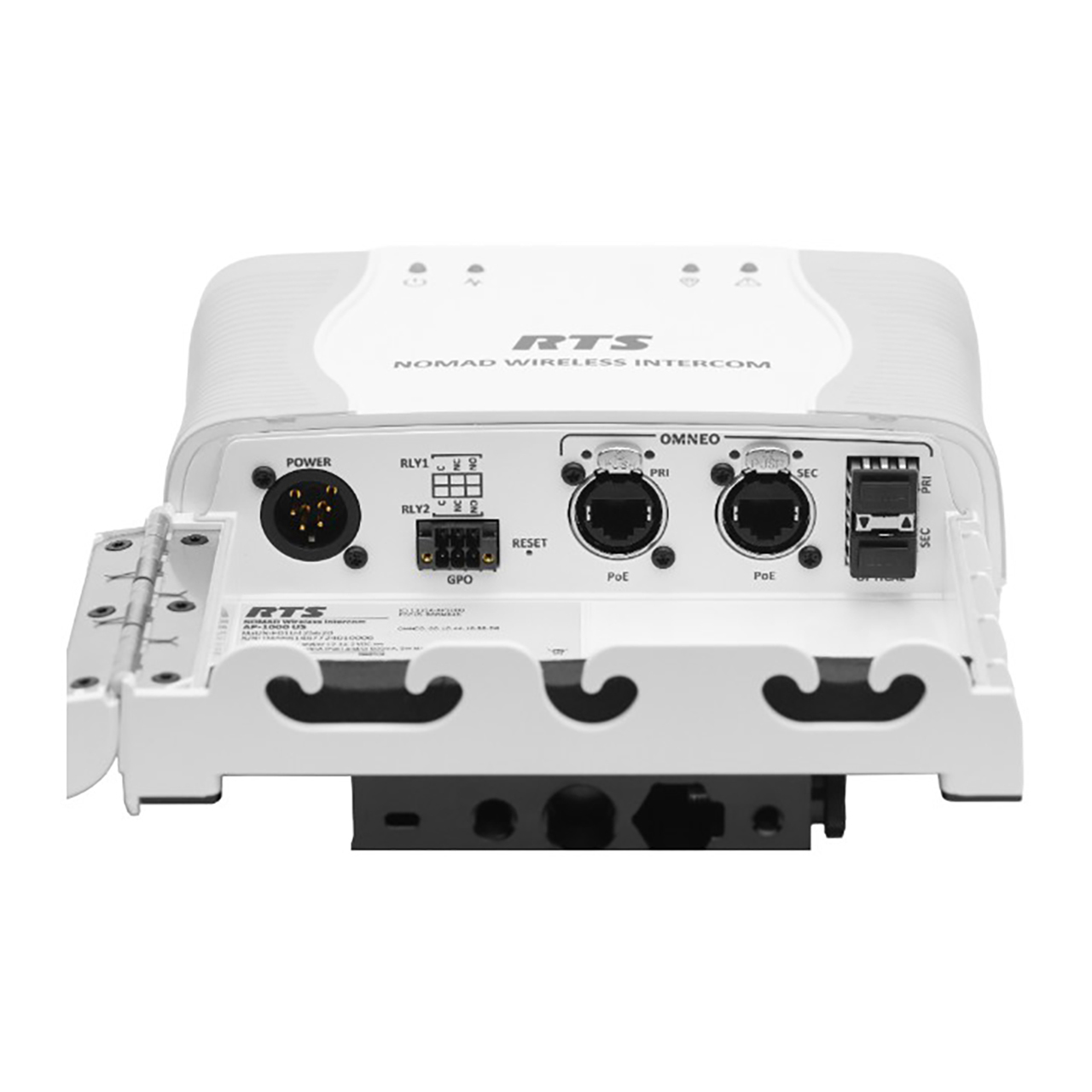

  Connections
- Ethernet: 2x EtherCON RJ45 jacks
- Power: 1x 4-pin XLR-F Jack
- Optical: 2x SFP
- GPO: 2x GPO relay ports
Item Includes:
- 1x F.01U.436.413 Wireless Intercom
