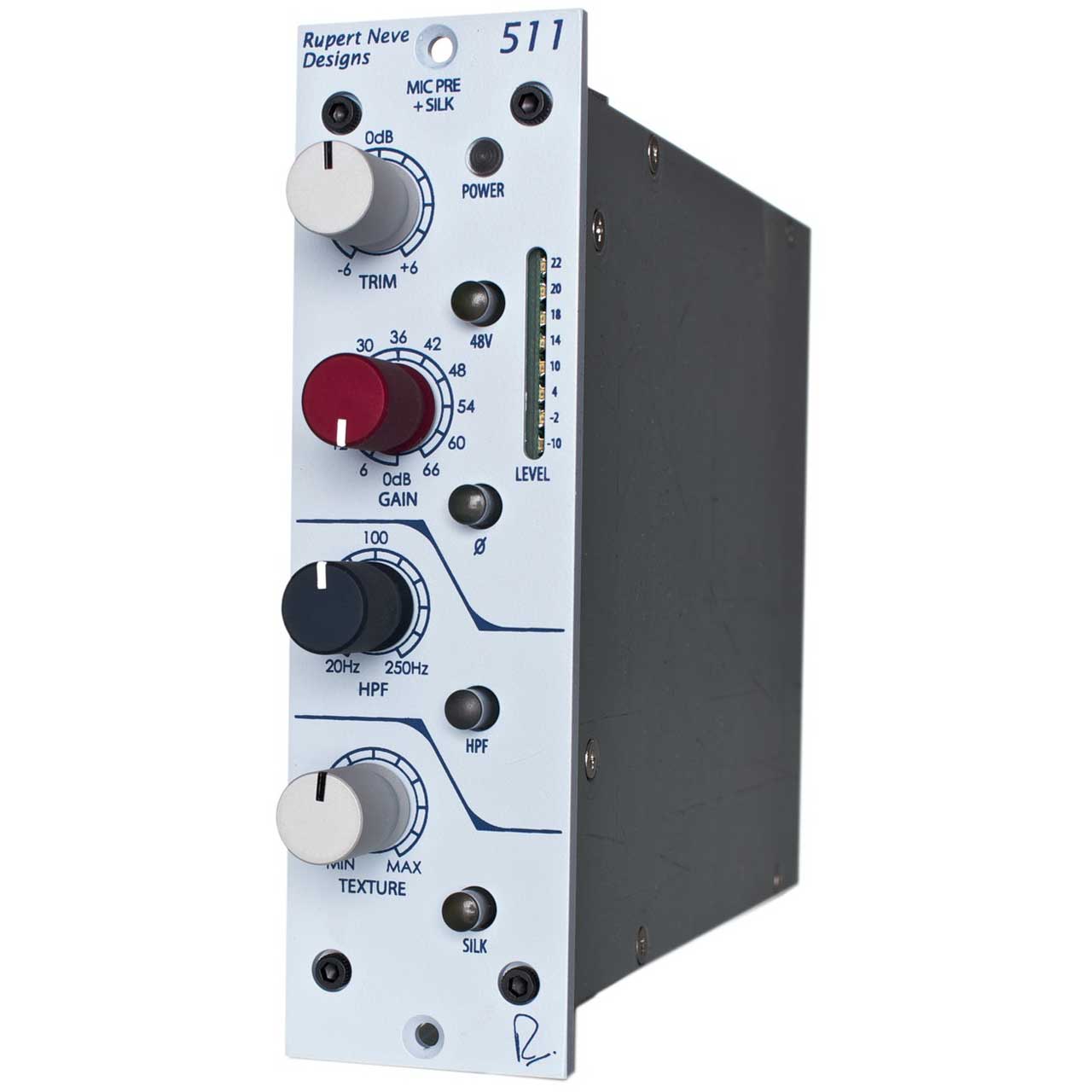

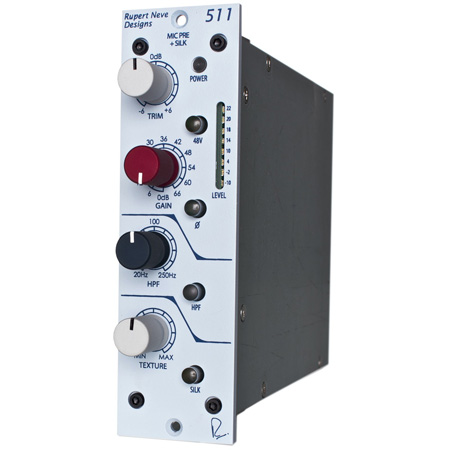

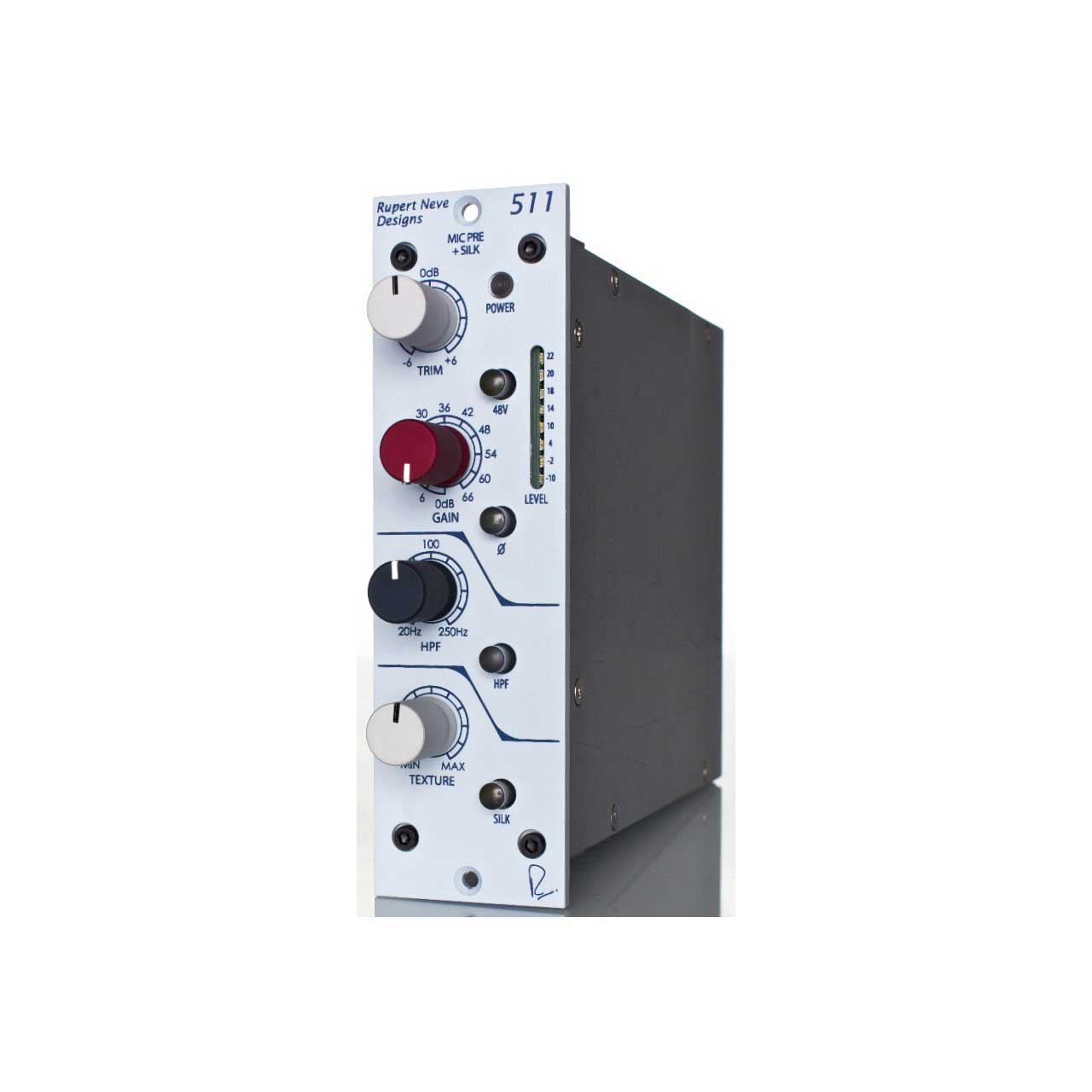

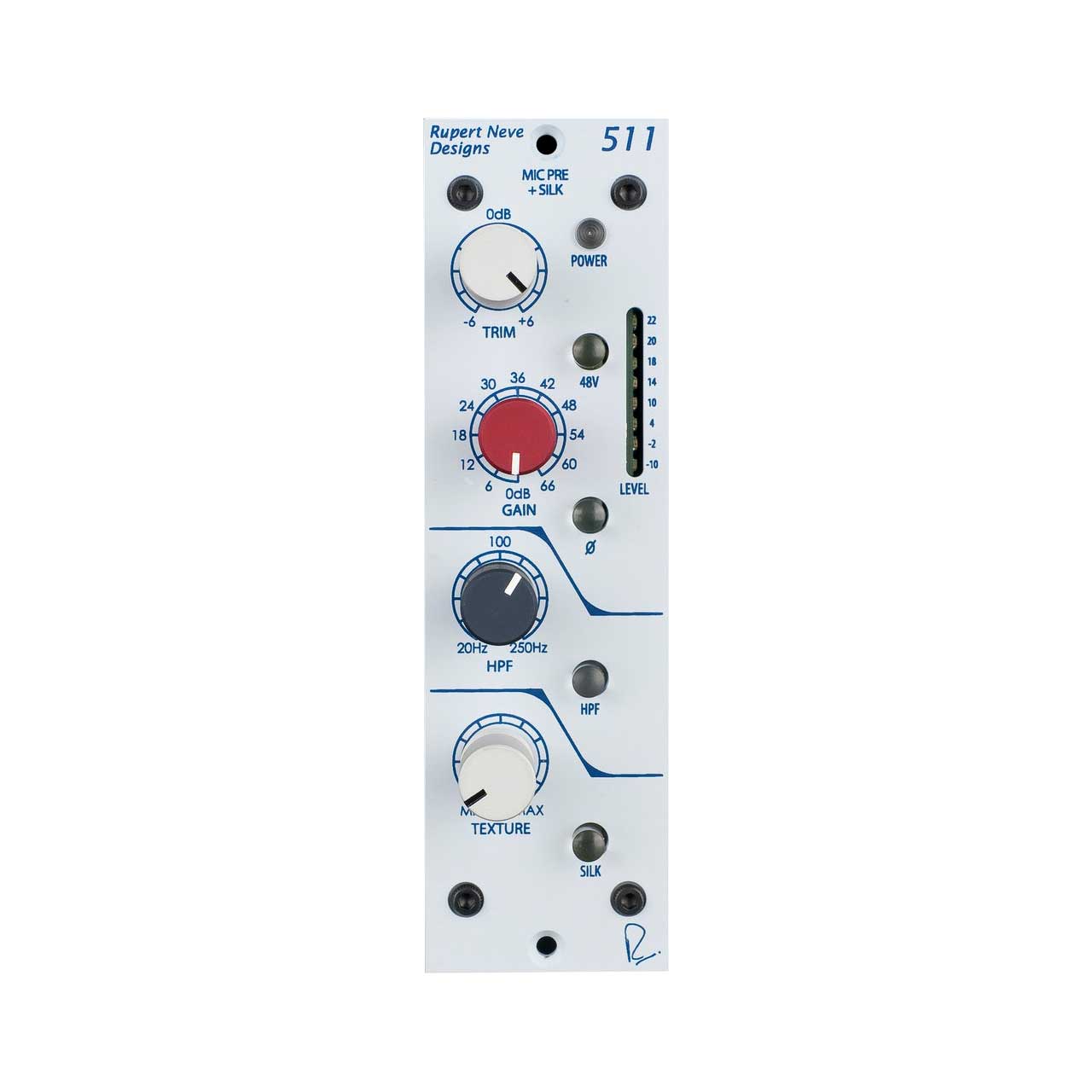

Rupert Neve Designs 511 Mic Preamp with Texture - Designed By Rupert Neve For The 500 Series

511 - Overview

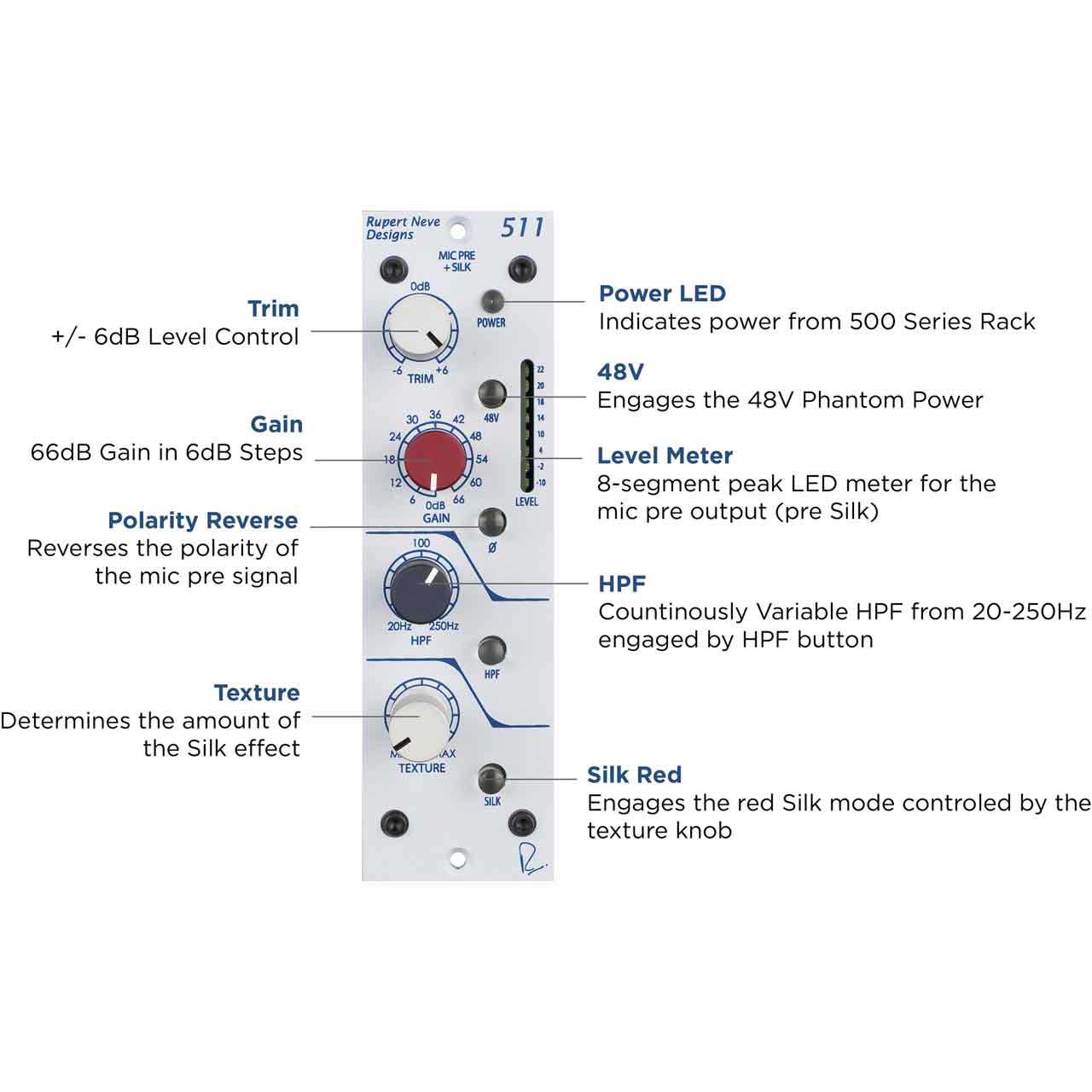

• Features:

  • Classic Rupert Neve mic preamp with 66dB of gain.
  • 8-Segment peak LED meter.
  • High-pass filter.
  • Silk red with variable Texture provides vintage warmth to your audio.


• Specifications:

  • Noise:
  • Measured at Main Output, un-weighted, 22Hz-22kHz, source impedance 150 Ohms balanced. Noise performance can vary depending on the 500 series and / or interference from stray magnetic fields.
  • Unity Gain- Better than -103dBV
  • With Gain @ +66dB- Better than -60dBV
  • Equivalent Input Noise- -125dB

    Frequency Response:
  • Main output, no load
  • Main Output: +/- 0.1dBu from 10Hz to 31.5kHz
  • -2.6dB @ 120kHz
  • Maximum Output Level- +23dBu

    Total Harmonic Distortion And Noise:
  • @ 1kHz, +20dBu output level, no load. Better than 0.0025%
  • @ 20Hz, +20dBu output level, no load. 0.025% Typical (2nd and 3rd harmonic)

    Total Harmonic Distortion And Noise With Silk Engaged:
  • TEXTURE @ min @ 100Hz, +20dBu input level, no load- 0.015%, mostly 3rd harmonic (typical)
  • TEXTURE @ max @ 100Hz, +20dBu input level, no load- 2%, mostly 2rd harmonic (typical)

    Gain:
  • Unity up to +66dB in 6dB steps.
  • Trim continuously adjustable from -6dB to +6dB

    Phantom Power:
  • Supplied by the 500 series rack power supply. Switch selectable on faceplate.

    High Pass Filter:
  • Continuously variable swept frequency from 20Hz to 250Hz.
  • Slope: 12dB/Octave
  • Power Requirements: @ +/-16VDC 100mA


• Item Includes:

  • 1x 511 Mic Preamp
  • 1x Manual


• Warranty:

  • 1 Year Warranty


• GTIN:

  0752423656950
