Simply45 S45-1155 10G Shielded External Ground Standard WE/SS (8P8C) RJ45 Modular Plugs for 10G STP LAN Cables - 40pcs

ITEM #: S45-1155 MFG #: S45-1155

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:


Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    S45-1155 - Overview

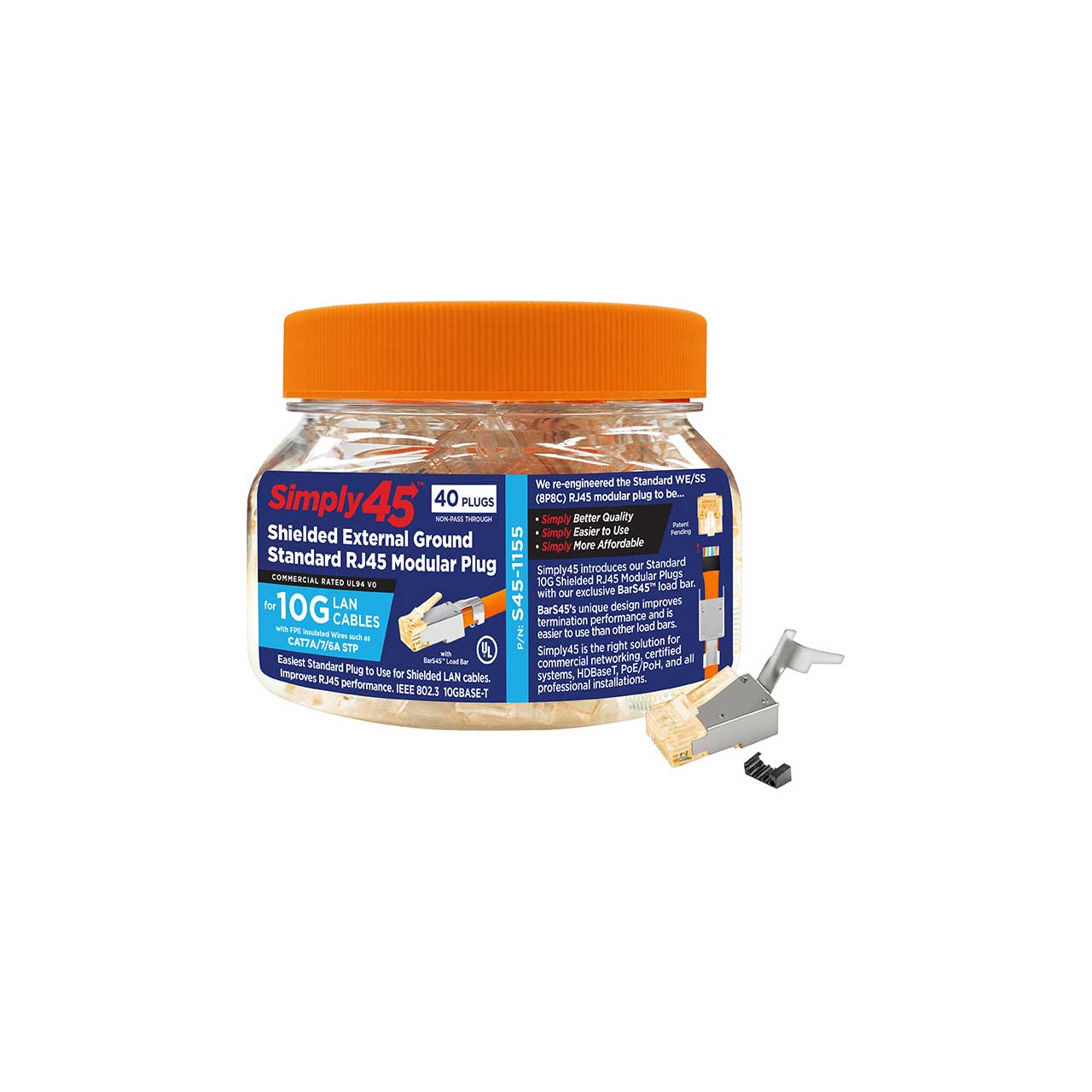

    Up until now, using an RJ45 modular plug to terminate shielded 10G LAN cables such as Cat7a, Cat7 and Cat6a was time consuming, frustrating, and if you ever put a Fluke test on longer distance links or channels, the results were not exactly stellar. Of course, you could use an industrial style RJ45 Field Plug connector, but those are expensive and still require more effort than they should. The Simply45 engineering team did extensive testing and development to design a high performing Standard WE/SS (8P8C) RJ45 modular plug solution that was both easy to use and cost effective.

    Introducing our S45-1155 Standard WE/SS Shielded with External Ground RJ45 Modular Plugs for 10G LAN cables with FPE insulated wires. FPE (foam polyethylene) insulated wires are found on most of today's 10G Shielded LAN such as Cat7a, Cat7, Cat6a with S/FTP, U/FTP and F/FTP LAN cable constructions. The S45-1155 are IEEE 802.3 10GBase-T compliant.

    Note: If you are using a larger diameter shielded LAN cable with PE (solid polyethylene) we recommend using our S45-1150 Standard RJ45 modular plug or the Simply45 ProSeries Pass Through part S45-1755P.

    The uniquely designed Simply45 S45-1155 simplifies and improves the terminated plug performance for shielded 10G LAN cables. The S45-1155 shielded modular plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate 10G Shielded LAN cables with FPE insulated wires.

    The S45-1155 incorporates the following features:

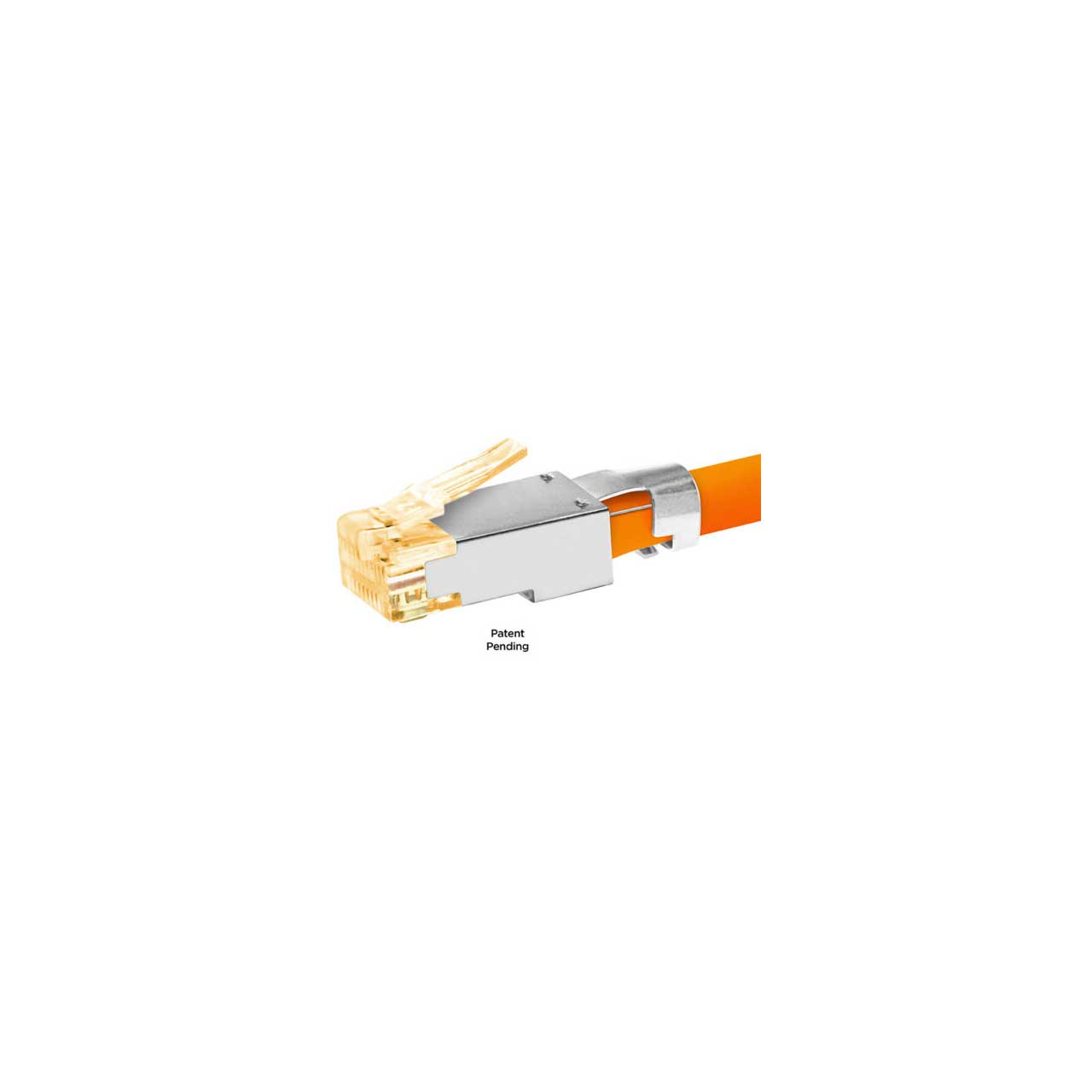

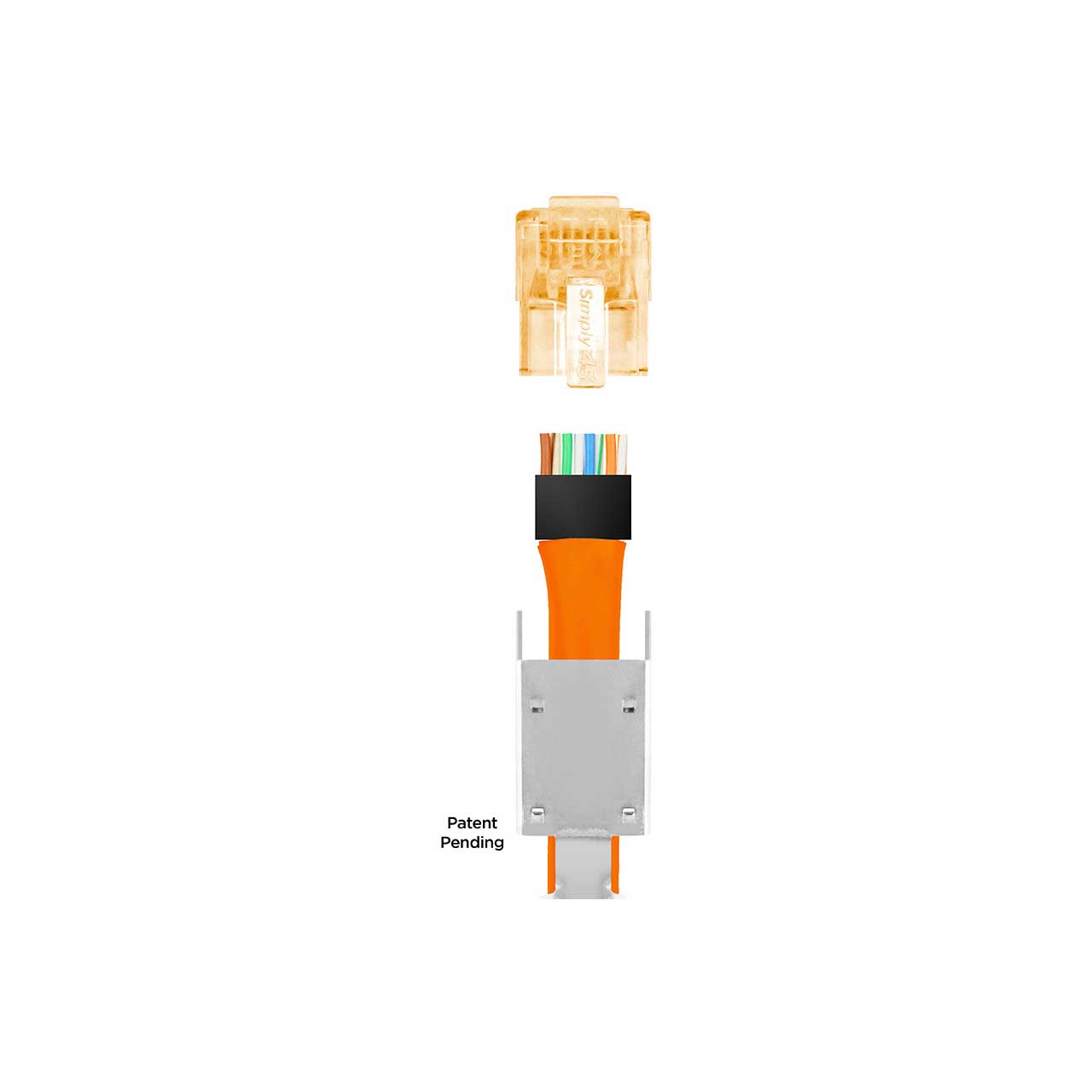

    Two Piece Plug. We tried all that we could to use a one-piece design, but it proved too difficult to work with during the testing trials. As such, we separated the metal shell shield from the RJ45 body. This allowed us to make additional modifications and the result is a dramatically improved termination process that is faster and easier to use. The metal shell quickly and easily snaps onto the plug body prior to crimping the plug. Separating the plug body from the metal shield allows the large diameter shielded LAN cables to be inserted further into the plug. This is a significant advancement in RJ45 design because this feature improves NEXT performance by reducing the length of untwisted wires inside the plug.

    The S45-1155 supports performance standards: ANSI/TIA 568.2-D for Cat7 and Cat6a; ISO/IEC 11801 Class F, Ea and E. Supports 10GBaseT performance applications over PE insulated shielded twisted pair cables.

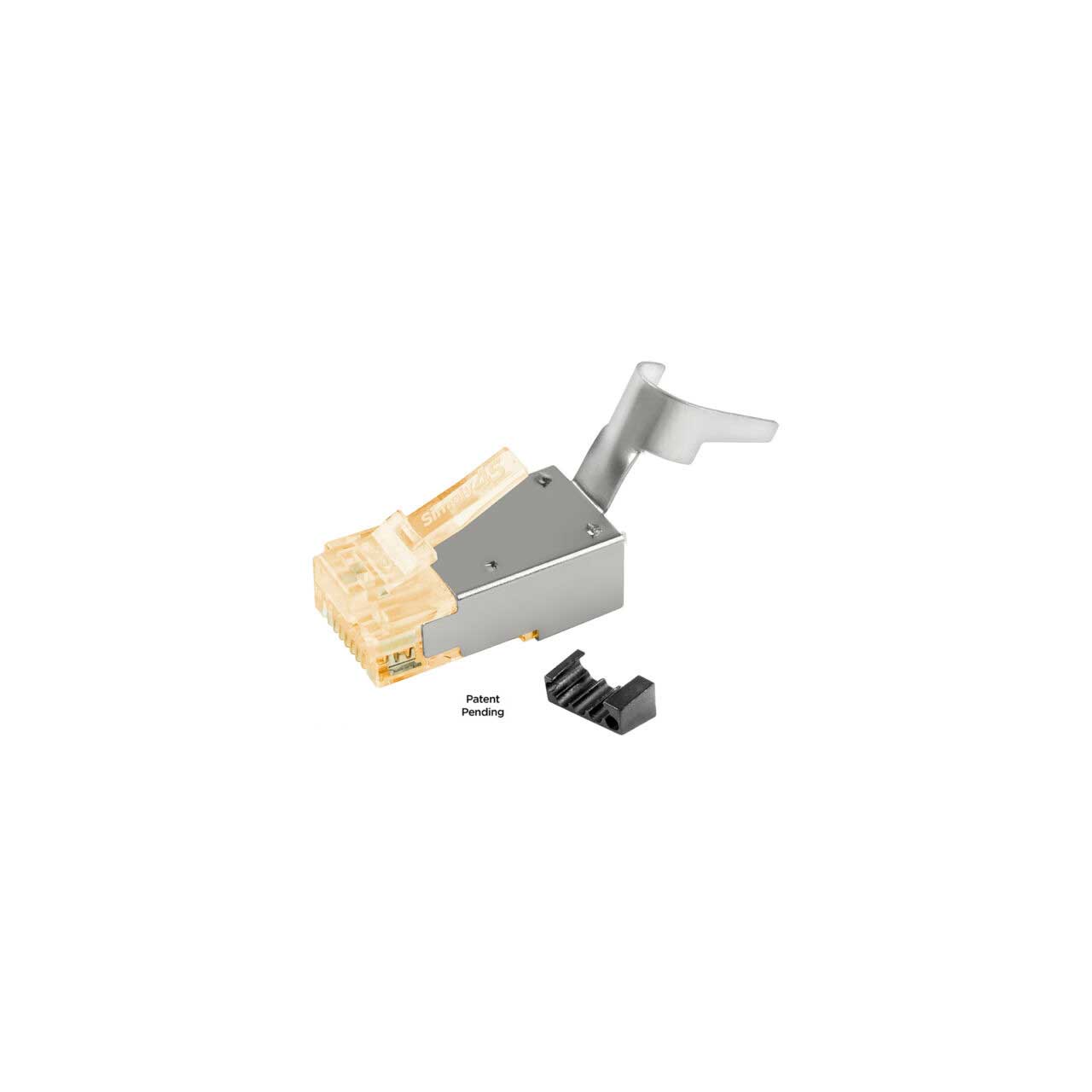

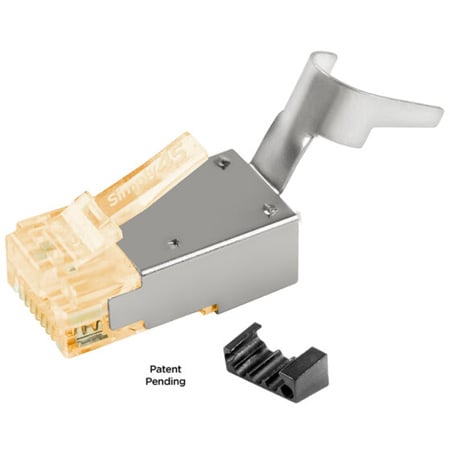

    BarS45 Load Bar. The exclusive Simply45 BarS45 are load bars designed to match specific Simply45 RJ45 modular plugs to improve termination performance and SIMPLIFY the termination process. The innovative BarS45 that is designed specifically for our part S45-1155 are the easiest to use load bars ever made for terminating 10G LAN cables with FPE insulated wires.

    The S45-1155 BarS45 is designed specifically for our S45-1155 Standard Shielded with External Ground WE/SS (8P8C) RJ45 modular plug.

    • Features:

      • 3 Prong Pin Design with 50 microns; of True 24ct Gold Plating. All Simply45™ Standard WE/SS RJ45 modular plugs use only 50Ω 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on many other Standard RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity.
      • Solid LAN Cables. The S45-1155 is ideal for most shielded 10G LAN cables with FPE (foamed polyethylene) wire conductors. Supports 23 AWG LAN cables with maximum cable diameter of 8.0mm (0.315") and wire conductor sizes 1.21mm - 1.45mm (0.047" - 0.057"). The S45-1155 works great with Cat7a, Cat7, Cat6a LAN cables with S/FTP, U/FTP and F/FTP cable constructions.

        Improved Crosstalk Performance. The unique internal design of the S45-1155 Standard RJ45 modular plug allows the LAN cable to be inserted further into the RJ45 plug. This reduces the length of untwisted wires improving NEXT performance. Our S45-1155 plug design and BarS45™ provide the best crosstalk performance of any shielded RJ45 plug on the market.

        Commercial Rated. These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. These RJ45 mod plugs are the recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.

        Color Tinted RJ45 Modular Plugs. The S45-1155 comes with a light Orange tint for easy pass through RJ45 modular plug identification. No more trouble identifying which plug is which. All Simply45™ RJ45 modular plugs are color coded for easy identification.

        Wide Mouth Jar for Easy Hand Access. No need to spill RJ45 mod plugs out of the jar just to reach them. Most hands can easily reach the last plug in the jar.

        Color Coded Jar Caps. The S45-1155 jar cap is Orange matching the color tint of the RJ45 mod plug. This makes it very easy to find identify the items in your bag or kit. Saves time identifying the RJ45 modular plugs that you need to use.

        UL Listed. The S45-1155 Standard WE/SS RJ45 modular plugs are UL Listed and bear the UL Logo on the Simply45™ packaging. Only Simply45™ provides the UL Listed logo for quality and safety on pass through RJ45 modular plugs. UL is the strictest 3rd party verification service in the world and products bearing the UL mark represent the highest quality and safety standards.

        PoE/PoH Rated. The S45-1155 is ideal for PoE/PoH applications. The S45-1155 uses the correct 3-Prong Pin design; true 24ct gold plated pins; fully shielded and is made using the highest quality materials for RJ45 modular plugs.

        Compliant to Industry Standards. ANSI/TIA 568.2-D Class E, 1096-A; ISO/IEC 11801 Class E, 60603-7, 8877:1992; FCC
    • Specifications:

      • Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
      • Wire Cond(s) OD: 23 AWG: 1.21mm - 1.45mm (0.047" - 0.057")
      • Max LAN Cable OD: 8.0mm (0.315")
      • Supports PoE/PoH: Yes
      • Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
      • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
      • Contact Material: Phosphor Bronze - .012" thick
      • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min
      • Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
      • Plug Material: Polycarbonate
      • Shielded Material: Hard Brass
      • Shielded Plating: 80 Micro-Inch minimum Nickel Plating
      • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
      • Conductor Type(s): Solid and Stranded
      • Operating Temperature: -40°F to +158°F
      • Insertion/Extraction Life: 2000 Minimum Cycles
      • Contact Resistance: 20 Milli-Ohms maximum
      • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
      • Compliance: UL Listed, RoHS, FCC, NEC
    • Warranty:

      • Limited Lifetime
    • GTIN:
