Category 7 10GBASE-T 1200 MHz 23 AWG Solid 4-Pair Ice Blue 1000 Feet

ITEM #: CAT7-LSZH-IB-1M MFG #: CAT7-LSZH-IB

free ship

List Price:

$469.00

Our Price:

$419.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    CAT7-LSZH-IB - Overview

    Category 7 (Cat 7 Bulk Cable) S/FTP 1200MHz cables meet ISO/IEC 11801 Ed2 CLASS F standards for Category 7 performance.

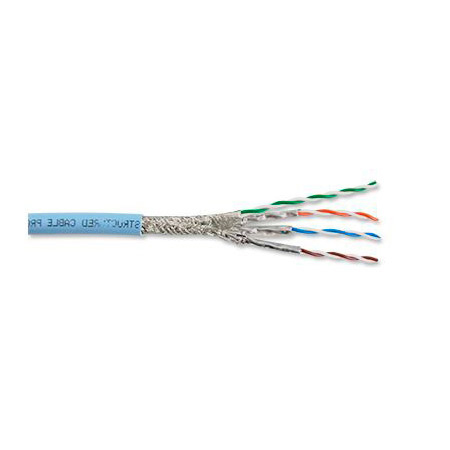

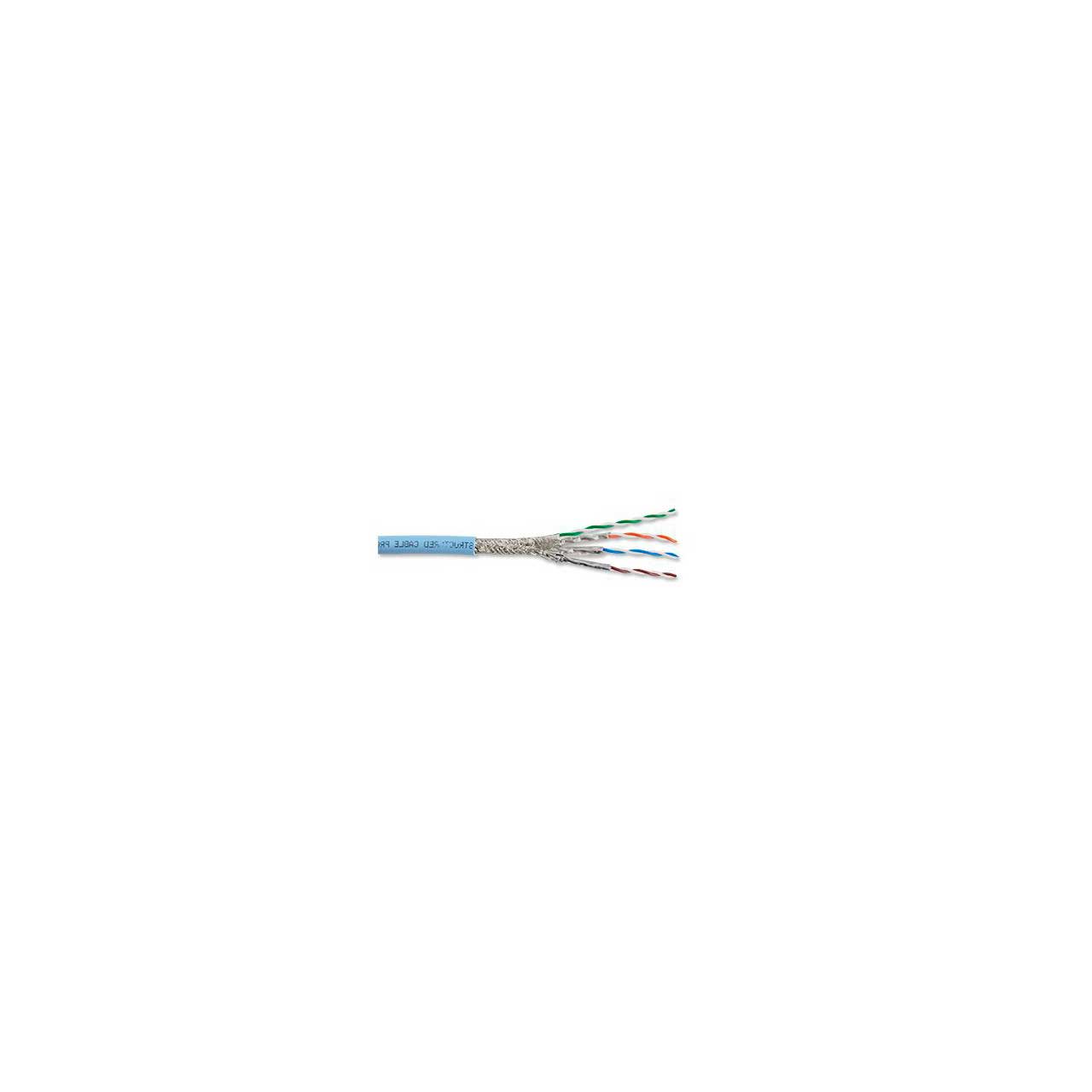

    Each Cat 7 S/FTP cable is performance optimized with 4 balanced twisted pairs, 23 AWG PE foam insulated solid bare copper conductors. Each pair is AL Foil shielded eliminating cross talk; and an overall tinned copper braid shield that provides exceptional interference protection. Each Cat7 cable is constructed to create a round and flexible cable for easy pulling and stripping of the low smoke zero halogen (LSZH) cable jacket.

    The SCP Cat 7 S/FTP cable is packaged on a 1000 ft/ 305 meter wooden spool/drum.

    • Specifications:

      • CATEGORY 7
      • 10GBASE-T
      • 1200 MHz
      • 23 AWG SOLID
      • 4PR S/FTP
      • OVERALL TC BRAID
      • EA/PR AL-FOIL
      • ISO/IEC 11801 ED2 CLASS F
      • EN 50173-1
      • LSZH JKT
      • ICE BLUE
      • 1000 FT/ 305 M SPOOL
      • Conductor Material: Solid Bare Copper
      • Conductor Size: 0.58+/-0.008mm Conductor 23 AWG
      • Insulation Material: PE (Skin-Foam-Skin)
      • Insulation Diameter: 1.4 =/- 0.05mm
      • Shielding: Al-Foil Screneed
      • Braid: Tinned Copper
      • Jacket Color: ICE Blue
