Simply45 S45-1600P PROSeries Pass Through Green Tint Mod Plugs for Cat6 UTP with Cap45 - 100pc Jar

S45-1600P - Overview

• Features:

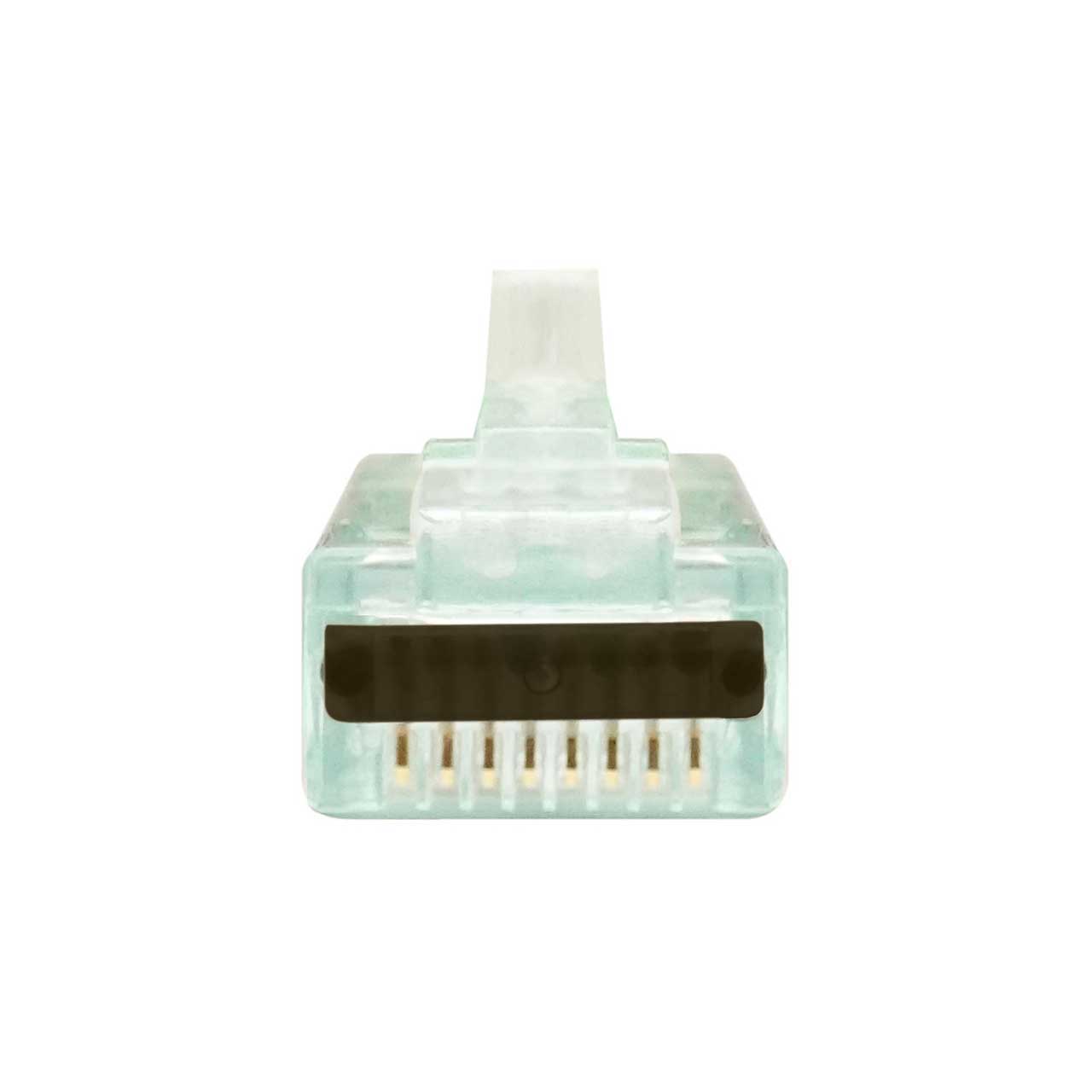

  • 3 Prong Pin Design with 50µ of True 24ct Gold Plating - All Simply45 pass-through RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity.
  • Solid and Stranded LAN Cables - The S45-1600P is ideal for most Cat6 UTP (unshielded twisted pair) solid 23 AWG LAN cables with a maximum cable diameter of 7.0mm (0.276"). The S45-1600P works great with stranded unshielded LAN cables such as those used on patch cords/leads.

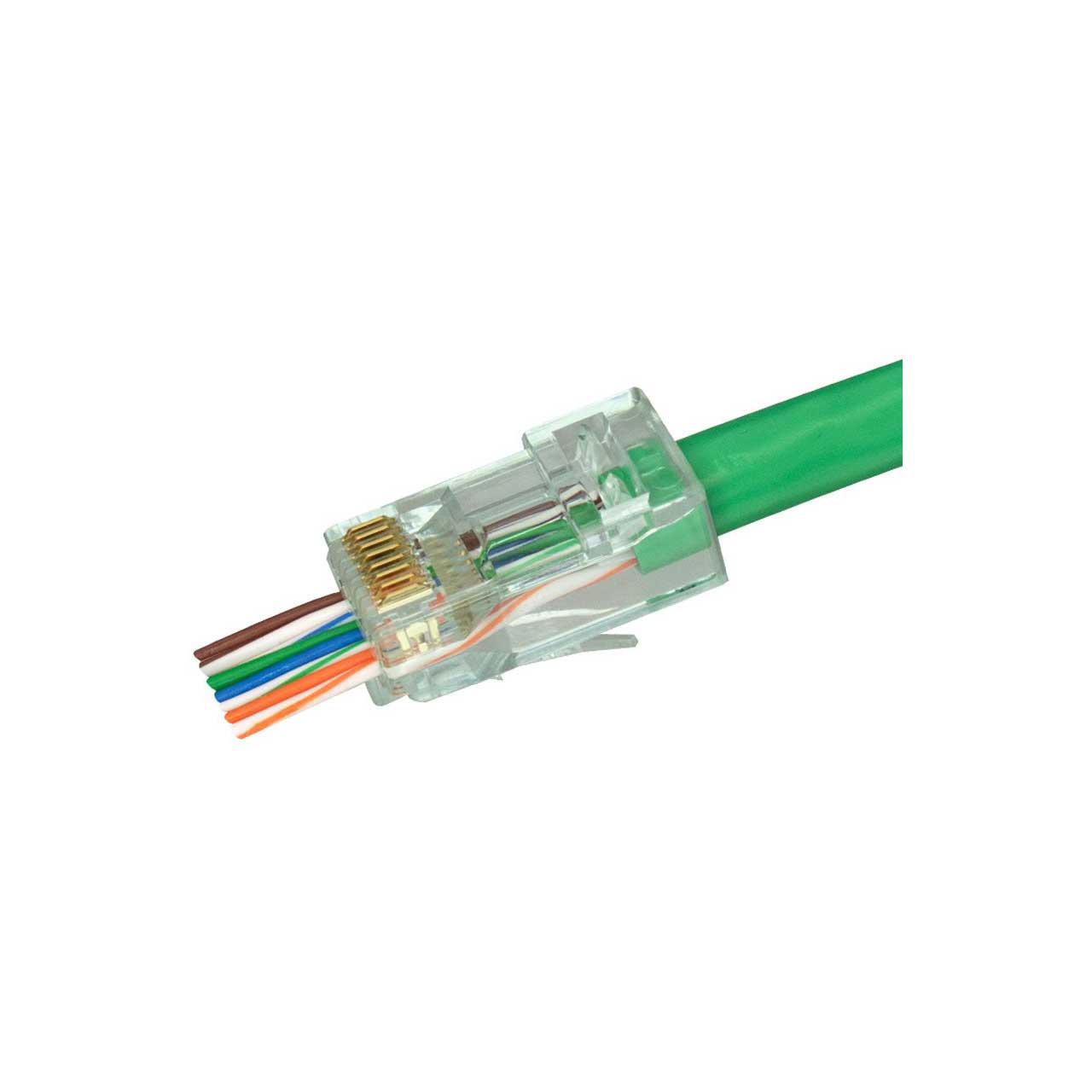

  • Straight-Line Wire Insert - LAN cable wire conductors are easily inserted in a straight-line arrangement out through the front of the unshielded RJ45 pass-through modular plug. The S45-1600P accommodates 23-24 AWG Solid and 28-26 AWG stranded LAN cable wire conductor sizes 0.037" - 0.041" (0.95mm - 1.05mm).
  • Improved Crosstalk Performance - The unique internal design of the S45-1600P pass-through RJ45 modular plug allows the LAN cable to be inserted further into the RJ45 plug. This reduces the length of untwisted wires improving NEXT performance. The S45-1600P accommodates most Cat6 LAN cables.
  • Commercial Rated - These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. These RJ45 mod plugs are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.

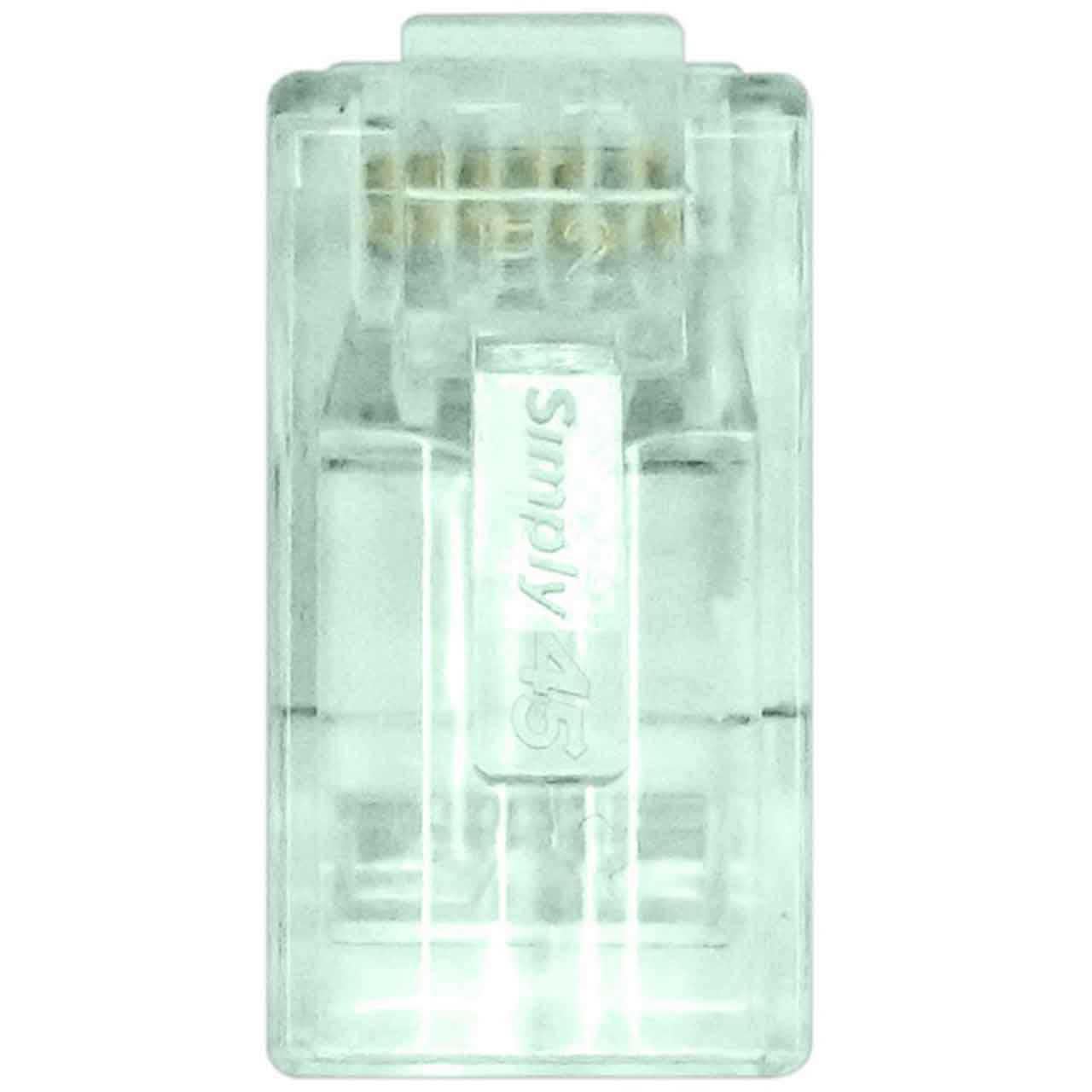

  • Color Tinted RJ45 Modular Plugs - The S45-1600P comes with a light green tint for easy pass-through RJ45 modular plug identification. No more trouble identifying which plug is which. All Simply45 RJ45 modular plugs are color-coded for easy identification.
  • PoE/PoH Rated - The S45-1600P is ideal for PoE/PoH applications. The S45-1600P uses the correct 3-Prong Pin design; true 24ct gold plated pins and is made using the highest quality materials for RJ45 modular plugs. This all ensures lower resistance and less heat build-up than cheaper-made RJ45 that are out on the market.
  • Compliant with Industry Standards - ANSI/TIA 568.2-D Class E, 1096-A; ISO/IEC 11801 Class E, 60603-7, 8877:1992; FCC


• Specifications:

  • Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
  • Wire Cond(s) OD: 23 AWG : 0.95mm - 1.05mm (0.037" - 0.041")
  • Max LAN Cable OD: 7.0mm (0.276")
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
  • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40° C to +70° C
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms max
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC, TAA


• Item Includes:

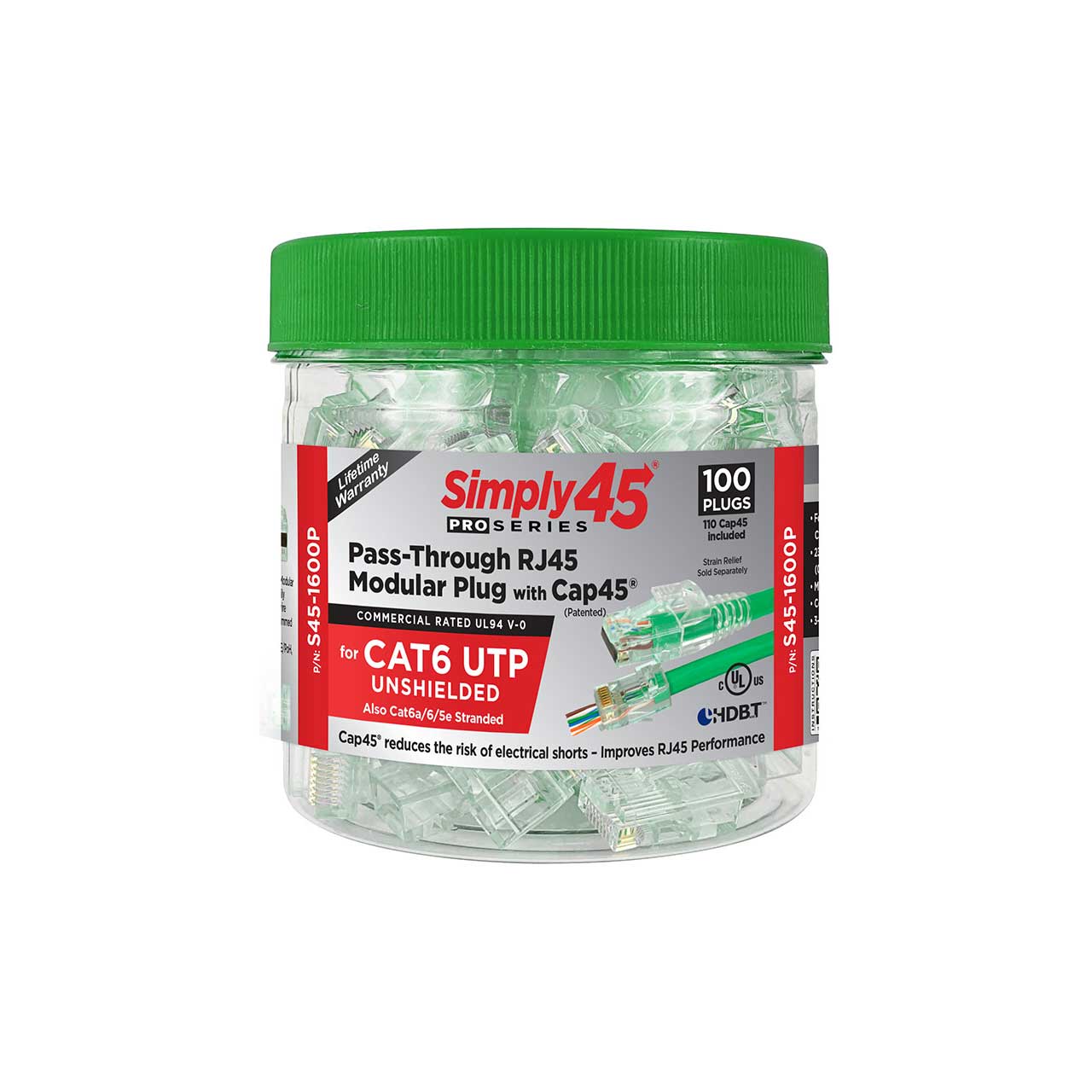

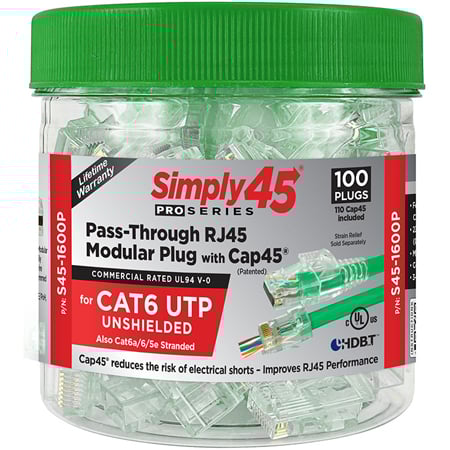

  • 1x Simply45 PROSeries Pass Through Green Tint - Cat6 UTP with Cap45 - 100pc Jar


• Warranty:

  • Lifetime Limited Warranty


• GTIN:

  0810093721726
