NEUTRIK NE8FDV etherCON Vertical PCB Panel Mount Jack D Shape

ITEM #: NE8FDV MFG #: NE8FDV

Primary Image
NEUTRIK Group

We are an authorized dealer for this series; however, applicable tariffs and final pricing must be confirmed before order acceptance. Please contact a sales engineer at 1-800-522-2025 for further assistance.

Availability: Sold Out
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NE8FDV - Overview

The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for pro-audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

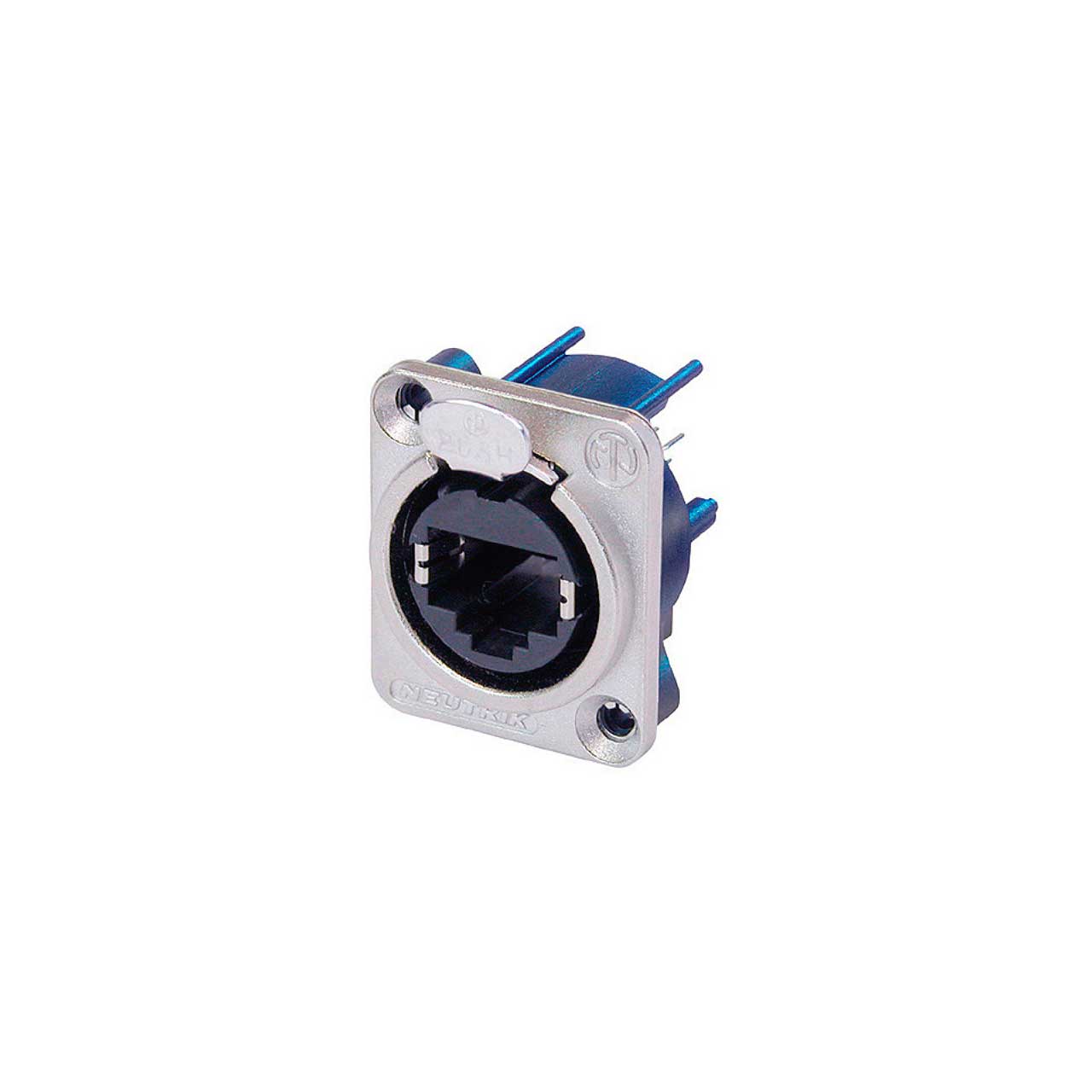

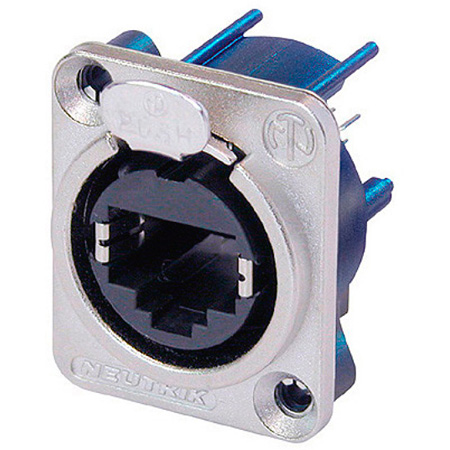

Vertical PCB panel mount RJ45 receptacle, D-shape metal flange with latch lock, max. panel thickness 4 mm.

  • Features:

    • Accommodates NE8MC* or any standard RJ45 plug
    • Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
    • Approved latch lock system
    • Mountable from the front or rear of the panel
    • Ground-panel connection


Required Accessories

NE8FDV - Required Accessories

    Recommended Accessories

    Similar Products
