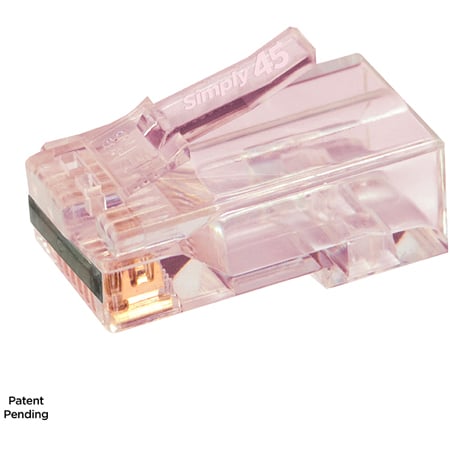

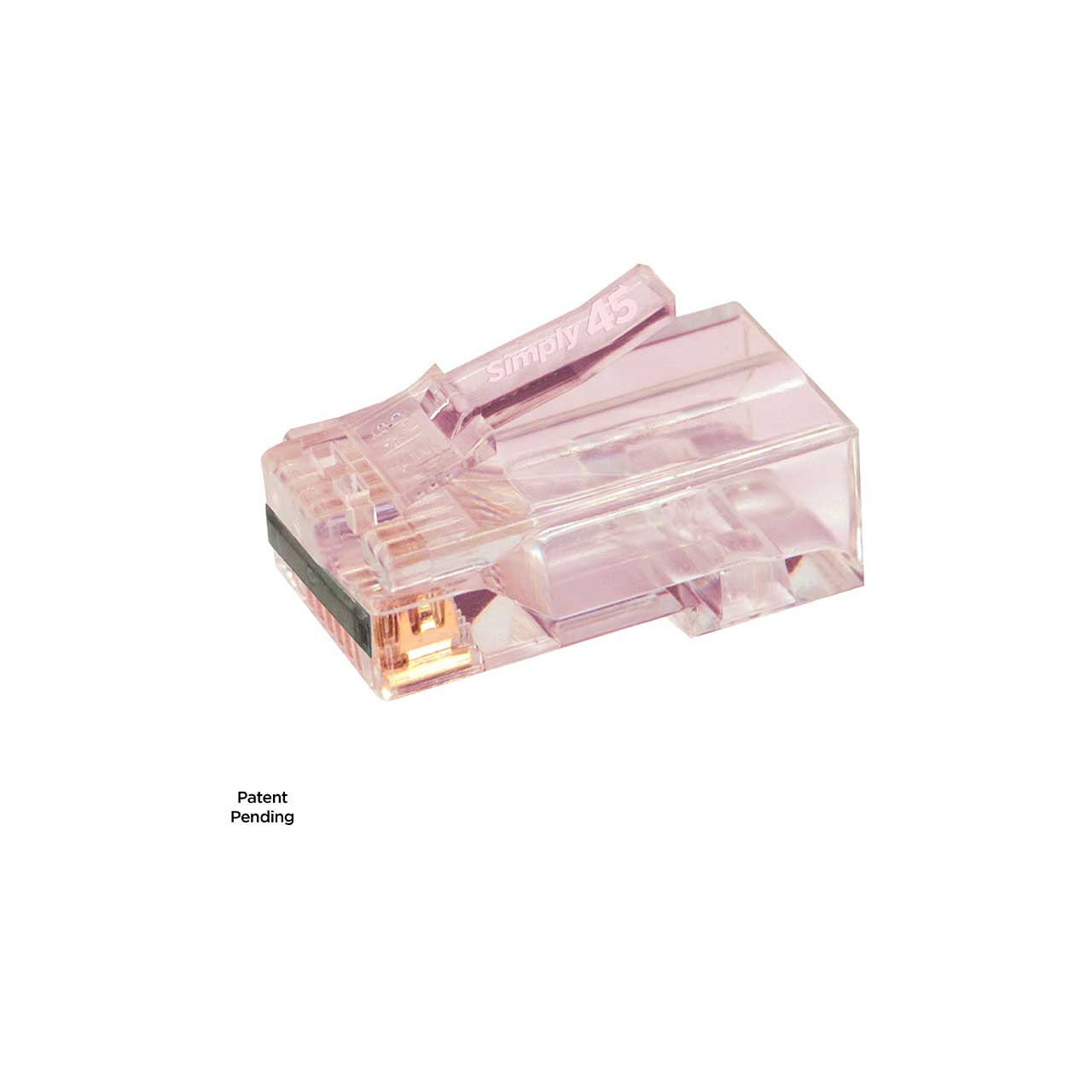

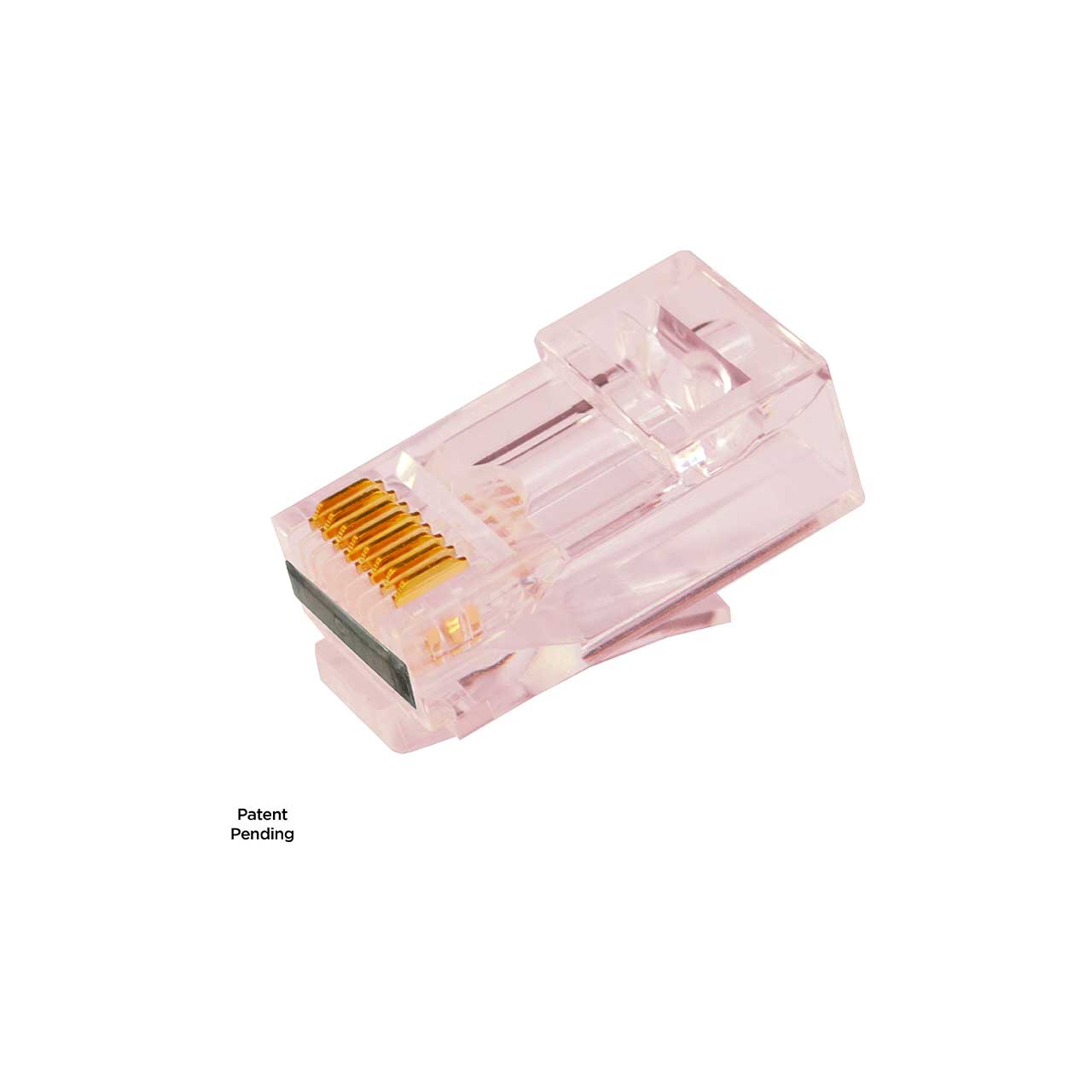

Simply45 S45-1701P PROSeries Pass Through Red Tint Mod Plugs for Cat6/6a UTP with Cap45 - Hi/Lo Stagger - 50pc Clamshell

S45-1701P - Overview

• Features:

  • High/Low Staggered Wire Insert - LAN cable wire conductors are easily inserted into the S45-1701P in a Staggered High/Low wire arrangement out through the front of the RJ45 pass-through modular plug. The S45-1701P is recommended for larger unshielded LAN cables. It accommodates 23 AWG Solid LAN cable wire conductor sizes 0.041" - 0.047" (1.05mm - 1.2mm) typically found on some Cat6 UTP and Cat6A UTP cables.
  • 3 Prong Pin Design with 50µ of True 24ct Gold Plating - All Simply45 pass-through RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity.
  • Improved Crosstalk Performance - The unique internal design of the S45-1701P ProSeries Pass-Through RJ45 modular plug allows larger-size LAN cables to be inserted further into the RJ45 plug. This reduces the length of untwisted wires improving NEXT performance. The S45-1701P accommodates most Cat6 UTP and Cat6a UTP LAN cables. The S45-1701P ProSeries plug is a MUST-HAVE for larger unshielded LAN cable OD.
  • Commercial Rated These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. These RJ45 mod plugs are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca-rated LAN cables.
  • Color-Tinted RJ45 Modular Plugs - The S45-1701P comes with a light red tint for easy pass-through RJ45 modular plug identification. No more trouble identifying which plug is which. All Simply45 RJ45 modular plugs are color-coded for easy identification.
  • PoE/PoH Rated The S45-1701P ProSeries is the BEST Pass-Through RJ45 modular plug on the market. This is the recommended pass-through RJ45 for Cat6 UTP and Cat6a UTP LAN cables where PoE or PoH may be used. In addition to the correct 3-Prong Pin design; true 24ct gold plated pins; highest quality RJ45 materials used in the S45-1701; Simply45 also modified the internal 1701P plug design allowing larger OD cables to be more easily inserted further into the plug; reducing the length of exposed wires. And, Cap45 protects against any electrical shorting in the RJ45 socket which is very important for PoE/PoH. This all ensures the lowest resistance and lowest heat build-up than any other unshielded pass-through RJ45 on the market.
  • Compliant with Industry Standards - ANSI/TIA 568.2-D for Cat6 and Cat6a, 1096-A; ISO/IEC 11801 Class E and Ea, 60603-7, 8877:1992; FCC


• Specifications:

  • Performance: Meets or Exceeds ANSI/TIA 568.D-2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
  • Wire Cond(s) OD: 23AWG: 1.05mm-1.20mm (0.041"-0.047")
  • Max LAN Cable OD: 7.4mm (0.291")
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
  • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40° C to +70° C
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms max
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC, TAA


• Item Includes:

  • 1x Simply45 PROSeries Pass Through Red Tint, Hi/Lo Stagger - Cat6/6a UTP with Cap45 - 50pc Clamshell


• Warranty:

  • Lifetime Limited Warranty
