Simply45 ST-158006 PoE PRO AnyWARE VDV II Cable Tester & POE Verifier w/2.9in Backlight Display - PoE++ 90 Watts Max

ITEM #: S45-ST-158006 MFG #: ST-158006

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$724.50

Our Price:

$688.50

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    ST-158006 - Overview

    Simply45 ST-158006 is a VDV II Series cable verifier. The VDV II verifiers are easy to use cable testers that check the integrity of copper cables commonly found in domestic, commercial or industrial voice, data or video installations, including telephone wiring, data network and video/security cabling.

    Employing state-of-the-art technology, VDV II offers functionality not previously available in a wiremapper. The advanced wiremap engine accurately displays complex wiring faults instantaneously while TDR (Time Domain Reflectometry) aids troubleshooting and improves on-site productivity.

    The ST-158006 utilizes TDR to accurately measure cable length and provide distance to fault information. TDR's works by injecting a signal into the cable and measuring the time for any signal to be reflected back after encountering changes in impedance caused by cable damage, open and short circuits. The recorded time is then translated into an accurate distance measurement. TDR helps to pinpoint where cabling faults occur. This speeds up fault finding as well as minimizes disruption and potential damage to fixtures and fixings.

    The ST-158006 comes with bluetooth capability managed through the AnyWARE app.

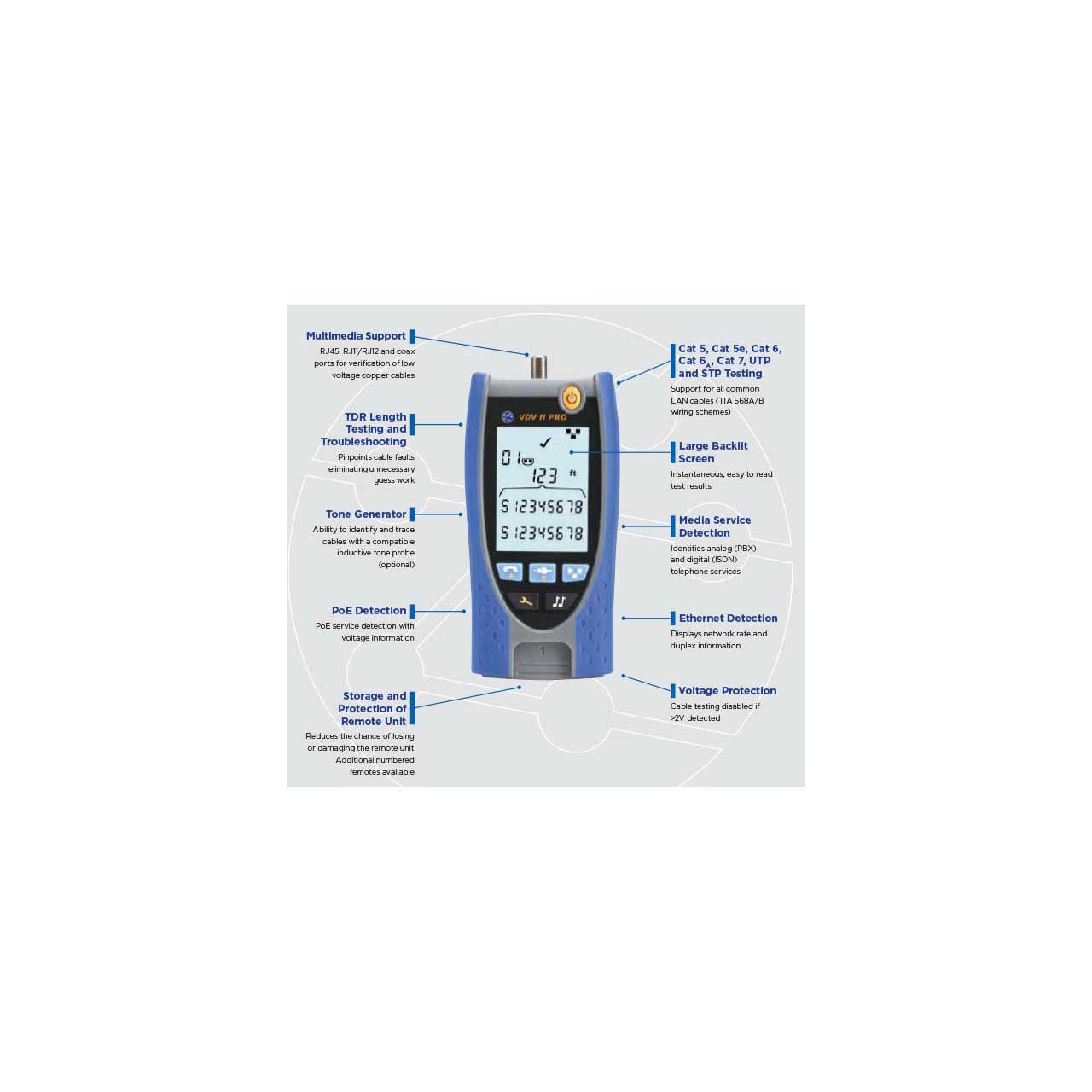

    • Features:

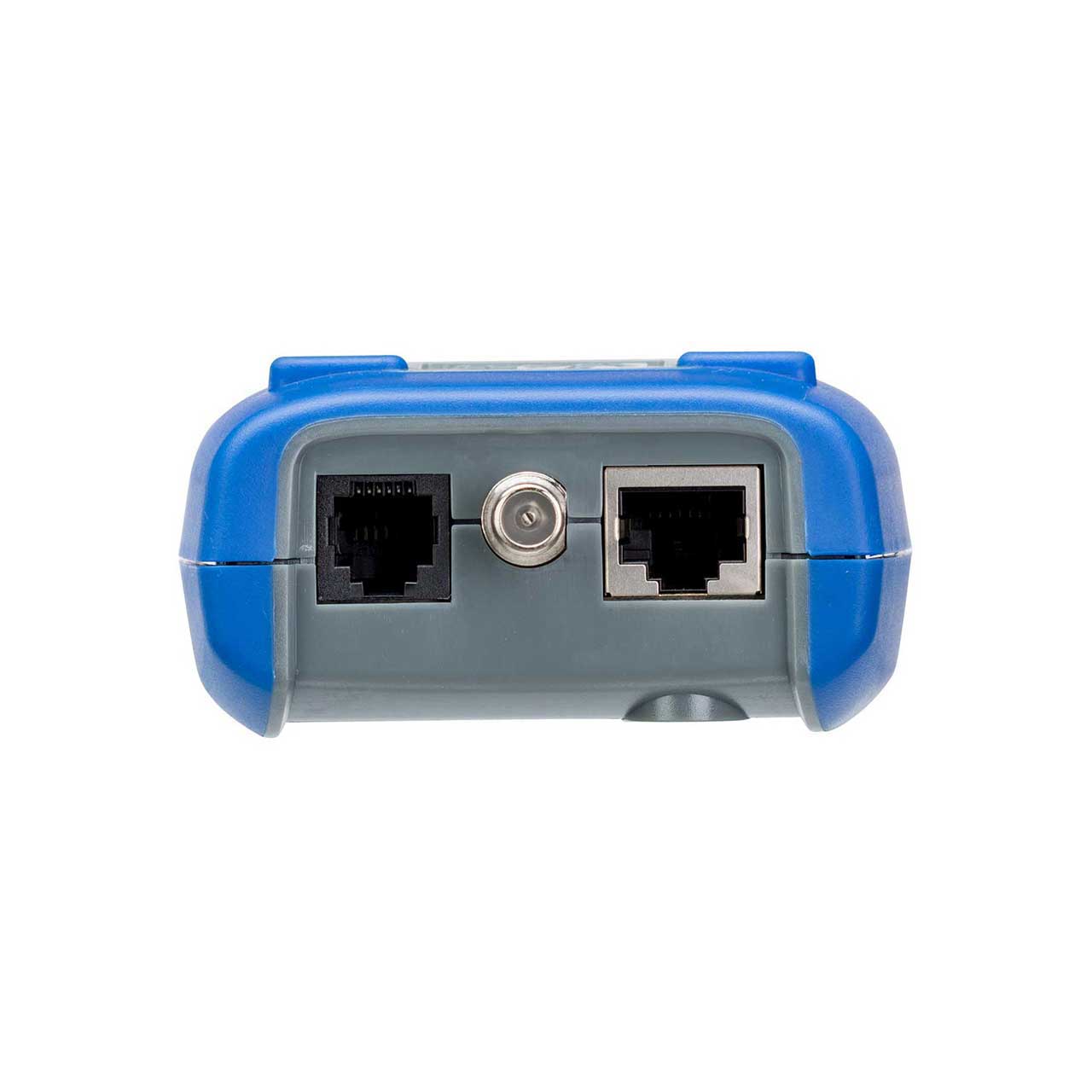

      • Multimedia Support: RJ45, RJ11/RJ12 and coax ports for verification of low voltage copper cables.
      • TDR Length Testing and Troubleshooting: Pinpoints cable faults eliminating unnecessary guess work.
      • Tone Generator: Ability to identify and trace cables with a compatible inductive tone proble (optional)
      • PoE Generator: PoE service detection with voltage information.
      • Storage and Protection of Remote Unit: Reduces the chance of losing or damaging the remote unit. Additional numbered remotes available.
      • Cat 5/5e/6/6a/7/UTP/STP Testing: Support for all common LAN cables

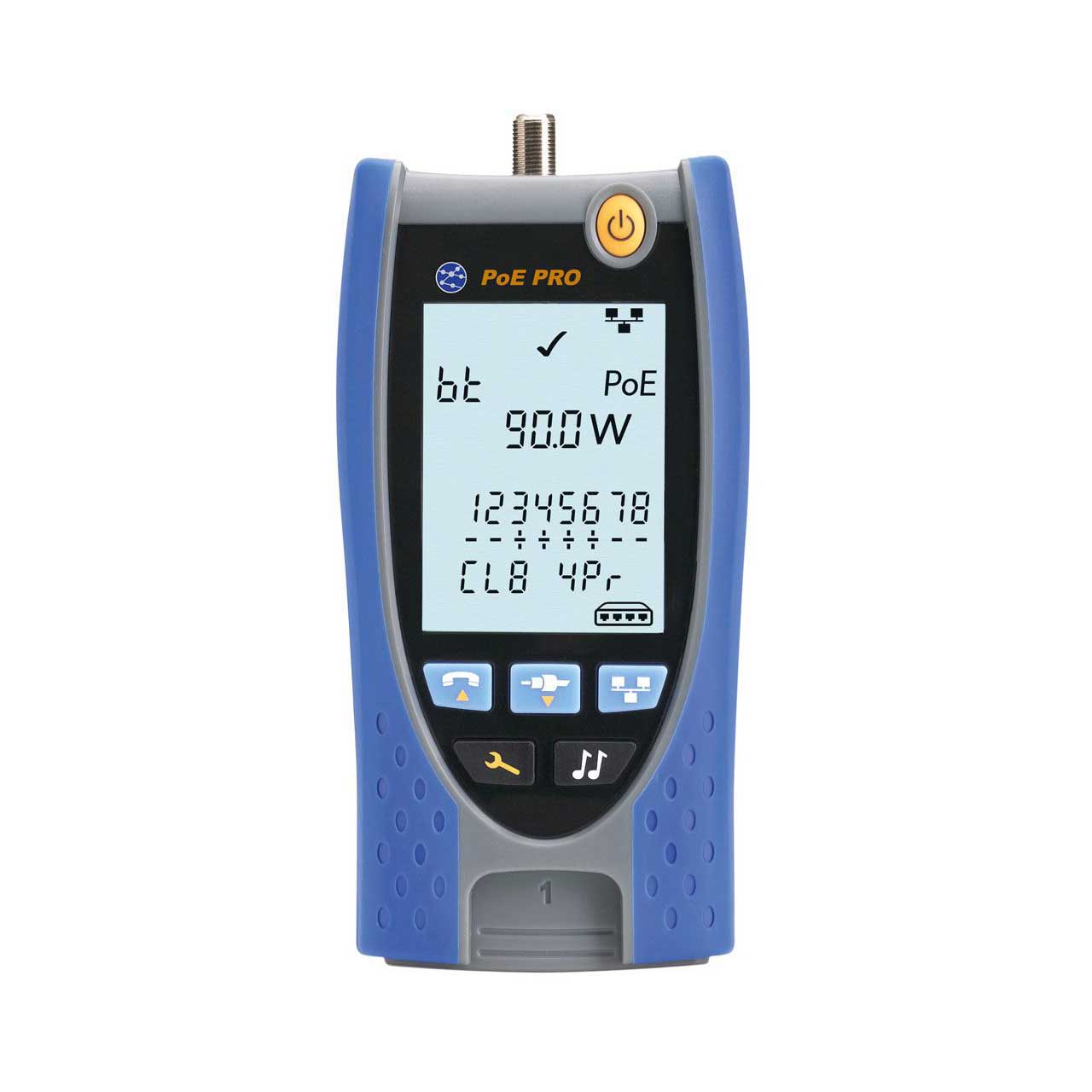

      • Large Backlit Screen: Instantaneous, easy to read test results
      • Media Service Detection: Identifies analog (PBX) and digital (ISDN) telephone services.
      • Ethernet Detection: Displays network rate and duplex information.
      • Voltage Protection: Cable testing disabled if >2V detected.
      • Bluetooth through the AnyWARE app is included

    • Specifications:

      • Dimensions: 7.5 x 2.4 12.6"
      • Weight: 2.2 lbs
      • Battery Type: 9V alkaline. Typically 20 hours minimum continuous use (backlight off)

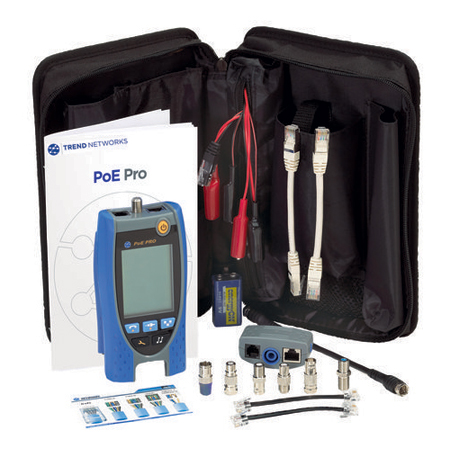

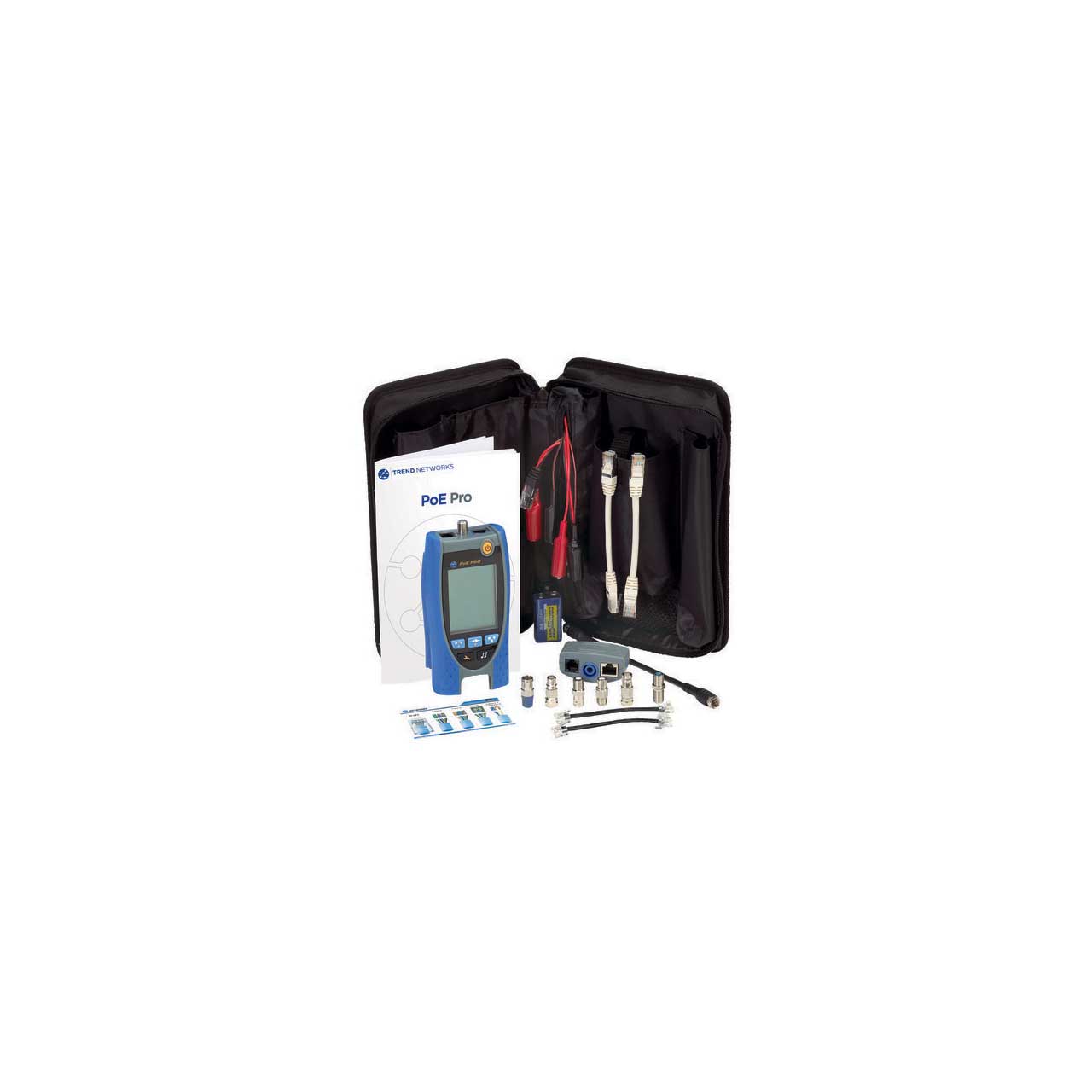

    • Item Includes:

      • 1x PoE Pro Tester
      • 1x Dual Port Remote Unit
      • 1x Coax Remote Unit
      • 1x Alkaline Battery
      • 1x Multi-Language User Guide
      • 2x RJ45 to Alligator Clip Cable 390mm
      • 2x Screened RJ45 to RJ45 Cable 150mm
      • 2x RJ12 to RJ12 Cable 100mm
      • 1x F-Type Plug Cable 230mm
      • 1x F-81 Barrel Splice
      • 1x BNC Female to F-type male adapter
      • 1x BNC Female to F-type female adapter
      • 1x RCA Female to F-type adapter
      • 1x RCA Female to F-Type Female adapter
      • 1x Wallet Wiring Card
      • 1x Carry Case

    • Warranty:

      • 2 Year Warranty
