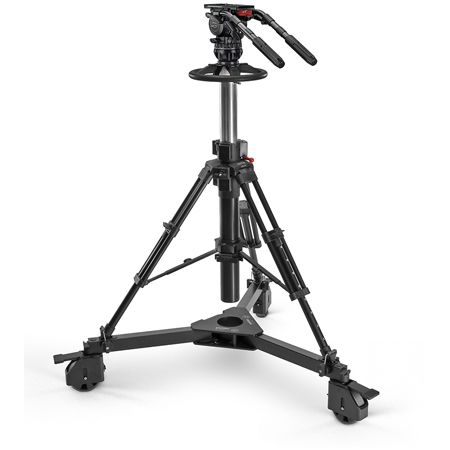

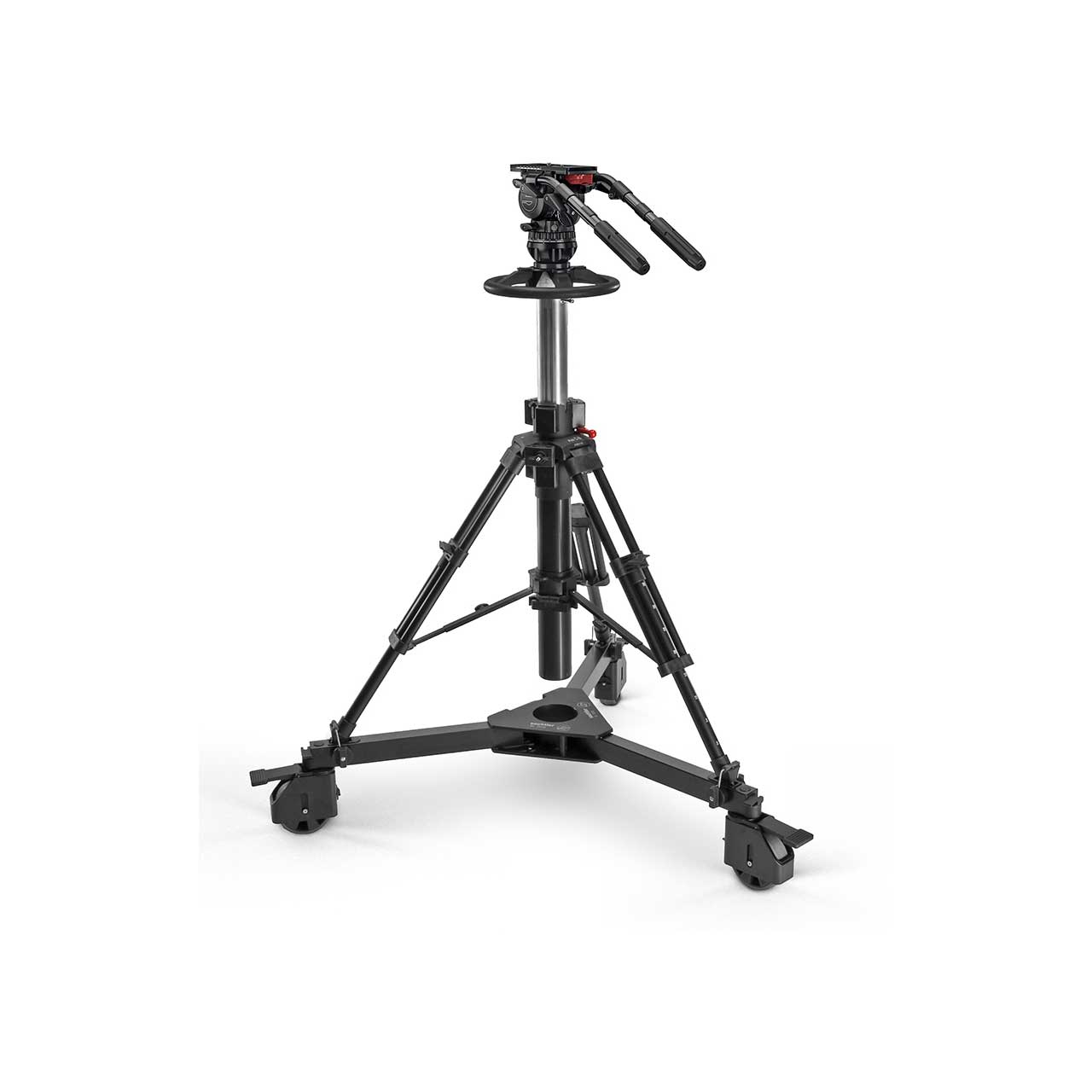

Sachtler 1470M FSB 14T Mk II Touch&Go Tripod System with Pedestal C III

1470M - Overview

• Features:

  • Smooth operation. Create precision pans with smooth starts and soft stops.
  • Finely balanced. Delivering smooth pan-tilt fluid actions to match any camera payload from 0kg.
  • Always on the level. Innovative illuminated PrismBubble visible from any height - day or night.
  • Built for endurance. Engineered to the highest standards with tough materials and precision components, FSB is built for endurance.


• Specifications:

  • Range: FSB
  • Pan bar count: 2
  • Payload: 0 to 35.20 lb
  • Bowl size: 100 mm
  • Weight: 43.78 lb
  • Spreader type: No spreader
  • Material: Aluminium
  • Height with spreader: 2.98 to 5.74 ft
  • Temperature range: -40 to 140 °F
  • Tilt range: 90° to -70°
  • Sliding range: 2.73 in
  • Interface Compatibility: Touch & Go
  • Counterbalance: 15 + 0 counterbalance steps
  • Drag: 7 + 0 drag settings


• Item Includes:

  • 1x Pan bar DV right (telescopic)
  • 1x Pan bar DV left (telescopic)
  • 1x Pedestal C III

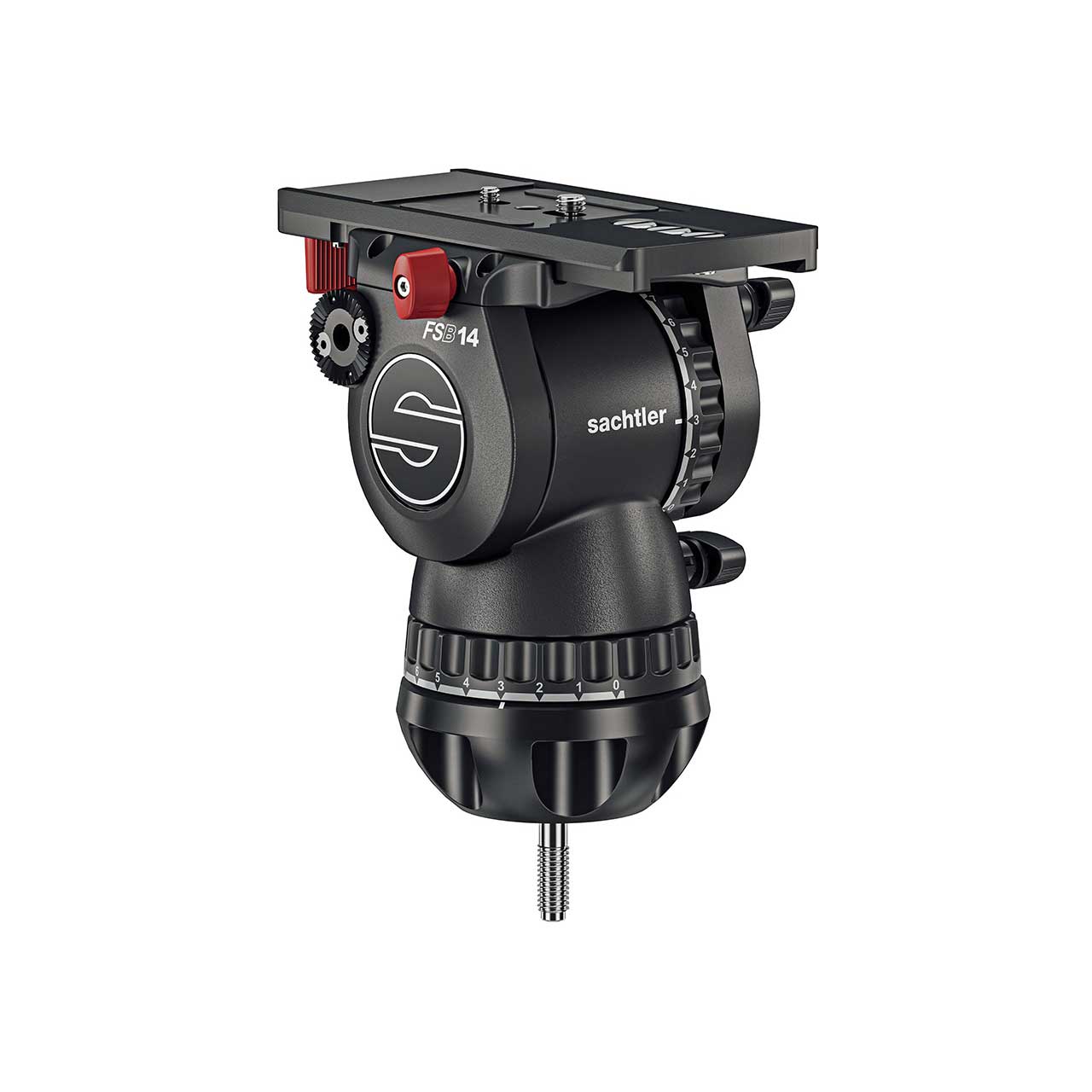

  • 1x FSB 14T Mk II


• GTIN:

  5060896401751
