Structured Cable 16/2SHDB 2-Conductor 16 AWG Shielded Direct Burial Speaker Cable - 500 Feet Black

ITEM #: SCP-162SHDB500 MFG #: 16/2SHDB-500

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Structured Cable Products
Free Shipping with $49 Minimum Order

List Price:

$212.80

Our Price:

$133.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    16/2SHDB-500 - Overview

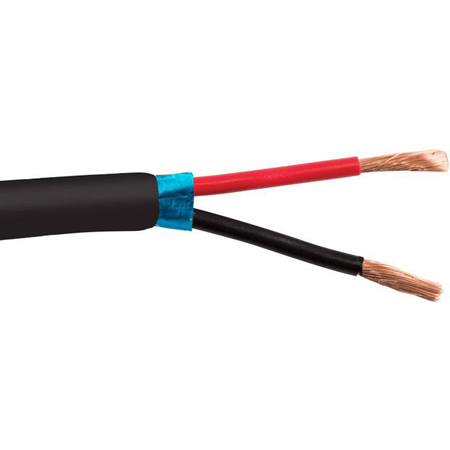

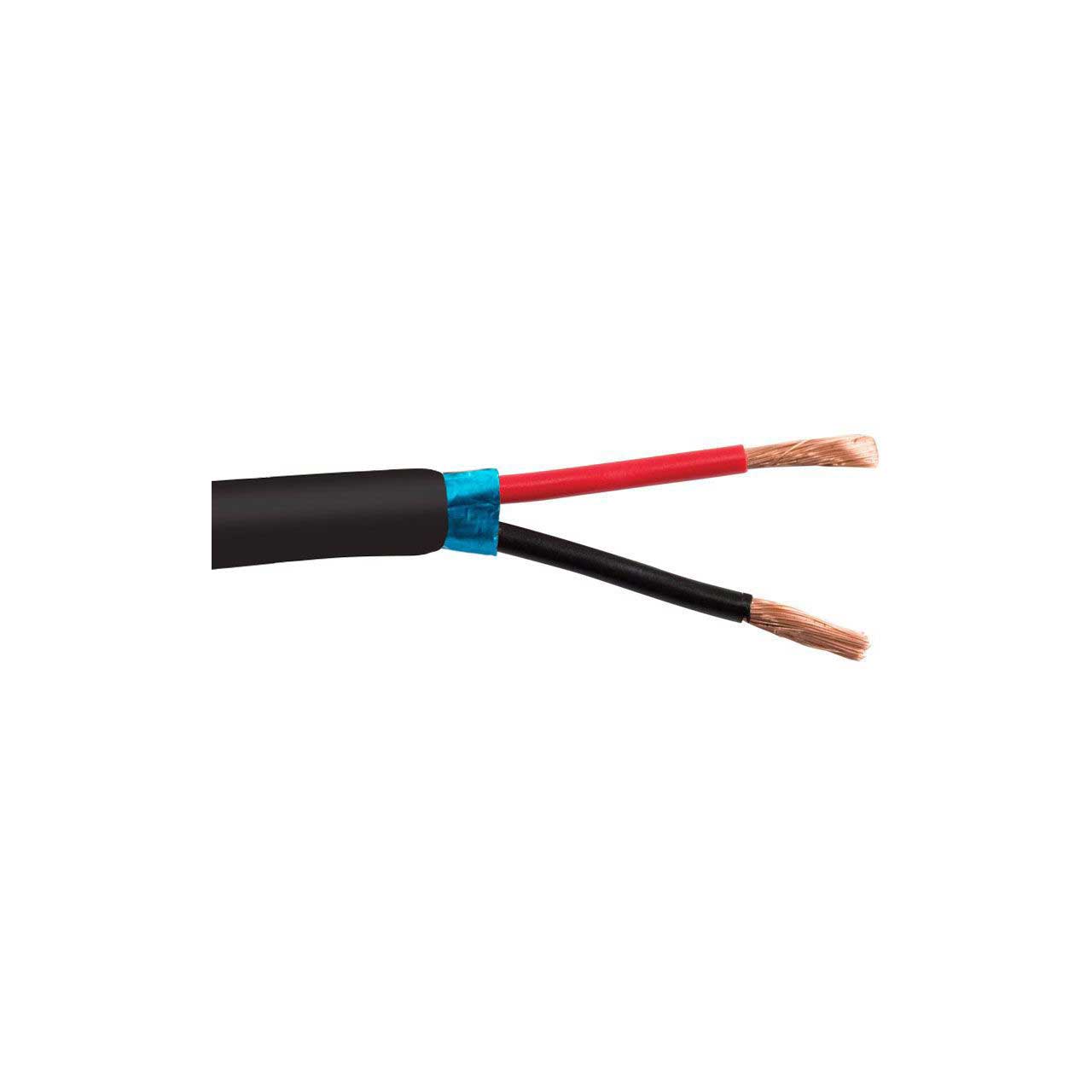

    This cable consists of high strand count insulated oxygen free copper conductors in twisted pair construction (shielded) with easy strip LLDPE jacket. Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.

    • Features:

      • Linear Low-Density Polyethelene jacket with UV Sun Resistance
      • Insulated twisted pair
      • Water Block Tape (WBT) for moisture protection
      • Descending Feet and Zone/Outlet Jacket Markings
      • Spool Packaging

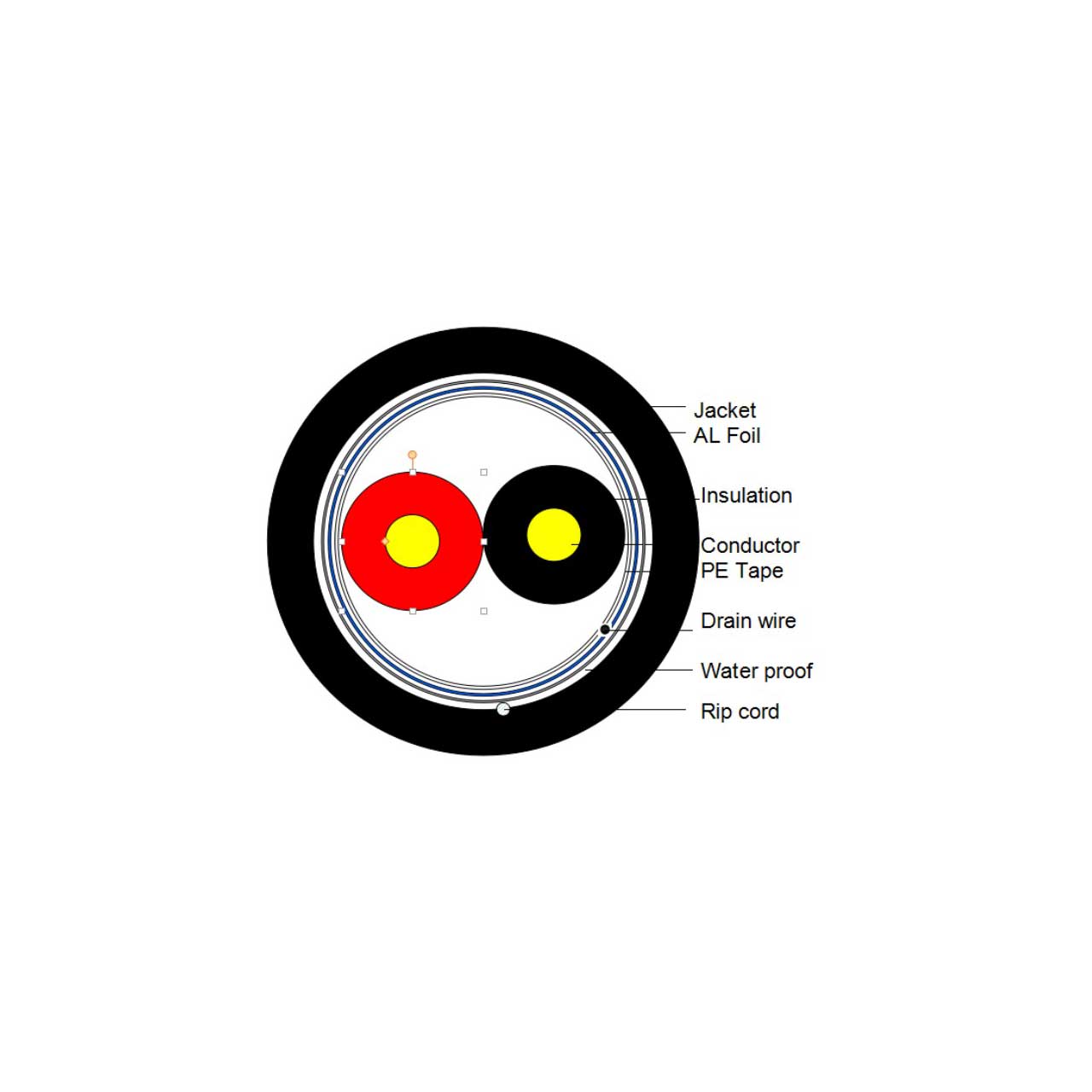

    • Specifications:

      • Conductor:
      • Material: Stranded Bare Copper
      • Size: 16AWG X 2C (1.31mm2)
      • Construction: 65/0.16mm±0.004mm
      • Resistance: Max 15.5Ω/km at 20°C

        Insulation:
      • Material: PVC
      • Min. Thickness: 0.30mm
      • Avg. Thickness: 0.33mm
      • Diameter: 2.0mm±0.05mm
      • Colors: Black and Red
      • Resistance: Min 50MΩ*km at 20°C

        Shield:
      • Core Wrap: PE Tape
      • Drain Wire (TC): 7/0.20±0.004mm
      • Shield: AL Foil
      • Filler: Water proof

        Jacket:
      • Material: LLDPE
      • Min. Thickness: 0.54mm
      • Avg. Thickness: 0.60mm
      • Diameter: 6.3mm±0.20mm
      • Rip Cord: Nylon

      • Operating Temperature Range: -20°C - +75°C
      • Minimum Installation Temperature: 0°C - 40°C
      • Dielectric Strength: Min AC1.5KV
      • Rated Voltage: 300V
      • Test Voltage: 800V/min
      • Impedance (nearby): 85±5Ω
      • Capacitance (nearby): 23±3pf/ft


    • GTIN:

      0817777011692
