Neutrik NC3FDX-TOP 3-Pin XLR Female - True Outdoor Protection (TOP)

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

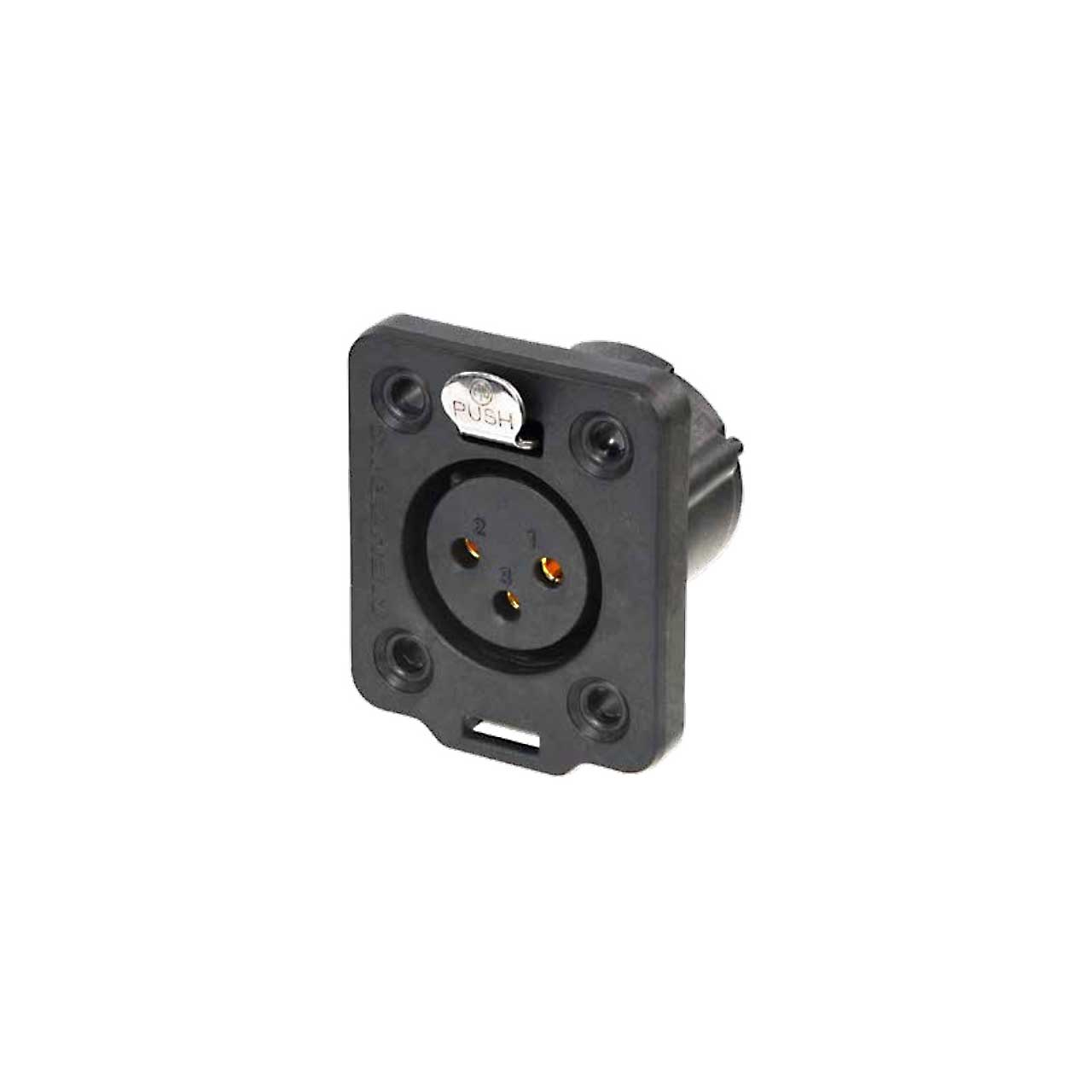

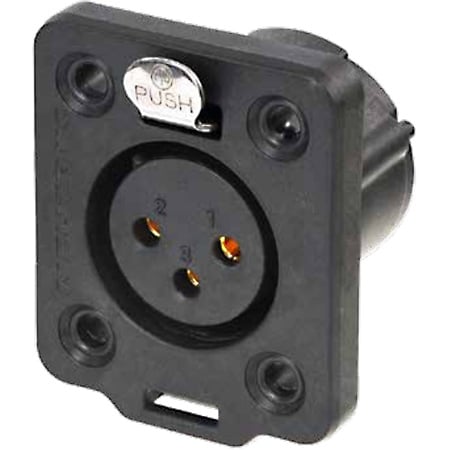

    Neutrik NC3FDX-TOP 3-Pin XLR Female - True Outdoor Protection (TOP)

    Manufacturer: Neutrik USA Inc

    Item #: NC3FDX-TOP   •   MFG #: NC3FDX-TOP



    List Price:$5.93
    Our Price:$5.83
    Quantity Pricing

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!





      The Neutrik X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. Super rugged, Outdoor protected by mating with related cable connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard


      • Features

        • Heavy-duty sealed XLR connector range for harsh and demanding environment
        • Outdoor protection according to IP65 and UL50E (in combination with a TOP range counterpart)
        • Uses high impact UV-resistant materials
        • Maintains sealing when in use and when disconnected

      • Specifications

        • NC3FDX-TOP
        • Connection Type XLR
        • Gender female
          Electrical
        • Capacitance between contacts = 4 pF
        • Contact resistance = 5 mO
        • Dielectric strength 1,5 kVdc
        • Insulation resistance > 10 GO (initial)
        • Rated current per contact 16 A
        • Rated voltage < 50 V
          Mechanical
        • Insertion force = 20 N
        • Withdrawal force = 20 N
        • Lifetime > 5000 mating cycles
        • Wiring Solder contacts
        • Locking device Latch lock
        • Mounting direction Front mounting
        • Chassis shape D
          Material
        • Contact plating 0.2 æm Au over 2 æm Ni
        • Contacts Brass (CuZn39Pb3)
        • Insert Polyamide (PA 6.6 30 % GR)
        • Locking element Stainless steel
        • Gasket TPE
        • Shell Polyamide (PA 6.6 30 % GR)
          Environmental
        • Flammability UL94 V-0
        • Standard compliance IEC 61076-2-103
        • Protection class IP65, UL50E
          Solderability
        • Complies with IEC 68-2-20
        • Temperature range -30 °C to +80 °C
