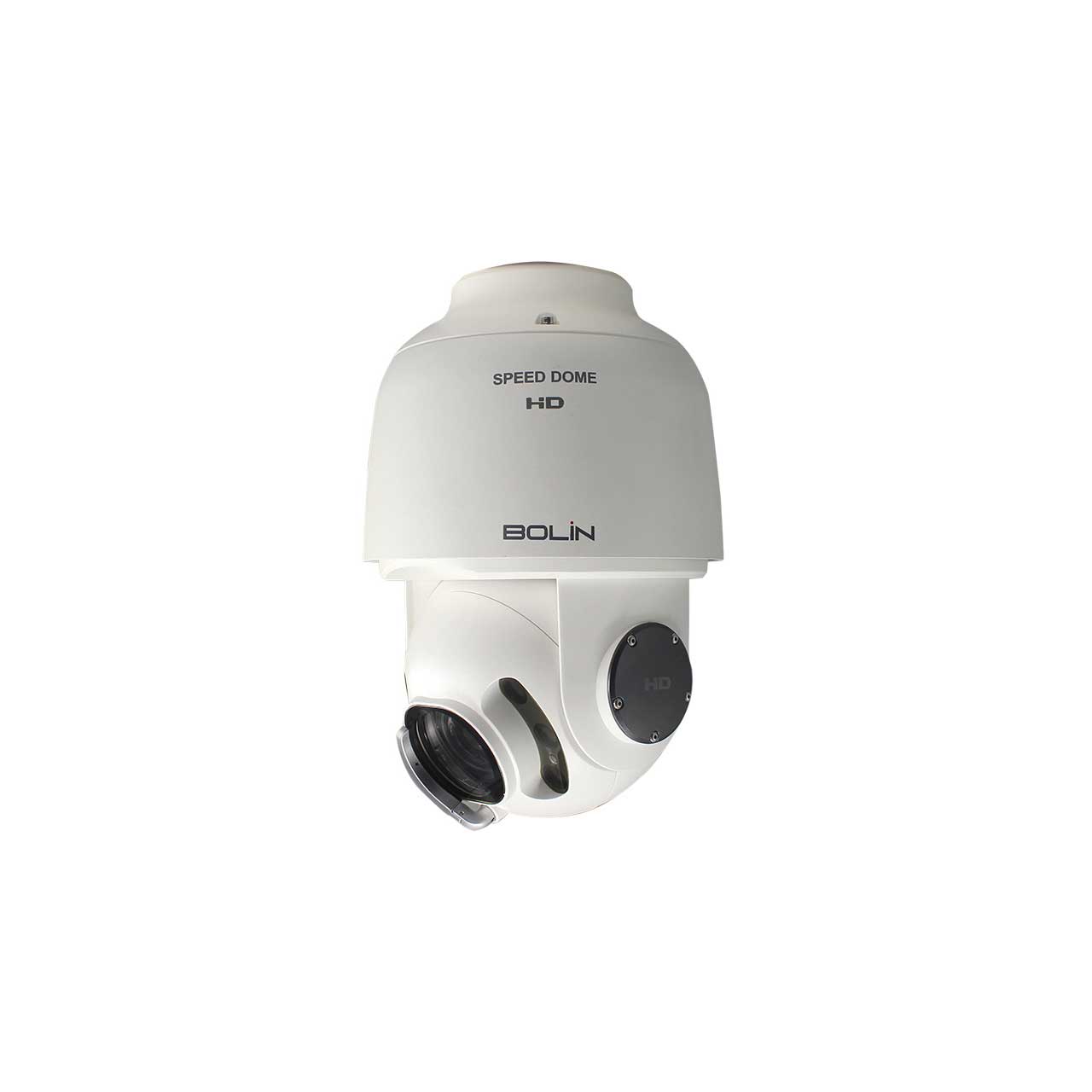

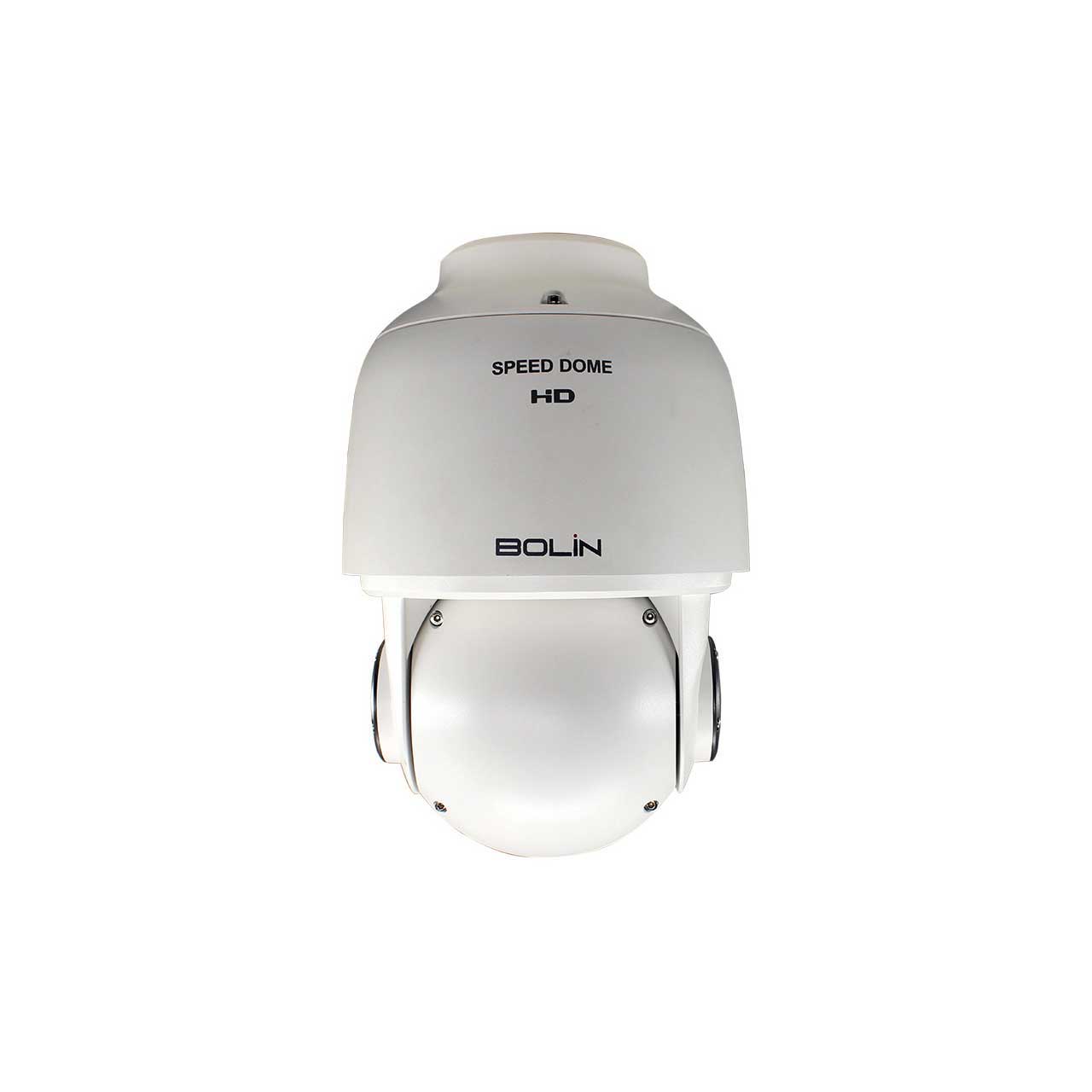

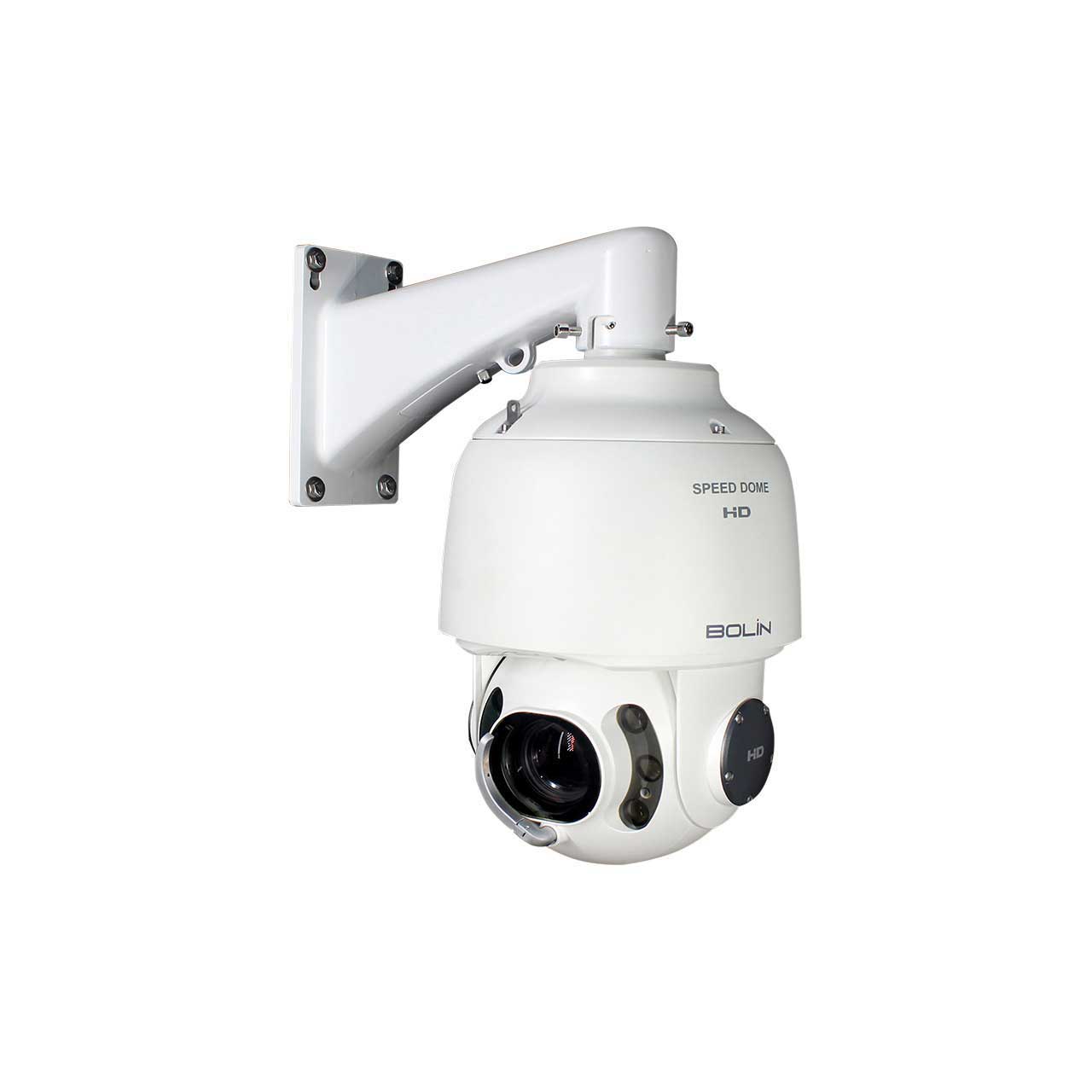

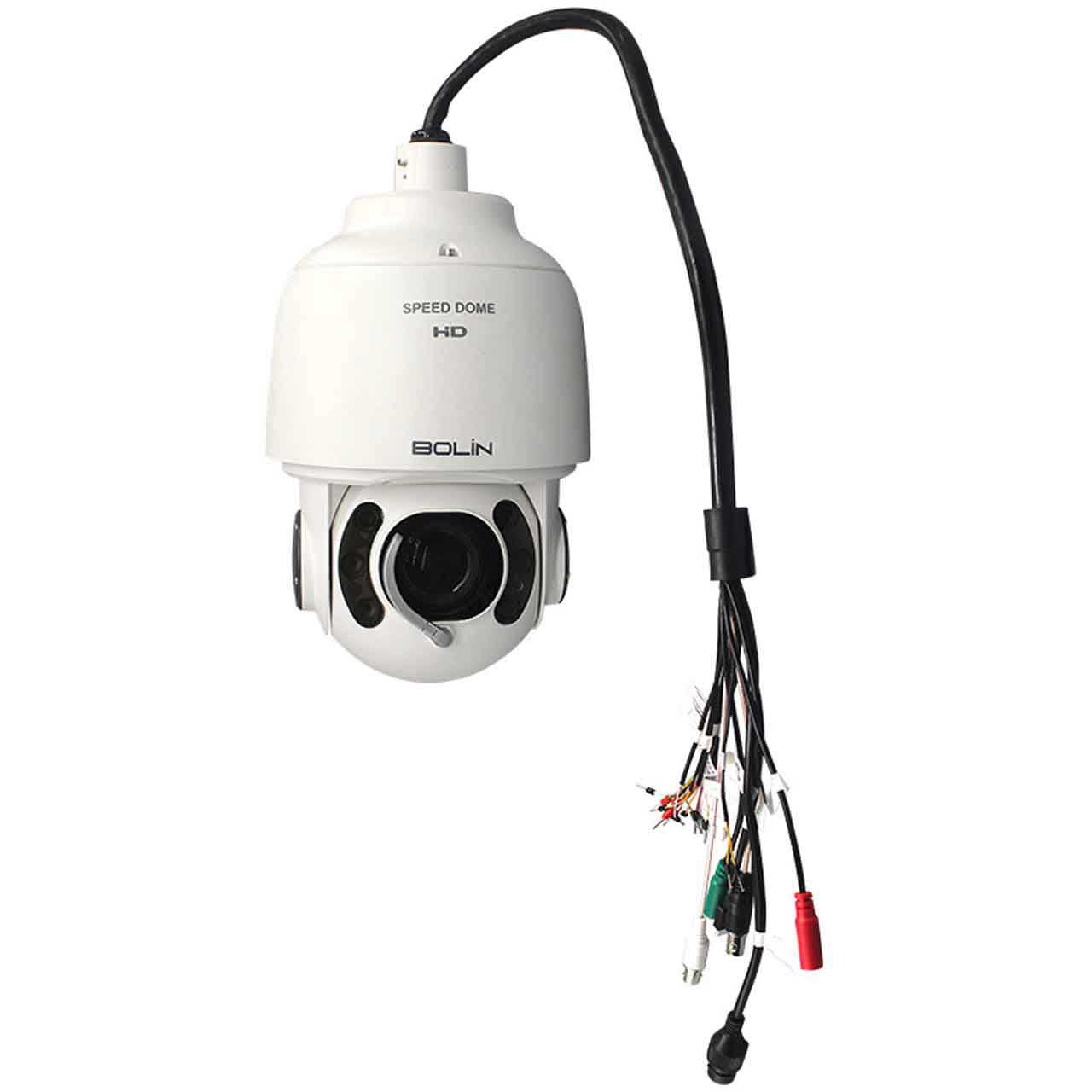

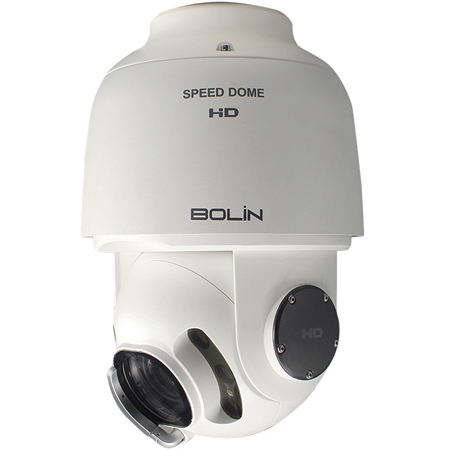

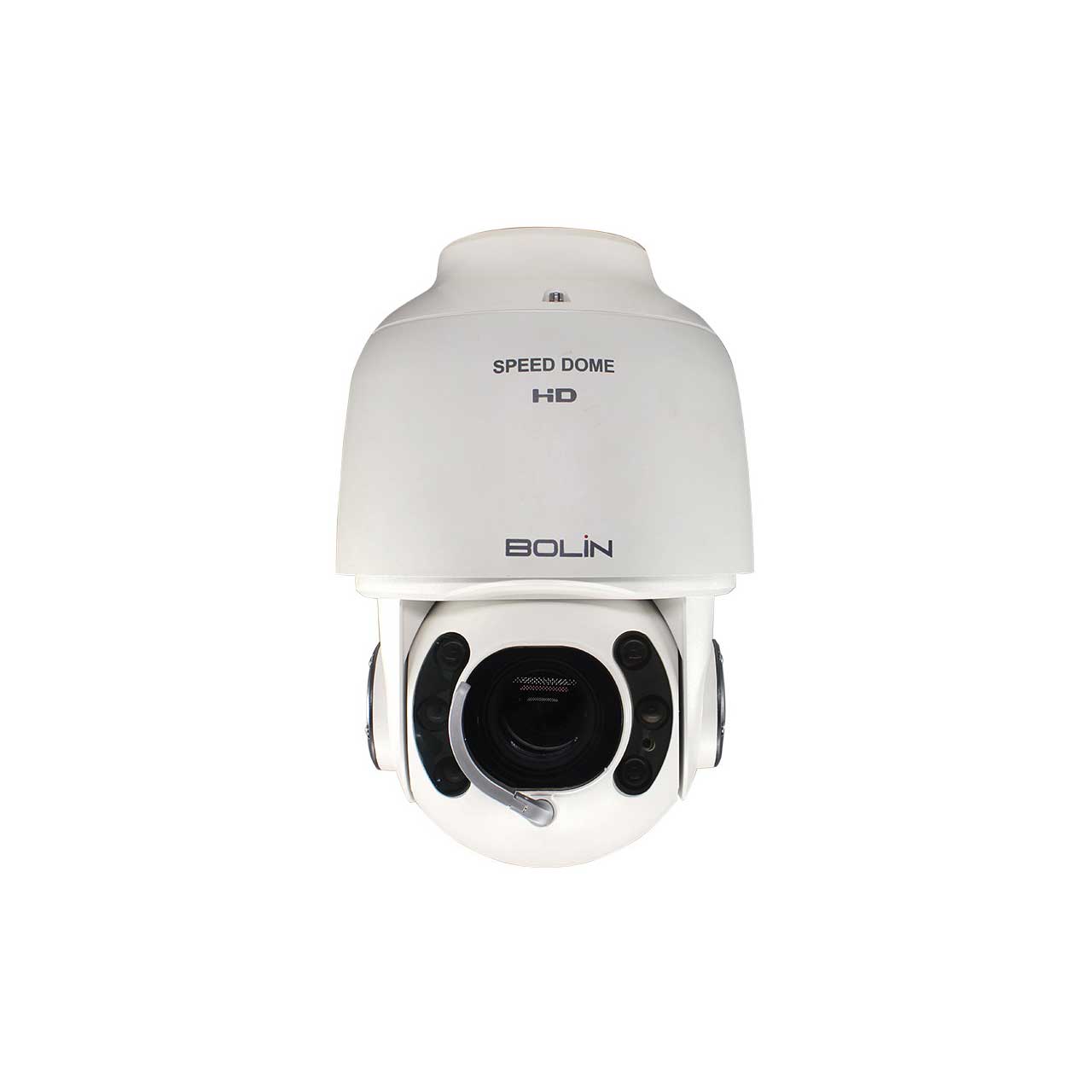

Bolin Technology SD530SHD-B-RSN2PW Outdoor PRO Dual Output 30X PTZ SDI+IP Dome Camera

SD530SHD-B-RSN2PW - Overview

• Features:

  • Sony Image Block – The Source of High Image Quality
  • True Dual Output – SDI And IP Video
  • SRT Ready
  • FHD IP Streaming – IP Remote Control and View
  • Rugged Design - Survive Extreme Weather Condition
  • Control – You Have It Under Your Control
  • EIS - Electronic Image Stabilizer
  • SDI+IP True Dual Output Video
  • Brilliant Broadcast Quality of Imaging
  • Full Resolution Image
  • Professional Image Parameter Setting
  • Low Latency Mode
  • Powerful 30x Optical Zoom
  • IR LED Illumination
  • ZDP - Zero Deviation Positioning
  • Quiet and Precise Movement
  • Picture Profile Preset
  • SDI Output Only version is available* (S Class simple version)
  • SDI Output Only version does not have IP functionality. Special order only.


• Specifications:

  • Camera 30X Sony Block
  • Image Sensor: 1/2.8 inch CMOS 2.13MP
  • Lens: 30X, 4.3~129mm; Digital Zoom 12X
  • Horizontal Angle of View: 63.7°(W)~2.3°(T)
  • Aperture: F1.6(W)~F4.7(T)
  • Min. Illumination: Color: 0.01 lux (F1.6,AGC on,1/30s, High sensitive mode), 0.1 lux(F1.6,AGC on,1/30s, Normal sensitive mode)
  • Shutter Speed: 1/1~1/10000s
  • Focus: Auto Focus, Manual Focus, One Push Trigger
  • White Balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp
  • Exposure: Full Auto, Gain, Shutter Priority, Iris Priority, Manual, Bright
  • Day/Night: YES
  • Backlight Compensation: YES
  • WDR: Yes(120dB)
  • Privacy Zone Masking: YES
  • Defog: YES
  • Low Latency Mode: YES
  • Motion Detection: YES
  • Noise Reduction: 2D/3D
  • S/N Ratio: ≥50db

    Mechanical
  • Pan Movement: Horizontal: ±360° continuous pan (Zoom Adaptive Speed Range: 0.1°~150°/S )
  • Tilt Movement: Vertical:+90° to -15° (Zoom Adaptive Speed Range: 0.1°~90°/S)
  • Preset Position: 255( Preset Speed: 150°/S)
  • Home Position: YES
  • Cruise: Support up to 8 different path movements
  • Environmental: Outdoor/Indoor, IP67, Corrosion Resistant Treated Housing
  • Illumination: IR. The adaptive IR can be synchronized with different zoom angle. Illumination distance is up to 80 Meters.

    Network*
  • Video Compression: MJPEG,H.264/H.265
  • IP Resolution/Frame Rate: Supports: 1920x1080p60/50/30/25, 1280x720p60/50
  • Protocols: TCP/IP, ICMP, ARP, RTP, SIP, UDP, HTTP, DNS, DHCP, FTP, NTP, RTMP, RTSP, SRT
  • Multi-stream: 3 data stream function will satisfy various bandwidth, frame rates and storage requirements in real time
  • Audio Compression: AAC-LC Broadband Audio Encoding(Duplex Communicate Supported, Audio/Video synchronization)
  • OSD: Customized OSD
  • Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP
  • Cross Browser Compatibility: HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari browsers without plugin
  • * SDI output only: Does not have IP functionality, only for special order

    3G-SDI Signal
  • 3G-SDI: BNC interface, Signal Fluctuations 800mv ±10% (external cable extension requirements 75-5,128 twisted pair shielding,coaxial cable)
  • SDI Signal Format: B Class1080p: 60/59.94/50/30/29.97/25, 1080i: 60/59.94/50, 720p: 60/59.94/50/30/25
  • SDI Signal Format **: S Class1080p: 60/59.94/50/30/29.97/25, 720p: 60/59.94/50/30/25
  • SDI Standard: SMPTE 292(1.5Gb/s), SMPTE 425-A(3Gb/s) With SMPTE352 SDI Metadata Supported
  • On-Screen Title: YES, SDI video embeded On-Screen title character generator

    Interface
  • Network: 10M/100M Base-TX Ethernet, RJ45
  • Control Interface: IP, RS485, RS422
  • Control Protocol: Pelco-D/P, IP Onvif , VISCA, VISCA-OVER IP
  • 3G-SDI Video Output: 1XBNC
  • Audio I/O: Input: Impedance 35kΩ, Amplitude 2V [p-p]; Output: Impedance 600kΩ, Amplitude 2V [p-p], (Not avtivated for None-IP models)
  • Alarm I/O: Alarm Input X1, Alarm Output 1X1 (Not activatd with IP Feature)
  • FW Upgrade: Via IP

    General
  • Operating Temperature: -40° to 140°F (-40° to 60°C)
  • Operating Humidity: 100% Suitable for Use
  • Power Input: AC 24V, DC±24V, PoE++ (Compatible with IEEE802.3bt), (Bolin PoE 97W High Power POE Injector recommended, Optional). * Does not apply to SDI output only version camera
  • Power Consumption: Min: 37W(Static state with no movement); Max: 48W(Fully loaded operation with heater and IR Laser on)
  • Dimension: Φ8.26 x 13.11" (Φ210 x 333mm)
  • Weight: 5.0kg
  • Rain Wiper: YES


• GTIN:

  6973775121130
