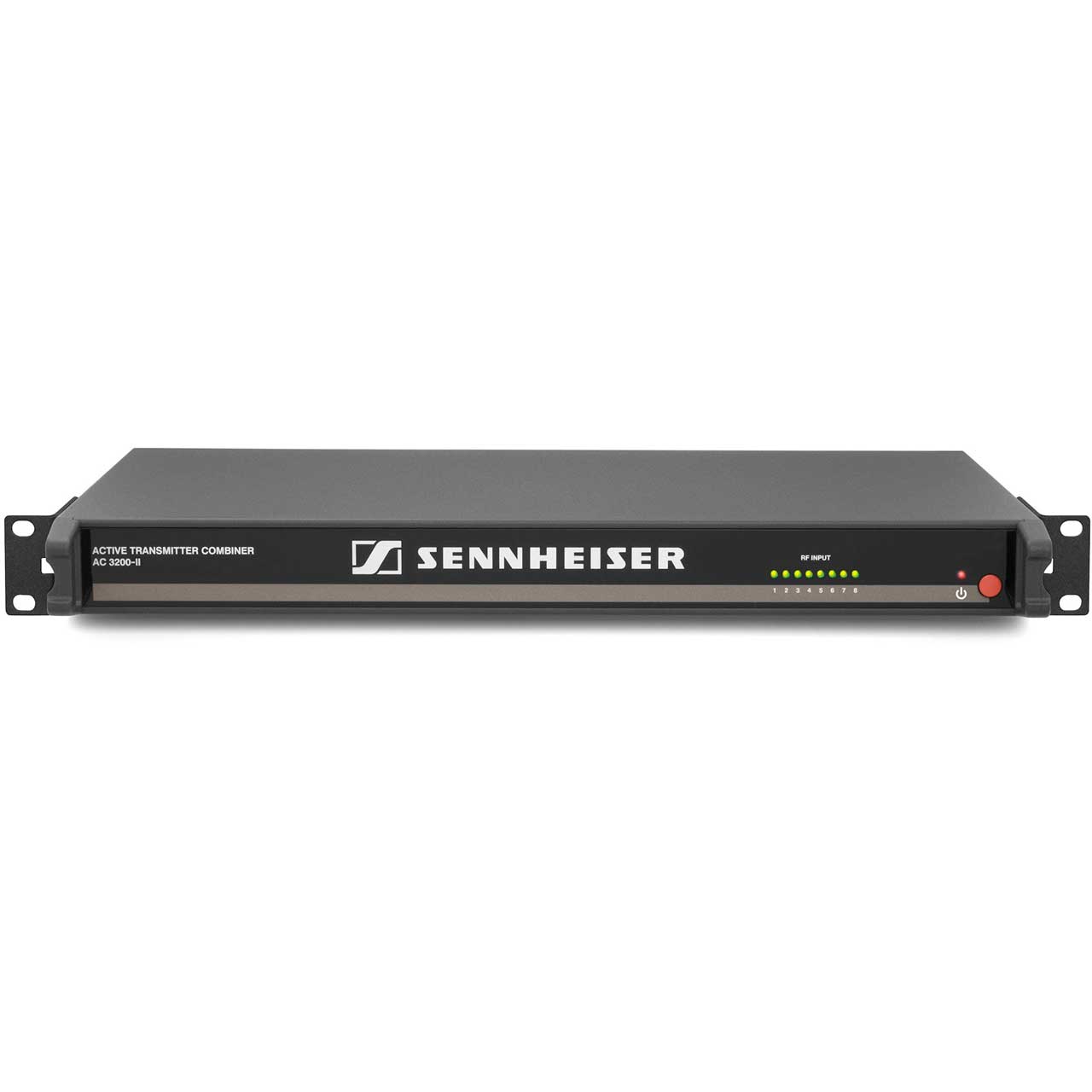

Sennheiser AC 3200-II 1RU Active High-power 8:1 Broadband RF Antenna Combiner - Max 250mW Input Power

ITEM #: SENN-AC-3200-II MFG #: AC-3200-II

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$4,699.00

Our Price:

$3,999.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AC-3200-II - Overview

    The Sennheiser AC 3200 is an active, high-power 8:1 antenna combiner for large multi-channel wireless monitoring systems. the AC3200-II combines up to eight channels for transmission via one antenna, with a broadband design covering 500 - 870 MHz. It significantly reduces inter-modulation of wireless monitoring transmitters while keeping backstage clutter to a minimum. Long distances can be covered reliably as the AC 3200 accepts up to 250 mW of input power.

    • Features:

      • Active 8-channel 0 dB transmitter combiner with highly constant RF output power over the entire frequency range
      • Significant improvement of RF performance for multi-channel systems
      • Broadband RF design to cover the UHF frequency range from 500-870 MHz
      • Maximum input power of 250 mW
      • LEDs on the front show whether a signal is present at the RF input
      • Compatible with SR 2050XP IEM, SR 2000XP IEM, SR 300 IEM G3, and legacy EW and 3000 Series monitor transmitters

    • Specifications:

      • Impedance: 50 ohms
      • Dimensions: 17.16 x 8.46 x 1.73" (436 x 215 x 44mm)
      • Weight: approx. 8.82Lbs (4kg)
      • Attenuation: 0 dB (±1dB)
      • Power Consumption: max. 90 W
      • Operating Temperature: 14° to 113°F (-10° to 45°C)
      • RF Frequency Range: 500 - 870 MHz
      • Power Supply: 12 V DC
      • Antenna Connector: BNC
      • Current Consumption: max. 7.5 A

    • Item Includes:

      • 1x AC 3200-II active transmitter combiner
      • 1x NT12-125D in-line power supply
      • 3x Power cables (US/EU/UK)
      • 4x Self-adhesive device feet
      • 1x Instruction manual

    • GTIN:

      0615104226005
