Sennheiser EM-XSW-1-DUAL-A 2-Channel Wireless Mic Receiver with Internal Antennas & Power Supply - Freq A - 548-572 MHz

508277 - Overview

• Features:

  • Wireless receiver for Sennheiser XSW-1 wireless systems
  • Configurable frequencies within the UHF A range: 548-572MHz
  • 1-button scanning and sync via a remote channel
  • Built-in antennas with antenna-switching
  • Allows you to use up to 10 channels simultaneously


• Specifications:

  • Output voltage: (at peak deviation, 1 kHz AF) 1/4" (6.3 mm) socket (unbalanced): +6 dBu.
  • Housing: Rugged ABS housing.
  • Sensitivity: < 3 µV at 52 dB(A) rms S/N (at peak deviation)
  • Squelch: Adjustable from 3 dBµV to 28 dBµV
  • AF frequency response: 50 to 16,000 Hz (-3 dB)
  • Audio adjustment range: 45 dB, adjustable in 5 dB steps
  • Line / Mic level: 20 dB, switchable.
  • Receiver Principle: Double superheterodyne
  • Diversity principle: Antenna switching diversity via internal antennas.
  • Rx Dimensions: approx. 320 x 126.5 x 42mm
  • Rx Weight: approx. 620g
  • Power supply: 12 V DC nom. / 300 mA

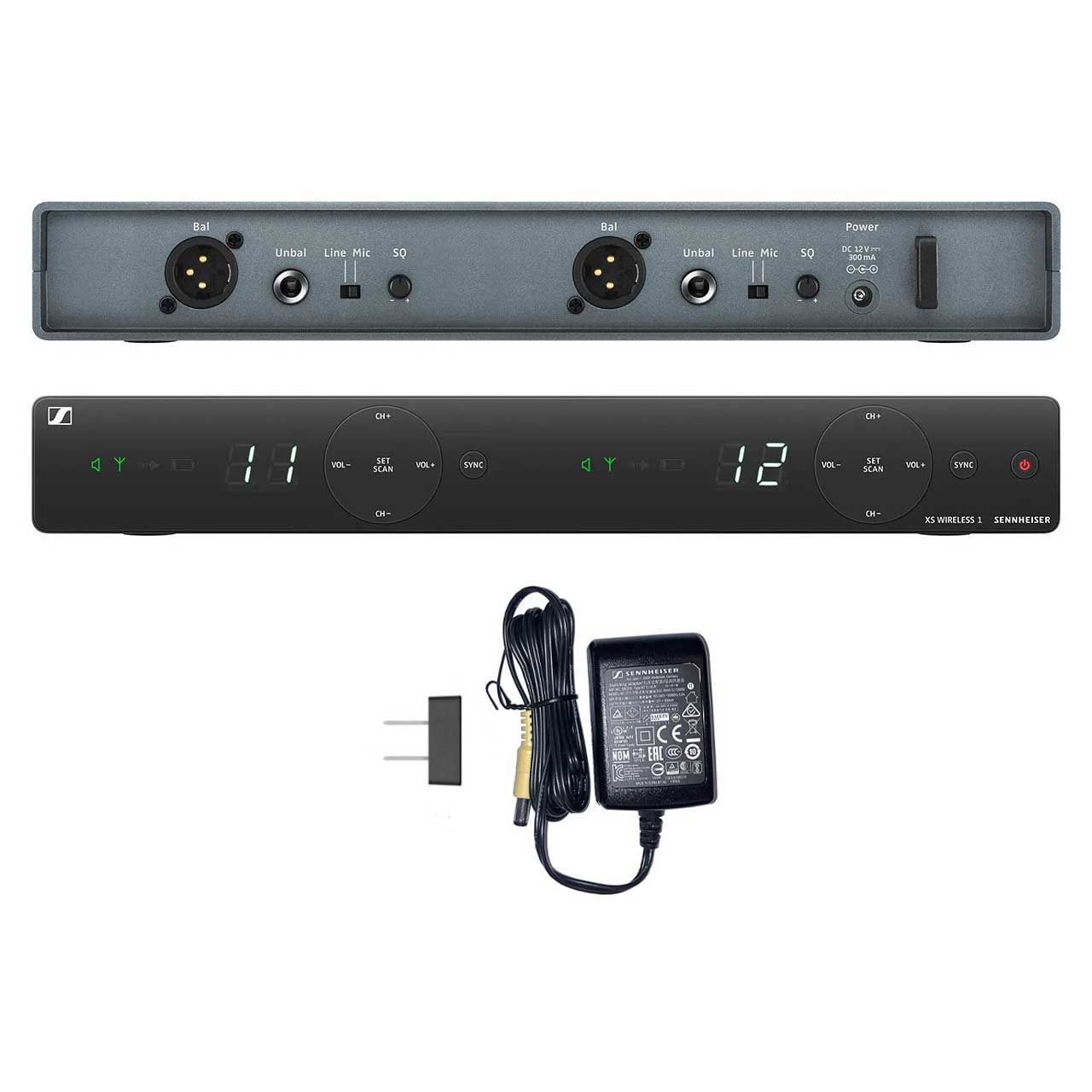

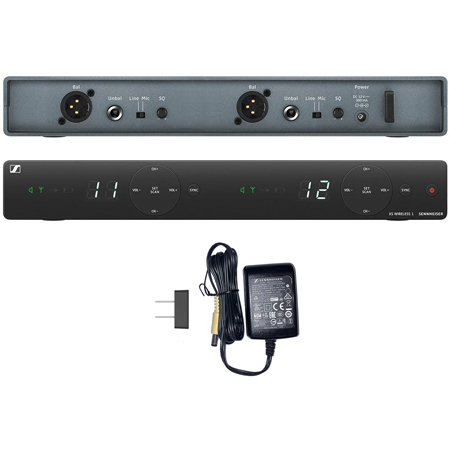

• Item Includes:

  • (1) EM-XSW 1 DUAL stationary receiver
  • (1) NT 12-5 CW power supply


• GTIN:

  0615104315617
