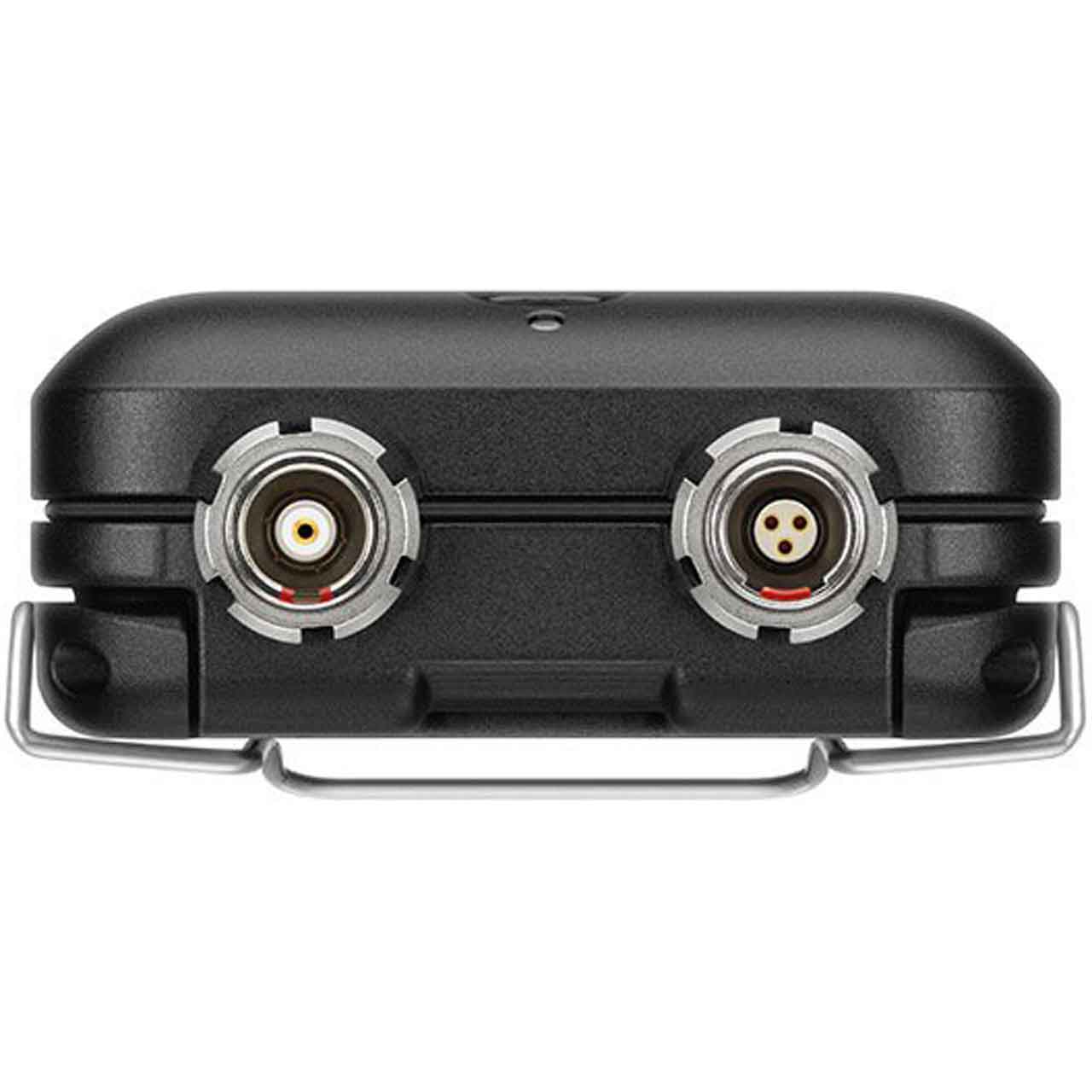

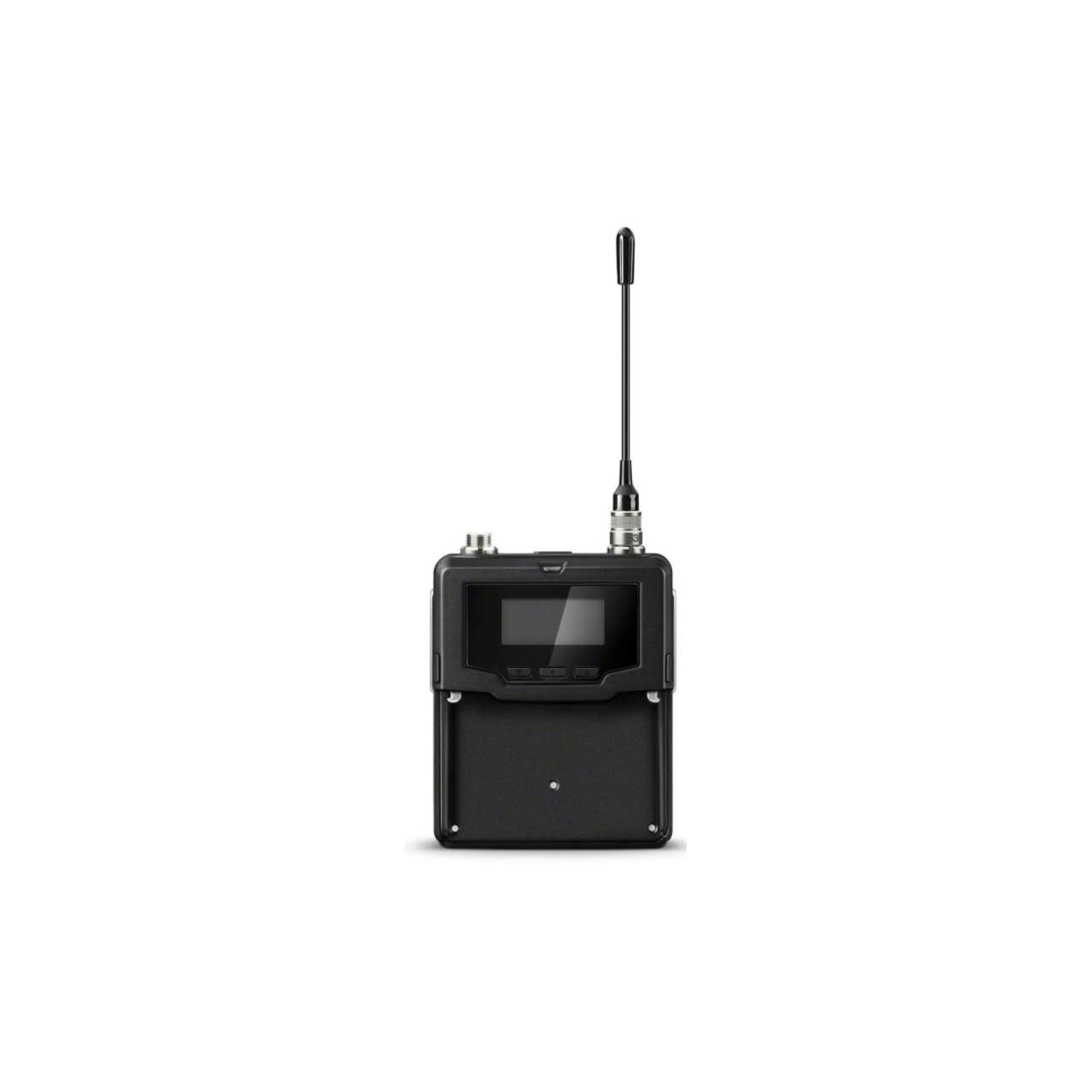

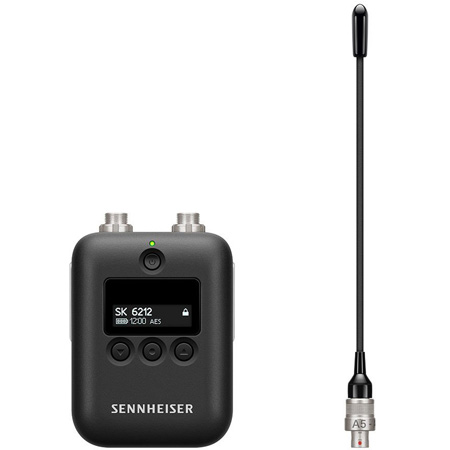

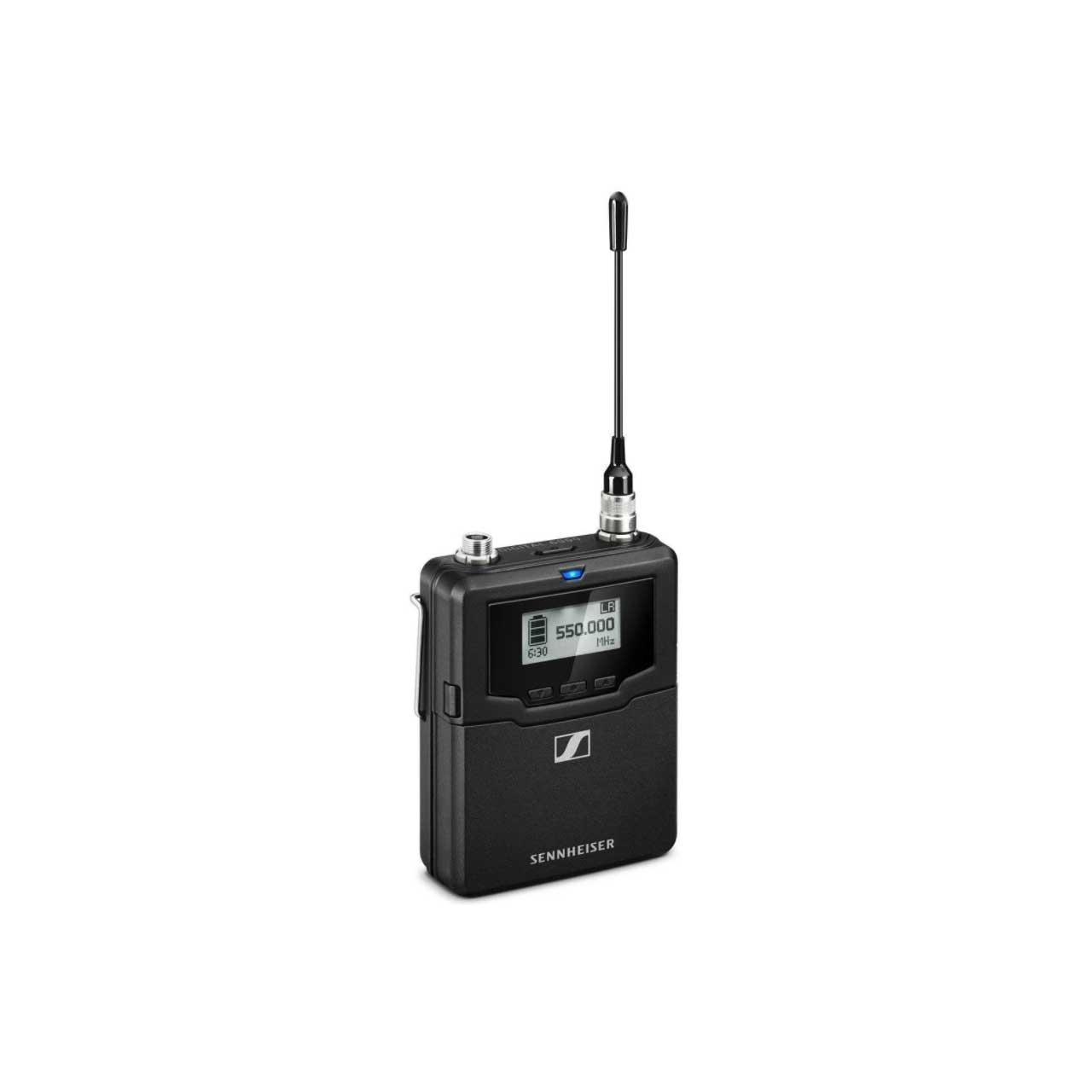

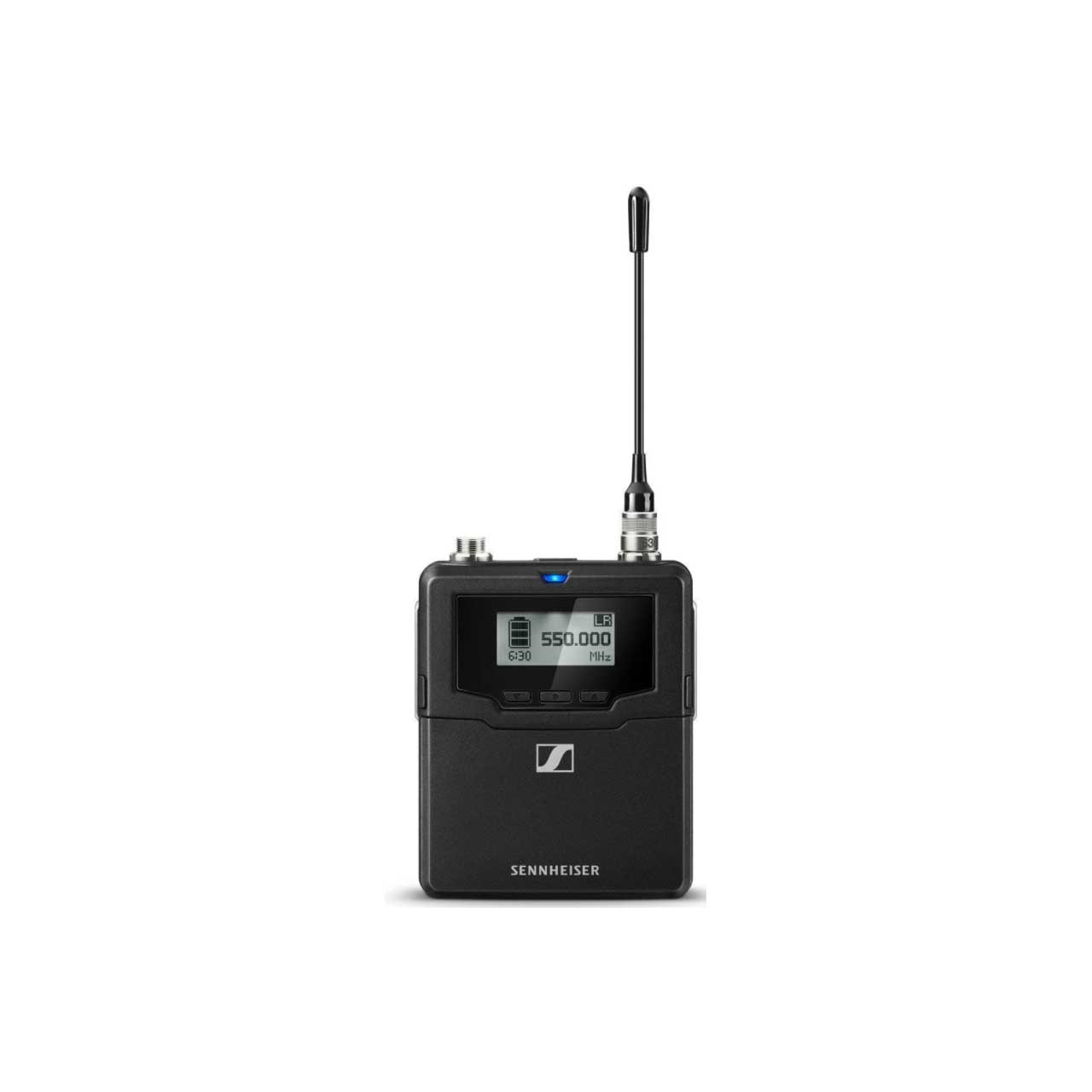

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SENN-SK-6212A5A8

SK 6212 A5-A8 - Overview

The Sennheiser SK 6212 A5-A8 pocket transmitter SK 6000 is intermodulation-free, which allows operation in an equidistant frequency grid. The transmission concept thereby permits, even in the toughest frequency ranges, maximum spectral efficiency. In short: more channels, maximum transmission performance at all times and hence outstanding signal stability. The legendary Sennheiser Digital Audio Codec (SeDAC) guarantees clear, artifact-free sound and optimum dynamics. In Link Density mode up to 5 links per 1 MHz bandwidth are possible.

The SK 6000 is the high-end solution for guitar/bass or as a transmitter for the Sennheiser clip-on microphones MKE 1, MKE 2 and MKE 40, headsets HSP 2, HSP 4 and SL Headmic.

The magnesium housing combines the benefits of being inconspicuous in size, a robust design and low weight, while offering reliable protection against moisture.

The lithium-ion battery pack BA 61 ensures up to 6.5 hours of operation; there is also the option of operation with batteries using the battery set B 61.

The transmitter is likewise compatible with the EK 6042 and the EM 9046 in Long Range mode.

  • Features:

    • Three frequency variations (470-558 MHz, 550-638 MHz, 630-718 MHz)
    • Sennheiser 3-pin connector allows connection to a variety of microphones or an instrument
    • Highly effective intermodulation protection
    • AES 256 encryption and Digital 9000 encryption
    • Compatible with EK 6042 and EM 9046 in Long Range mode
    • Li-ion battery packs with 6.5 hours run time
    • Magnesium housing

  • Specifications:

    • Dimensions (with BA 61 battery pack)
    • 2.99 x 2.44 x 0.79" (76 x 62 x 20mm)

      Audio Codec
    • SePAC (Sennheiser Performance Audio Codec)
    • SeDAC (Sennheiser Digital Audio Codec)

      Modulation Scheme
    • Digital modulation Link Density Mode

      Weight
    • Approx. 147 g (with BA 61 battery pack and belt clip)

      Audio Input
    • 3-pin audio socket

      Power Consumption
    • Max. 960 mW

      RF Output Power
    • 25 mW rms, 50 mW peak

      Switching bandwidth
    • 88 MHz

      Operating time
    • 6.5 h (with BA 61 battery pack)

      Modulation
    • Digital modulation long range mode

      Gain
    • Mic: adjustable in 3 dB steps from 0 dB to +42 dB
    • Line: adjustable in 3 dB steps from -6 dB to +42 dB

      Frequency Range
    • 470 to 718 MHz, subdivided into 3 ranges:
    • SK 6000 A1 - A4: 470 - 558 MHz
    • SK 6000 A5 - A8: 550 - 638 MHz
    • SK 6000 B1 - B4: 630 - 718 MHz

      Input Impedance
    • Mic: 22kΩ
    • Line: 1 MΩ

      AF Frequency Response
    • Line: 30 Hz - 20 kHz (3 dB)
    • Mic: 30 Hz - 20 kHz (3 dB)

      Frequency Stability
    • < 5 ppm

      Tunability
    • 25 kHz steps

      Lower Cut-Off-Frequency
    • Mic: adjustable, 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz
    • Line: 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz

      Instrument Cable Emulation
    • Adjustable cable length with 3 steps

      Encryption
    • AES 256 and Digital 9000 encryption

  • Item Includes:

    • 1x SK 6000
    • 1x Beltclip
    • 1x Antenna
    • 1x Safety Guide
    • 1x Quick Guide
