Sennheiser XSW 1-908 Wireless Instrument System - A Range: 548-572 MHz

ITEM #: SENN-XSW-1-908 MFG #: 507101

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SENN-XSW-1-908

507101 - Overview

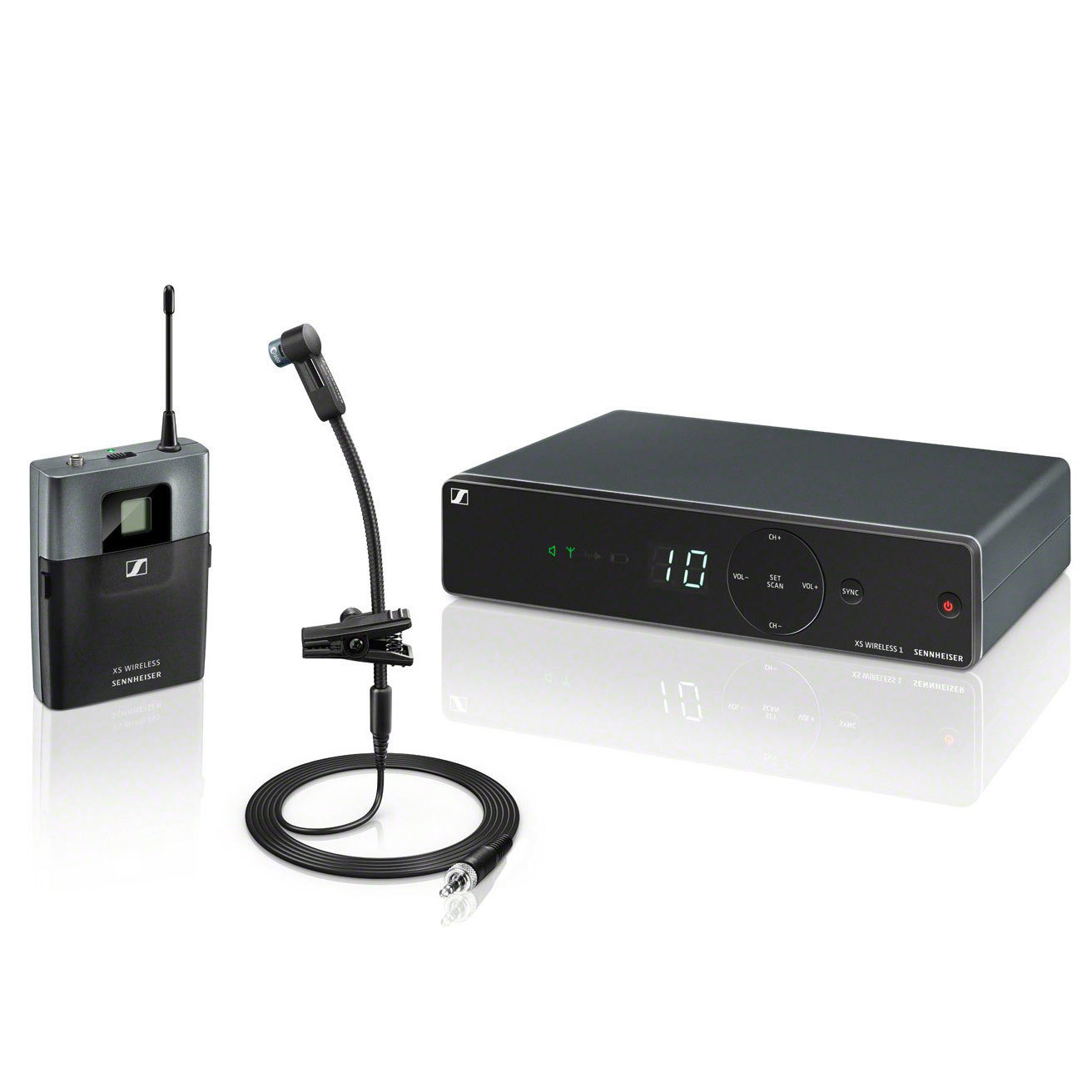

A powerful performance. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 BRASS SET is an easy to use all-in-one wireless system, especially designed to provide a powerful live sound for brass instruments. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a rugged condenser gooseneck microphone.

  • Features:

    • Versatile gooseneck microphone with outstanding sound reproduction from the renowned evolution microphone series
    • Antenna-switching diversity reception
    • Integrated antennas
    • Automatic frequency management and synchronization via remote channel for easy setup
    • Selectable UHF frequencies within a large bandwidth
    • Up to 10 compatible channels

  • Specifications:

    • Receivers
    • Dimensions: approx. 200 x 42 x 127 mm
    • Weight: approx. 340g
    • Power supply Receiver: 12 V DC nom. / 300 mA
    • AF frequency response Receiver: 50 to 16,000 Hz (-3 dB)

      Transmitter
    • Dimensions: approx. 71 x 96 x 28 mm
    • Weight: approx. 95g
    • Power supply Transmitter: 2 AA size batteries, 1.5 V
    • Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps

      General
    • Microphone: condenser
    • THD, total harmonic distortion: ≤ 0.9%
    • Pick-up pattern: cardioid
    • Signal-to-noise ratio: ≥ 103 dBA
    • RF output power: 10 mW
    • Switching bandwidth: up to 24 MHz
    • Operating time: approx. 10 hrs
    • Modulation: wideband FM
    • Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
    • Housing: rugged ABS housing
    • Frequency: 8 frequency banks, each with up to 10 factory-preset channels
    • Frequency range-
    • A: 548-572 MHz, GB: 606-630 MHz
    • B: 614-638 MHz
    • C: 766-790 MHz
    • D: 794-806 MHz
    • E: 821-832 MHz, 863-865 MHz
    • K: 925-937.5 MHz
    • Sensitivity: < 3 µV at 52 dB(A)rms S/N
    • SPL for peak deviation: 147 dB
    • Squelch adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)
    • Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
    • Input sensitivity: 1.5 mV / Pa
    • Audio adjustment range: 45 dB, adjustable in 5-dB steps
    • Line / Mic level: 20 dB, switchable
    • Temperature Range operation: 0°C to +40°C, storage: -20°C to +70°C
    • Receiver Principle: double superheterodyne
    • Diversity principle: antenna switching diversity via internal antennas

  • Item Includes:

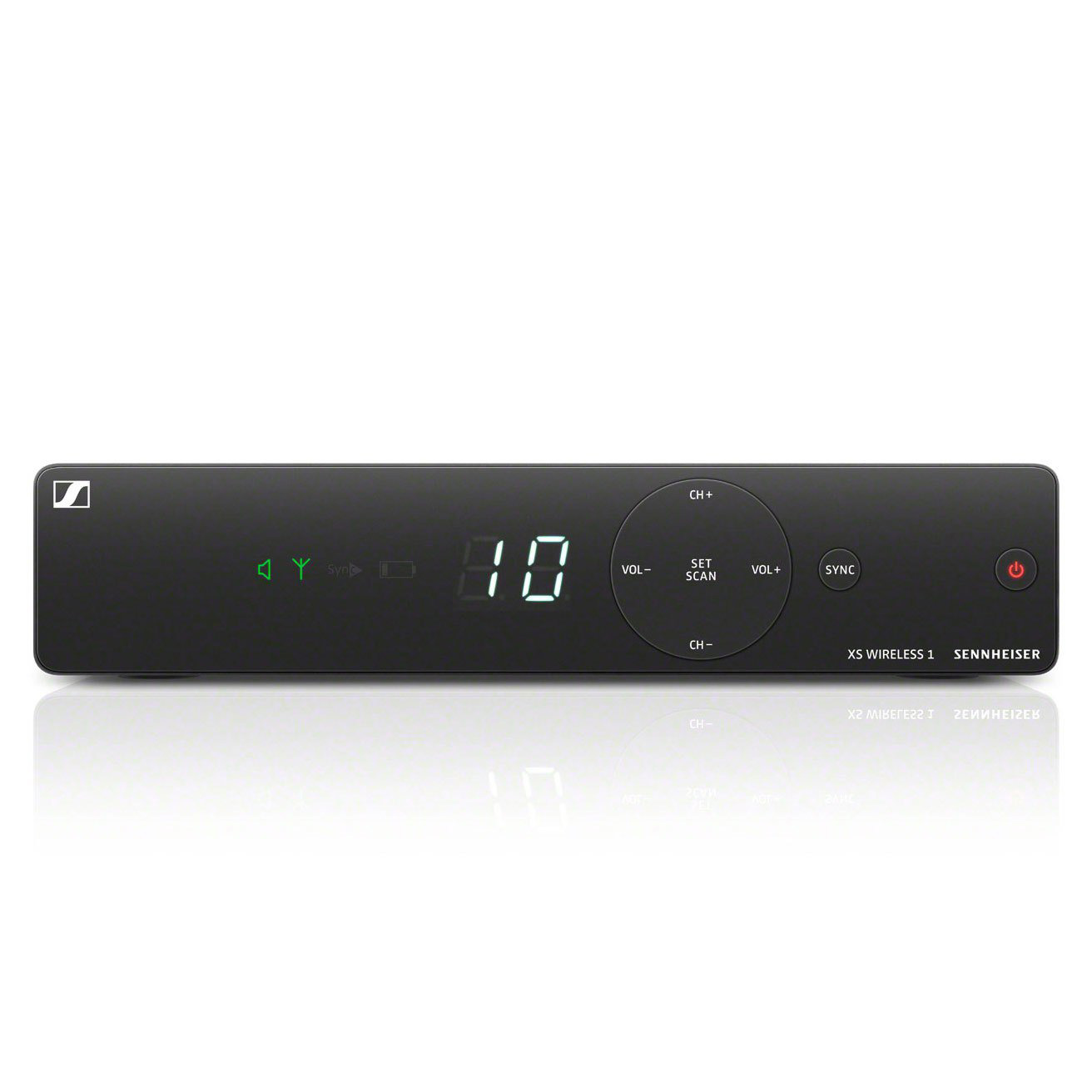

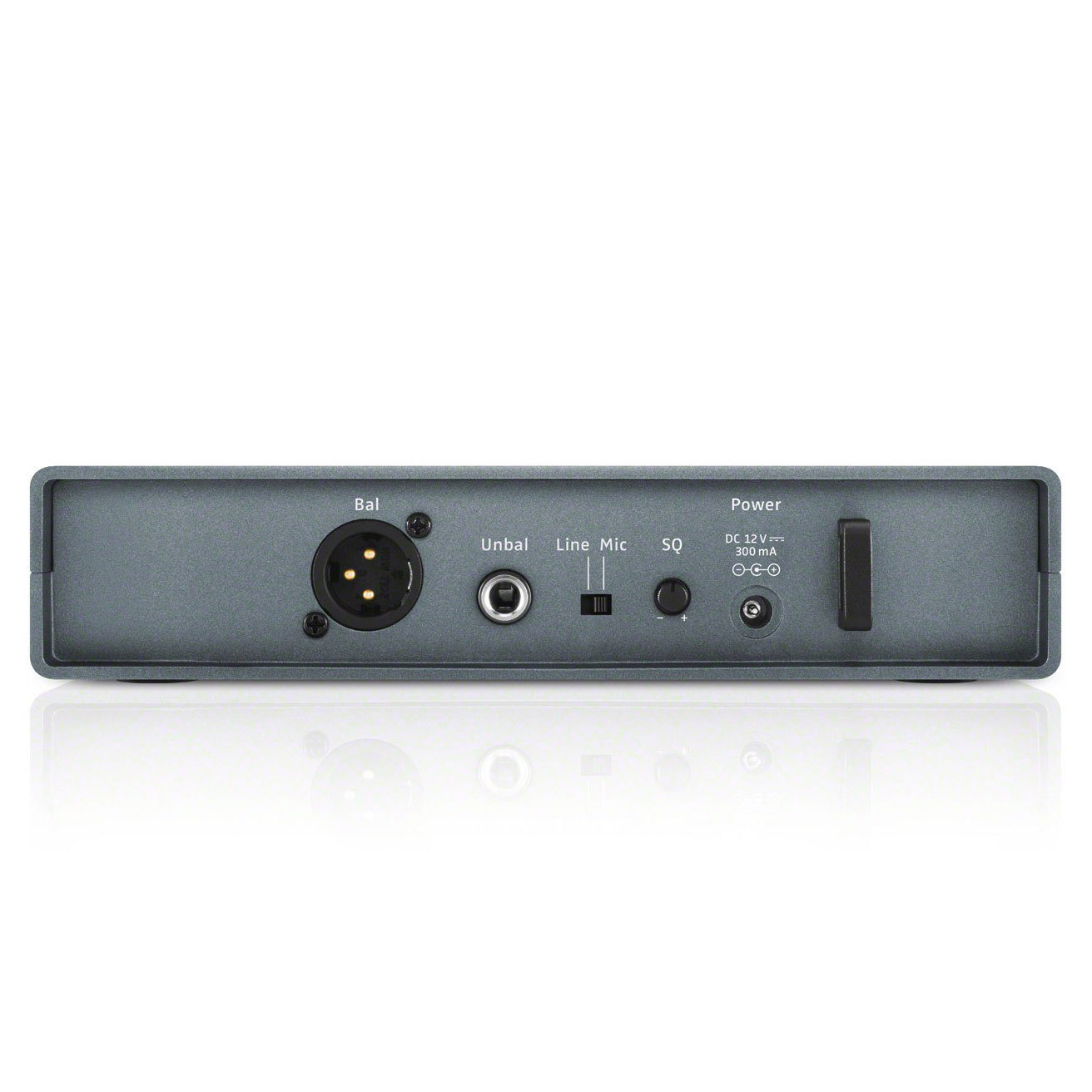

    • 1x receiver EM-XSW 1

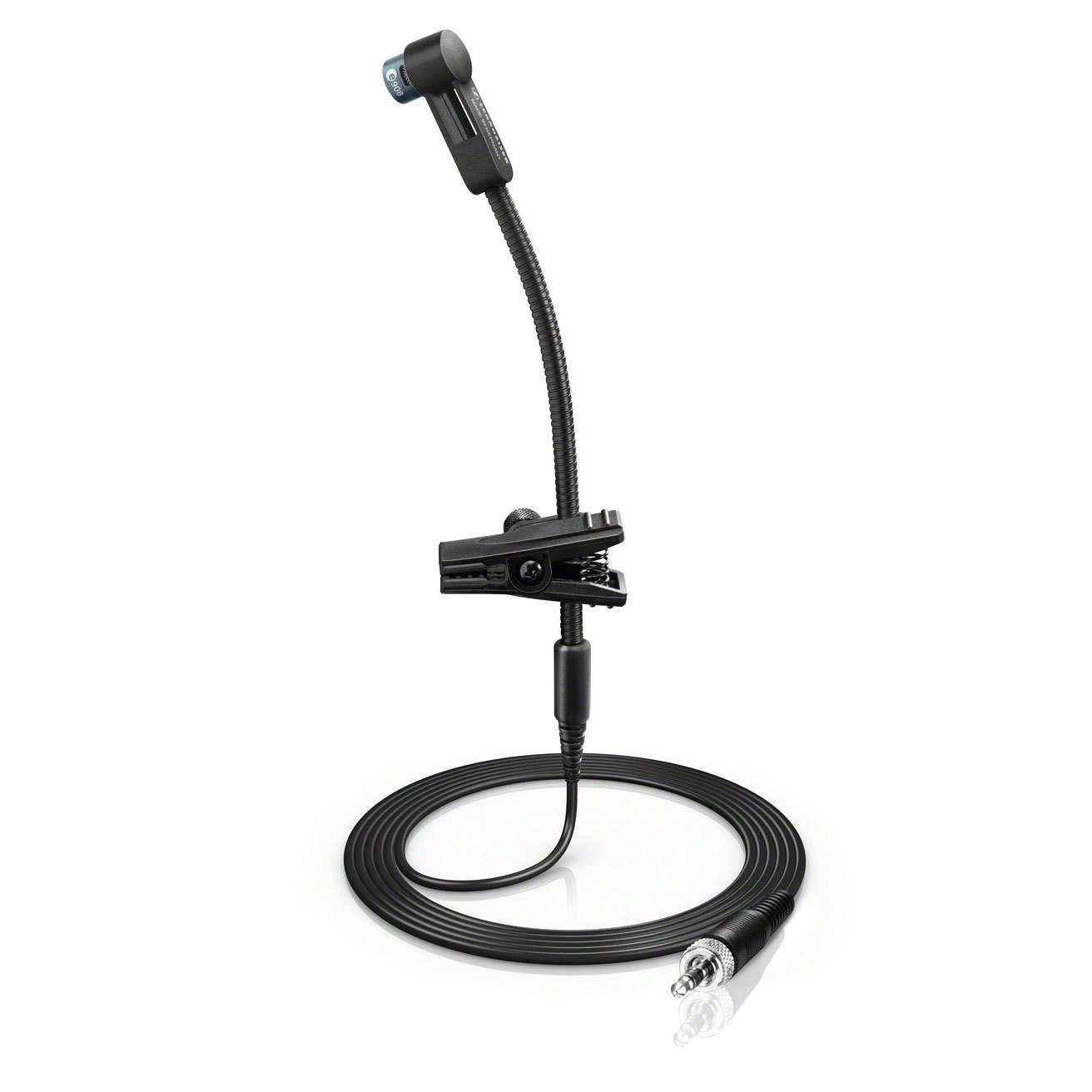

    • 1x gooseneck microphone e908T

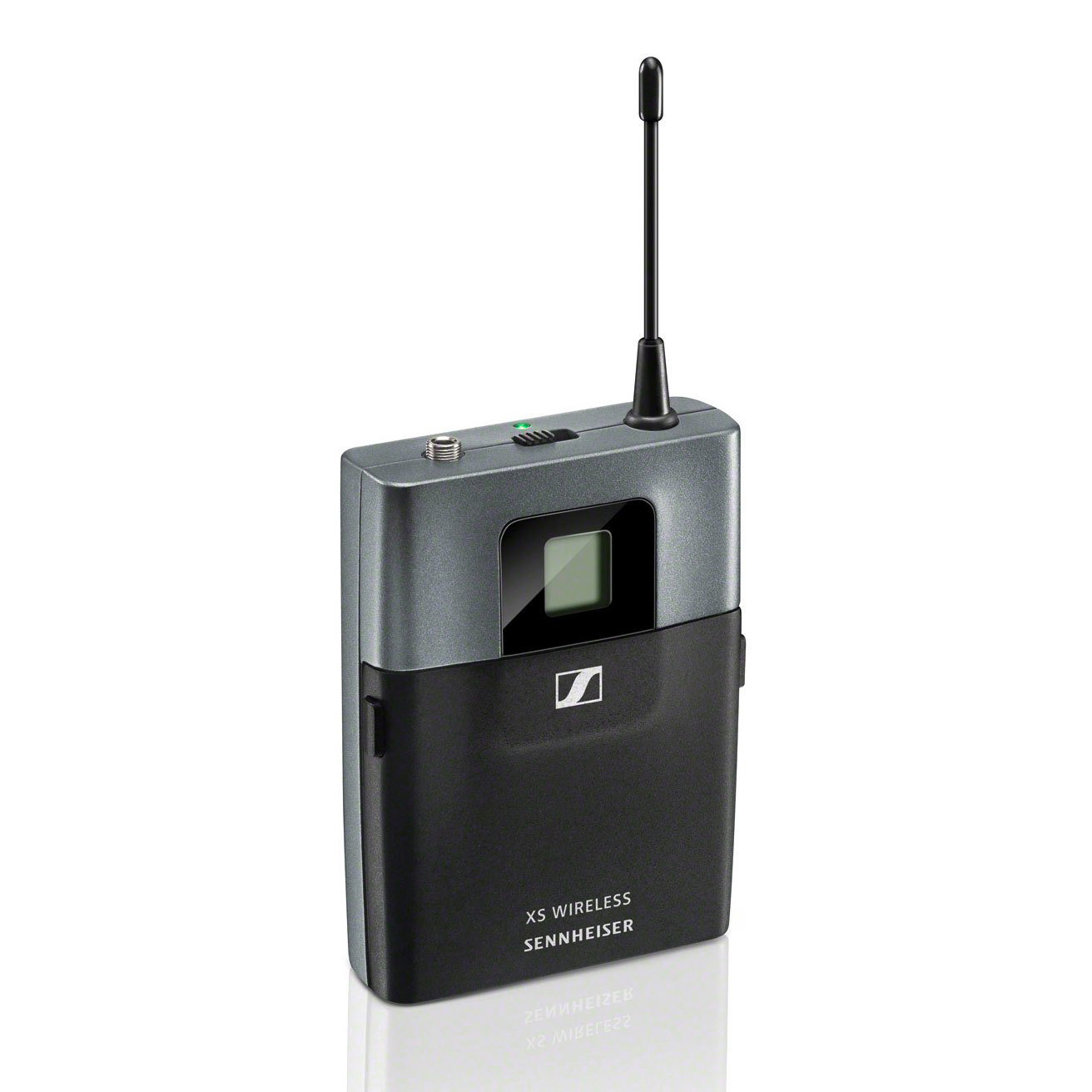

    • 1x bodypack transmitter SK-XSW
    • 1x power supply NT 12-5 CW
    • 2x AA batteries

  • GTIN:

    0615104278516
