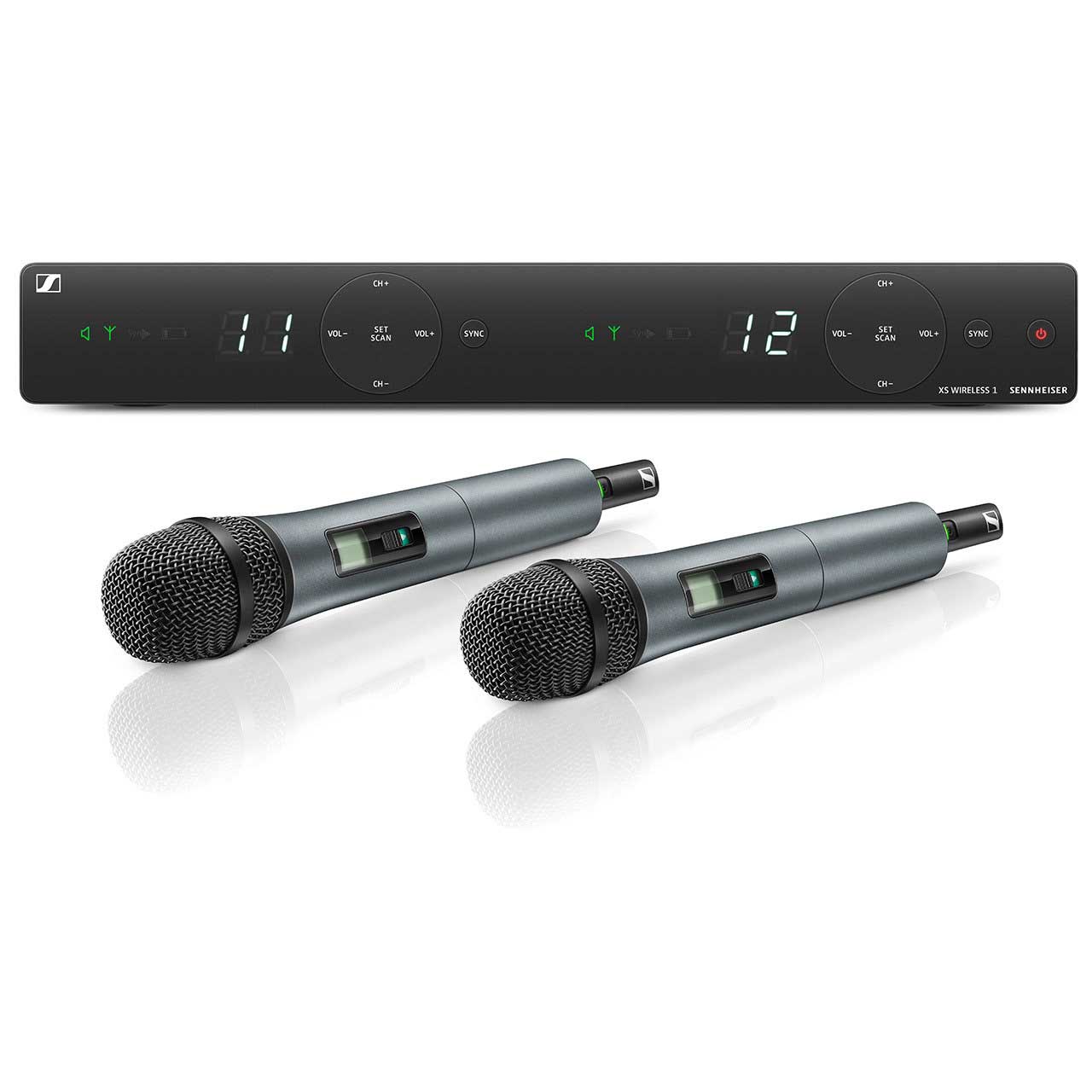

Sennheiser XSW 1-835 DUAL-A 2-Channel Handheld Dual Vocal Wireless System - 2 Transmitters / 1 Receiver - 548-572 MHz

XSW 1-835 DUAL-A - Overview

• Features:

  • Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
  • Antenna-switching 2-channel diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels


• Specifications:

  • System
  • Frequency Range: 548-572 MHz
  • Dimensions: Ø 48 x L 180 mm
  • Connector: XLR-3
  • Frequency Response: 55 - 16,000 Hz
  • THD, Total Harmonic Distortion: ≤ 0.9%
  • Transducer Principle: dynamic
  • Weight: 330 g (0.73 lbs)
  • Pick-up Pattern: Cardioid
  • Nominal Impedance: 300 Ω (at 1 kHz)
  • Min. Terminating Impedance: 1 kΩ
  • Storage Temperature: -20°C to +70°C
  • Operating Temperature: 0°C to +40°C
  • Signal-to-Noise Ratio: ≥ 103 dBA
  • Switching Bandwidth: Up to 24 MHz
  • Modulation: Wideband FM
  • Frequency: 80 factory presets (8 banks of 10 channels each)
  • Sensitivity: 1.8 mV/Pa (free field, no load at 1 kHz)
  • Synchronization Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)
  • Temperature Range: 0 °C - +40 °C (+32 °F - +104 °F)

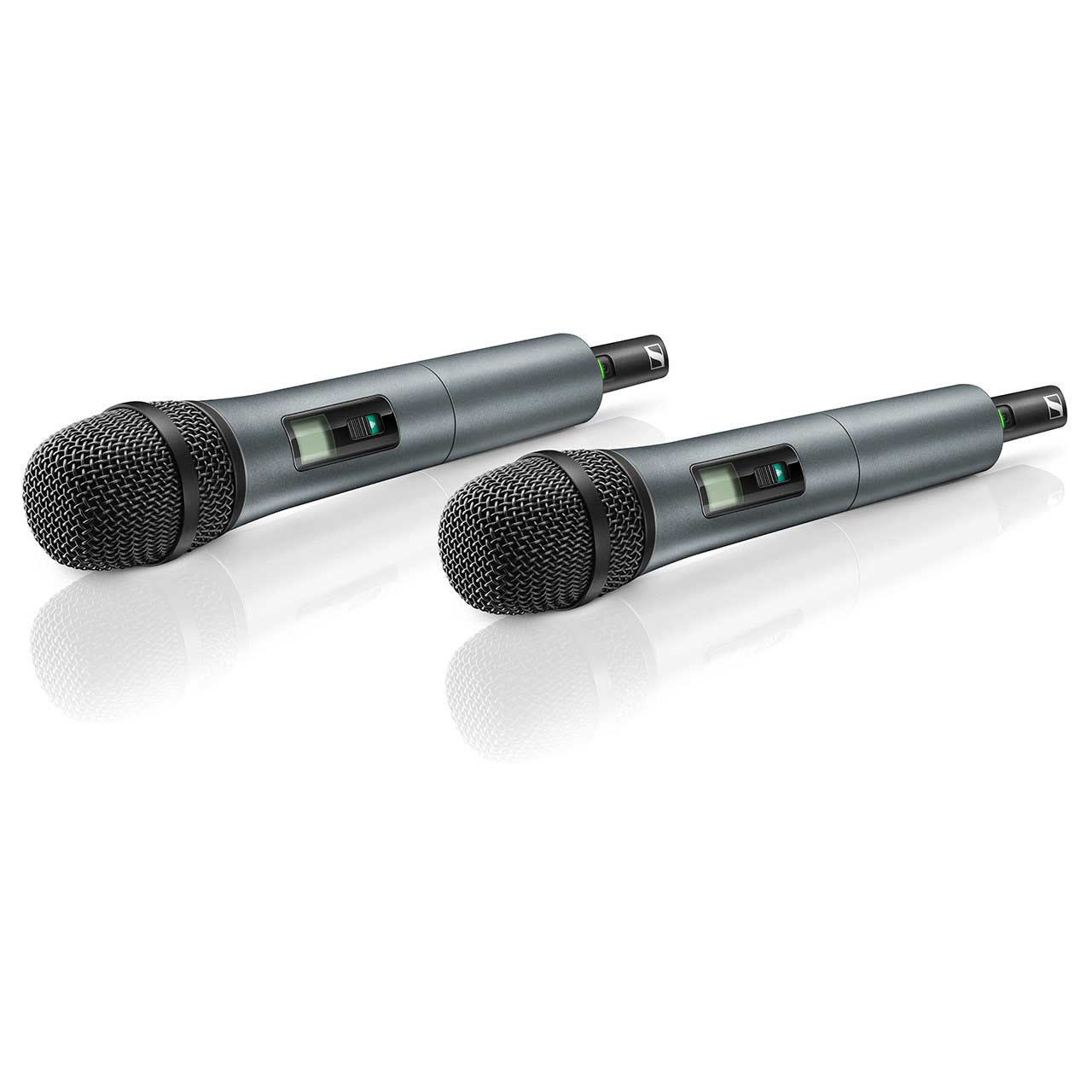

    SKM 835-XSW Handheld Transmitters
  • Dimensions: Approx. 260 x 50 mm
  • Microphone: Dynamic
  • Weight: Approx. 245 g
  • Pick-up Pattern: Cardioid
  • RF Output Power: 10 mW
  • Operating Time: Approx. 10 hrs
  • Power Supply: 2 AA size batteries, 1.5 V
  • Housing: Rugged ABS housing
  • Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
  • Input Sensitivity: 1.5 mV / Pa
  • AF Frequency Response: 80-16,000 Hz

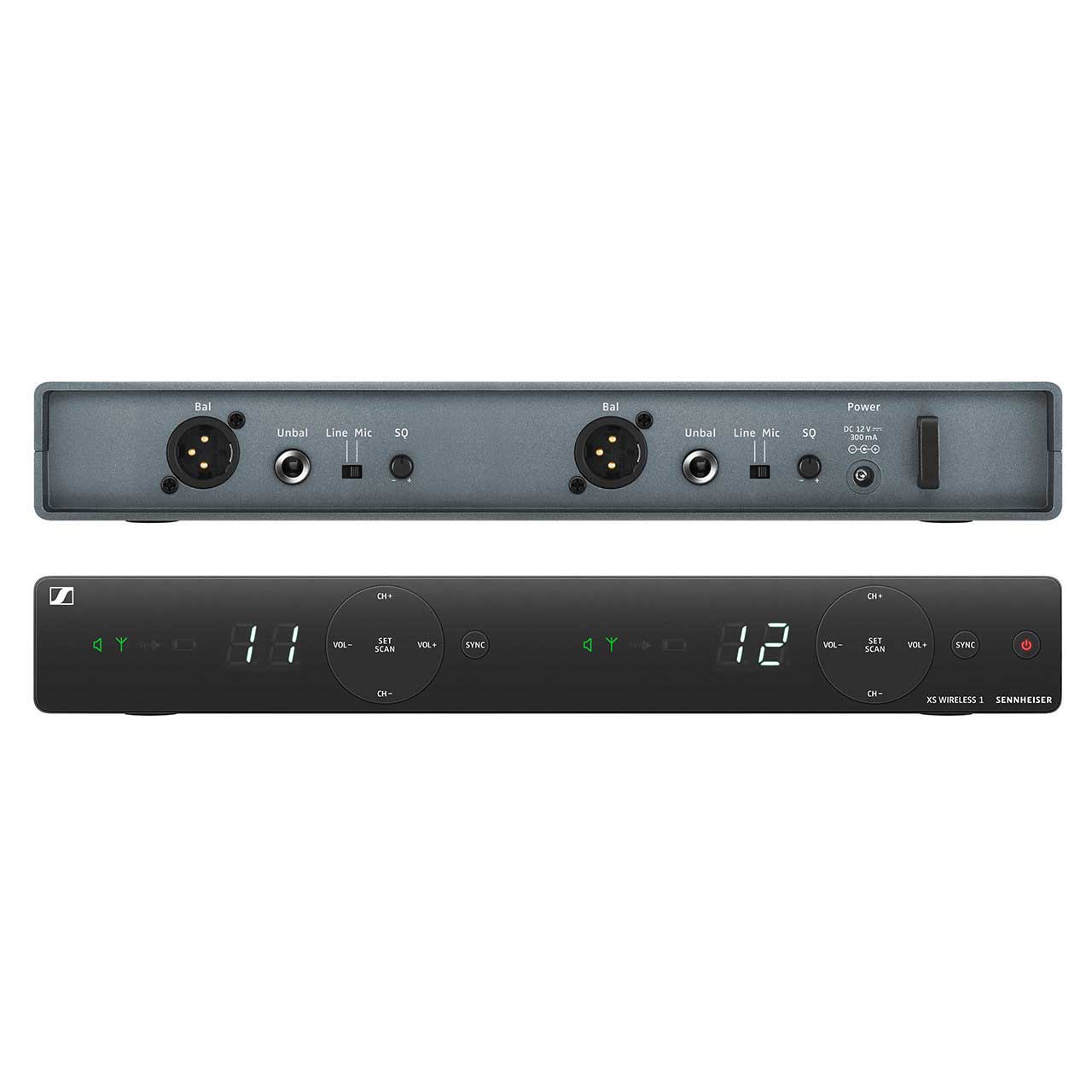

    EM-XSW 1 DUAL Stationary Receiver with Internal Antennas
  • Dimensions: approx. 320 x 126.5 x 42 mm
  • Weight: approx. 620 g
  • Power Supply: 12 V DC nom. / 300 mA
  • Output Voltage: (at peak deviation, 1 kHz AF) 1/4" (6.3 mm) socket (unbalanced): +6 dBu
  • Housing: Rugged ABS housing
  • Sensitivity: < 3 æV at 52 dB(A) rms S/N (at peak deviation)
  • Squelch: Adjustable from 3 dBæV to 28 dBæV
  • AF Frequency Response: 50 to 16,000 Hz (-3 dB)
  • Audio Adjustment Range: 45 dB, adjustable in 5 dB steps
  • Line / Mic level: 20 dB, switchable
  • Receiver Principle: Double superheterodyne
  • Diversity Principle: Antenna switching diversity via internal antennas


• Item Includes:

  • 2x SKM 835-XSW handheld transmitters with mute switch and e 835 capsules (cardioid, dynamic)
  • 1x EM-XSW 1 DUAL stationary receiver with internal antennas
  • 2x MZQ 1 microphone clips
  • 1x NT 12-5 CW power supply
  • 2x Pairs AA batteries


• GTIN:

  0615104315549
