    XSW IEM SR (A) - Overview

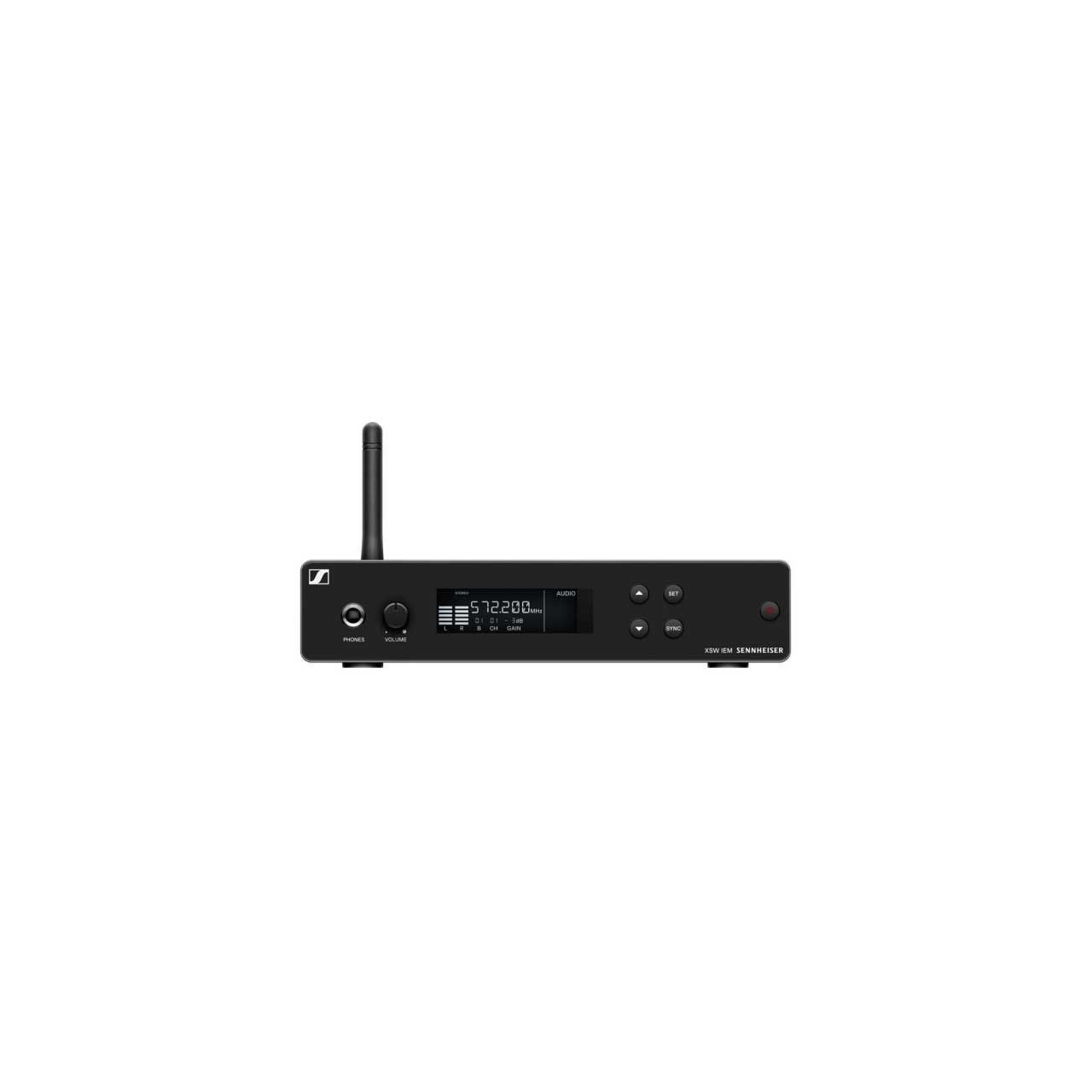

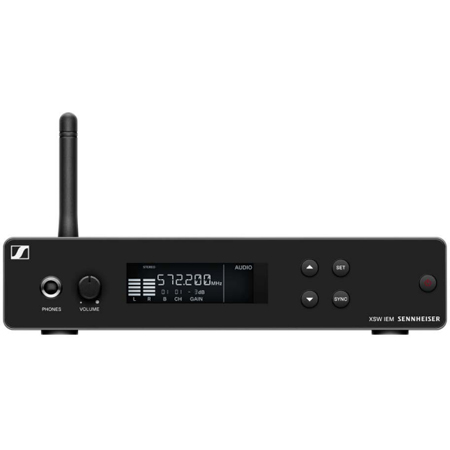

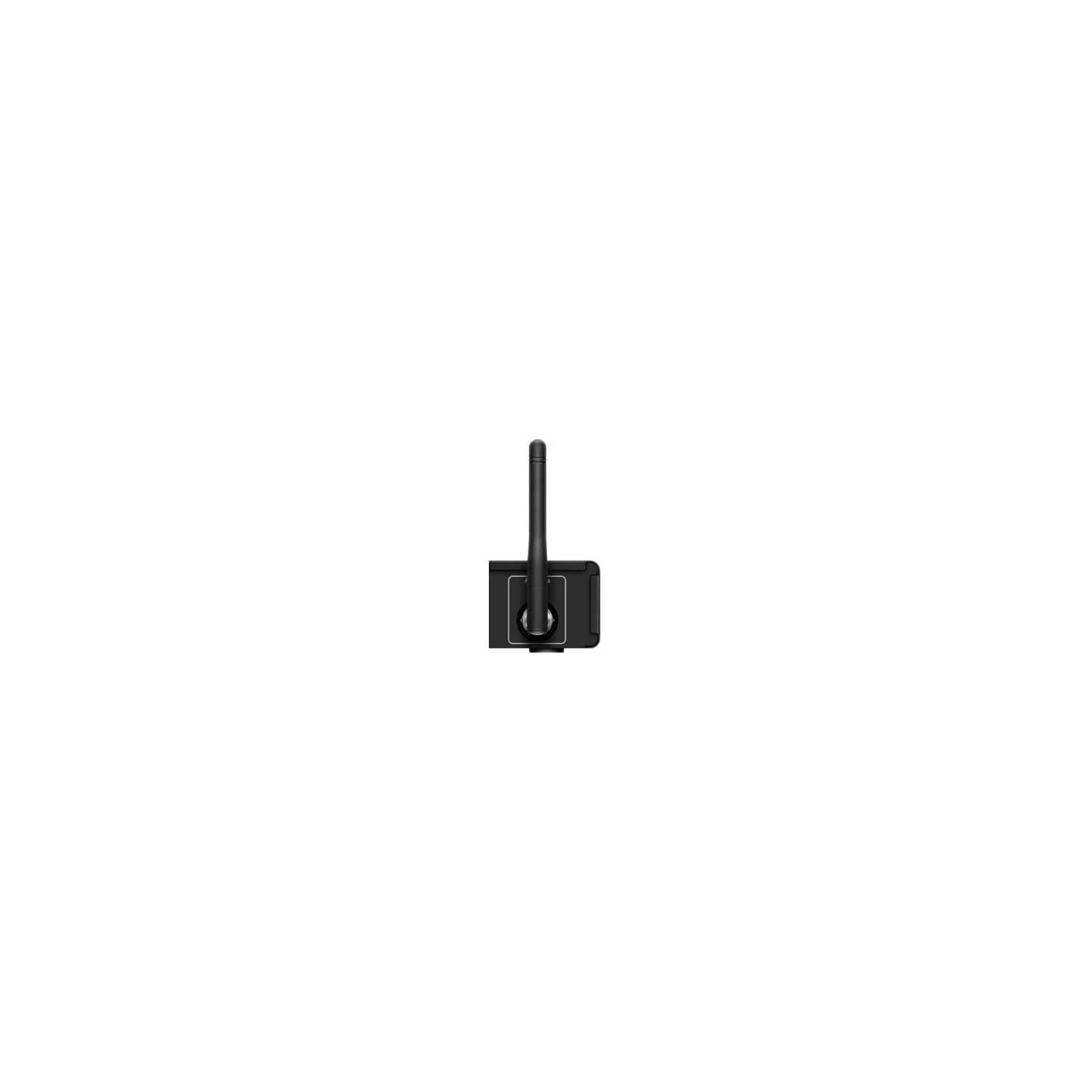

    Sennheiser XSW IEM SR (A) is a Single half-rack stereo UHF transmitter, rugged metal housing - part of the XS Wireless IEM series. The XS Wireless IEM transmitter features metal housing designed for durability and can be used as part of a rack-mounted system or stand-alone.

    The clear, backlit menu allows for easy setups even on dark stages. The XLR combo inputs provide flexible cabling options - you can connect anything with a XLR or 6.3 mm (1/4 inch) plug. You can preview your in-ear mix locally with the headphone output on the front. Setting up gain, mono or stereo options, input sensitivity, or frequency channels takes just a matter of seconds thanks to the clear, simple menu.

    • Features:

      • Single-stereo UHF transmitter for XS Wireless IEM systems
      • Rugged metal housing in a standard half-rack size
      • Backlit front panel to access all key settings
      • 2x XLR and 6.3 mm (1/4 inch) TRS combo inputs
      • Additional headphone output (6.3 mm / ¬ inch) on front
      • Removeable BNC antenna for optimal positioning options
      • 8 frequency banks with 12 precalculated channels each

    • Specifications:

      • RF characteristics
      • Modulation: FM stereo
      • Frequency Ranges (max. RF Output Power): A: 476 - 500 MHz (30 mW)
      • Switching Bandwidth: up to 24 MHz
      • Nominal/Peak Deviation: ±15 kHz / ±24 kHz
      • Antenna Output: BNC socket, 50Ω

        AF characteristics
      • AF Frequency Response: 45 Hz to 15 kHz
      • AF Input: BAL AF IN L (I) + MONO/BAL AF IN R (II): 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
      • Total Harmonic Distortion (THD): <0.9 %
      • Signal-to-Noise Ratio (at Nominal Load and Peak Deviation): ≥88 dB

        Overall device
      • Temperature Range: 0° to +40°C
      • Input Rating: +12 V DC
      • Current Consumption: Approx. 400mA (depending on volume level)
      • Dimensions: Approx. 7.87 x 5.04 x 1.65" (200 x 128 x 42mm)
      • Weight: Approx. 1.54Lbs (700g)

    • Item Includes:

      • 1x XSW IEM SR Stereo Transmitter
      • 1x XSW BNC Antenna
      • 1x NT 12-5CW Power Supply + Country Adapter
      • 1x Quick Guide
      • 1x Safety Guide
      • 1x Compliance Sheet
      • 1x Frequency Table

    • GTIN:

      0615104356276
