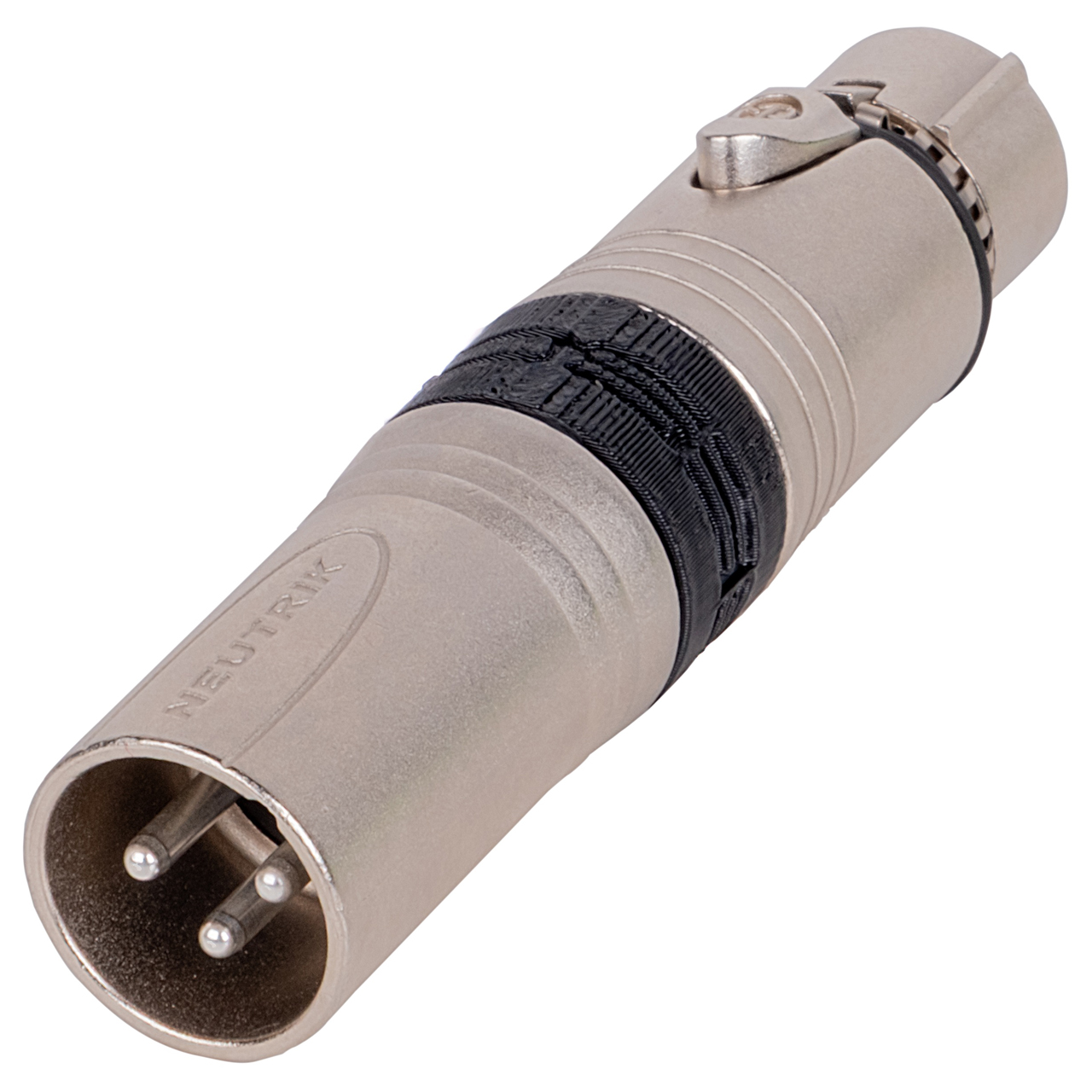

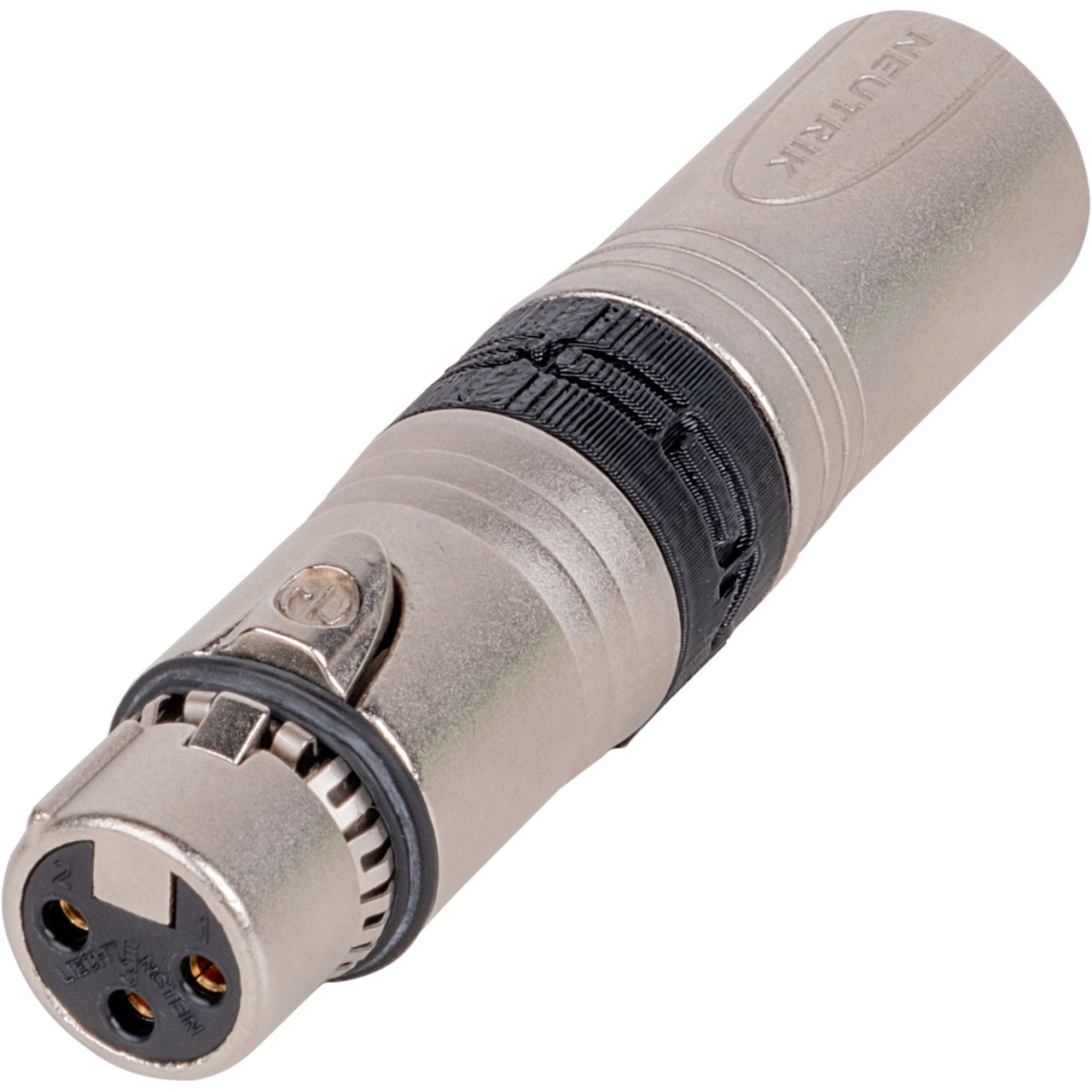

Inline 3-Pin XLR Male to Female NEUTRIK EMC RF Filter

ITEM #: SES-INLINE-EMCF MFG #: SES-INLINE-EMCF

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$49.95

Our Price:

$46.95

Availability: In Stock
iAvailability Description Popup


SES-INLINE-EMCF - Overview

Even the best starquad audio cables aren't immune to RF signal noise. What's more, you can never be certain about the quality of installation on stage boxes & patch panels at a venue. Be 100% sure with our inline filter designed around Neutrik's EMC XLR connectors.The EMC's integrated LC-filter rejects RF-interference & LF-noise while having no effect on your balanced audio signal. Use on inputs or outputs.

Tech notes: INLINE-EMCF does not block phantom power.

  • Features:

    • High-Quality Neutrik Connectors
    • Does Not Block Phantom Power
    • Avoid ground loops, as there is no LF-shield connection to ground

  • Specifications:

    • Capacitance between contacts: ≤ 4 pF
    • Contact Resistance: ≤ 3 mΩ
    • Dielectric Strength: 1.5 kVdc
    • Insulation resistance: > 10 GΩ
    • Rated Current per contact: 5 Amps
    • Rated Voltage: < 50 V
    • Lifetime: > 1000 mating cycles
    • Locking Device: Latch lock

  • Warranty:

    • 1 Year
