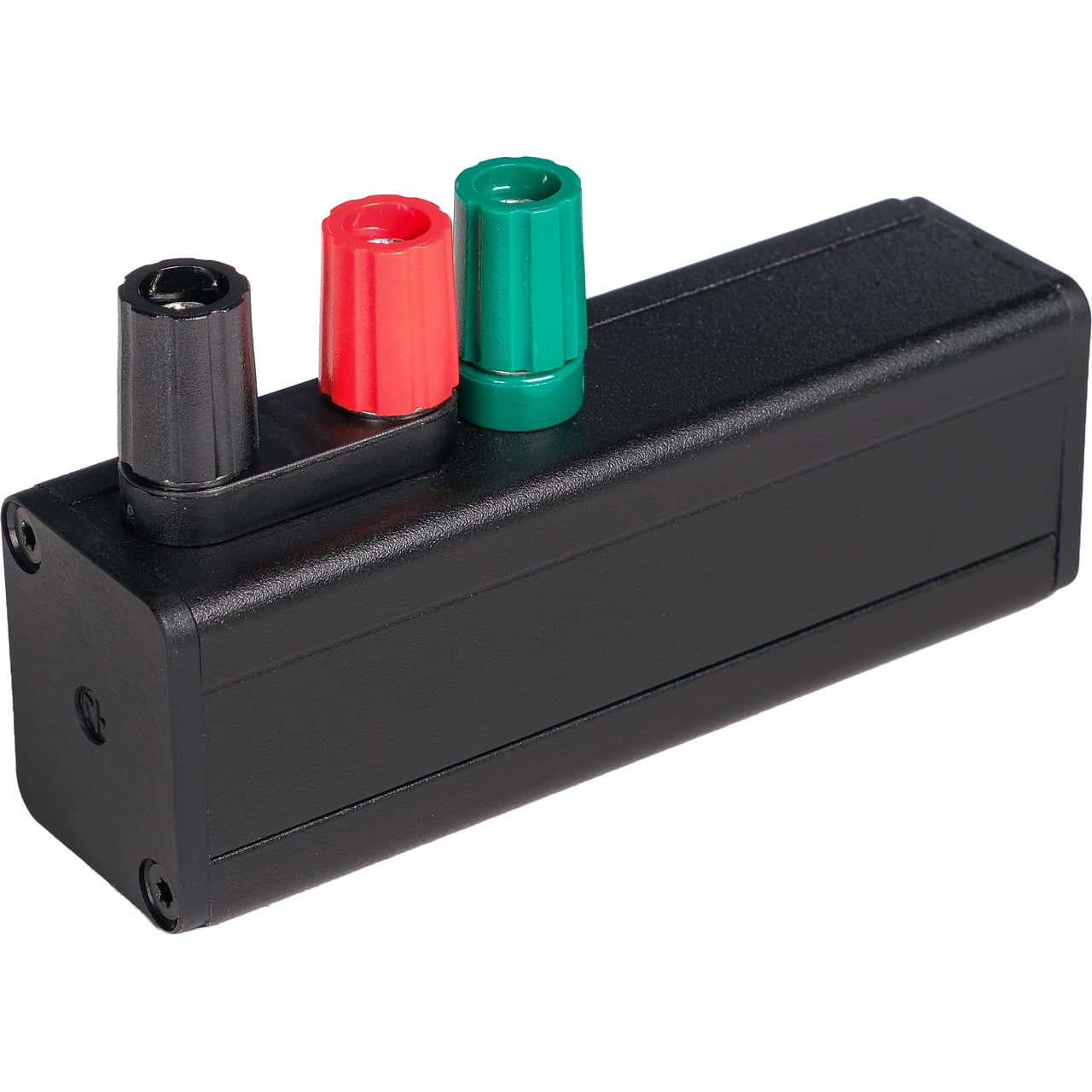

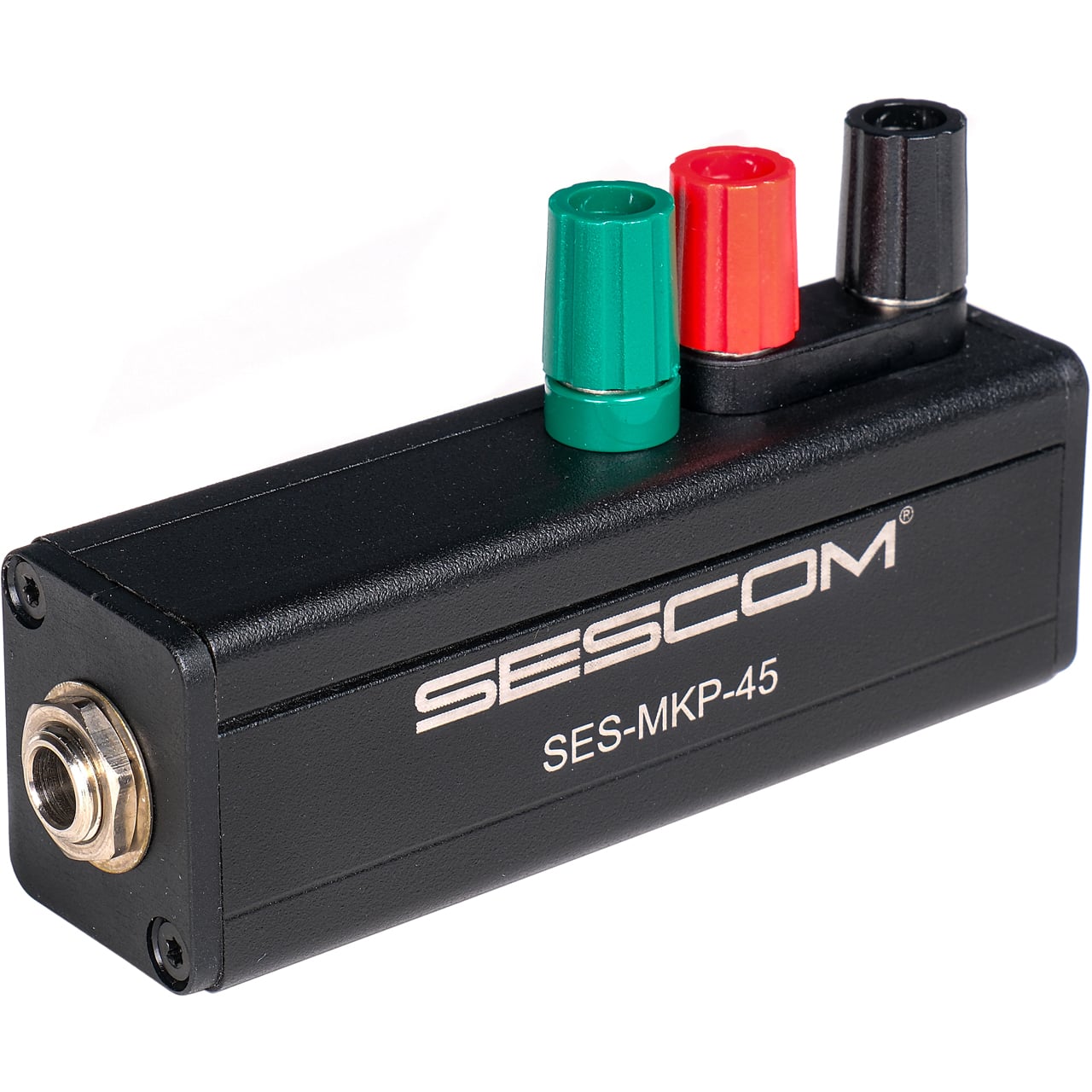

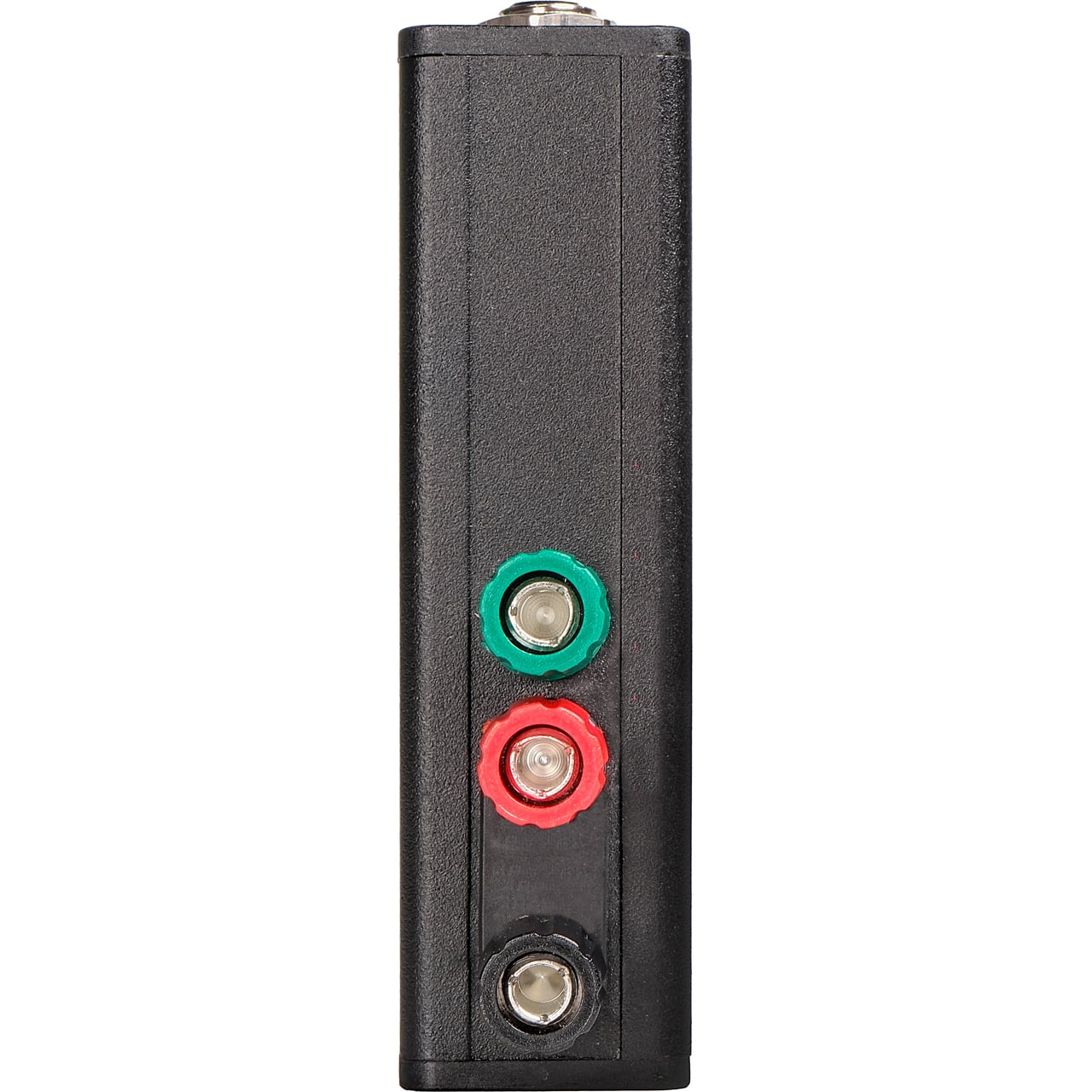

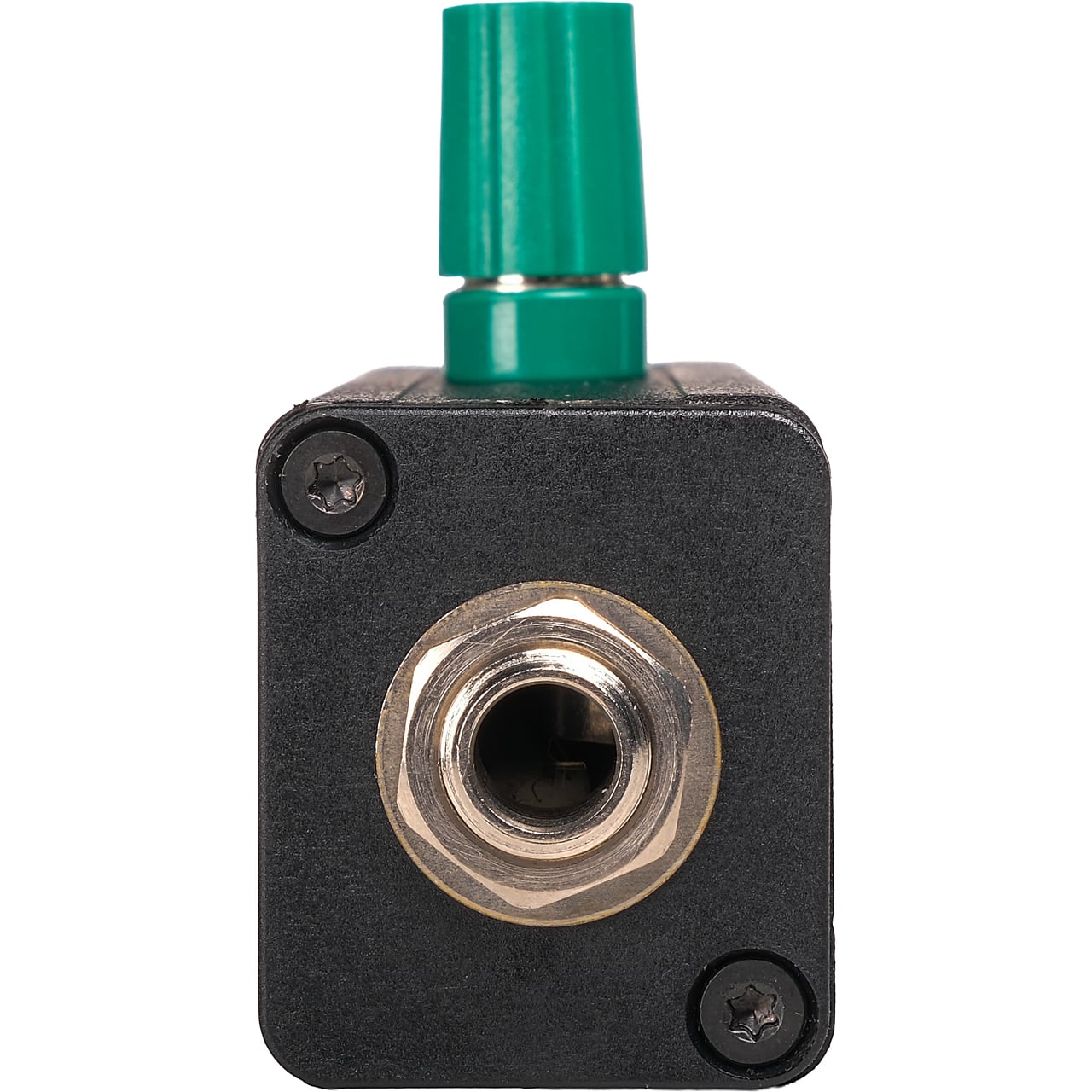

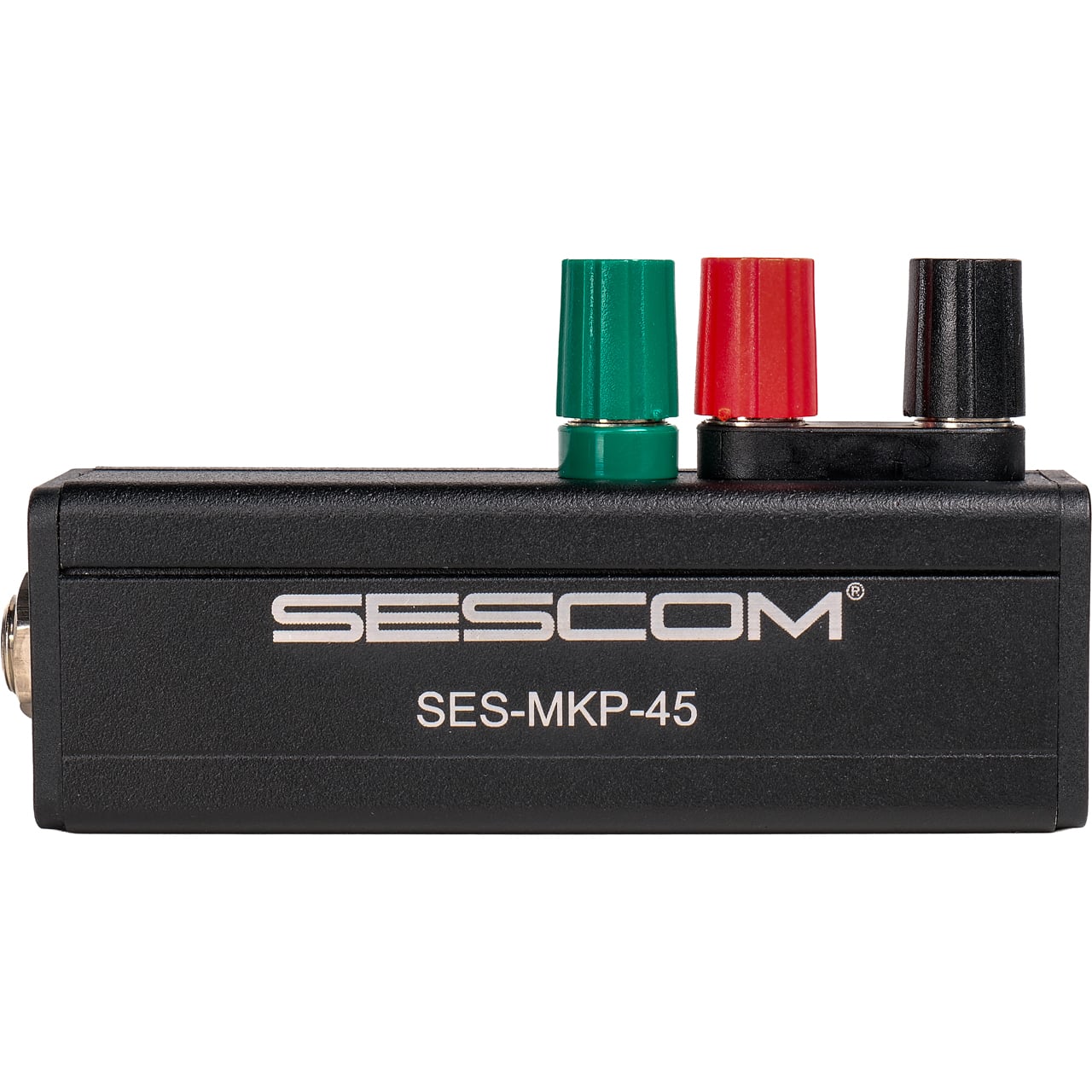

The Sescom SES-MKP-45 is a professional line tap adapter that bridges bare wire connections to the 1/4" TRS ecosystem, making it an essential tool for fast, reliable audio termination in studio and field environments. Whether you're interfacing instruments, consumer gear, or legacy equipment, this adapter eliminates the need for soldering by providing direct screw-down access to all three conductors of a balanced 1/4" TRS signal path.
A line tap acts as a "T-junction" for an active audio stream and introduces a parallel connection point. It is wired in a pass-through chain that let the balanced signal flow natively between your primary gear and the tap point is wired directly to a secondary split-off point, which are the binding posts. Since it is wired in parallel, you can connect a measuring tool, reference speaker, or recording rig to the tap point to sample the active stream. The primary connection continues running completely unaffected.
Be Cautious
Because standard line taps are entirely passive, tapping a signal splits the electric current. If you tap an audio line and connect it to a device with a very low input impedance, you will pull too much current from the line, resulting in a volume drop and a loss of low-end frequencies on your primary speakers. Line taps should ideally feed into high-impedance monitoring gear.
Applications:
• Live System Troubleshooting: Audio engineers use line taps to hook up oscilloscopes, multimeters, or audio analyzers directly to a line-level feed to check for signal distortion, clipping, or voltage drops mid-show.
• Broadcast Logging: In telecommunications and radio broadcasting, line taps are used to feed a master audio signal to an archival recorder or a remote telephone interface line without risking failure to the primary broadcast monitors.
• On-the-Fly Recording: Tapping into an existing connection between a mixer's line-out and a powered speaker setup so a field recorder can capture the exact master mix without requiring an extra dedicated auxiliary send on the soundboard.
