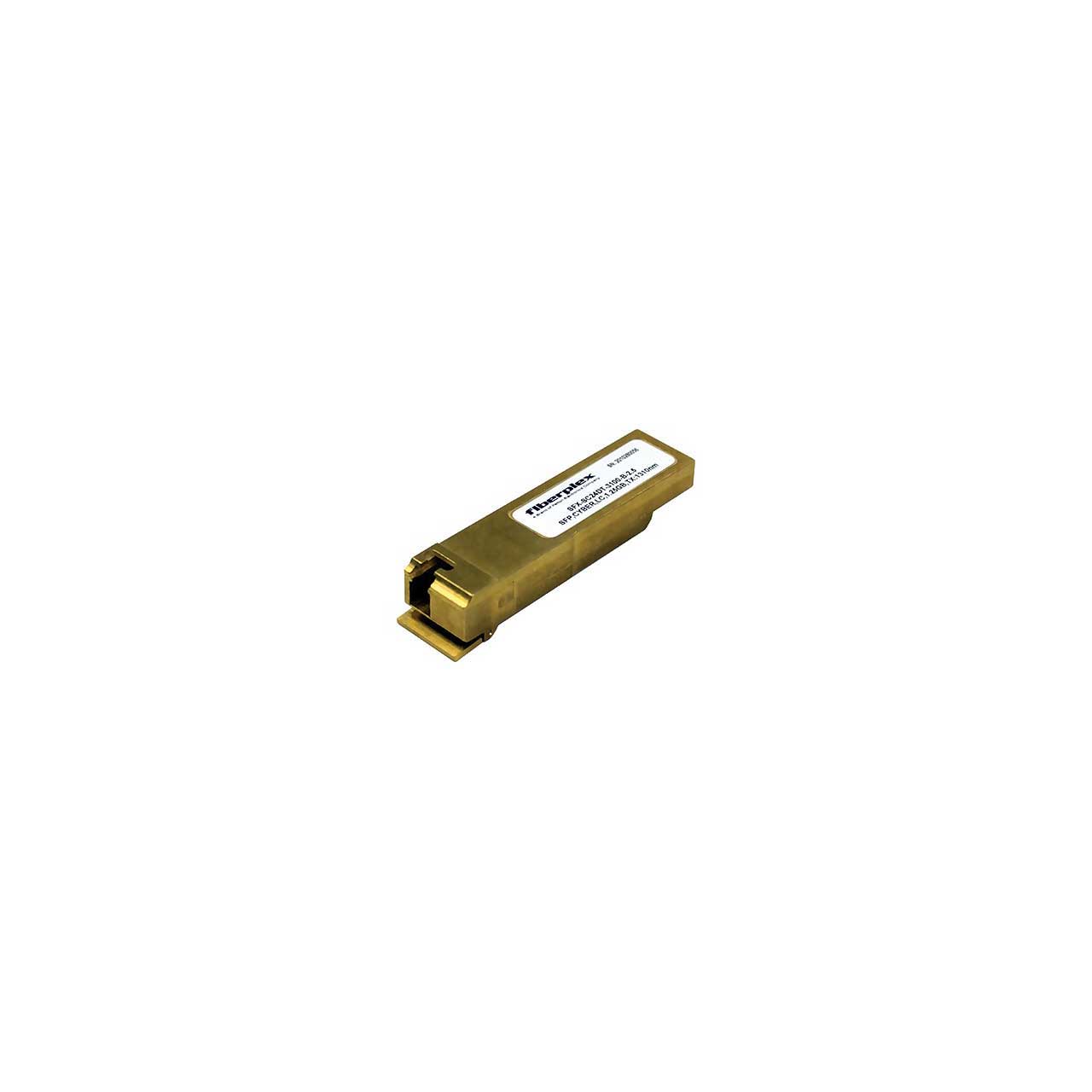

Fiberplex SFX-SC24DR-0031-B SFX Series Gigabit Cyber-SFP Data Diode Module for Air Gap Networks - Singlemode/LC RX

ITEM #: SFX-SC24DR-0031B MFG #: SFX-SC24DR-0031-B

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$703.36

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SFX-SC24DR-0031-B - Overview

    The FiberPlex SFX-SC24DR-0031B Data Diode, with 1-gigabit optics, features a data diode functionality which means that the modules transmit data in one direction only without the possibility for a return path. There is only one optical opening to connect a single fiber.

    The SFX-DD modules are high performance, cyber secure modules supporting a host of data rates and distances.Patton's FiberPlex Cyber-SFP Modules are compatible with the small form-factor pluggable (SFP) multi-source agreement (MSA). They are RoHS compliant and lead-free.

    Please Note: These optical modules are designed for digital data applications, and are not recommended for digital video applications due to SMPTE encoding that may cause
    pathological signal errors.

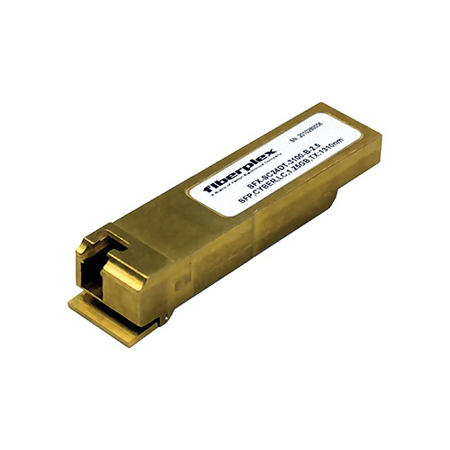

    The FiberPlex SFX-SC24DT-3100B Data Diode, with 1-gigabit optics, features a data diode functionality which means that the modules transmit data in one direction only without the possibility for a return path. There is only one optical opening to connect a single fiber.

    The SFX-DD modules are high performance, cyber secure mod-
    ules supporting a host of data rates and distances.Patton's FiberPlex Cyber-SFP Modules are compatible with the small form-factor pluggable (SFP) multisource agreement (MSA). They are RoHS compliant and lead-free.

    Please Note: These optical modules are designed for digital data applications, and are not recommended for digital video applications due to SMPTE encoding that may cause
    pathological signal errors.


    Applications Include:
    Network Security and Segmentation
    Data Availability
    Bilateral/Bidirectional Transfers

    • Features:

      • Single LC connector
      • Single direction with no possibility for a return path
      • Hot-pluggable SFP footprint
      • RoHS compliant and Lead Free
      • Milled Brass enclosure for maximum EMI/RFI containment and durability
      • Single +3.3V power supply
      • Low power dissipation <800mW
      • SFP MSA SFF-8074i Compliant.
      • Designed and Manufactured in the USA: Top notch quality and reliability with local support.

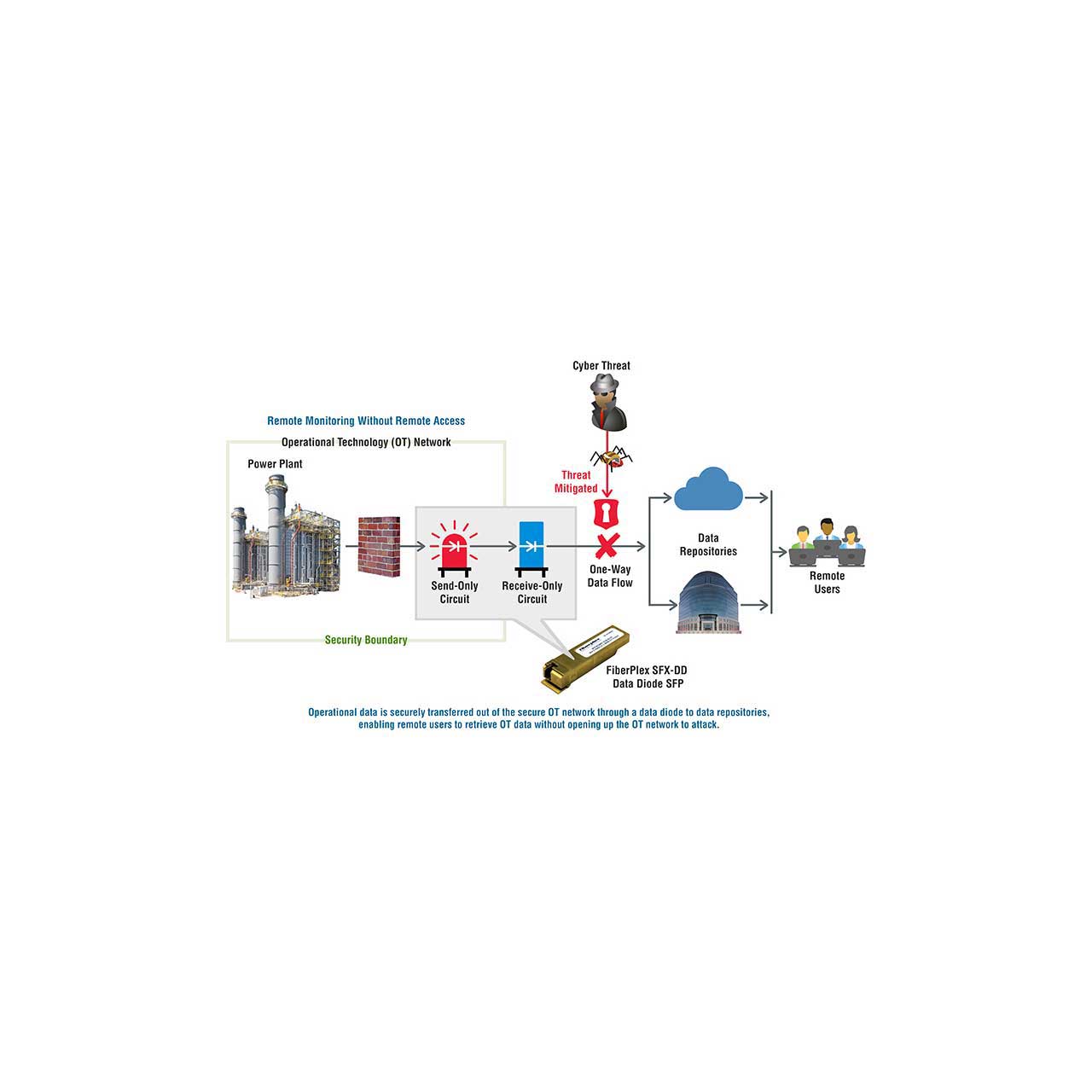

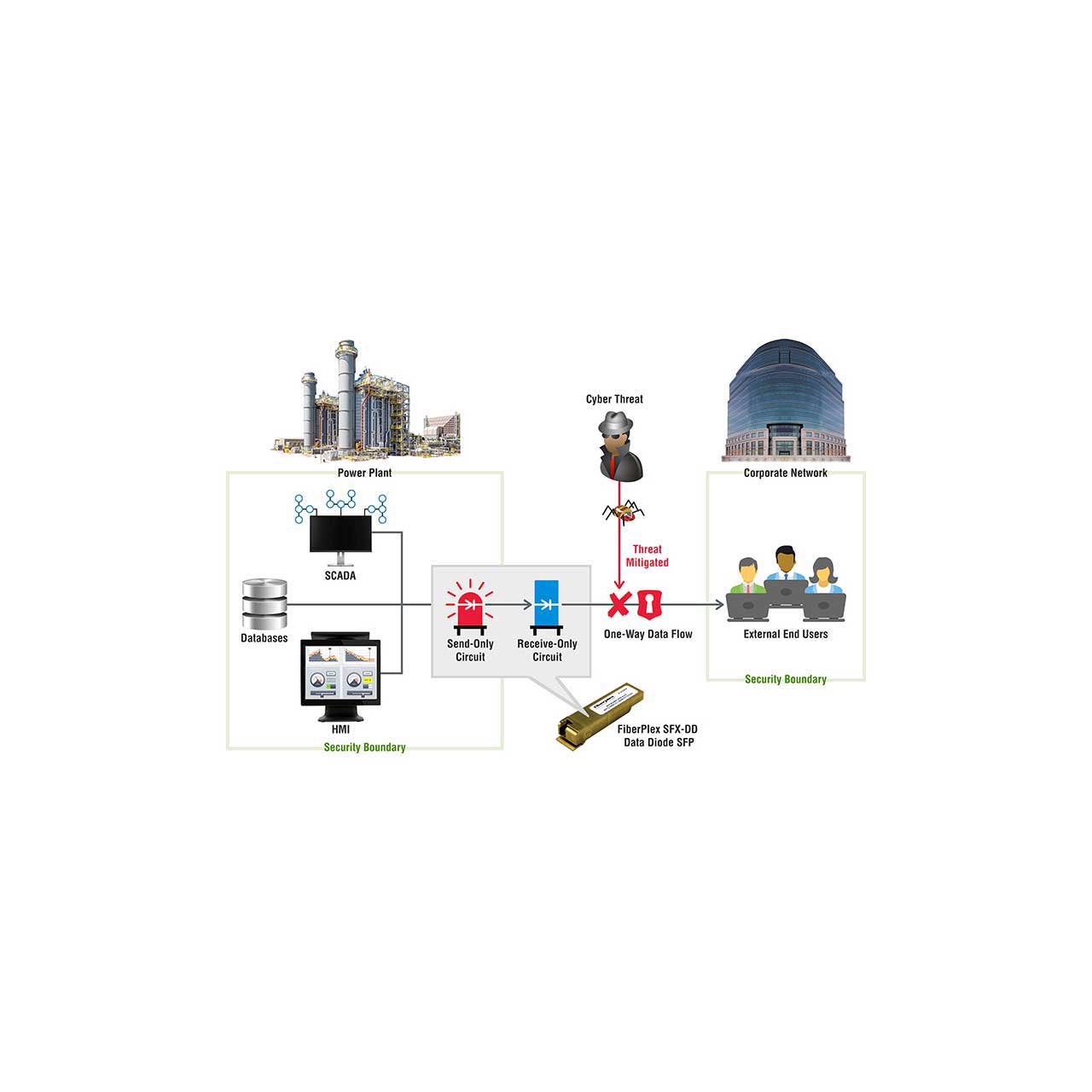

      • Perfect for use in Air Gap Networks where cyber security is paramount

    • Specifications:

      • Storage Temperature: 0 to 185°F (0 to -40°C)
      • Voltage Range: 3.13-3.47 VDC
      • Supply Current: 250mA
      • Dimensions (LxWxH): 2.2 x 0.54 x 0.47" (56.5 x 13.7 x 12mm)
      • Weight: 0.05lb (22.7g)

    • Item Includes:

      • 1x 1 Gigabit SFP data diode module for Cyber Security - RX
