Shure BLX24R/SM58-H11 Wireless Rackmount Vocal Mic System with Receiver & Handheld Mic - 572-596 MHz

ITEM #: SH-BLX24RSM58H11 MFG #: BLX24R/SM58-H11

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$529.00

Our Price:

$429.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    BLX24R/SM58-H11 - Overview

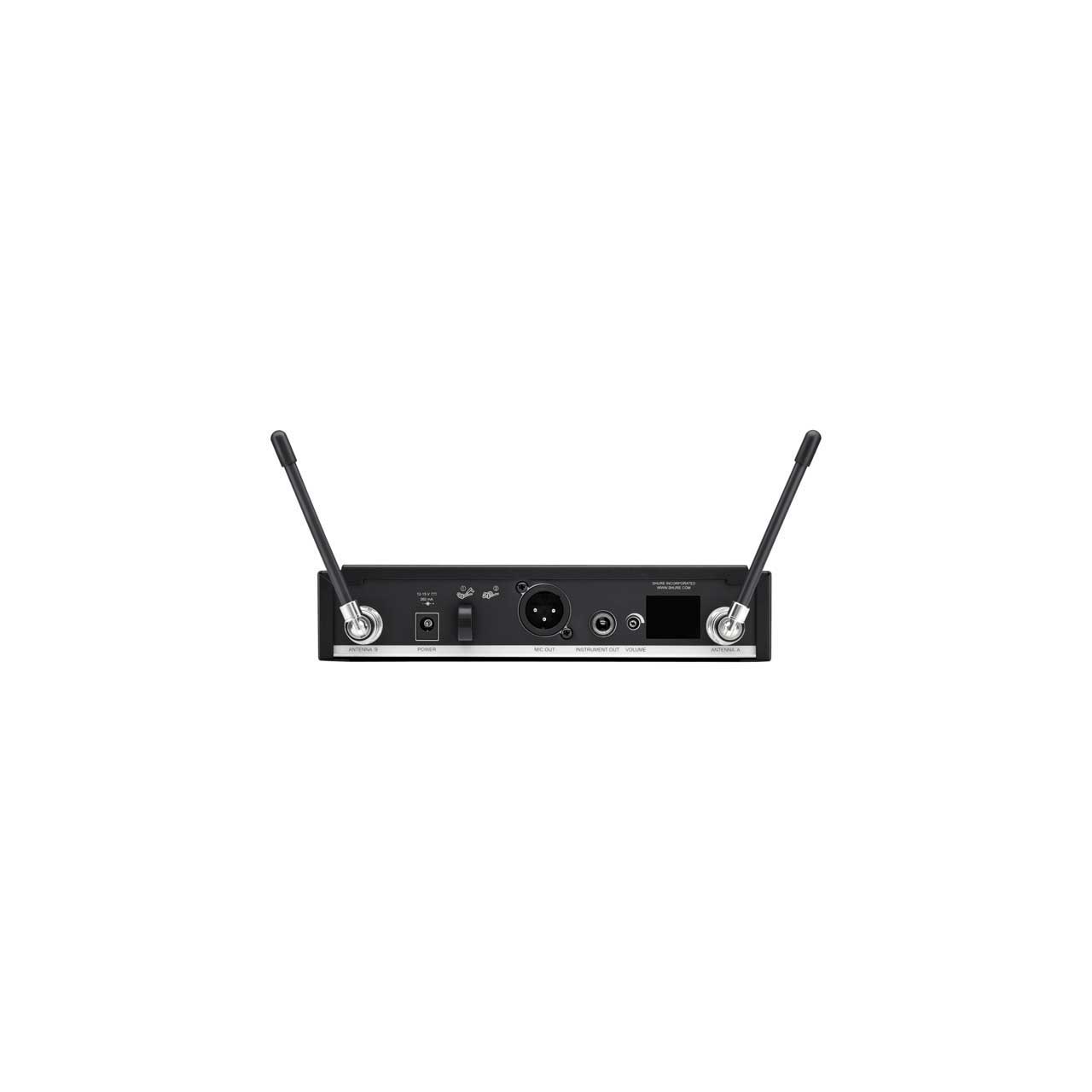

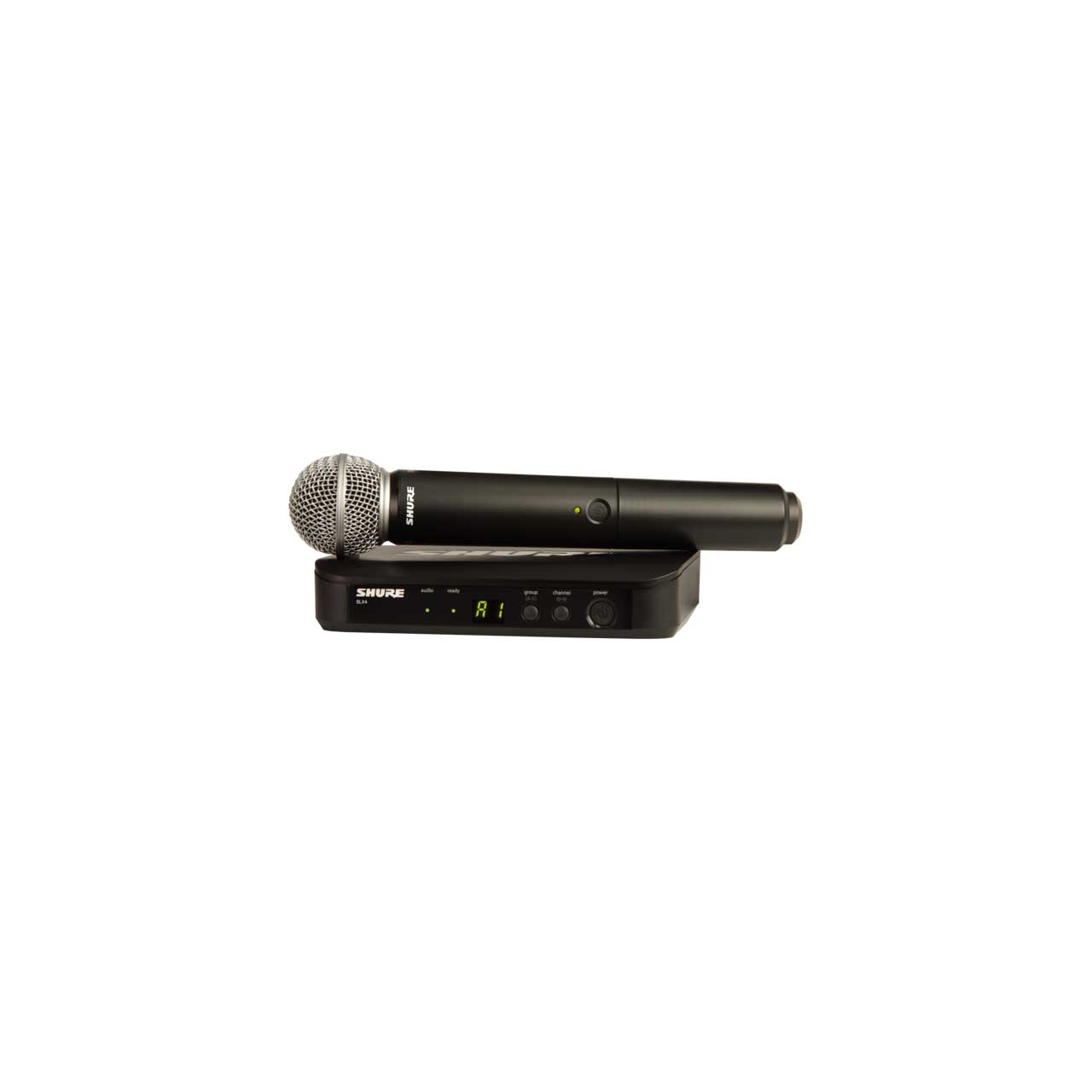

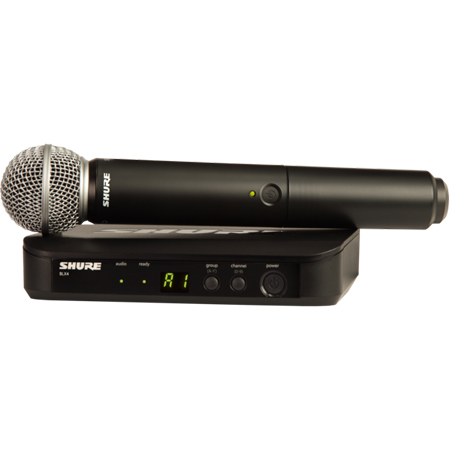

    The Shure BLX24R/SM58 brings performers and presenters a cost-effective wireless handheld microphone system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the rugged BLX4R single-channel receiver with LCD display, adjustable output level, and removable antennas for rackmounting the unit-ideal for sound-reinforcement applications in small venues, wedding halls, and houses of worship.

    Classic SM58 Mic Capsule Optimized for Vocals and Speech
    The integrated SM58 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback. Its brightened midrange and bass roll-off deliver that sought-after warm and clear vocal reproduction. The built-in spherical wind and pop filter reduces plosives for clean and intelligible speech.

    Lightweight Handheld Transmitter

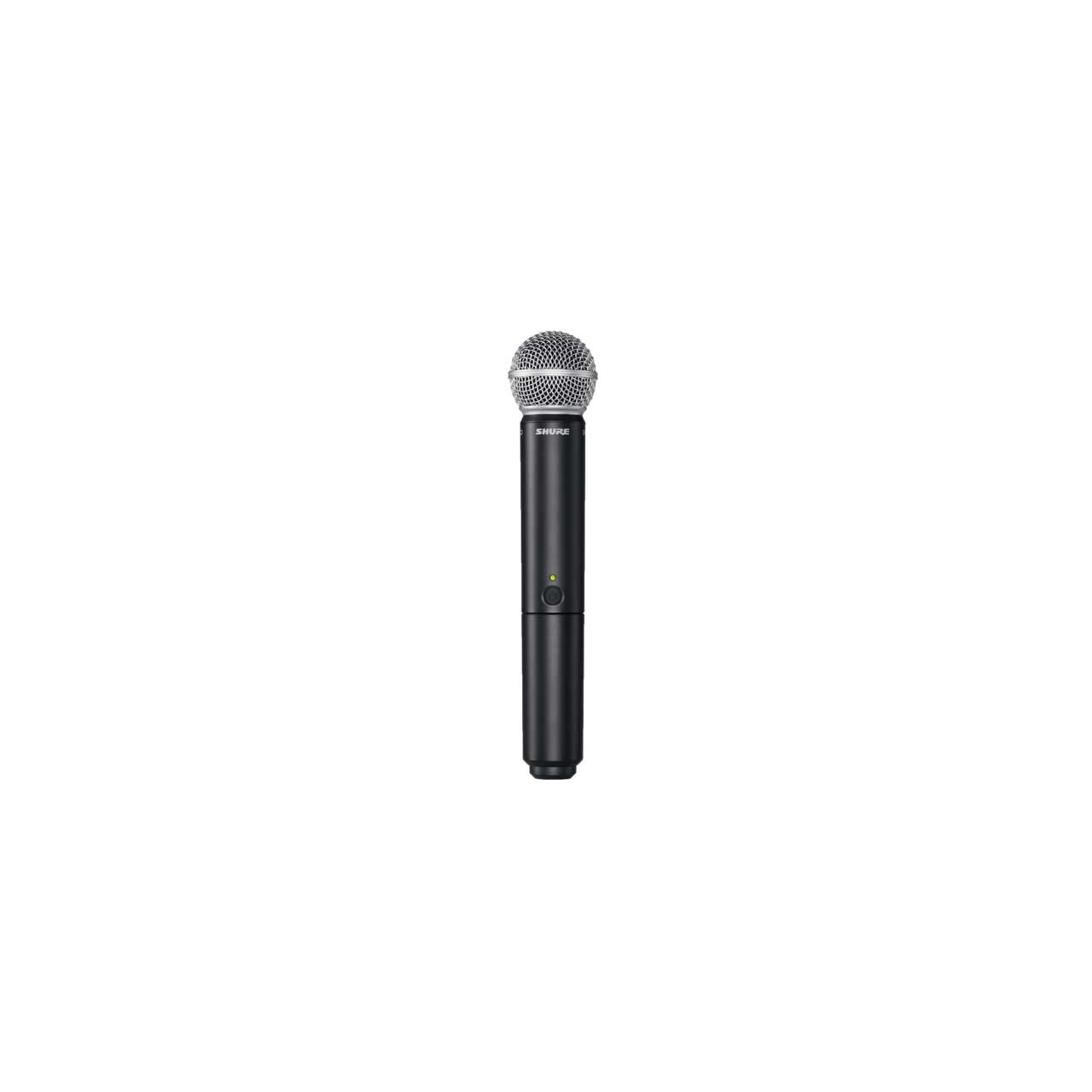

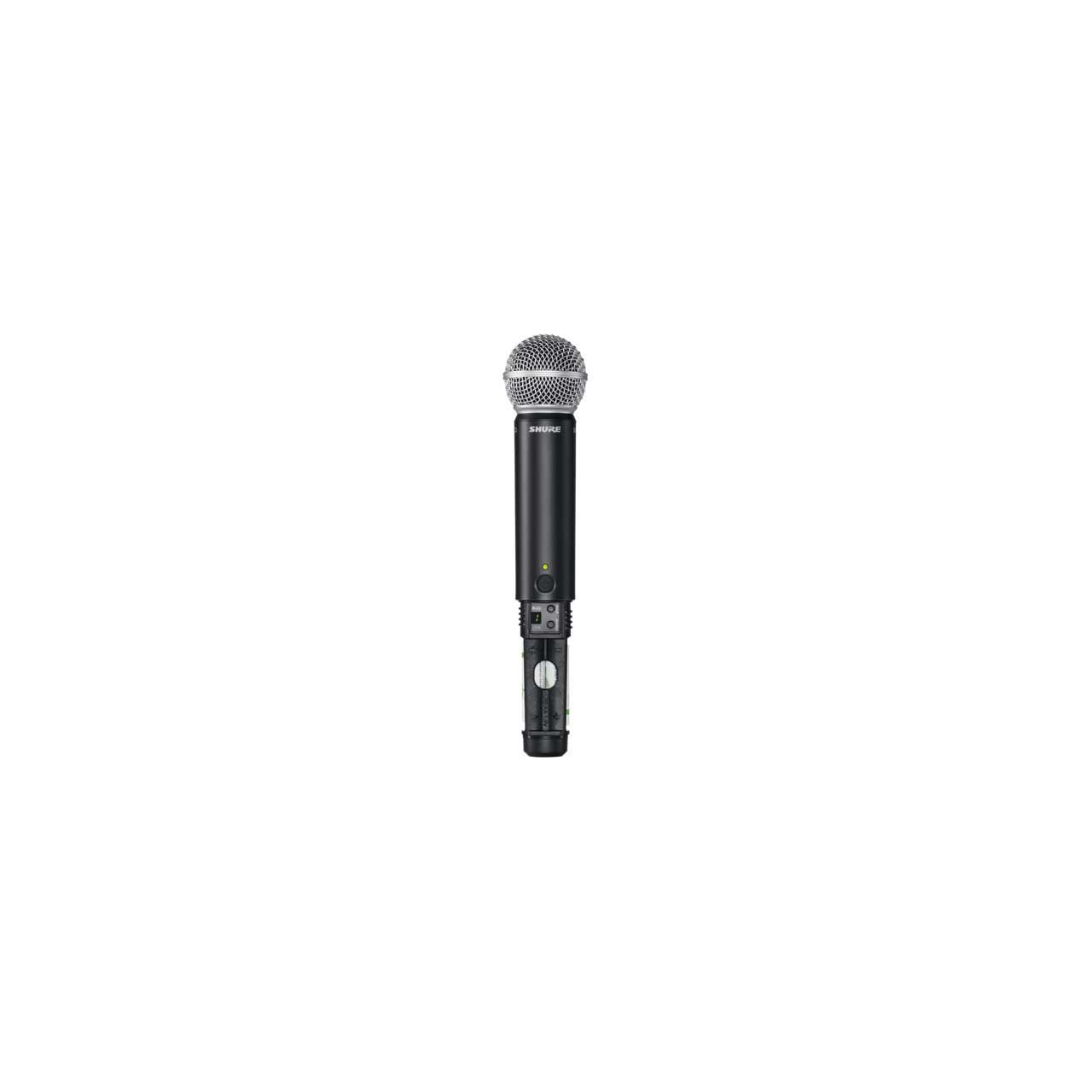

    The durable BLX2 handheld transmitter offers a lightweight, ergonomic design and is comfortable to hold. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off button, adjustable gain control, and a black identification cap. The WA621 Color ID Caps kit containing assorted colored caps is available as an optional accessory.

    A Versatile System to Meet Your Needs
    Shure offers the BLX2 handheld transmitter with a variety of mic capsules to choose from.

    • Features:

      • For Presenters and Performers
      • SM58 Cardioid Mic/Transmitter
      • Single-Channel Rackmount Receiver
      • 123 Auto-Scan Frequencies
      • Two Removable Antennas with Diversity
      • Adjustable Output Level
      • Rugged Metal Construction
      • 14-Hour AA Batteries
      • Expandable to 12 Mic Channels/300' Range

    • Specifications:

      • System:
      • Wireless Transmission: Analog UHF
      • Number of RF Channels: 123
      • Included Transmitters: 1 x Handheld
      • Diversity: Antenna Diversity
      • RF Frequency Band: H11: 572 to 542 MHz
      • RF Bandwidth: 24 MHz
      • RF Channel Scanning: Auto-Scan
      • Max Operating Range: 300' / 91.4 m (Line of Sight)
      • Max Systems per Setup: 12
      • Dynamic Range: 100 dBA

        Receiver:
      • Form Factor: Tabletop
      • Mounting Options: Rackmount (with Included Hardware)
      • Rackmount Size: 1 RU (1/2 Rack)
      • Antenna: 2 x 1/4 Wave External, Detachable (Rear-Mount)
      • Number of Audio Channels: 1
      • Audio I/O: 1 x XLR 3-Pin Male Balanced Output, 1 x 1/4" TS Female Unbalanced Output
      • Audio Output Level XLR Output: -20.5 dBV (Mic Level)
      • 1/4" Output: -13 dBV (Instrument Level)
      • Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
      • Impedance: XLR Output: 200 Ohms, 1/4" Output: 50 Ohms
      • Adjacent Channel Isolation: >50 dB
      • Power Requirements: AC/DC Power Adapter
      • AC/DC Power Adapter: 12 to 15 VDC at 260 mA, Center-Positive (Included)
      • Display & Indicators: 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level), 1 x LED (Transmitter Battery
        Status)
      • Housing: Steel
      • Dimensions: 7.8 x 2 x 6.4" / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
      • Weight: 35.2 oz / 998 g

        Transmitter:
      • Form Factor: Handheld
      • RF Output Power: 10 mW
      • Audio I/O: None
      • Muting: Off/On Switch
      • Auto-Level Control: No
      • Gain Range: -20 to -10 dB
      • Sync Method: Manual
      • Antenna: 1 x Internal (Handheld)
      • Power Requirements: Battery
      • Battery Type: 2 x AA (Included)
      • Approx. Battery Life: 14 Hours (Alkaline)
      • Display & Indicators: 1 x Multi-Segment LED (Channel, Group), 1 x LED (Battery Status, Power)
      • Housing: ABS
      • Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
      • Weight: 7.7 oz / 218 g (without Batteries)

        Microphone:
      • Form Factor: Handheld Capsule
      • Sound Field: Mono
      • Capsule: Dynamic
      • Polar Pattern: Cardioid
      • Frequency Range: 50 Hz to 15 kHz
      • Sensitivity: -54.5 dBV/Pa

        Packaging Info:
      • Package Weight: 6.895 lb
      • Box Dimensions (LxWxH): 18.3 x 14.9 x 3.8"

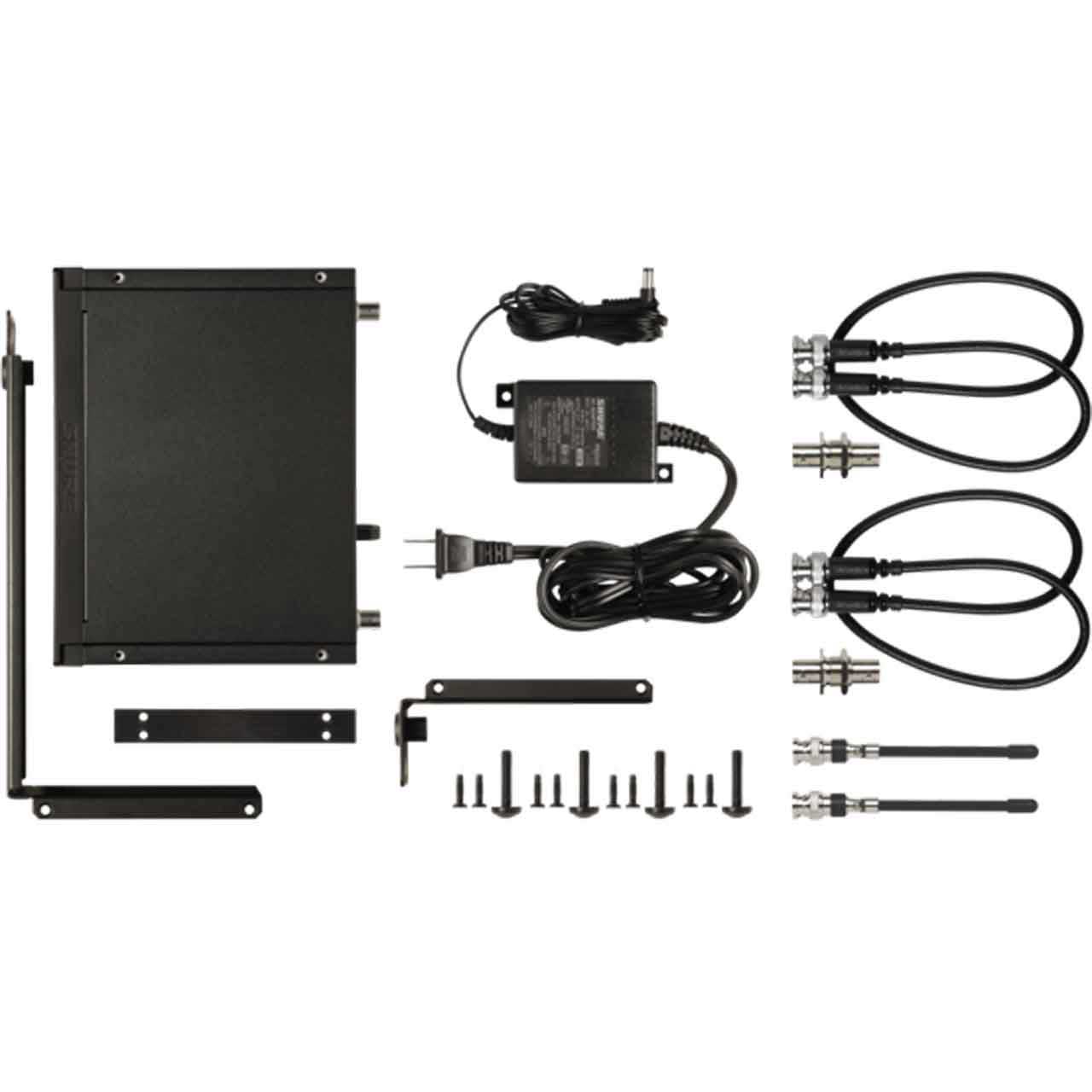

    • Item Includes:

      • 1x Shure BLX4R Rackmount Wireless Receiver (H11: 572 to 596 MHz)
      • 1x Shure BLX2/SM58 Handheld Wireless Microphone Transmitter with SM58 Capsule (H11: 572 to 596 MHz)
      • 1x Microphone Clip
      • 2x Antennas
      • 2x BNC Antenna Adapters
      • 2x BNC Antenna Cables (22")
      • 1x Hardware Mounting Kit
      • 1x Short Rackmount Bracket with Link Bar
      • 1x Long Rackmount Bracket
      • 2x AA Batteries
      • 1x Shure PS24US Power Supply for Select Wireless Receivers
      • 1x Padded Zipper Case

    • GTIN:

      0042406470704
