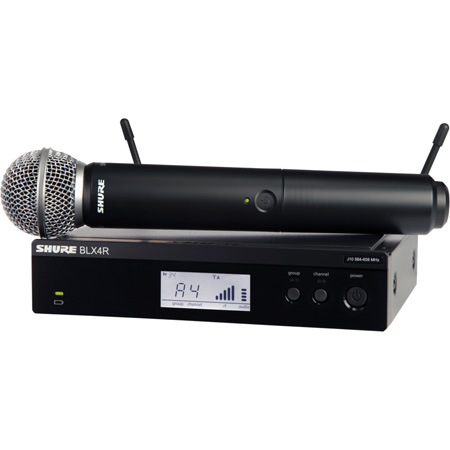

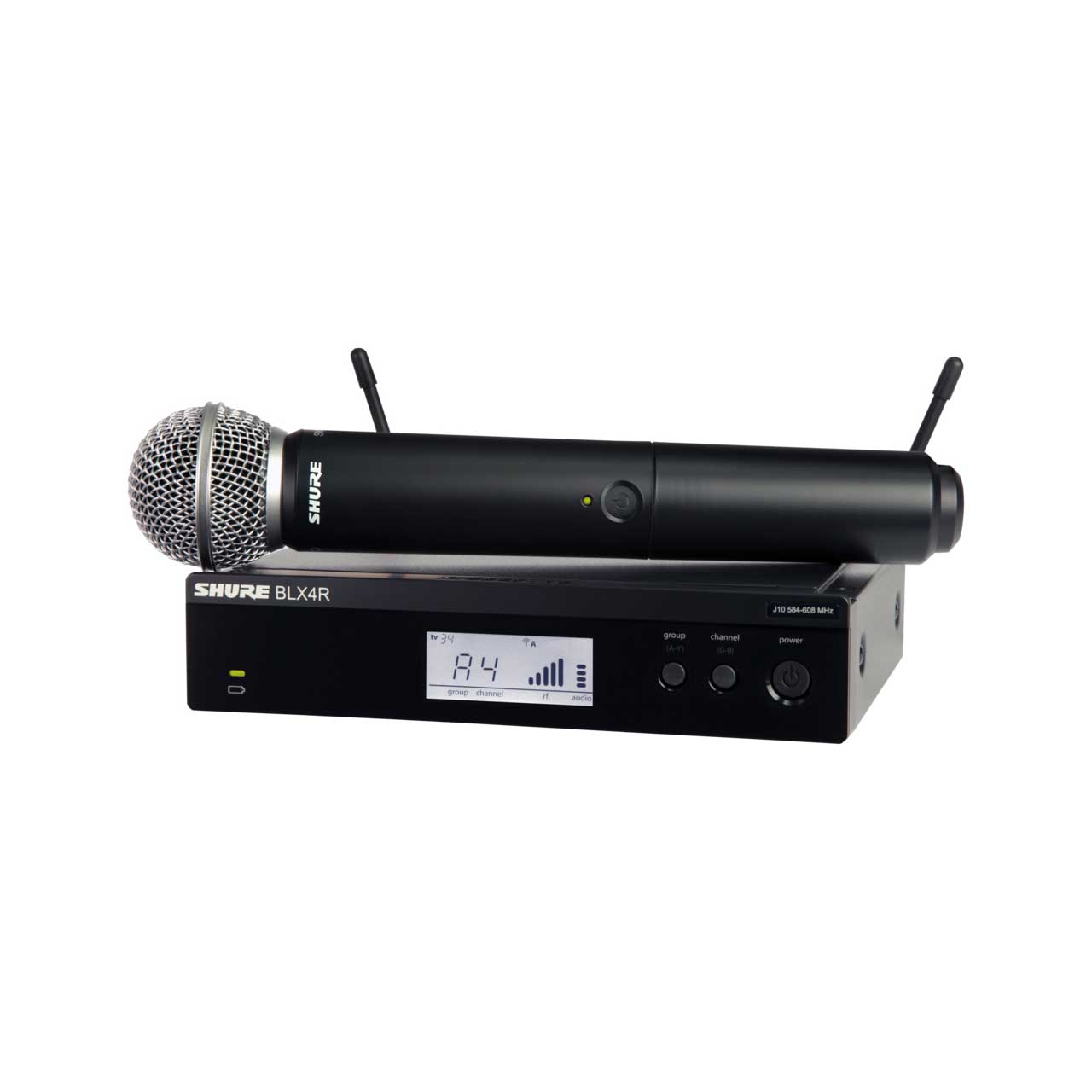

Shure BLX24R/SM58-J11 SM58 Handheld Wireless Microphone System - J11 596 - 616 MHz

BLX24R/SM58-J11 - Overview

• Features:

  • Up to 12 compatible systems per frequency band (region dependent)
  • Microprocessor-controlled internal antenna diversity
  • One-touch QuickScan frequency selection quickly locates the best frequency
  • 1/4" and XLR audio outputs
  • Two color audio status indicator LED
  • Power and battery status LED
  • Adjustable gain control
  • Quick & easy frequency matching
  • 2 AA batteries (included) provide
  • up to 14 hours of continuous use
  • 300 feet (91 m) operating range


• Specifications:

  • System
  • Working Range: 91 m (300 ft) Line of Sight
  • Audio Frequency Response: 50 to 15,000 Hz
  • Total Harmonic Distortion: Ref. +/-33 kHz deviation with 1 kHz tone, 0.5%, typical
  • Dynamic Range: 100 dB, A-weighted, typical
  • Operating Temperature: -18°C (0°F) to 57°C (135°F)
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive

    BLX24
  • Audio Input Level: Max: -16 dBV Maximum, Min: +10 dBV Maximum
  • Gain Adjustment Range: 26 dB
  • Input Impedance: 1MΩ
  • RF Transmitter Output: 10 mW, typical
  • Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
  • Weight: 2.6 oz. (75 g), without batteries
  • Housing: Molded ABS
  • Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
  • Battery Life: up to 14 hours (alkaline)

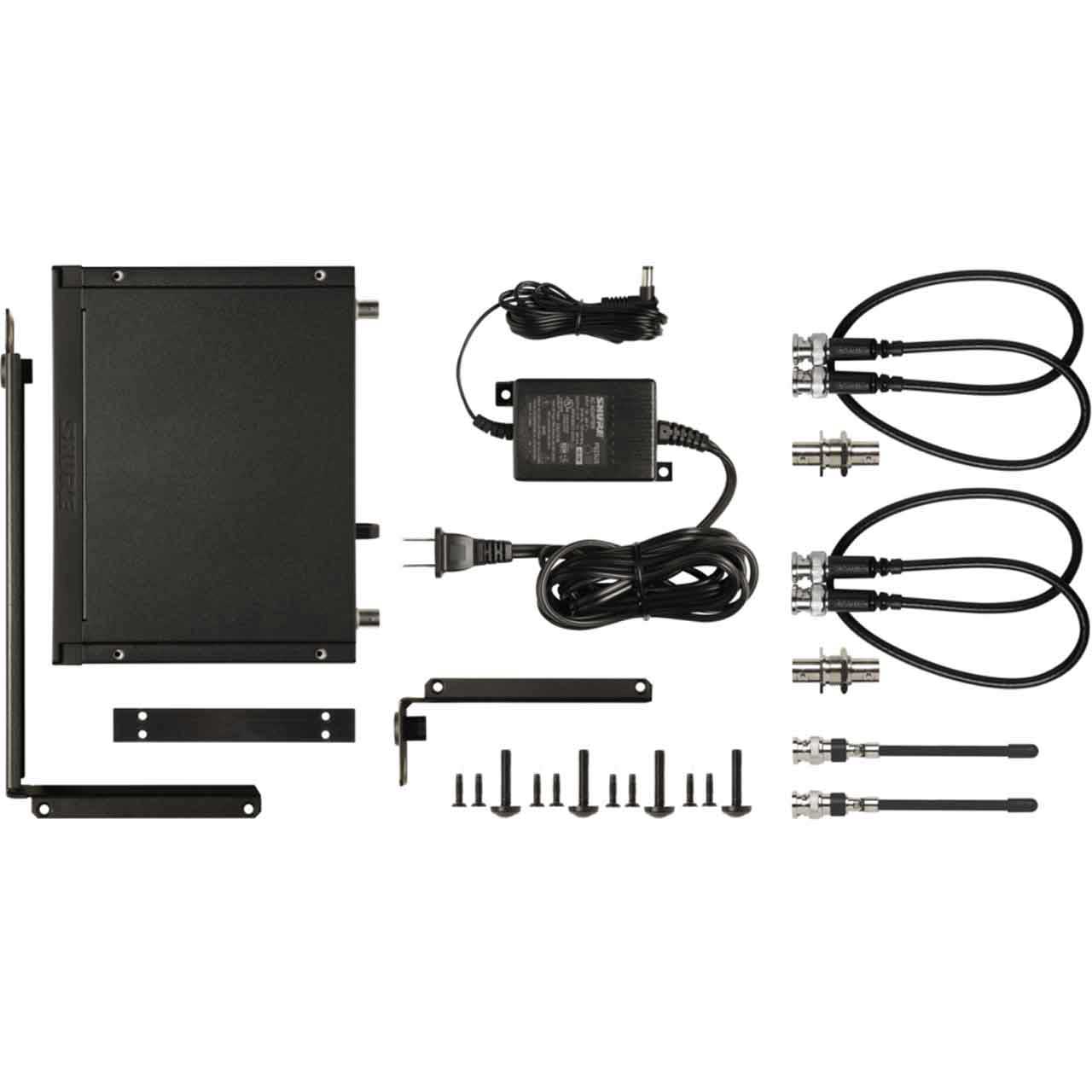

• Item Includes:

  • 1x 53A8611 RACK MOUNT BRACKET
  • 1x 53A8612 LONG RACK MOUNT BRACKET
  • 1x 53B8443 LINK BRACKET
  • 1x 90AZ8100 HARDWARE KIT
  • 1x WA371 Swivel Adapter
  • 1x 31B1856 Thread Adapter
  • 2x 95A8699 ANTENNA/BNC,1/4 WAVE
  • 2x 95A8994 ADAPTER,BULKHEAD,BNC
  • 1x 95B2313 BAG VINYL, ZIPPERED
  • 2x 95K2035 CABLE,BNC,22 in.
  • 1x Power Supply


• GTIN:

  0042406555500
