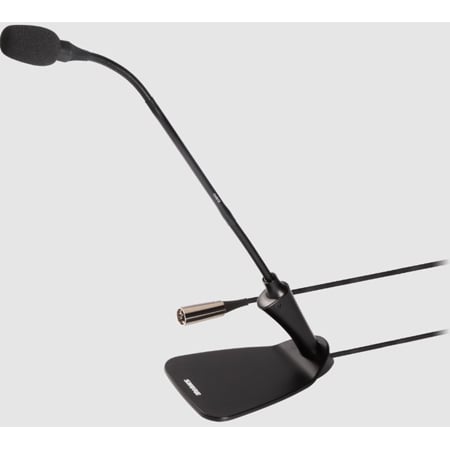

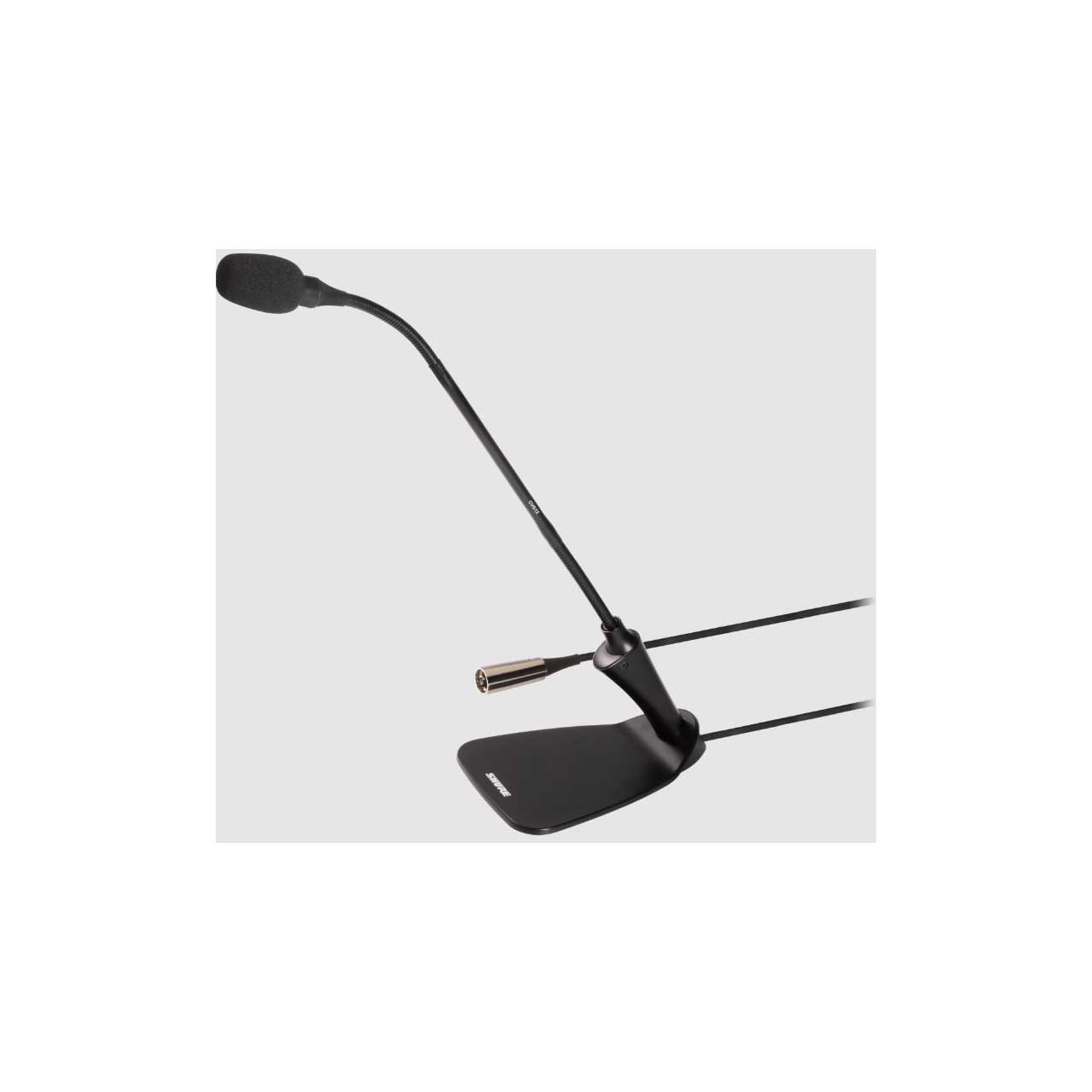

Shure CVG12D-B/C Gooseneck Mic Black with Base - 12-Inch

ITEM #: SH-CVG12D-B-C MFG #: CVG12D-B-C

Primary Image
Shure Inc
Free Shipping with $49 Minimum Order

List Price:

$254.00

Our Price:

$181.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    CVG12D-B-C - Overview

    Shure CVG12D-B/C is a gooseneck cardioid microphone that consists of integrated desktop base, inline preamplifier, LED lighting for use in installed sound reinforcement or conferencing. This microphone features a dual-section gooseneck for positioning and Commshield RF filtering for interference.

    Centraverse™ Gooseneck Condenser Microphones are ideal for use in installed sound reinforcement applications, including corporate facilities, houses of worship, and government institutions.

    CVG12D features a cardioid polar pattern and a frequency response that is tailored for speech which, together, maximize intelligibility in speech while reducing ambient room noise and feedback. Designed with dual gooseneck sections for full articulation and an integrated base for precise positioning.

    Featuring CommShield® Technology, which guards against unwanted RF interference from portable wireless devices, Centraverse microphones deliver in best-in-class performance and reliability.

    • Features:

      • Electret condenser microphone with inline preamp
      • Integrated desktop base
      • Cardioid polar pattern with tailored response for speech maximizes intelligibility in speech while reducing the chance for feedback
      • Equipped with CommShield Technology, which is resistant to unwanted RF interference and radio signals
      • Dual-section gooseneck enables ease of positioning and placement
      • Best-in-class performance, construction and design
      • Includes integrated 12' (365 cm) cable with plug-and-play XLR termination that minimizes setup time
      • Available in three configurations:
        With inline preamp (CVG12D, CVG18D)
        With inline preamp, mute switch, and LED indicator (CVG12DS, CVG18DS)
        With inline preamp, mute switch, and light ring indicator (CVG12DRS, CVG18DRS)


    • Specifications:

      • Cartridge Type: Electret Condenser
      • Frequency Response: 70-16000 Hz
      • Polar Pattern: Cardioid
      • Output Impedance: 180 Ω
      • Sensitivity (at 1 kHz , open circuit voltage): -33 dBV/Pa (22 mV)
      • Maximum SPL (1 kHz at 1% THD): 120 dB SPL
      • Signal to Noise Ratio (referenced at 94 dB SPL): 67 dB
      • Dynamic Range: 93 dB
      • Self Noise (equivalent SPL, A-weighted, typical): 27 dB SPL
      • Common Mode Rejection (10 Hz to 100 kHz): >45 dB
      • Preamplifier Output Clipping Level (1% THD): -7 dBV
      • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
      • Power Requirements:
        CVGD: 11-52 V DC, 2.0 mA
        CVGD/S: 11-52 V DC, 5.5 mA
        CVGD/RS: 11-52 V DC, 5.0 mA
      • Environmental Requirements:
        Operating Temperature: 0° to 135°F (-18° to 57°C)
        Storage Temperature: -20° to 165°F (-29° to 74°C)
      • Relative Humidity: 0 to 95%


    • Item Includes:

      • 1 x CVG12D-B/C Gooseneck Microphone with Base
      • 1 x 95A16670 Windscreen (black)


    • GTIN:

      0042406505338
